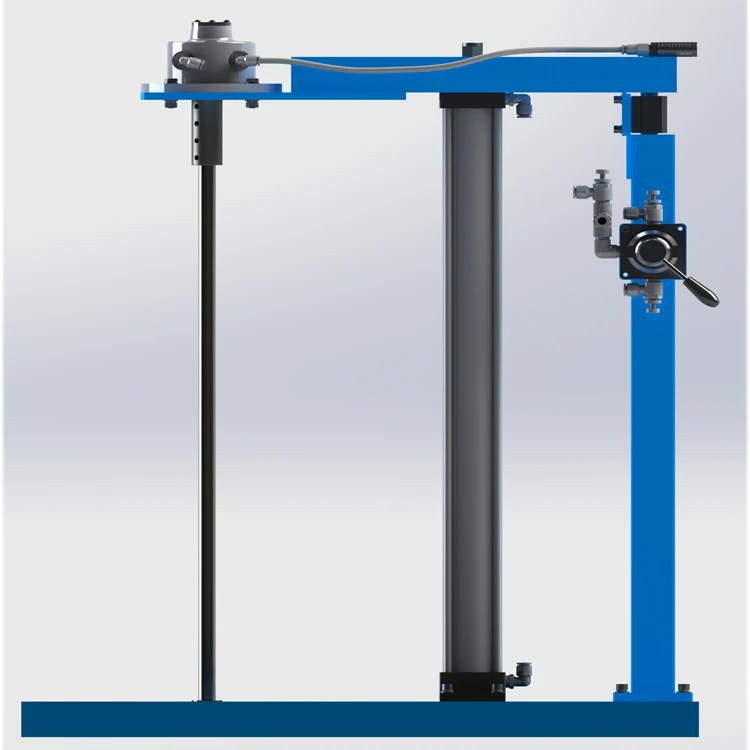

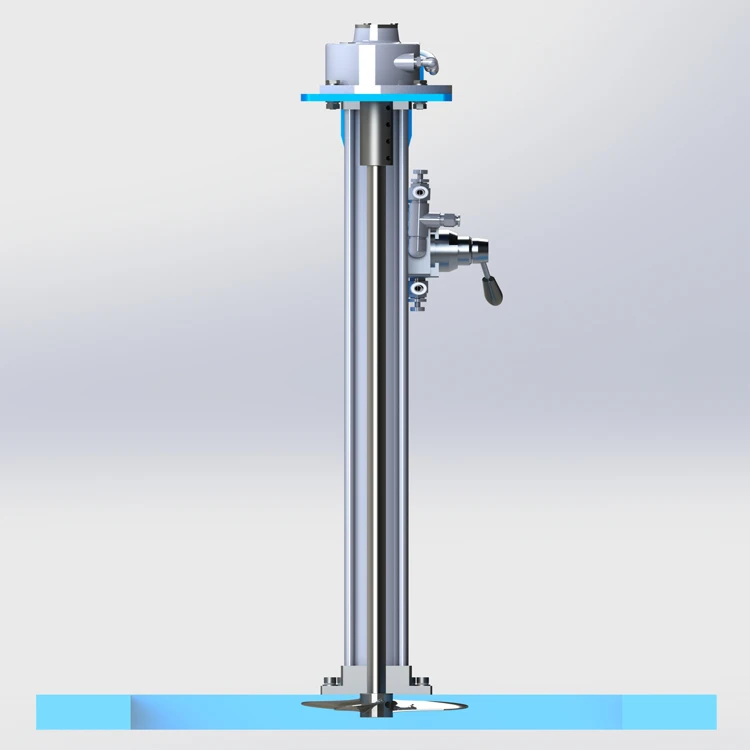

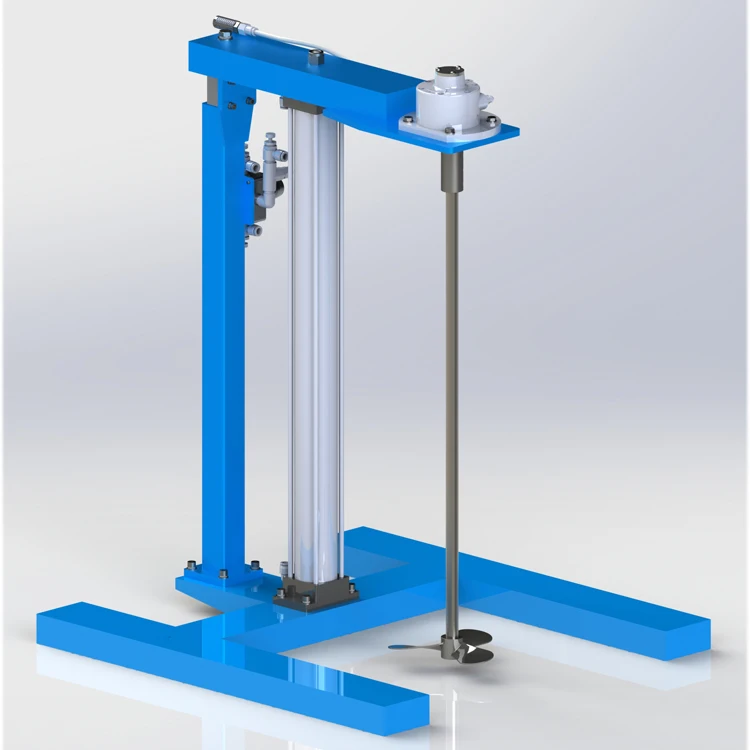

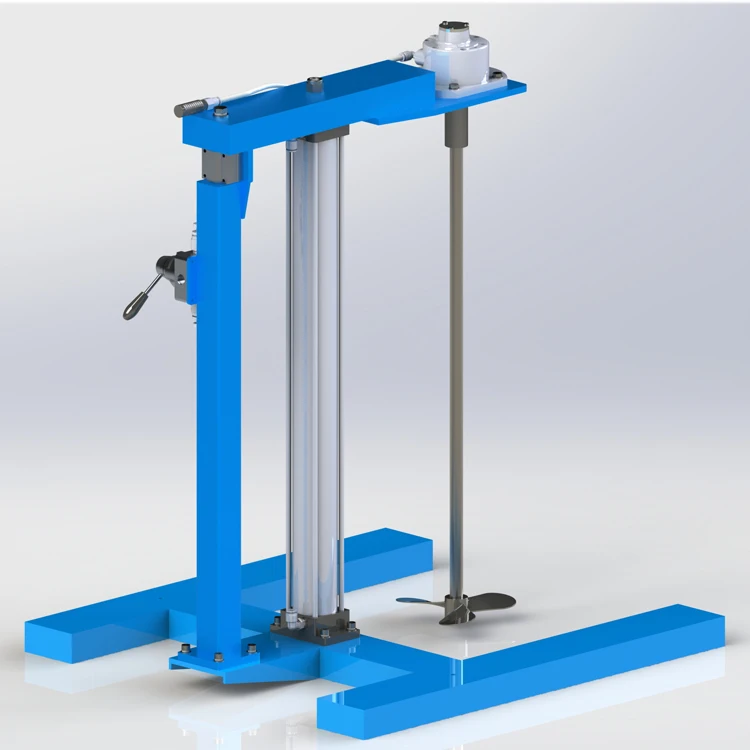

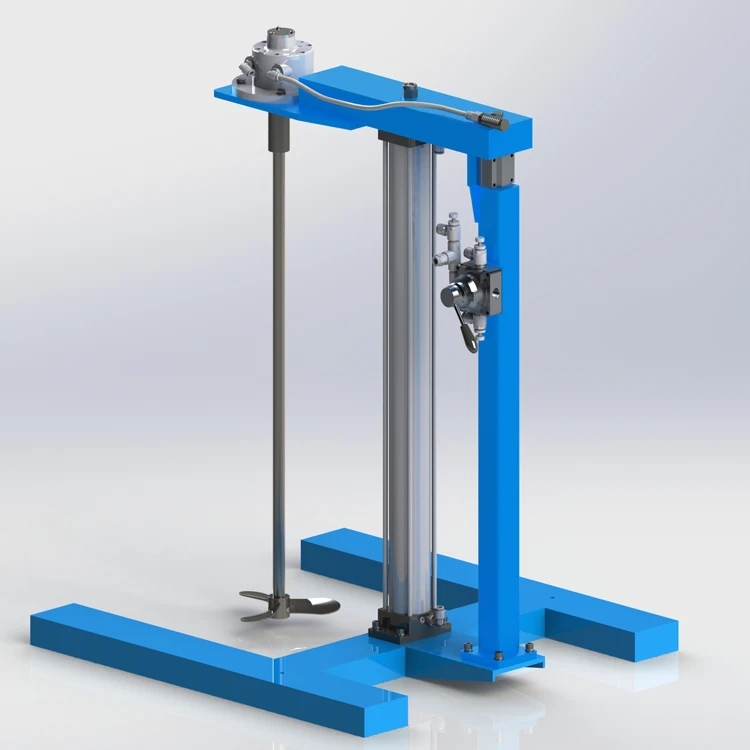

Model:HXUD
- Power type: compressed air working pressure: 0.1~0.6Mpa
- Stirring capacity: 20-100l barrels of paint, ink, glue and other chemical liquid aterials are stirred, mixed and dispersed.
- Pneumatic lifting freely adjusts the height, improves the efficiency of mixing work, and reduces labor intensity.
- Standard lifting height: 750mm off the ground after lifting (can be customized according to customer's barrel requirements)
Model | Monitor rate (HP) | Power (Kw) | Maximum speed (adjustable) (R.P.M) | Blade standard | Stirring shaft diameter (mm) | Applicable viscosity (CPS) | Drive Type |
HXUD-P2 | 1/6 | 0.125 | 2200 | A-5”*1 PC | 16*800 | Within 2000 | Piston air motor |
HXUD-P4 | 1/3 | 0.25 | 1800 | A-6”*1 PC | 16*800 | Within 5000 | |
HXUD-P6 | 3/4 | 0.56 | 1400 | A-8”*1 PC | 20*800 | Within 15000 | |
HXUD-V2 | 0.93 | 0.68 | 3000 | A-5”*1 PC | 16*800 | Within 2000 | Blade air motor |
HXUD-V4 | 1.7 | 1.3 | 3000 | A-6”*1 PC | 16*500 | Within 5000 | |
HXUD-V6 | 4 | 3.0 | 3000 | A-8”*1 PC | 20*500 | Within 10000 |
Main Features
1) Stepless speed regulation
2) Can turn forward or reverse
3) The working environment is not affected by vibration,high temperature,electromagnetic and radiation
4）The matched air motor has overload protection and will not malfunction due to overload
5) With high starting moment,it can start directly with load
6) Easy to operate and maintain
- Notes:
The maintenance and inspection of the mixer has a great influence on the service life and performance. In order to fully exert the performance, clean and dry compressed air must be used. The rust and moisture in the piping in the air compressor must be filtered and removed before use. Install filters or better triplets. Please use it under the air pressure range of 5-8kg/cm2. If the high pressure exceeds this pressure range, it will cause malfunction. If the pressure is insufficient, the performance will not be able to be exerted. In order to maintain stable performance, it must be supplied pneumatically. Tool oil, insufficient oil supply will cause the tool to heat up, causing wear, insufficient power, performance degradation, etc., greatly affecting tool life.

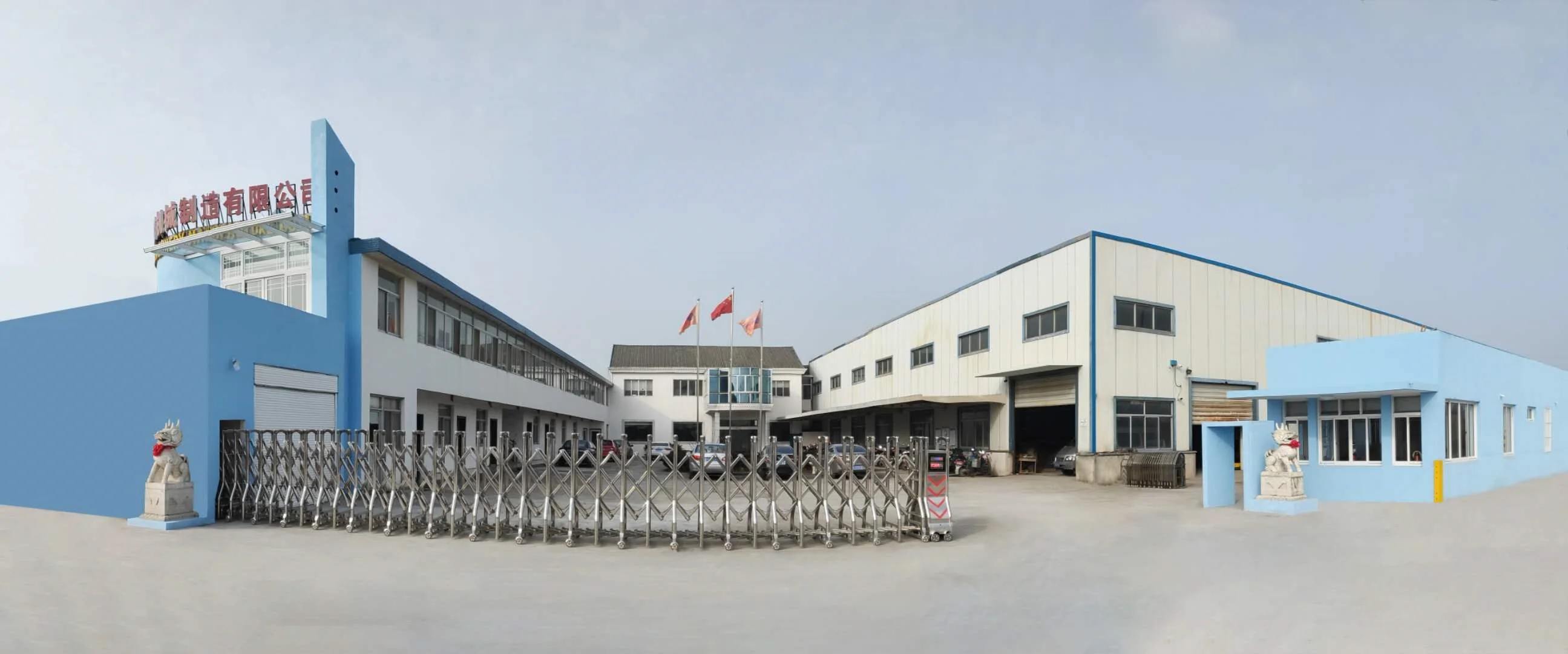

Company Profile
