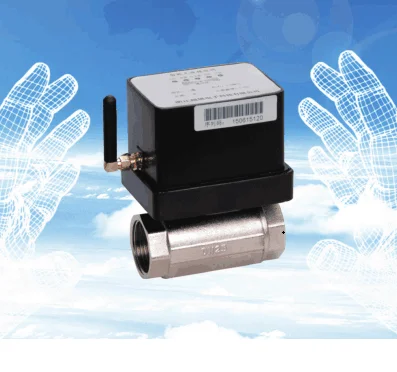

Lora Industrial wireless remote rotary control valve actuator

Product Overview

Description

The IVV57L wireless valve, using the LORAWAN wireless module, can remotely control the valve opening or closing.The product uses ST's low-power chip, 3.7V lithium battery power supply. The sleep state current is less than 5uA, and the internal lithium battery allows the device to operate continuously for more than 5 years. Wireless remote control valves are suitable for controlling non-corrosive gases or liquids, and because the lithium batteries used for the product are powered by batteries rather than external power supplies, they are not suitable for use when the ball valve is often changed.

Feature

1) Battery-powered

2) Low power consumption, up to 5 years of battery life

3) Remote automatic control, no human real-time monitoring;

4) Available in the fields of heating, chemicals, metallurgy, petroleum and power automation

Parameters







Power supply:	Built-in 3.6V non-rechargeable lithium battery power supply
Battery life	for 10 years
Standby current	6uA
Operating current	120mA
Material:	National standard brass valve body, flame retardant ABS protective cover
Valve body life	switch 100,000 times
The fitting tube segment	DN20,DN25,DN32, etc. Output torque , 9N.
Material	National standard brass valve body,
Switch valve action time	less than 30s
Communication	Lora/LoraWan Wireless
Maximum communication radius	1km
Spectrum Range	410-915 MHz
Wireless transmit power	17-20dBm
Light indicators, 5 LEDs	power light/valve on/valve off light/communication light/fault light, standby LED lights off, keys to show the appropriate status
Use water temperature range	2 to 95 degrees C
