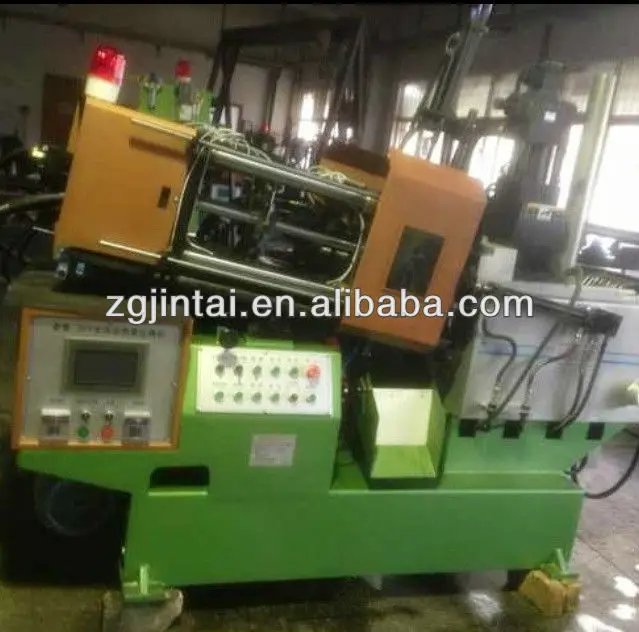

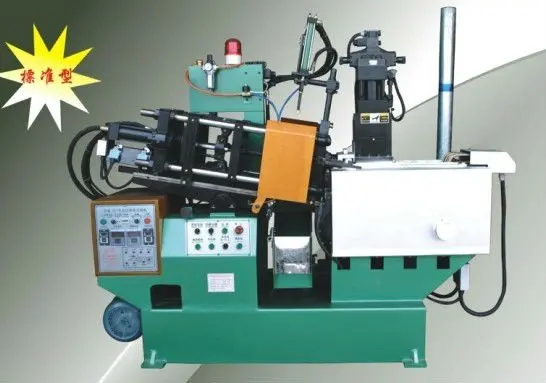

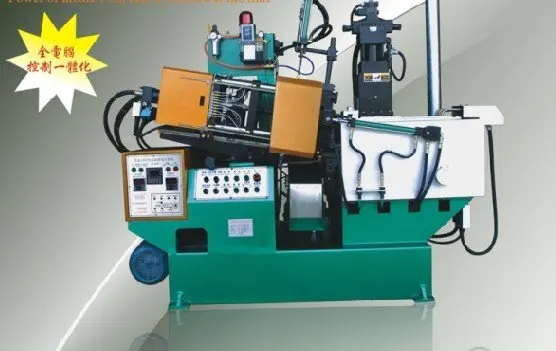

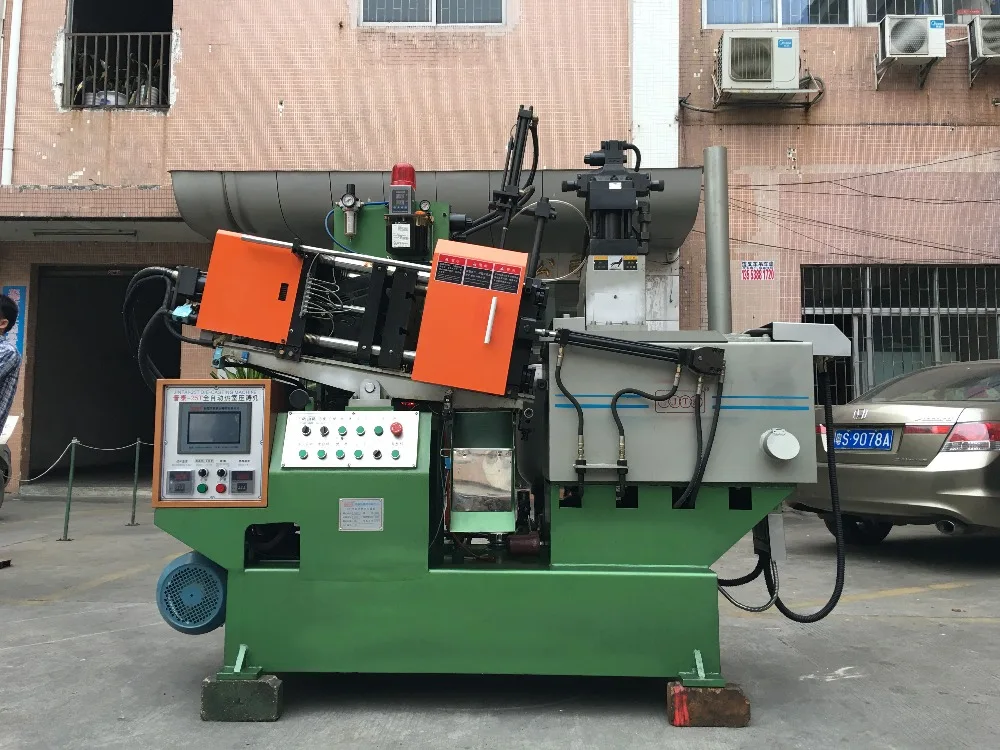

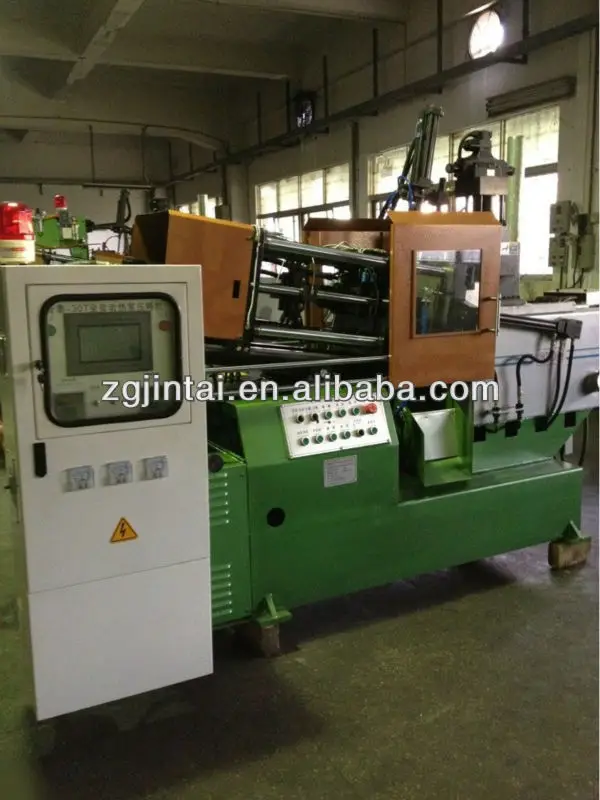

new condition zinc alloy die casting machine

Product Overview

Description

Product description:

Commodity	die casting machine
Size & type	25T hot chamber die casting machine
Dimension	2500*1000*1900
Packing	Wooden case
Payment terms	T/T,Western Union,Paypal are available
M.O.Q	1 set
Weight	1.4 ton

Technical data of the machine:

Item	Unit	Specification	Item	Unit	Specification
Clamping force	KN	200	Volume  of Crucible	Kg	85
Diameter of Di-cylinder	mm	55	Oil  Pump Flow	L/min	36
Tie Bar Diameter	mm	40	Accumulator Volume	L	10
Opening  Stroke	mm	130	Oil  Tank Volume	L	180
Space between Tie Bars(H*W)	mm	230*230	Dry Cycle Time	S	3.5
Die Thickness(Min~Max)	mm	120~300	Heating Power  of  Spray  Nozzle	Kw	1.2
Stroke of injection Cylinder	mm	70	Heating  Power  for Material  Melt	Kw	9-12
Diameter of Injection Plunger	mm	35~38	Fuel  oil  use  for  Material	Kg/h	1.5
Injection  Force	KN	25	Motor  Power	Kw	7.5
Diameter of  Injection  Plunger	mm	60	Hydraulic Pressure	M pa	6~8
Effective  Shot  Weight	g	150~220	Overall  Dimensions	Mm	2500*1000*1900
Traverse  Stroke	mm	220	Machine  Weight	T	1.4

The leading products in our factory:

Main features:

1 used pressure die casting machine.

2 used computer controlled automatic die casting machine.

3 high efficiency and good performance.

4 small zinc alloy hot chamber die casting machine.

5 the machine are suitable for making the metal button ,zipper head ,zipper silder ,hardware accessories and precision machinery.

The machine are suitable for making :

1 metal button                             2 metal  medal

3 zipper head                              4 zipper silder

5 precision machinery                 6 belt buckle

7 hardware accessories              8 garment accessories

The machine are suitable for making the following products:

About our factory:

jintai die casting machine  co., ltd was founded in 1990, which  specializing in making full automatic hot chamber die casting machine with the 25T ,35T,38T machine.

The machine are wildly sold in many areas such as :Guangdong, Zhejiang, Fujian,Shandong,Hebei and overseas Germany, Vietnam, Bangladesh ,Malysia ,India and etc .

Due to fine quality and competitive price and our honest dealing ,many client give high reputation.
