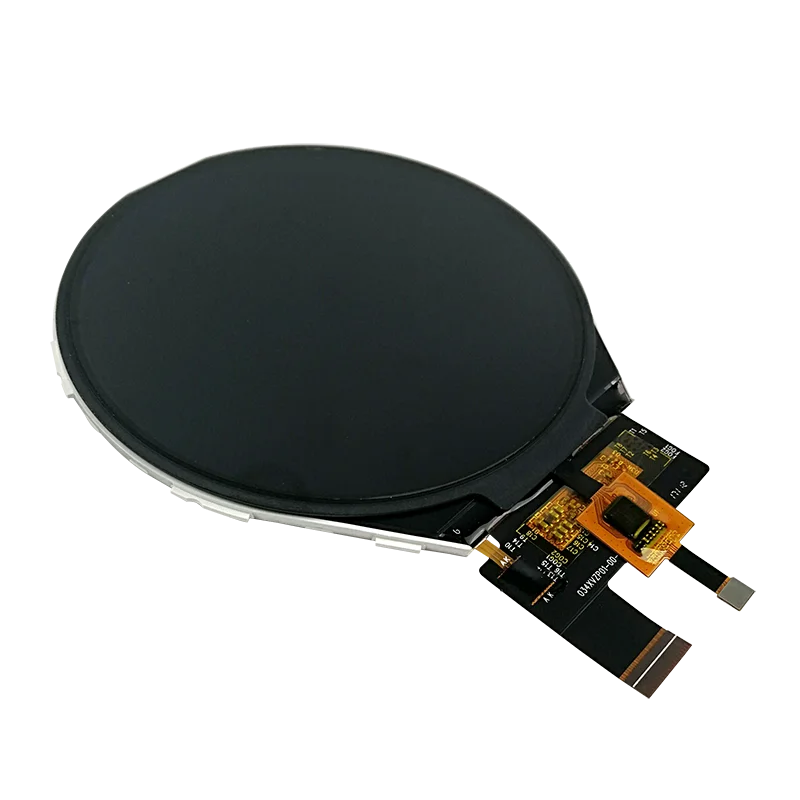

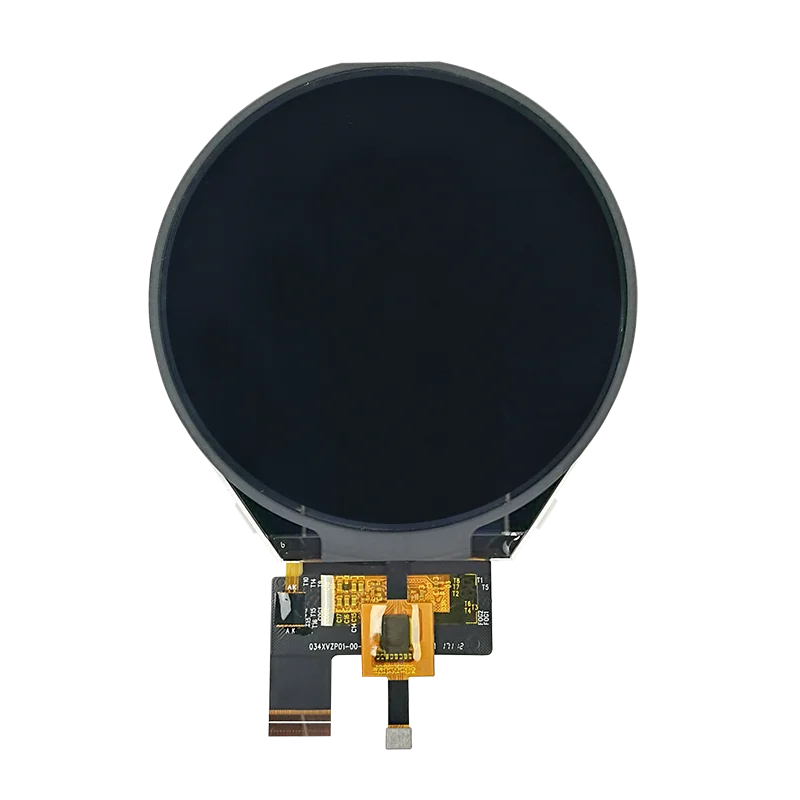

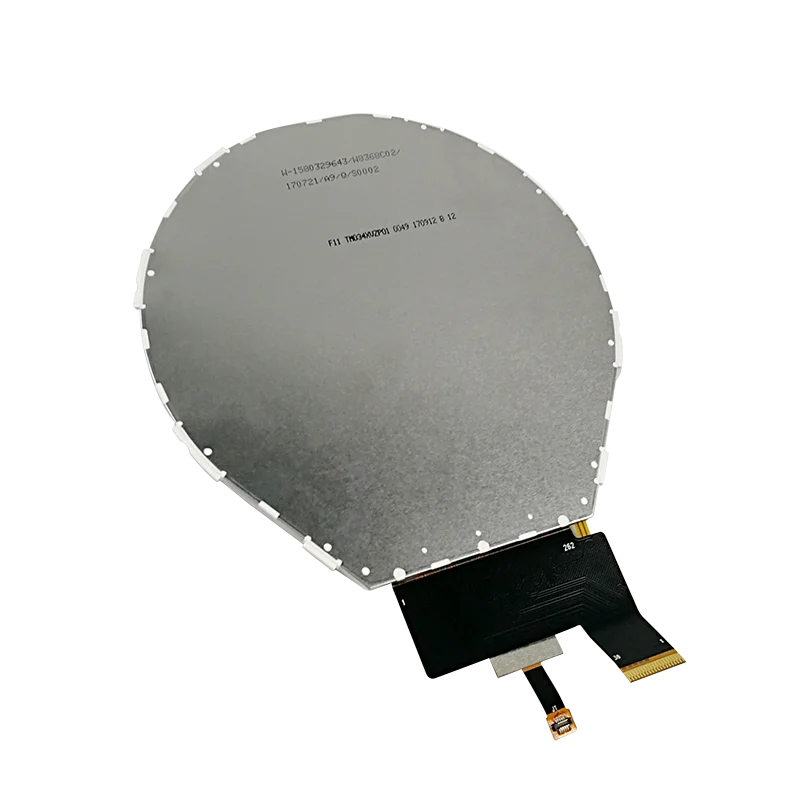

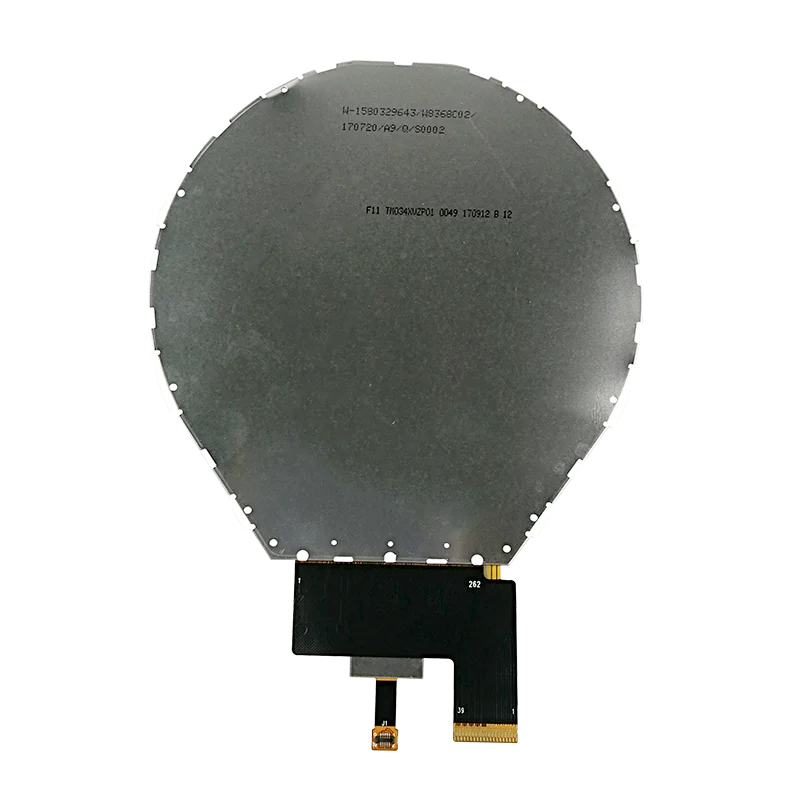

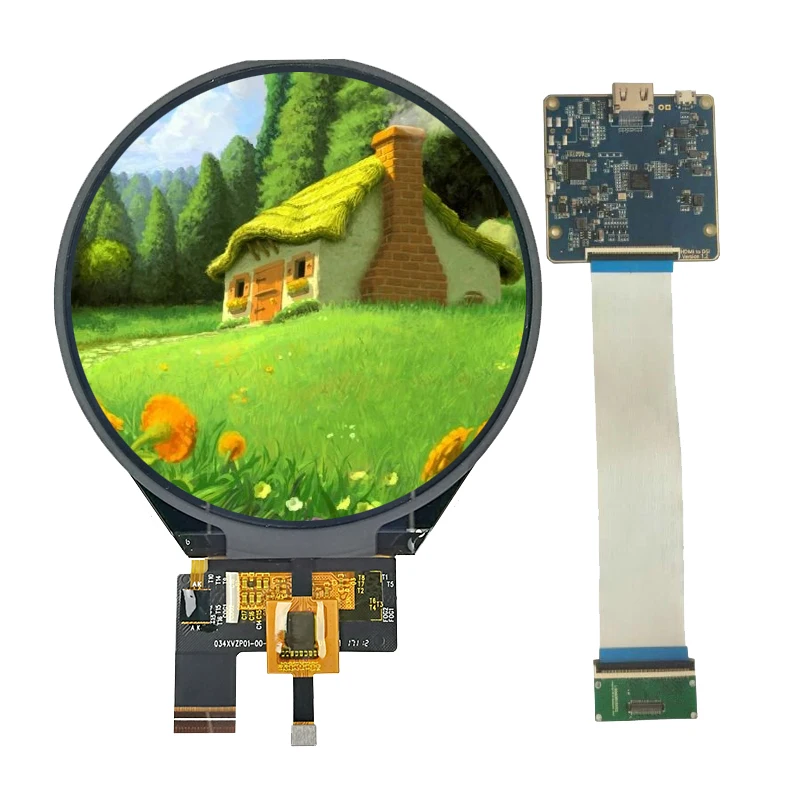

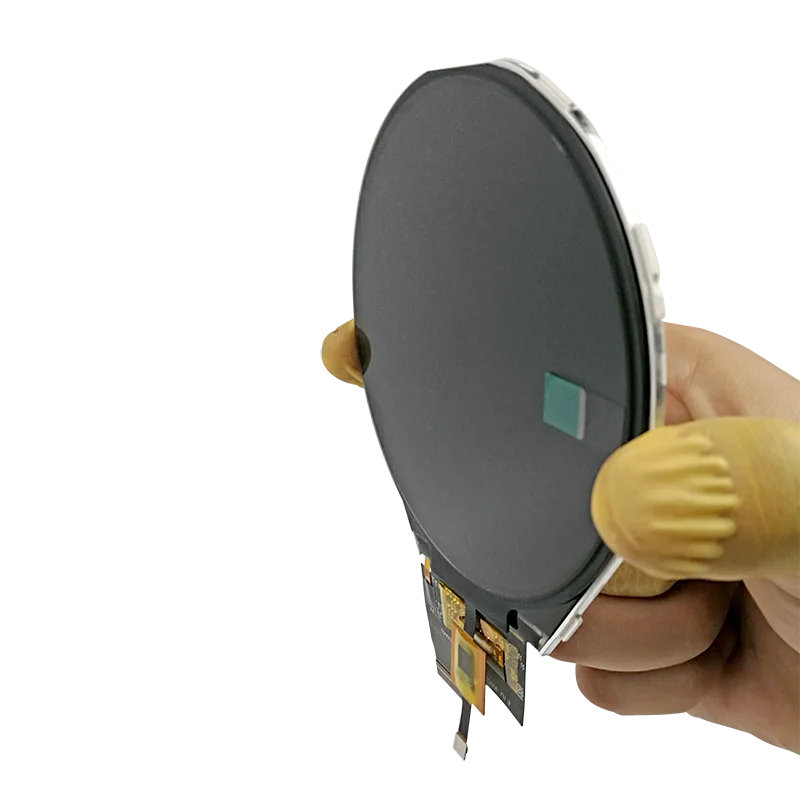

Circle lcd display 3.4 inch round tft display with hdmi to mipi board and capacitive touch screen panel

1. Display Type:

IPS 3.4 inch round tft

2. Display mode:

Transmissive

3. Resolution:

800x800 dots

4. LCD Driver IC&CTP Driver IC  :

ILI9881C/HX8526-E30

5. Outline Dimensions:

99.0 x 96.6 x 3.98mm

6.Luminous Intensity for LCM

350Cd/m2

7. LCD & CTP Interface Type:

MIPI 3 lane+IIC

8. Backlight:

White 8 LEDs

9. Operating voltage:

+1.75V~3.3V

10. Viewing Angle:

Full Viewing angle

11. Operating Temp:

-10°C~+70°C

12. Storage Temp:

-20°C~+80°C
