Driving Assistance Terminal
AEC-Q100 Vehicle Industrial Grade
Appearance Highly Science-Fiction
Safety Warning Accurate & Timely

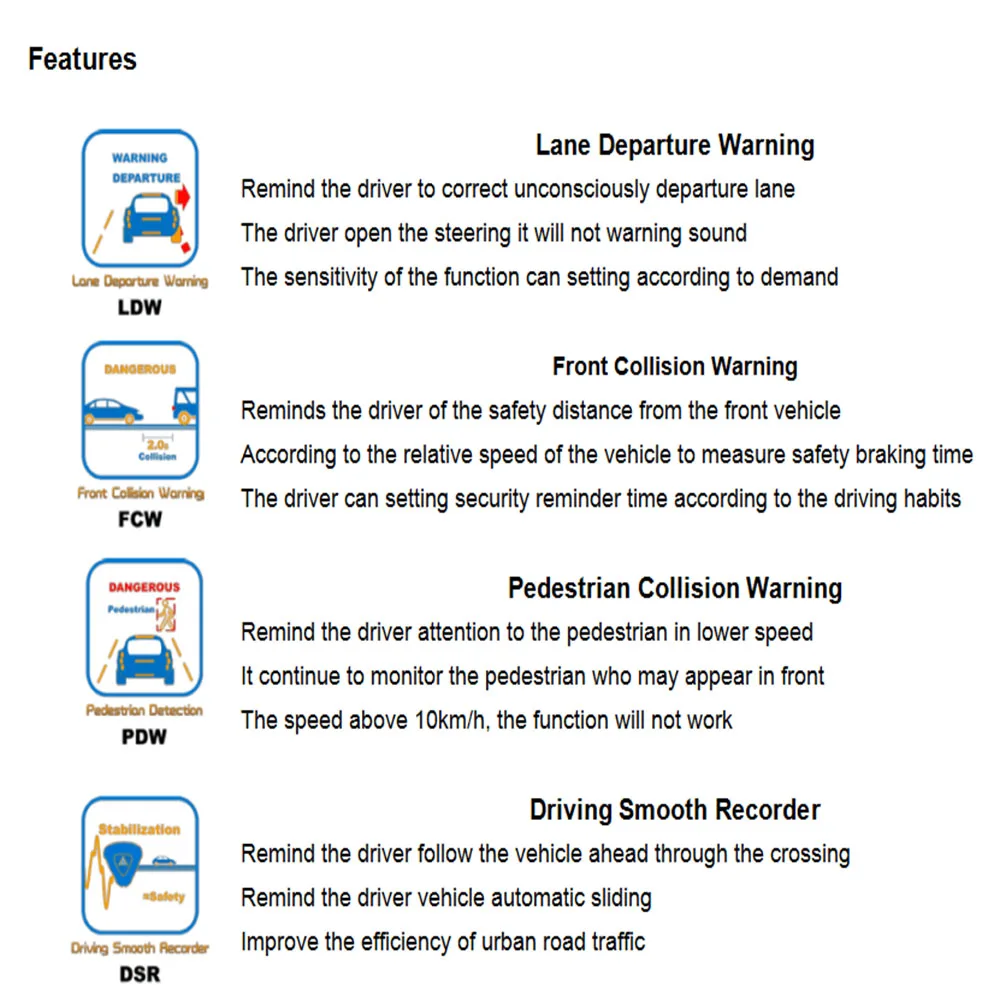

Lane Departure Warning
Remind the driver to correct unconsciously departure lane
The driver open the steering it will not warning sound
The sensitivity of the function can setting according to demand
Front Collision Warning
Reminds the driver of the safety distance from the front vehicle
According to the relative speed of the vehicle to measure safety braking time.
The driver can setting security reminder time according to the driving habits.
Advanced Driver Assistance Systems (ADAS) Driver Safety Warning Alarm System
Parameter:

Item	Parameter	Performance
Name	Module	DAT QH-AD20
Video	Sensor	AEC-Q100 qualified 1/3“ megapixel color HDR OV10635 sensor
	Effective Pixels	HD 720P 1280×720, Active array size 1280×800
	Signal Standard	Voltage:1.0Vp-p, Input / Output Impedance:75 Ohm
	Video Standard	PAL Mode, NTSC Mode
	Image Transfer Rate	25 Frame / Sec PAL, 30 Frame / Sec NTSC
	Low Light Sensitivity	best-in-class of 3650 mV / Lux-Sec
	Lens	6mm short back focal length anti-halation filter lens
	View Angle	Horizontal 54.9±5%degree, Vertical 30.8±3%degree
Audio	Audio Pickup	Single microphones 12M2 voice pickup
	Audio Output	Output power 2.8Wat, PSRR(dB) 85dB
	Audio Sensitivity	-45dB
	Frequency Response	20Hz~20kHz
	Signal Processing Circuit	Clear speech professional audio processing circuit
Warning and Reminding Condition	System Base	Vehicle start displacement / Vehicle launch by the engine start
	Lane Departure Warning	Active speed is 40~80km/h, Setting on the smartphone APP
	Front Collision Warning	Active speed is 0~80km/h, Setting on the smartphone APP

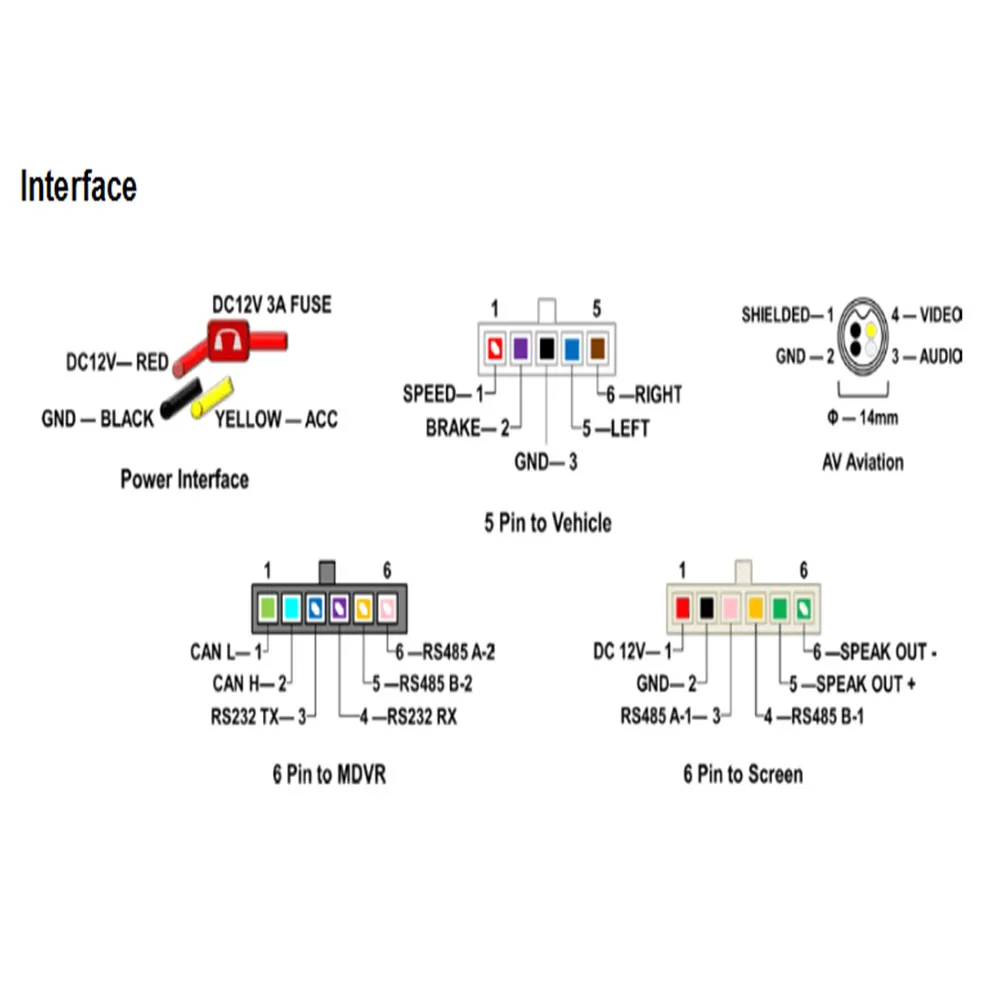

Interface	Power	DC 8~36V, Protect the vehicle battery, Max power requirements: 3.8 Watt
	Power Delay	Working 5 sec after power off to protect the system data
	ACC (Car Keys Signal)	Car Keys On> 7.5 V, Car Keys Off< 6.0 V
	Video	Aviation interface, Voltage:1.0Vp-p, Input / Output Impedance:75 Ohm
	Serial Port	1Ch RS232, The baud rate is 20Kbps, +3~+15V is 0, -3~-15V is 1 2Ch RS485, 10Mbps max transfer rate, +3~+6V is 0, -3~-6V is 1 1Ch RS485 for screen(No screen can use), 1Ch RS485 reserve

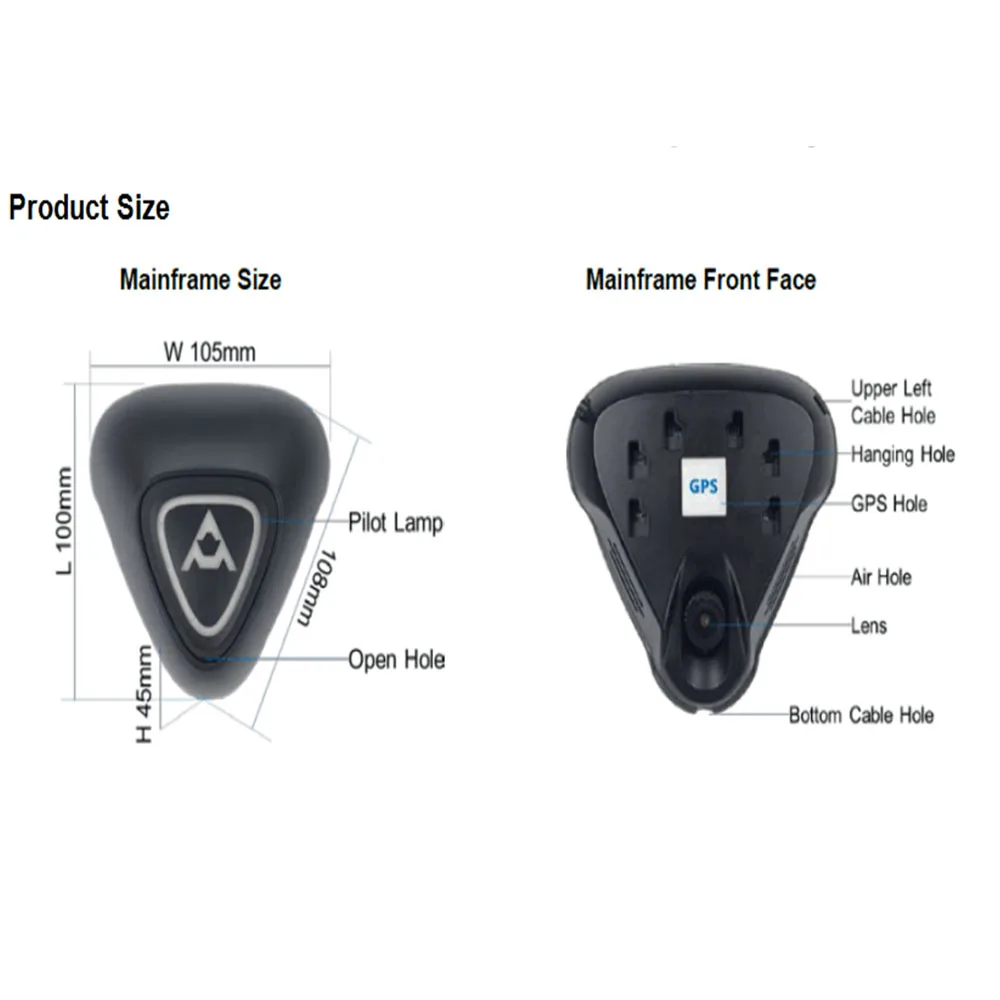

Size & Weight	Mainframe Size	L*W*H: 100*105*45 mm
	Package Size	L*W*H: 160*140*85 mm
	Mainframe Weight	250g
	Package Weight	550g
