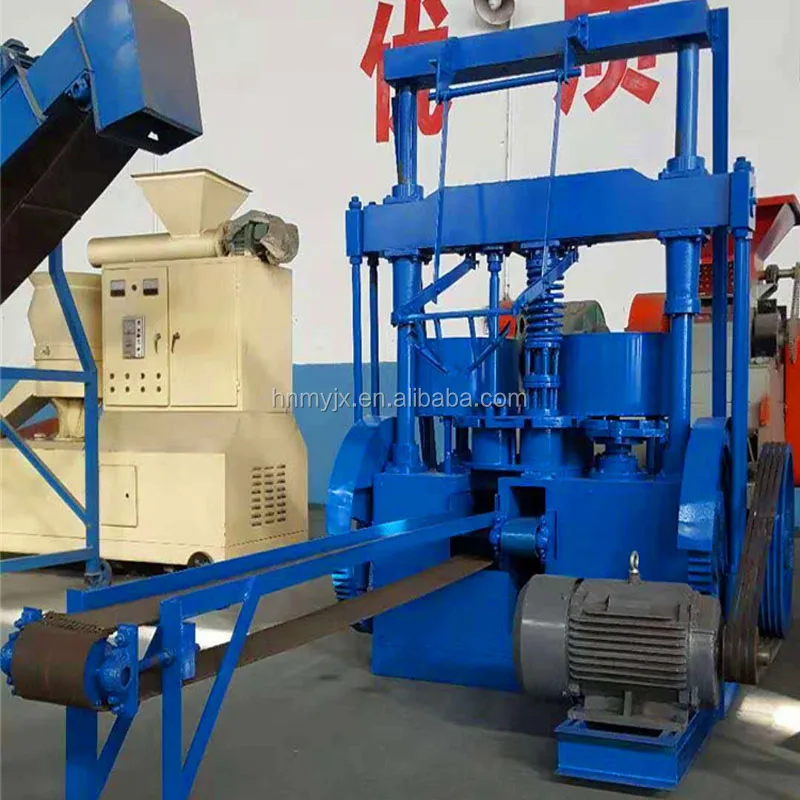

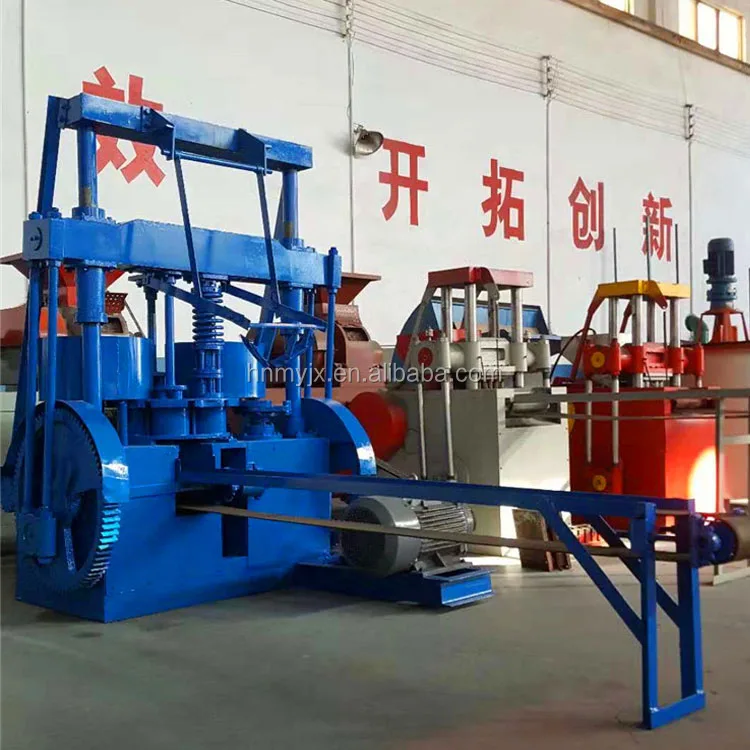

Формовочная машина с компрессором для брикетирования угля, Индия
- Category: Briquette Machines >>>
- Supplier: Gongyi Xiaoyi Mingyang Machinery Plant
Share on (62315253604):
Product Overview
Description
Product Description

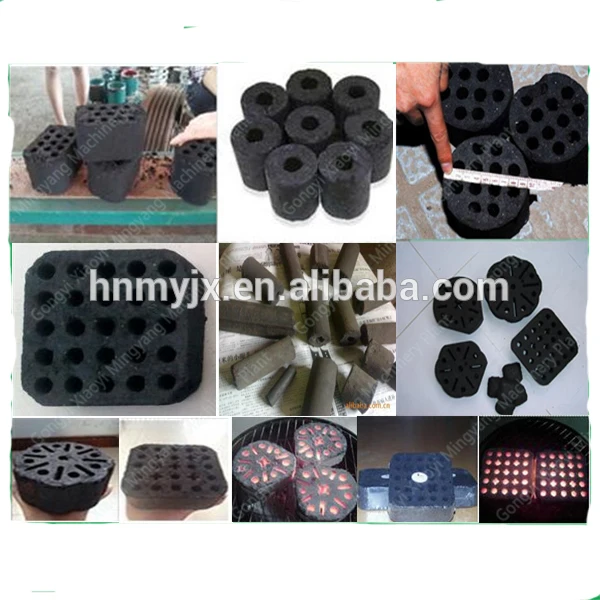

It is mainly used to make charcoal/coal briquettes. It's very popular since its higher capacity and can produce higher density charcoal briquettes than normal charcoal briquettes machine. The raw coal is processed into a briquettes that is slightly larger than the table tennis. Later, the coal is processed into a cylinder, and the cylinder has a plurality of holes to make it look like a honeycomb. Fully burn coal and reduce waste.
Structure
1.Frame: It consists of a pressure plate and an engine base to form a skeleton body.
2.Transmission part: It consists of electric motor, belt traction, gear, transmission shaft and so on.
3.Stamping parts: consisting of four sliders, sliding beam, punch, punch seat, punching needle, movable platen,movable end mode, spring and so on.
4.Conveying parts: consisting of a transmission rack, a pulley, a bracket, a conveyor belt, and the like. Model | Powder | Capacity | Feed Height | Packing Size | Weighjt |
140 | 7.5kw | 45time/m | 930mm | 2.85*1.22*1.83m | 1500kg |
140 | 7.5kw | 50time/m | 930mm | 2.85*1.22*1.83m | 1950kg |
160 | 7.5kw | 50time/m | 970mm | 3.05*1.28*1.86m | 2150kg |
180 | 11kw | 22-26time/m | 1000mm | 3.05*1.28*1.86m | 2500kg |
220 | 11kw | 22-26 | 1050mm | 3.40*1.35*2 | 3500kg |
Raw Material | Material Size | Moisture | Shape | Final Briquettes Size |
Coal/Charcoal Powder | ≤2 mm | 8-12% | Custom | Custom |
Working principle
1. Put prepared material into the hopper and distributor will feed material into the molds under the hopper, then the pressure device will press the powder.
2. Powder will be formed to a certain shape under the stronger press.
3.Next, the briquette will be pressed out off the mold by auxiliary punch, and fall on the belt conveyor.
4.With the rotating of dieplate, this process will be continuous
Detailed Images
Punch
Electric Motor
Feed Port

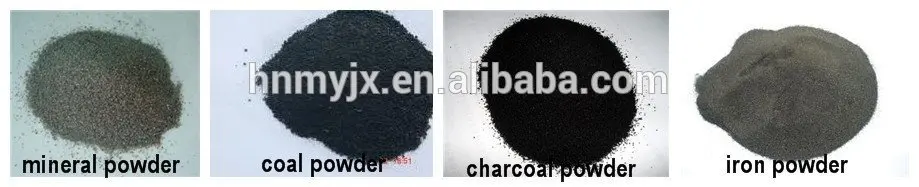

Raw Material
1. Raw material scop: any kinds of coal and charcoal powder2. Raw material diameter: less than 3mm
3. Raw material moisture content: 8-15%
Production Line& Realted Product
Our factory can offer a whole product line. In addition, we can dispatch our engineers to assist you the installation and operation.

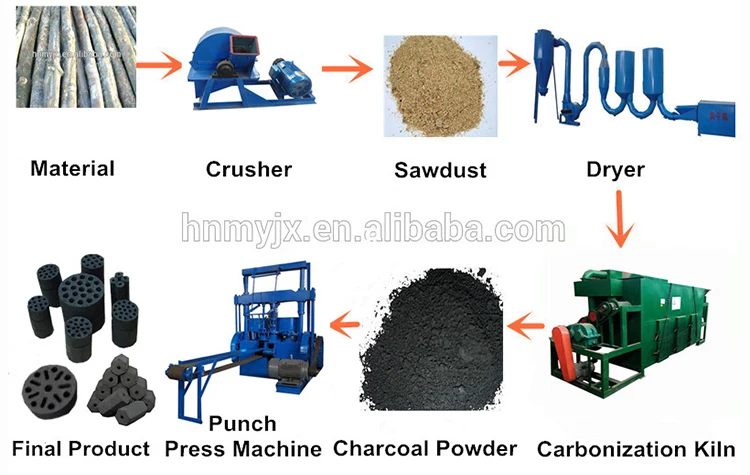

Raw material-----Crushing -----Mixing-----Feeding-----Briquetting----Final briquette
You are welcome to visit us factory. If you have plan to visit us, please contact us, we will help you arrange food and accommodation.
Company Introduction
Gongyi Xiaoyi MingYang Machinery Plant which was founded in 1988, is a manufacture of new energy-saving environmental protection equipment.
In the twenty years of development, our factory brings together elte of this field, and use professional technics to build the equipment. "Ming Yang Machinery" from a single charcoal machine and equipment to production equipment series, with three series of more than 30 machinery products. Have exported to britain, Russia, Sweden, Malaysia, Indonesia,Vietnam and other countries, more than 30 countries and regions.
Manufacturing quality products for industy, and create value for society!
Gongyi MingYang Machinery warmly welcome new and regular customers to visit and guidance.
