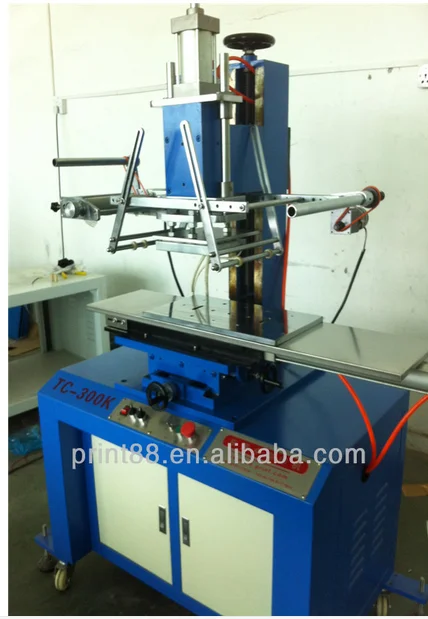

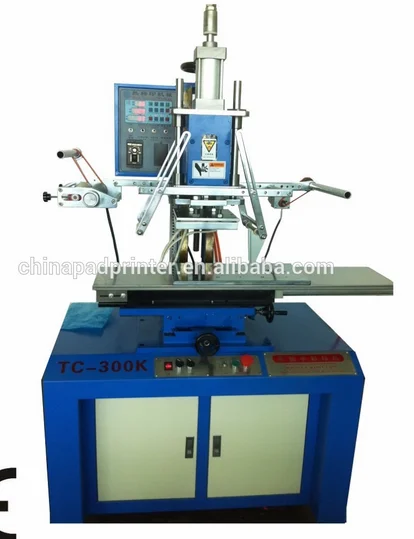

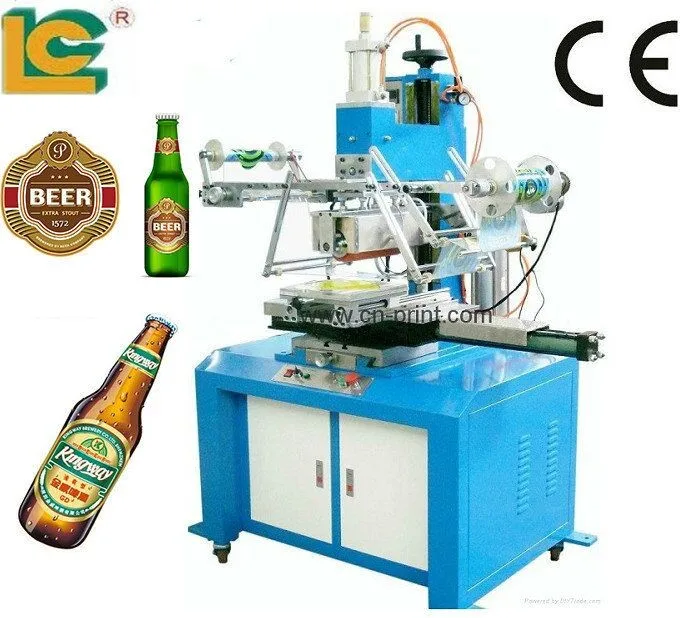

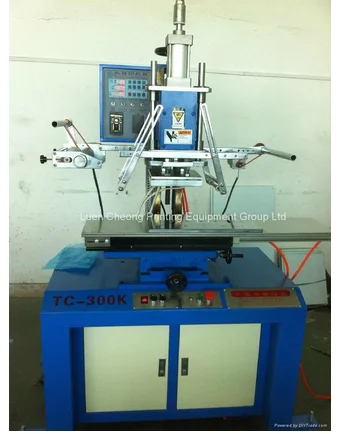

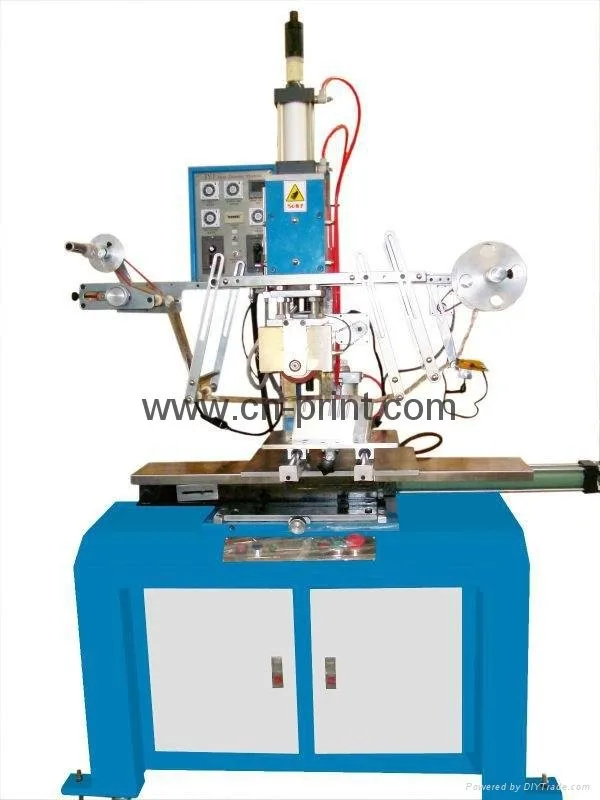

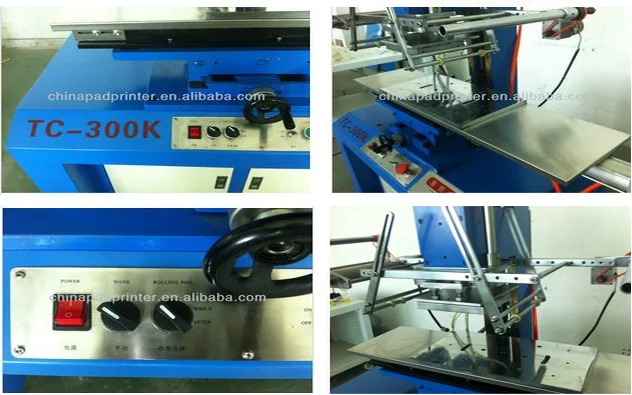

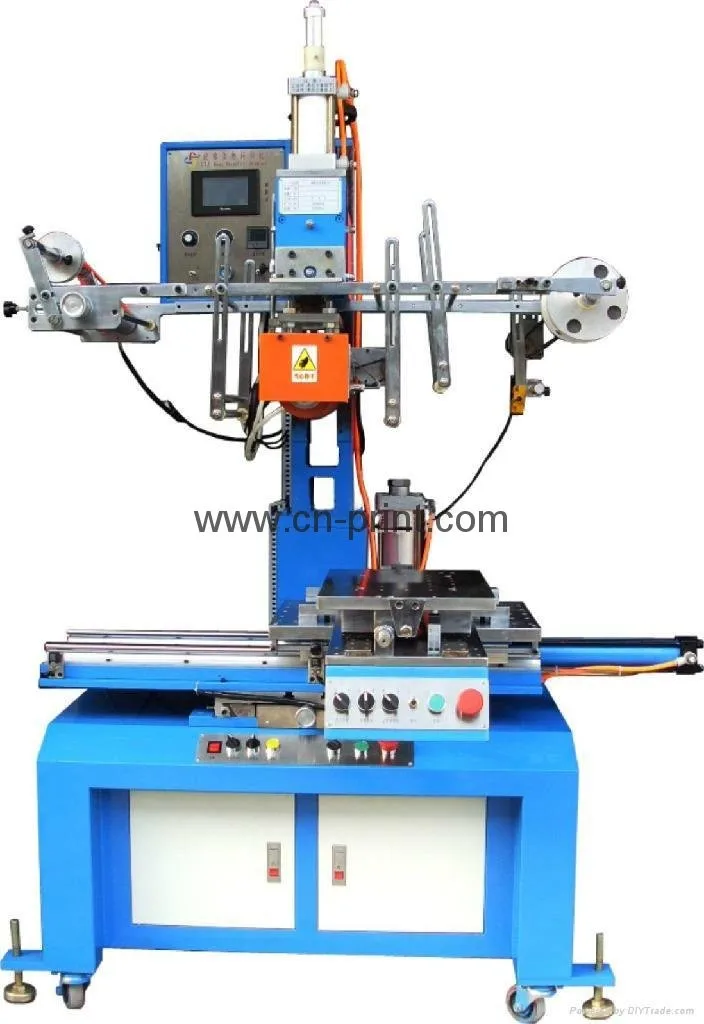

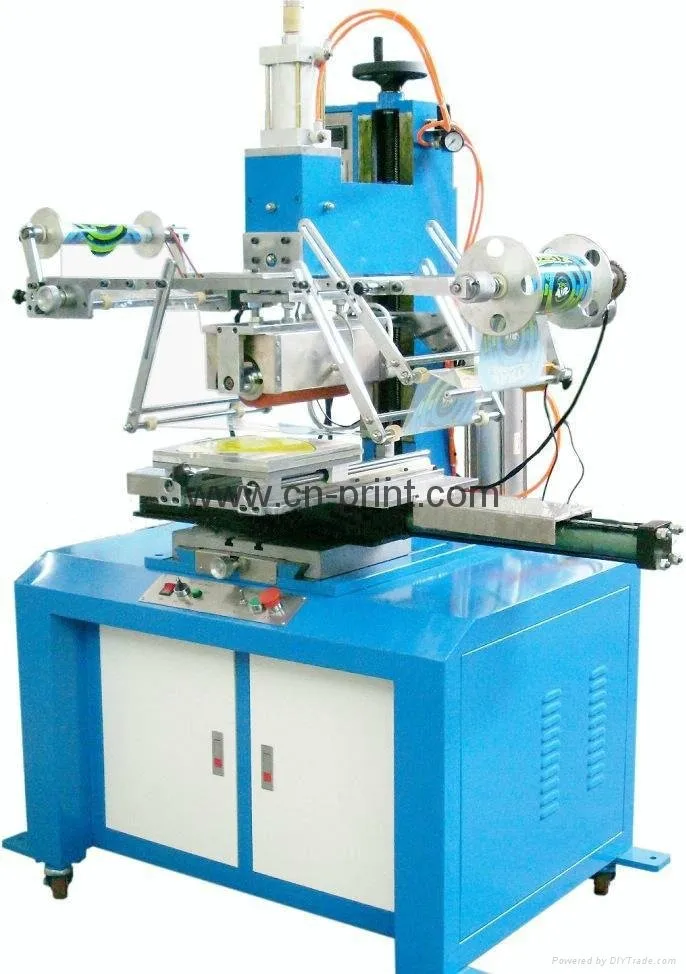

Features:

1.An electronic controller IC integrated multifunction procedures to ensure that the machine to flat stamping , roll stamping , flat stamping and round surface, such as a multi-purpose pressure round running.

2 Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.

3 Stamping pressure, temperature, hot pressing time is adjustable.

4 Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation.

5 Work table can swing around a center of rotation of the workpiece for rolling without slipping.

6 automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning

7 Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.

8 The height of lettering head is adjustable, stamping 300MM larger workpieces. Germany BOSCH can be customized cylinder (super seal wear).Using Taiwan Mindman precise control solenoid valve, German NASS coil stable and durable.

9 The work table level shuttle is using the wind to push oil conversion device, the working mechanism drives the workpiece rotate smoothly stamping, stamping stable quality.

10 The machine can be customized according to customer requirements horizontal, hydraulic, grinding cross table, two-speed winders, table plus rodless cylinder automatic access, roll-to-roll hot stamping, stamping irregular shaped product development and so on.

11 Equipped with emergency stop safety devices to protect the safety of the operator.

Product parameters:

Heating plate size: 400 × 300mm

Work Table size: 300 × 400mm

Heating power: 3000W

Stamping head adjustable stroke: ≤70mm hot head outer diameter 100mm inner diameter of 80mm

Max stamping diameter: φ300mm

Stamping temperature range of options: from room temperature to 280 degrees Celsius

Workpiece taper Range: 5-20 degrees

Stamping pressure range of options: ≤2500kgf (7bar)

The maximum printing speed: 500pcs / hr

Swing cylinder stroke adjustment range: ≤125mm

Power: 220 / 380V   60 / 50Hz

Air consumption: 165L / min

Dimensions: 1300 × 800 × 1810mm

Package: machine wrapped with PVC film, package in plywood case

Shipping: by sea, by air, by express

16 hours online services

8:00 am--12:00pm (Monday- Saturday)

24 hours phone call services  (Monday- Sunday)

In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.

Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.

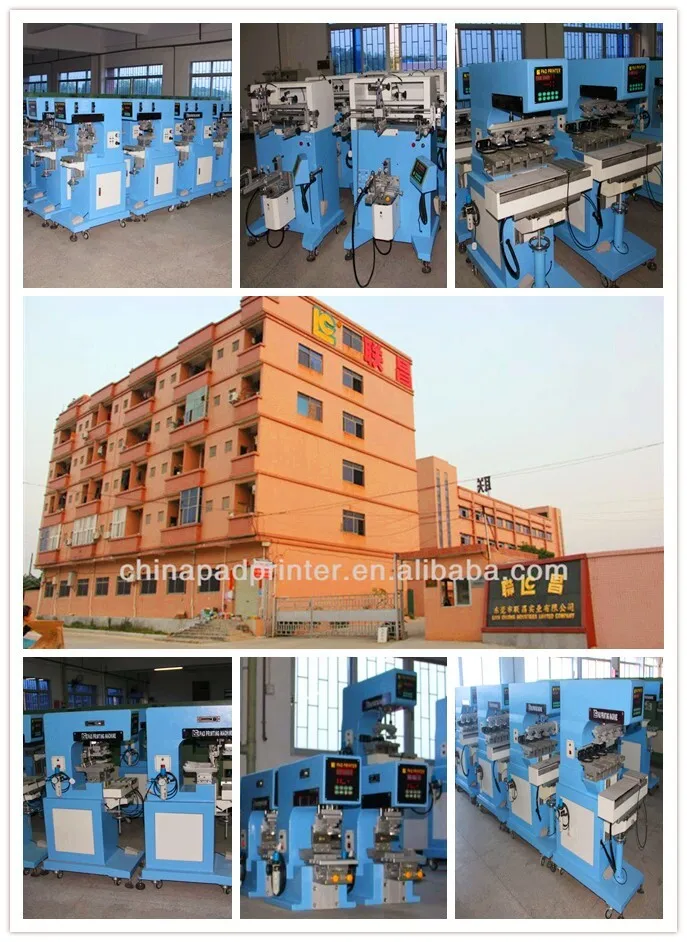

Luen Cheong Printing Equipment  Ltd.

How to care the printing machines?

1.Keep the machine cleaning

2. Refence the outside drawing of work piece to make holder and model.

3. Washing the part of slide weekly, and feeding the lubricating oil.

4. Deal with the water in the filter regual, for protect the pneumatic system transfer.

5.the size of Pad Plate must fit for the size of Inkwell

6. Pay attention to the choice of pad:

The hardness of pad includes the “soft”, “medium” and “hard”. If prints fine design, you should choose the hard pad, while prints on accidented surface, use the soft pad, furthermore, the volume and shape of pad should be similar with size of the design and surface shape of the work piece.

7. Usage of ink:

According to different kinds of work pieces, such as plastic, glass or metal, etc. you should choose different inks, and the ink should be stirred before pouring into the ink cup.

8. When operation of the machine is paused, you should let the ink scraping system go on working in order to prevent the ink from air-drying.

9. During printing, you should infuse thinner into the inkwell according to different air-dry speed of the inks in order to keep the proper viscosity of the ink. After infusing the thinner, stir the ink immediately. If the pad is stained, clean it with the cleanser.

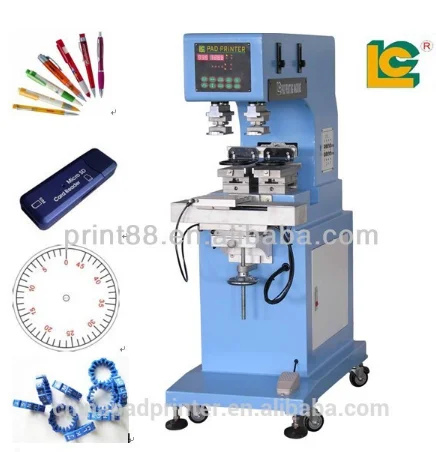

CE Standard 2 Color Ink cup key chain pad printer PM2-100T usb flash disk watch dial pad printing machine

https://chinapadprinter.en.alibaba.com/product/60381982024-218231290/CE_Standard_2_Color_Ink_cup_key_chain_pad_printer_PM2_100T_usb_flash_disk_watch_dial_pad_printing_machine.html?spm=a2700.8304367.0.0.2xAMl5

If it is not  the most suitable one for you , we have other types available .
