Сетка для стабилизации почвы из ПВХ полиэстера от карла майера
- Category: Geogrids >>>
- Supplier: Shandong,Sunshine,New,Material,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Geogrid Description

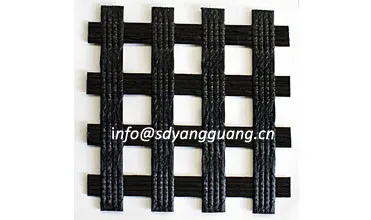

Soil Stabilization Grid PVC Polyester Geogrid by Karl Mayer
Polyester Geogrid is woven by polyester yarn as per desired mesh sizes coating water soluble or oil soluble PVC and strength from 15 kN/m to 50 kN/m(Biaxial type).
Physical properties:
1. High strength, high modulus and low elongation.
2. Aging resistance and high tensile strength.
3. Pre-designed and easily combing with gravel and soil.
Shandong Sunshine New Material Technology Co.,Ltd
Our geogrids have been tested in TRI Environmental, BTTG and FITI. The CE approvals were awarded by BTTG, U.K on Geogrids, Geocomposites and Asphalt Reinforcement Grids.
Creep Reduction Testing for 75 yrs and 114 yrs
The long term creep reduction testings were conducted in TRI/Environmental in 2009. For the detailed testing reports please feel free to contact with us
Geogrid Production
Raw material high strength polyester yarns
Warp-knitting by Karl Mayer ,Liba machines
Coating PVC SBR material
polyester geogrid
Date Sheet
Polyester Biaxial Geogrid
Specification | PET 15-15 | PET 20-20 | PET 25-25 | PET 30-30 | PET 40-40 | PET 50-50 | PET 60-60 | PET 80-80 | |||||||||
Tensile strength (KN/M) | Vertical | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | ||||||||
Horizontal | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | |||||||||
Specification | PET 100-100 | PET 120-120 | PET 200-200 | PET 300-300 | PET 400-400 | PET 600-600 | PET 800-800 | PET 1200-1200 | |||||||||
Tensile strength (KN/M) | Vertical | 100 | 120 | 200 | 300 | 400 | 600 | 800 | 1200 | ||||||||
Horizontal | 100 | 120 | 200 | 300 | 400 | 600 | 800 | 1200 | |||||||||
Elongation(%) | ≤13 | ||||||||||||||||
Width(m) | 1-6 | ||||||||||||||||
Mesh size(mm) | 12.7*12.7, 25.4*25.4, 50.8*50.8, 76.2*76.2 | ||||||||||||||||
Polyester uniaxial geogrid
Specification | PET 35-20 | PET 35-30 | PET 55-20 | PET 55-30 | PET 60-30 | PET 80-30 | PET 100-30 | PET 120-30 | |||||||||
Tensile strength (KN/M) | Vertical | 35 | 35 | 55 | 55 | 60 | 80 | 100 | 120 | ||||||||
Horizontal | 20 | 30 | 20 | 30 | 30 | 30 | 30 | 30 | |||||||||
Specification | PET 150 -30 | PET 200 -30 | PET 300 -30 | PET 400-30 | PET 600 -50 | PET 600-400 | PET 1000 -50 | PET 1200-100 | |||||||||
Tensile strength (KN/M) | Vertical | 150 | 200 | 300 | 400 | 600 | 600 | 1000 | 1200 | ||||||||
Horizontal | 30 | 30 | 30 | 30 | 50 | 400 | 50 | 100 | |||||||||
Elongation(%) | ≤13 | ||||||||||||||||
Width(m) | 1-6 | ||||||||||||||||
Mesh size(mm) | 12.7*12.7, 25.4*25.4, 50.8*50.8, 76.2*76. | ||||||||||||||||
Geogrid Application
Soil stabilizationSub-base reinforcement
Foundation supportHeavy duty pavements
Railway ballast reinforcement over soft foundationsAccess roads to oil platforms
Packing & Delivery
High strength polyester geogrid
Warehouse
Geogrid loading
Geogrid in container
Related Products
Polyester yarn /Glass fiber sewed geofabric
Polyester uniaxial geogrid
HDPE geocell
Our Company
Established in 2005, Shandong Sunshine New Material Technology Co.,Ltd is a subsidiary company of Shandong Enfly Group. The company is located in the city of Taian, Shandong Province, and it is closed to Qingdao Port. The factory covers an area of 100,000 m2 and its registered capital is more than 16 million USD dollars. In the geosynthetic field, we are famous as a professional manufacturer of Fiberglass geogrid, Polyester geogrid, Mine grid, Geocomposites, Geomembrane, Geotextile, Geocell and etc. Our machines and technologies are all imported from Germany, and we have an annual production capacity of 30 million m2. Our products have got the certificates of ISO 9001, ISO 14001, MA, CE, GIG, two application patents and more than 11 invention patents. Our products are exported to more than 20 countries, such as UK, Germany, Italy, Poland, Russia, America, Canada, Israel, Thailand, Indonesia, and they are widely used for roads, railways, retaining wall, landfill, water conservancy and etc.
