Средне эффективный моющийся промышленный пылесборник из синтетического волокна, карманный фильтр, чистый комнатный воздушный фильтр F7 для переменного тока

Product Overview

Description

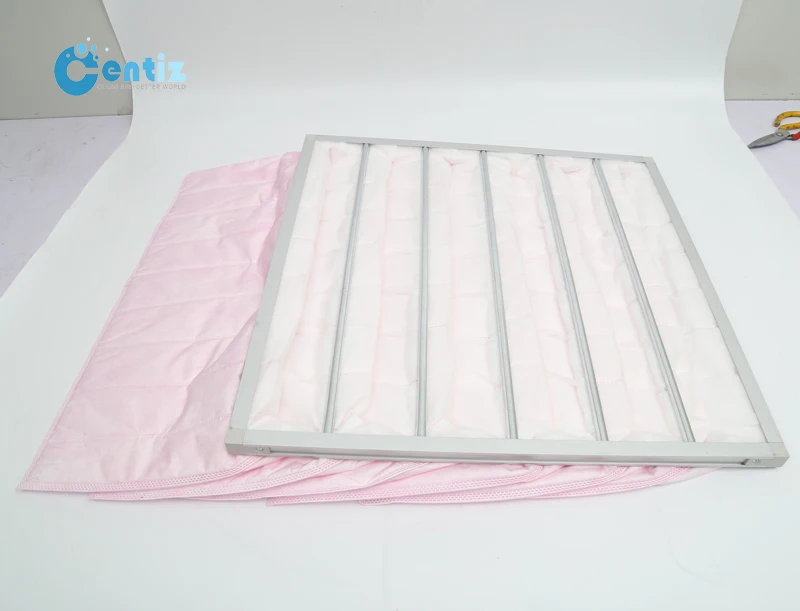

Medium Efficient Washable Synthetic Fiber Industrial Dust Bag Pocket Filter Clean Room Air Filter F7 for AC







Product features:





Solid all-metal frame structure

High quality fluffy multi-layer synthetic fiber filter paper

High dust holding capacity, low resistance (300-400g/m²)

Ultrasonic seamless close-fitting bag structure





Application of product:



Pre-filtration of air conditioning and ventilation systems to avoid ash pollution inside the system

Pre-filtration of large air compressor

Clean room centralized ventilation and air conditioning system and return air filtration to extend the service life of the high efficiency filter in the rear section

Ventilation system for general industrial plants to meet general cleaning requirements for air

Rough dust filtration system of air conditioning in general construction building





Material list:



 Frame - double U-shaped aluminum alloy / stainless steel / galvanized iron sheet (GI)

Optional thickness of frame - 20mm / 21mm / 26mm / 47mm

Filter material - synthetic fiber

Ribs - galvanized steel strip

        Connection angle - solid, high temperature resistant ABS plastic angle / aluminum alloy angle





Efficiency:

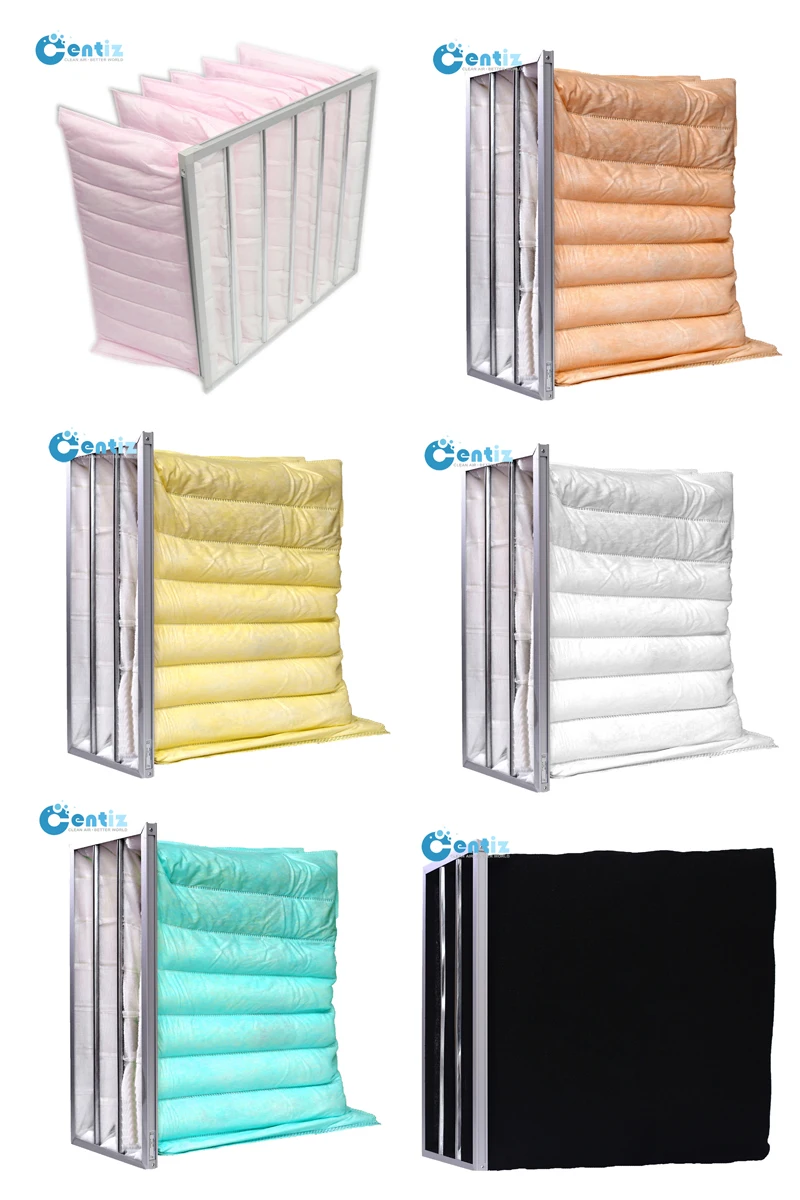

we can supply : G4,F5,F6,F7,F8,F9





Applicable condition:



80-150℃ (180℉)







Remarks:  The above the deviation of resistance value is within±10% ; it can provide special size production.





Product specification

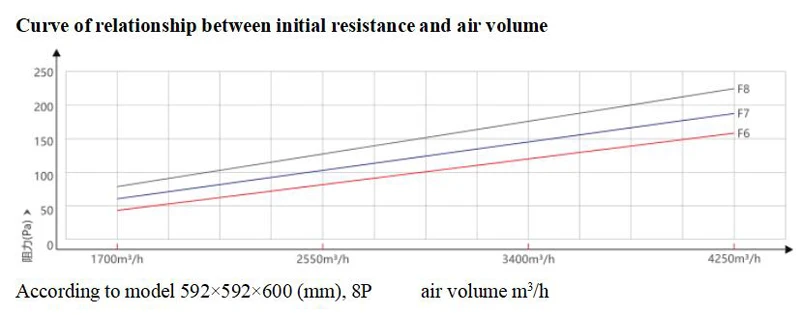

Nominal size	Actual size	Number of bags	Filter material area	Rated air volume	Initial resistance under different air volumes						Recommended final resistance
(inch)	(mm)	(a)	(m2)	(m3/h)	Pa						Pa
W×H×D	W×H×D				G4	F5	F6	F7	F8	F9	G4	F5-F9
12×24×25	287×592×635	3	3.3	2380	48	55	58	90	95	125	250	450
12×24×22	287×592×550	3	2.84	2380	50	60	65	100	115	135	250	450
24×24×15	592×592×381	6	3.86	3400	58	70	75	110	120	145	250	450
12×24×15	287×592×381	3	1.94	2380	60	70	75	110	120	145	250	450

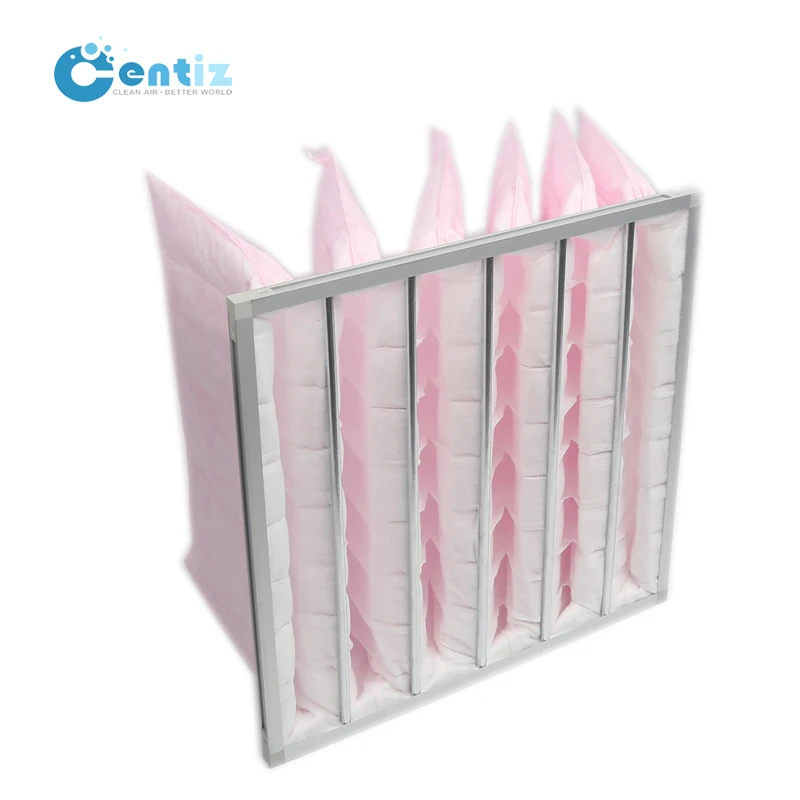

Pocket filter
