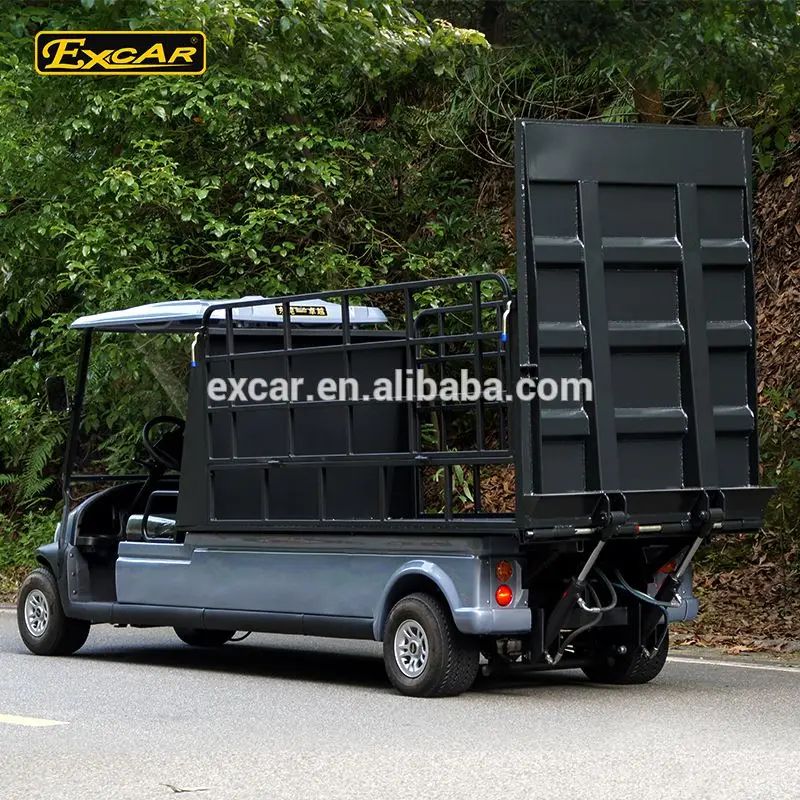

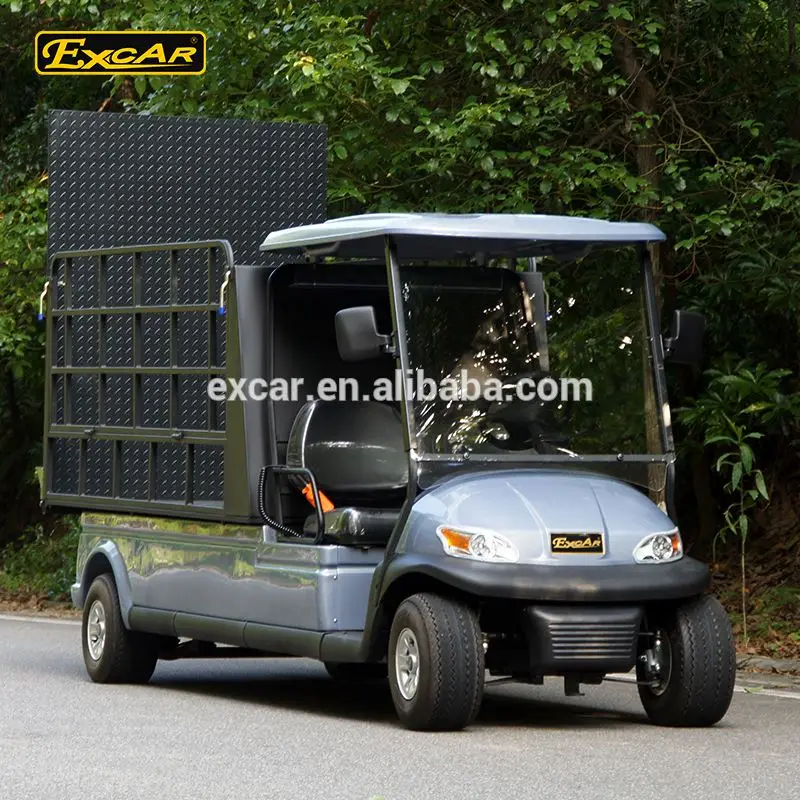

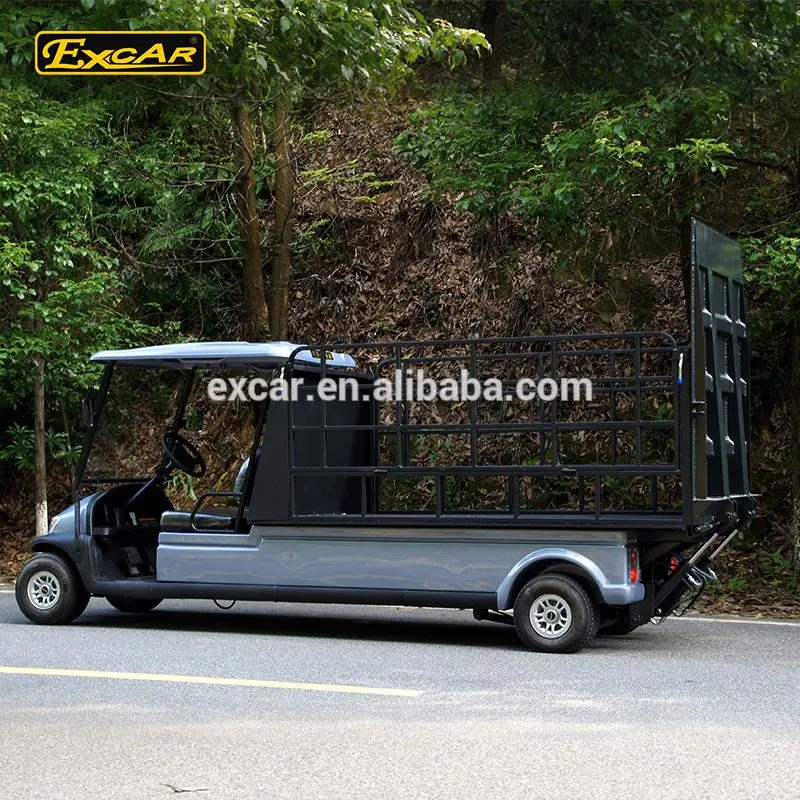

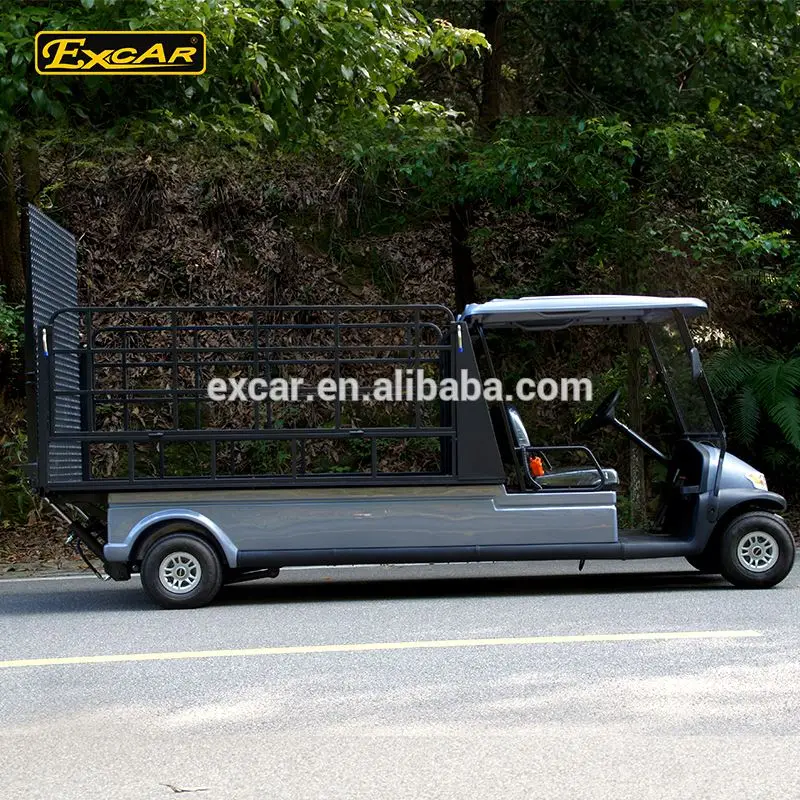

EXCAR Electric utility Cart 48V 2 seats Electric Golf Cart hotel buggy car electric truck

Product Overview

Description

EXCAR Electric utility Cart 48V 2 seats Electric Golf Cart hotel buggy car electric truck







Product Description





Item	Description
System	DC system	AC system
Controller	Curtis controller 1266A-5201, 275A, imported from USA directly	Curtis controller 1234E-5221, 275A, imported from USA directly
Motor	ADC brand Separately excited DC motor 48V 3.7kw	ADC brand Separately excited AC motor 48V 3kw
Battery	Trojan battery, T875,8V*6pcs, imported from USA directly	Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle	Italian GRAZIANO axle  with gear ration 1:12	Italian GRAZIANO axle  with gear ration 1:16
Charger	High Frequency onboard charger 48V/17A regulator	High Frequency onboard charger 48V/17A regulator

Performance

Item	Description
system	DC system	AC system
Passenger Capacity	2	2
Climbing capacity(full load)	30%	35%
Max. forward speed	23km/h	45km/h
Endurance mileage	70-90km	80-90km
Charging time	8-10 hours	8-10 hours
Max. loading weight	360kgs	360kgs
Min. turning radius	2.9m	2.9m
Max. movement after brake at speed of 20km/h	≤4m	≤4m

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
 *2)  Range will vary depending on temperature, grade, payload and driving style.

Dimensions



Item	Description
Overall dimensions (L x W x H)	3400x1200x1800mm
Ground clearance	114mm
Wheelbase	2260mm
Front wheel tread (mm)	860mm
Rear wheel tread (mm)	970mm
Floor mat	Anti-skidding rubber
Rear basket	Plastic
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plastic material, battery power indicator, ignition key on it
Beverage holders	4 pcs cups holders, 2 pcs for each side
Side trim	Plastic, black
Score card holder	On the steering wheel

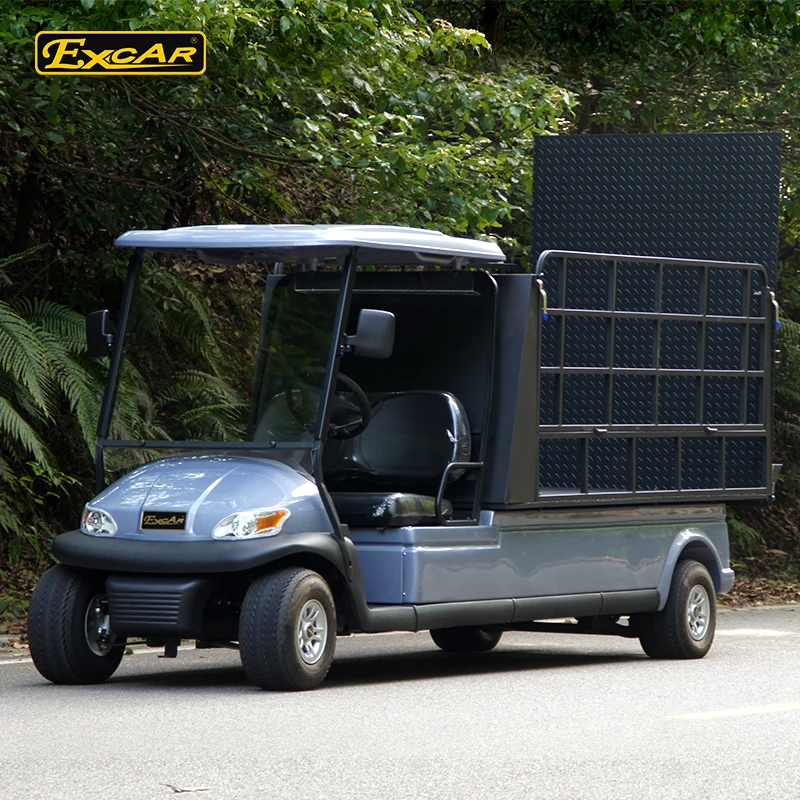

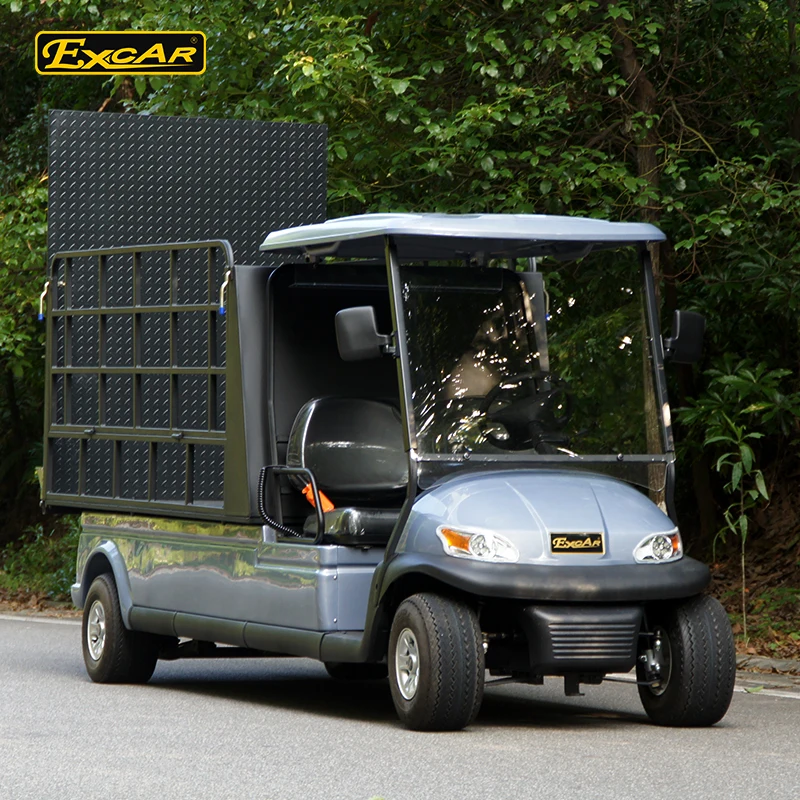

Product Show





Optional Golf Cart Colours:









   Packing & Shipping



  1,LCL Shipment  Packing :roof move-off packing, steel frame , cartoon paper cover.

2,FCL  Shipment Packing : packed by plastic foam & plastic film



      Our services



   Warranty  :  1 year fully Warranty , offer folf cart FREE components under EXW shipped term.

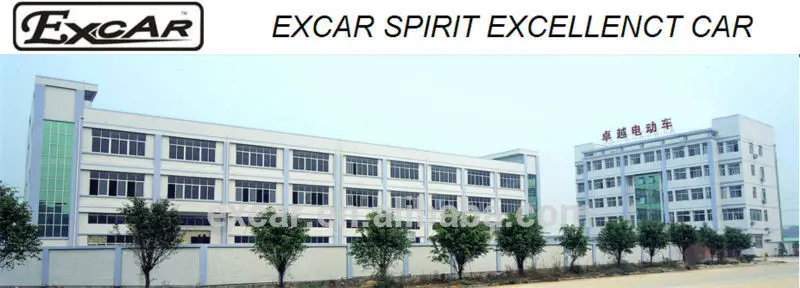

     Company Information



  Dongguan Excellence Golf & Sightseeing Car Co.,Ltd



  Address: No.72 Fulai Road,Liuwuxiang,Liaobu,Dongguan,Guangdong,China



  Website:www.excar.com.cn







FAQ



1.Can you customize the cart according to our special request?

Yes,we can customize the cart according to your request unless some complex parts we hard to make.



2.What is your MOQ?

You can order just 1 unit .But if your order is big, we will provide you with a discount.



3.Can we put the Logo we designed on the cart?

Yes, you can put your own Logo on the cart.



4.What is your lead time for production?

The typical lead time of our cart is 15 days.



5.What kind of warranty Excar provides?

Non-artificial damaged products,shifting for a year or one year repair



6.What's your payment term?

T /T 30% deposit and balance paid before shipment
