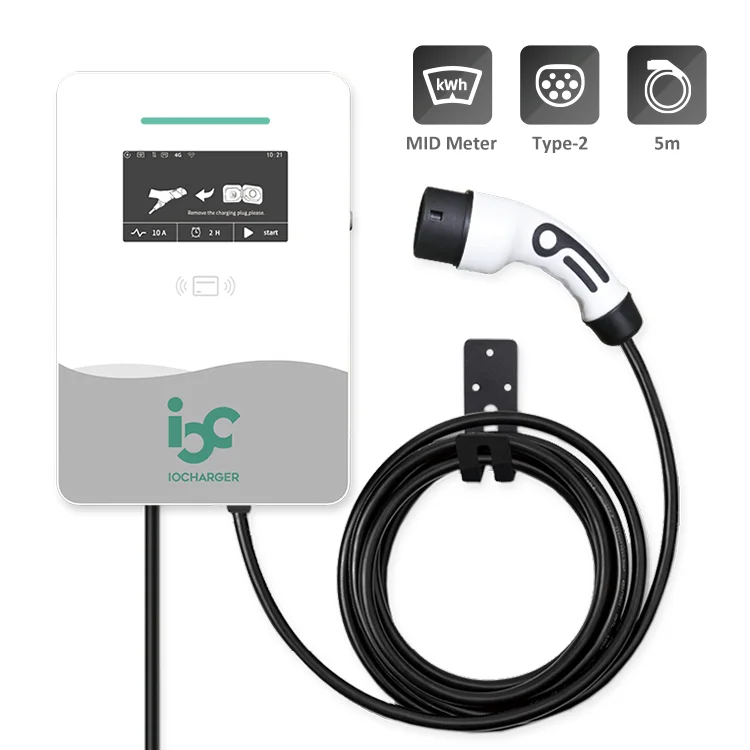

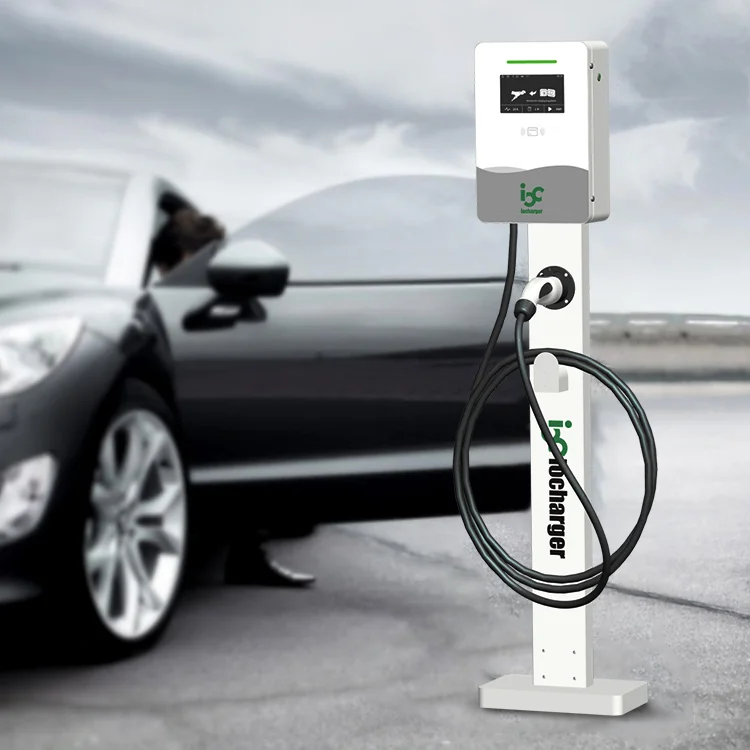

Зарядная Станция для электромобилей IoCharger IOC7AP01 7 кВт с ocpp 4G RFID WIFI для ev зарядная станция
- Category: >>>
- Supplier: Xiamen Galaxy Camphol Technology Co. Ltd.
Share on (62315705408):
Product Overview
Description
Specification
Sepcification / Model | IOCAP06C | |
Power Input | Input Voltage | 1-phase 230V±20% & 3-phase 400V±20% |
Standby Power | < 5W | |
Power Output | Output Voltage | 1-phase 230V±20% & 3-phase 400V±20% |
Output Power | 7kW * 2 & 22kW*2 | |
Output Current | 32A | |
Cold-Load Pickup | Randomized delay before charge resume after power failure | |
Protection | RCD | Type B (Type A + Sensor), CE certified |
MCB | Yes, CE certified | |
Electrical Protection | Over/under voltage protection, overload protection, short circuit protection, current leakage protection, grounding protection, over temp protection, lightning surge protection. | |
Plug-Out Protection | Power output is terminated upon detection of charging connector plug-out | |
Emergency Stop Button | Yes | |
User Interface | LED Indicator | Standby(Green), Charging(Flashing Green), Fault(Red), Waring(Flash Red) |
LCD Screen | 7 inch TFT LCD | |
Buttons/Switches | Start/Stop Charging | |

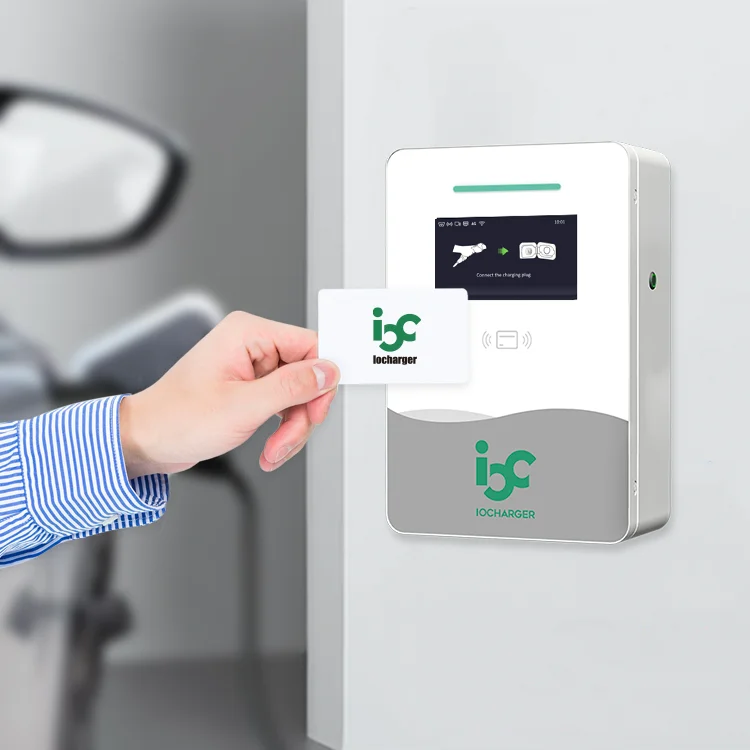

User Authentication | RFID Mifare/ App | |
Payment | RFID/ APP/ Credit Card (Optional) | |
Communication | Network Interface | 4G LTE, Wi-Fi, Ethernet |
Protocol | OCPP1.6J/OCPP2.0.1 | |
Environment | Operating Temperature | -30 ° C ~ +55 ° C |
Storage Temperature | -40 ° C ~ +80 ° C | |
Working Humidity | 5%~95% without condensation | |
Mechanical | Charging Outlet | type 2 socket 7KW * 2 |
Housing Material | Metal | |
Protection Grade | IP55 | |

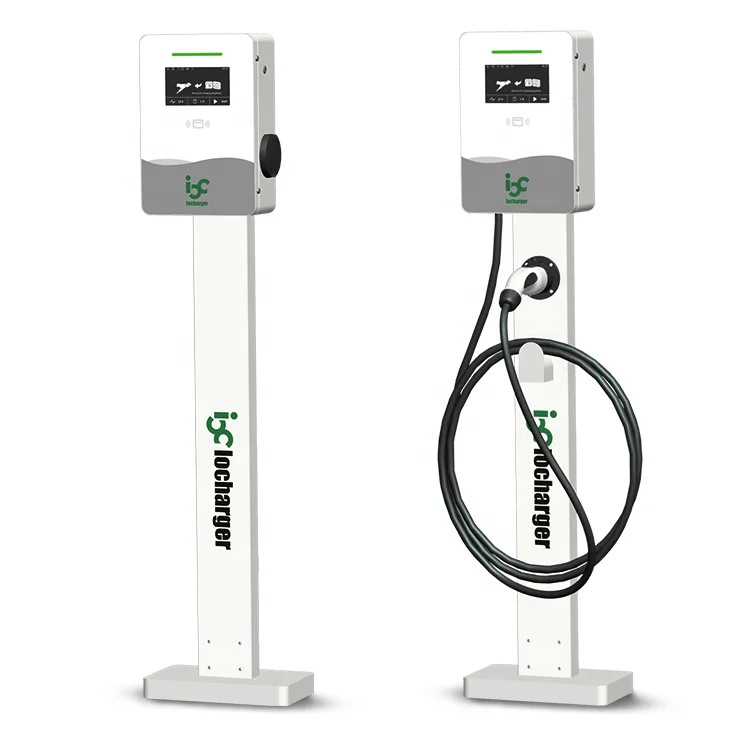

Mounting Type | Pedestal type | |
Dimension(W x H x D) | 350 * 1400 * 200 mm | |
Net Weight | 43Kg |
Company Profile
Xiamen Galaxy Camphol Technology Co., Ltd. is a joint venture initiated by Galaxy Camphol Technology Co., Ltd. and Xiamen Ruiye Technology Co., Ltd., specializing in customized software development, EV charging station related products development, IoT and intelligent hardware development, energy metering and monitoring technolog, etc. We focus on providing a full range of services and solutions.
In terms of software development, we have developed and implemented customized solutions for EV charging station management and operation platforms, IoT centralized control platforms, smart park management solutions, smart site solutions, and car networking solutions.
For EV charging station products, we have a full range series of AC and DC charging stations, which support Chinese national standard, European IEC standard, American SAE standard and Japanese CHAdeMo standard. We have our own independent operation and management platform to provide customers with comprehensive solutions from equipment to operation.
In terms of IoT product solutions, we provide total solutions and services for smart cities, smart energy, smart street lights, smart parks, smart security, smart agriculture, smart livestock, smart transportation and other industries.
The company's core competitiveness is the ability to gain customer loyalty and customer satisfaction. We insist on creating value for our customers as the starting point and the first gist of our business activities. Achieve our corporate value while helping our customers succeed and achieve customer value.
FAQ
Here are some customer’s common questions about our products :
Q1:Are you Trading Company or manufacturer?

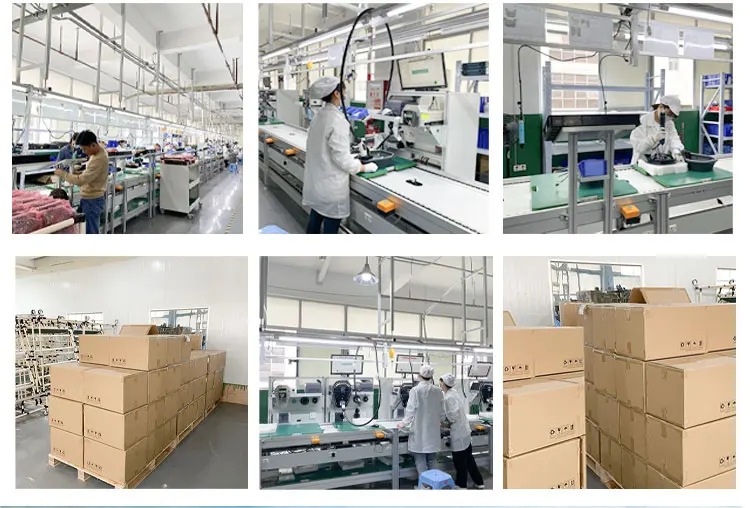

A: We are professional design and manufacturer, our factory has been established for 7 years.
Q2:What are your main market?
A:Mostly Europe and America, then Asia.
Q3:How long time to make a sample?
A:3-7 days if we make a new sample for you.
If you just select our existing sample, we can send you sample the next day.
Q4:How long is the lead time:
A: The lead time is 7-30 days, it depends on the quantity and production scheduling.
Q5: How many kinds of payment?
A: We have T/T and L/C etc.
If you need the detailed terms of payment, pls contact us.
Q6: Why is new model expensive than other old models?
A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is
low productive but labor costs keep same as old model.
Q7: What certifications do you have?
A: We have approved Chinese national standard, European IEC standard, American SAE standard and Japanese CHAdeMo standard etc
certification.
Q8: How long is the warranty time?
A: The warranty time is 2 years.
Q1:Are you Trading Company or manufacturer?
A: We are professional design and manufacturer, our factory has been established for 7 years.
Q2:What are your main market?
A:Mostly Europe and America, then Asia.
Q3:How long time to make a sample?
A:3-7 days if we make a new sample for you.
If you just select our existing sample, we can send you sample the next day.
Q4:How long is the lead time:
A: The lead time is 7-30 days, it depends on the quantity and production scheduling.
Q5: How many kinds of payment?
A: We have T/T and L/C etc.
If you need the detailed terms of payment, pls contact us.
Q6: Why is new model expensive than other old models?
A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is
low productive but labor costs keep same as old model.
Q7: What certifications do you have?
A: We have approved Chinese national standard, European IEC standard, American SAE standard and Japanese CHAdeMo standard etc
certification.
Q8: How long is the warranty time?
A: The warranty time is 2 years.
