Features :

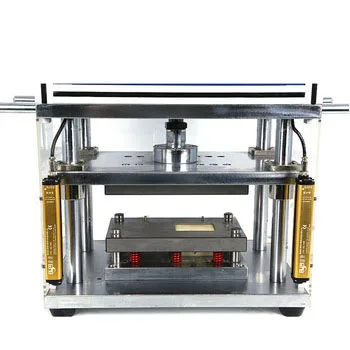

1. Guide pillar structure makes smooth move and high accuracy.
2. It is easy and quick to replace die and regulate the punching depth.
3. Accurate design of die makes no crow’s -feet and corner collapse.
4. Light curtain and cover protection make safety use.
5. The die material is imported from Japan and made of high-strength chrome steel and aluminum alloy with surface treated by environmental electroplating and painting.
6. Nice appearance, metal plate use solid geometry design which is well formed.
7. Easy operation, small volume, safe and reliable.
Application :
Battery lab
Battery research
Lithium ion battery lab
Material research
Trial-production
| POUCH CELL FOAMING MACHINE | |
| Item Name | Punch cell foaming machine |
| Thickness of aluminum-laminated film | 0.10~0.2mm |
| Applied size | Max length of aluminum-laminated film is 150mm, max width is 100mm ( can be customized according to the demand),punching depth ≤6mm |
| Equipment Capacity | 200~400EA/H |
| Power supply | AC220V/50Hz |
| Power | 100W |

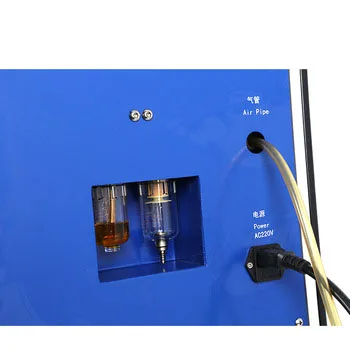

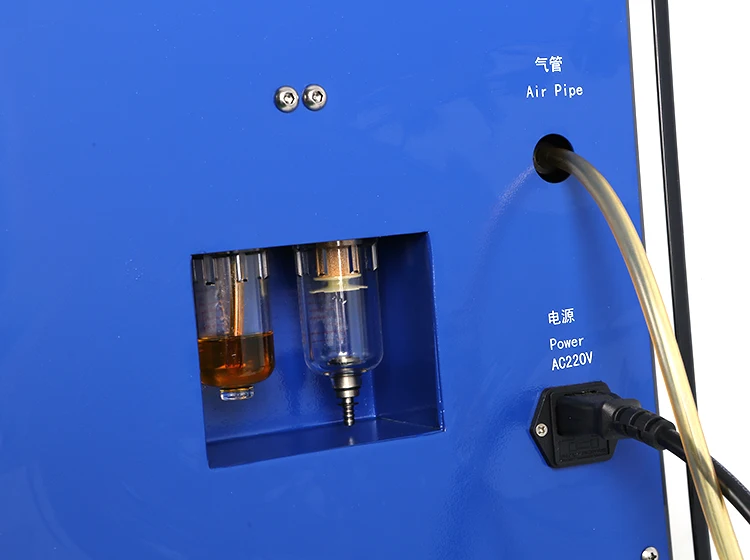

| Air source | 0.5MPa~0.7MPa |
| Weight | About 180kg |
| Dimension | About L540xW440xH925 mm |

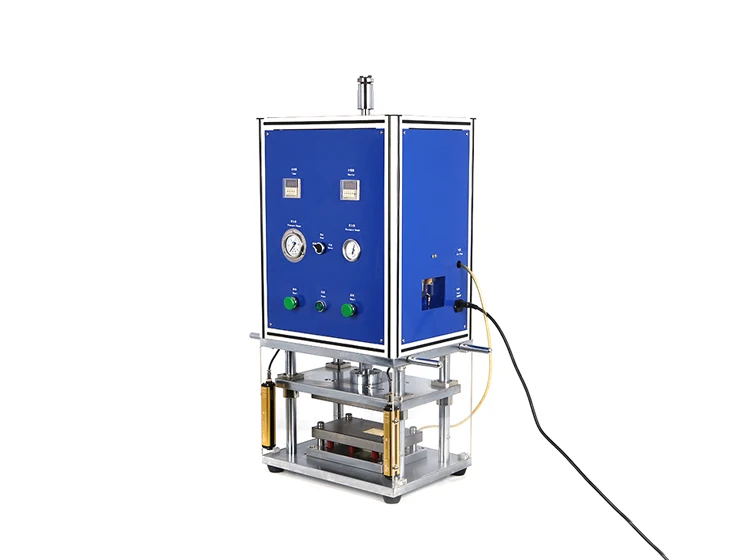

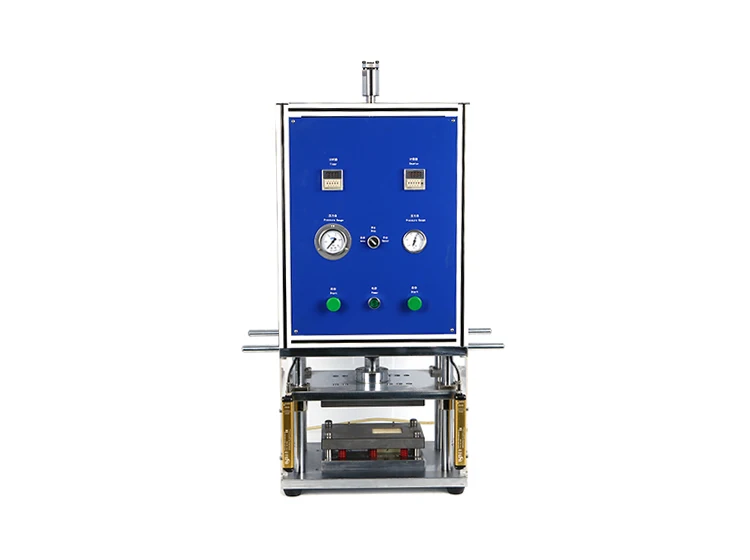

Product show









1.Are you a manufacturer ?
A: Yes, our factory located in Shenzhen China,
We have more than 9 years experience for producing battery equipment.
We have our own designing and production department.
2.What certificate of your product have ?
A : Our products reaches CE certification.
3.Do you accept customized product ?
A : Yes.
4.Do you offer training service for users ?
A : Yes, we have video to show users how to use it.
5.Can you offer overseas installation service ?
A : Yes, we can.
