Model |
ZS752E-DM |
ZS703F-HB |
ZS703E-DZ |
ZS954E-HB |
ZS706E-HB |
|
Viberation Model |
Liner Motion |
Liner Motion |
Liner Motion |
Liner Motion |
Liner Motion |
|
Capacity |
45 m3 / h (200GPM) |
120 m3 / h (528GPM) |
140 m3 / h (616GPM) |
120 m3 / h (528GPM) |
120 m3 / h (528GPM) |
|
Viberation Motor |
2*0.75Kw |
2*1.72Kw |
2*1.72Kw |
2*1.72Kw |
2*1.94Kw |
|
Screen Qty |
2 Panels |
3 Panels |
3 Panels |
4 Panels |
6 Panels |
|
Screen Area |
1.35 m2 |
2.63 m2 |
2.63 m2 |
2.7 m2 |
Upper layer 2.0 m3 |
|
Screen Size (mm) |
750*900 |
700*1250 |
700*1250 |
585*1165 |
Upper layer 2.0 m2 |
|
Adjustable G Force |
Less than 7.1 G |
Less than 7.5 G |
Less than 7.5 G |
Less than 7.5 G |
Less than 7.5 G |
|
Viberation Amplitude |
3.92~5.62 mm |
4.14~5.96 mm |
4.14~5.96 mm |
4.14~5.96 mm |
4.14~5.96 mm |
|
Deck Angle Range |
+20 |
-1~+50 |
-1~+50 |
-1~+50 |
-1~+50 |
|
Weir Height |
710 mm |
735 mm |
1042 mm |
735 mm |
895 mm |
|
Ex Standard |
Exd Ⅱ BT4 / IEC Ex / ATEX |
Exd Ⅱ BT4 / IEC Ex / ATEX |
Exd Ⅱ BT4 / IEC Ex / ATEX |
Exd Ⅱ BT4 / IEC Ex / ATEX |
Exd Ⅱ BT4 / IEC Ex / ATEX |
|
Weight |
910 kg |
1550 kg |
1700 kg |
1600 kg |
1870 kg |
|
Dimension (mm) |
1670*1730*1070 |
2370*1940*1270 |
2500*1980*1480 |
1940*1940*1270 |
2730*2030*1430 |

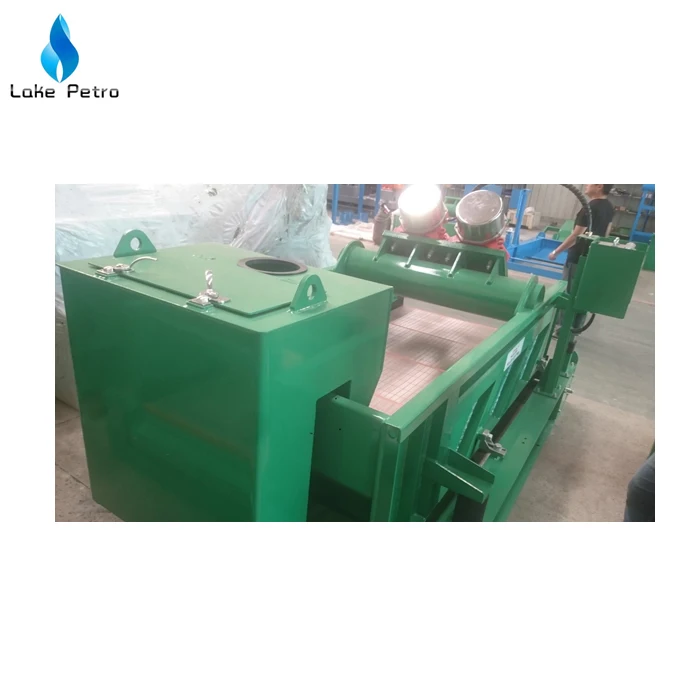

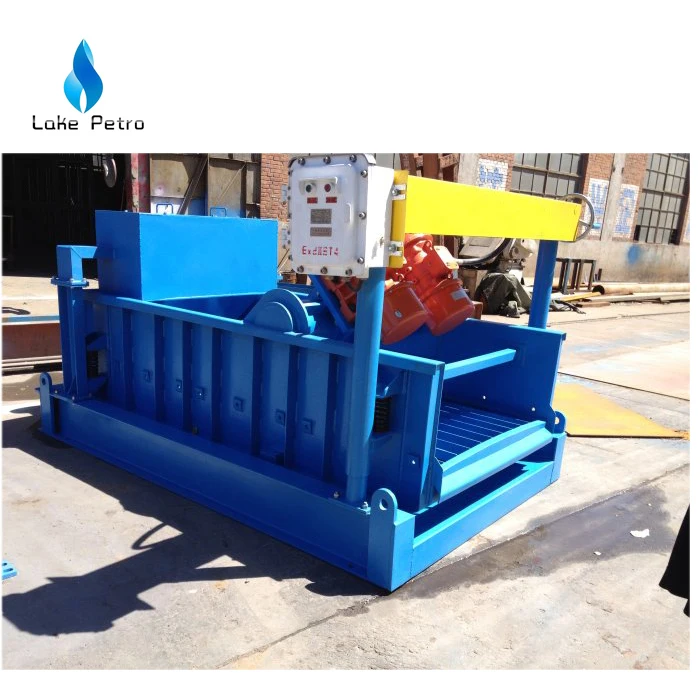

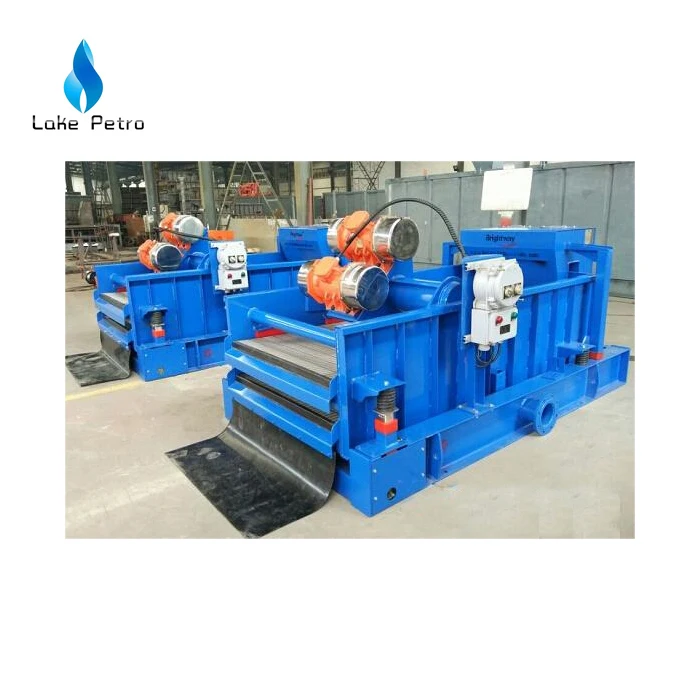

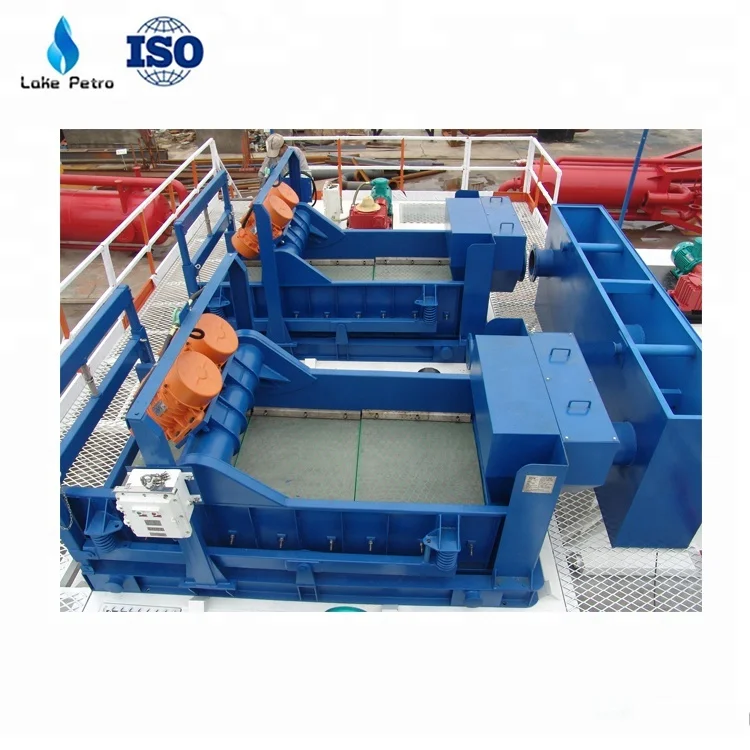

Shale shaker is the first phase solid control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system. Solid control can design double shakers and truplicate shakers on single skid according to client’s special requirements and also supply relevant connection manifold according to xurrent industry situation, we provide both third reneration liner motion shale shaker and fourth generation balanced elliptical shale shaker.
Shale shaker absorbed advanced tech at home and abroad, complete series shale shaker can meet custimers variablr demand. Client feedback proved the advantages for this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.
(1) . Adjustable high G force for primary solids control or cuttings drying.
(2) . Heat treatment on complete shale shaker deck.

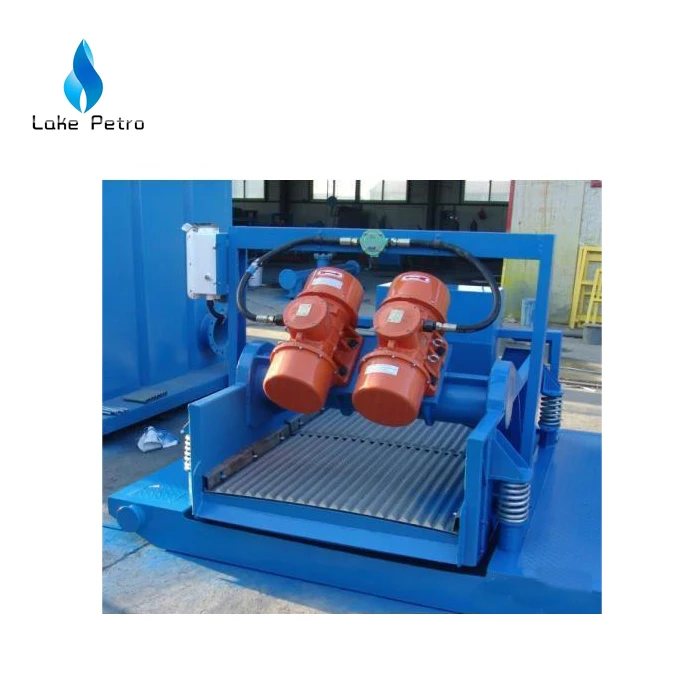

(3) . Vibrating motor, IEC Ex, ATEX and UL certified.
(4) . Electrical components: siemens, schneidder brand.
(5) . Shale shaker bottom deck material: Stainless steel.

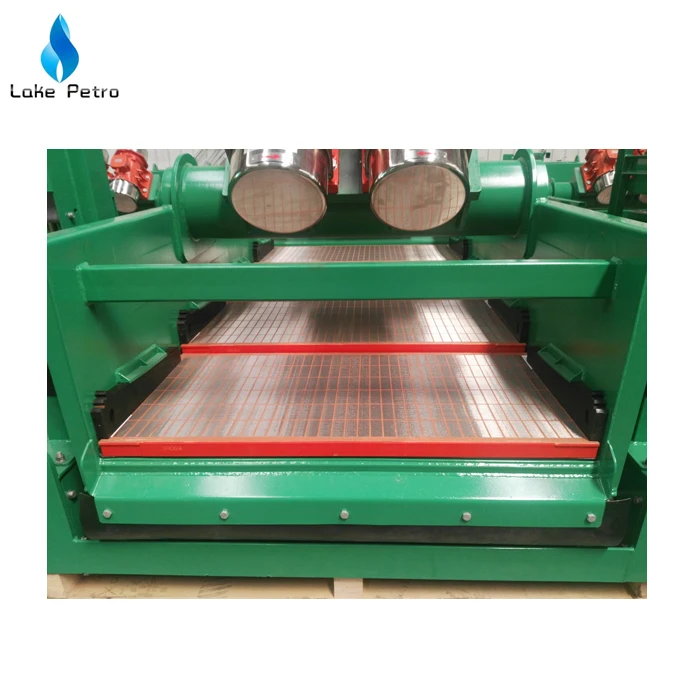

(6) . Wedge type design for easy and quick screen replacement.
(7) . Electric shaker deck angle adjustable while working.
Lake Petro company is a professional supplier of various oilfield equipment, including oil drilling and service equipment,oil production equipment,OCTG ,wellhead & downhole tools and spare parts with API certification. our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Lake Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.







Why you need to choose Lake Petro?
As a professional oil and gas service company, Lake Petro has many good experience in selling and serves for the oilfield industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.
Can you make us the best quality products as well as a good price?
Yes, we can give you really high quality products with competitive price. We have a better understanding in Chinese market, with us your money will be safe.
What is special compare with other companies?
First, we provide the quality products, with BV and API certified; At the same time, we provide our customer with the best service after sale, any time any where.
