Безопасный дешевый фрезерный станок с ЧПУ для обработки металла
- Category: >>>
- Supplier: Anhui Chizhou Household Machine Tool Co. Ltd.
Share on (62315923987):
Product Overview
Description
Product Description

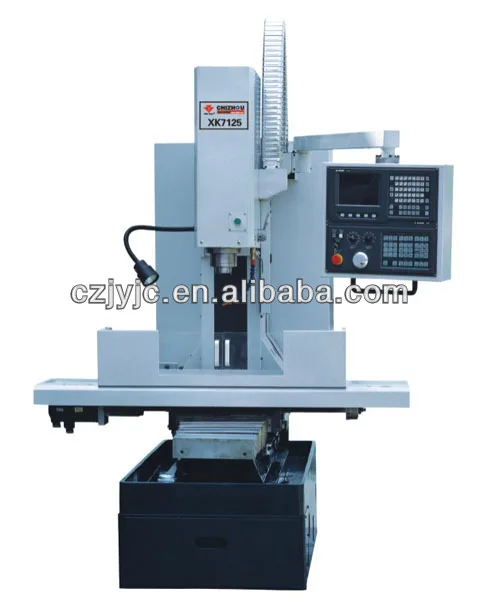

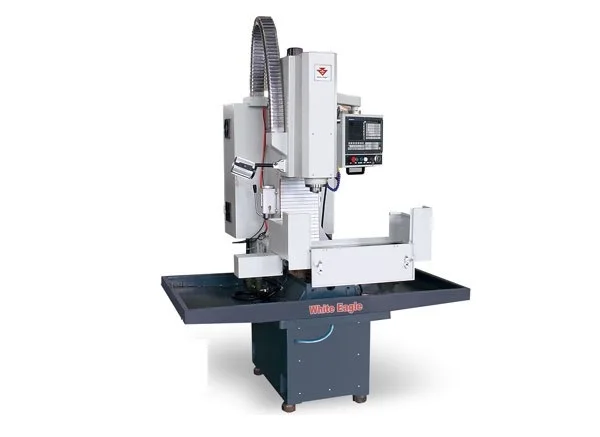

Model | XK7125 | |
Worktable | Size of workable(L*W)(mm) | 1000*250 |
T solt (width*qty*space)(mm) | 16*3*63 | |
Max.loading weight on workable (kg) | 120 | |
Travel | X/Y/Z-Axis travel | 535*320*375 |
Distance between spindle nose and table (mm) | 50-425 | |
Distance between spindle center and column (mm) | 345 | |
Spindle | Spindle speed (r/min) | 100-900/900-2500(6000-8000) |
Spindle taper | BT30 | |
Tool clamping way | Manual | |
ATC capacity(optional) | Optional | |
Feeding | Feeding speed(mm/min) | 0-2000 |
Rapid feeding speed:X/Y/Z Axis (kw) | 12 | |
Accuracy | Positioning accuracy(mm) | ±0.008 |
Repeatability accuracy(mm) | ±0.005 | |
Min.set unit(mm) | 0.01 | |
Motor | Main motor power （kw) | 1.5/2.2 |
Feeding Motor power :X/Y/Z Axis (kw) | 1/1/1.5 | |
Tools | Max.size of tool(mm) | φ60*175 |
Max.loading weight of Tools(kg) | 3.5 | |
Others | N.W(include machine stand)(kg) | 1700 |
Overall size(L*W*H)(mm) | 1516*1764*1708 | |
Packing size(L*W*H)(mm) | 2250*1910*2280 |
Features
1.4 Pcs Simple Tool Magazine on worktable with high effciency,it can realize all the processing as facing,drilling and tapping in one clamping.
2.Box-type column with plastic-sticking guide-way have high rigidity and strong stability and big support
3.Side carriage plastic-stuck and stronger anti-ground
4.3-axis transmission by precision ball lead-screw with servo motor
5.Various famous CNC controllers supplied with more choice
Stadard Accs
1.Coolant system
2.Working lamp
3.Manual lubricating system
4.Siemens Controller system
5.Auto lubricating system
Packing&Shipping
Our Strength
OEM APPROVED
- *LOGO OEM accept.
- *Packing design OEM ccept
- *Even machine design OEM accept.
OUR TEAM SERVICE
*Professional team,perfect pre-sale and after-sale serives
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion
* Good English speakers from sale department,can handle your suggestion
