14 seater shuttle bus / electric sightseeing bus for sale/Curtis Controller
- Category: >>>
- Supplier: Dongguan Zhuoyue Electric Car Co. Ltd.
Share on (62316012659):
Product Overview
Description
Excar 14 seater shuttle bus / electric sightseeing bus for sale
Standard Configration :with 72V 7KW AC system
Product Description:
14 seats performance view - AC system | |
Model Name: | G1S14 |
Bus Size: | L5050×W1480×H2300mm |
Weight(with battery): | 1200kgs |
Wheel Space: | 2700mm |
F/R track: | 1200/1230 mm |
Min Ground Clearance: | 135mm |
Max Forward Speed: | 27km/h |
Max Speed Braking Space: | ≤4 m |
Min Turning Radius: | 5m |
Max Climbing capacity: | 25% |
Max Pull: | 8.5kN |
Rated Power: | 7.5 KW |
Voltage: | 72V |
Charging Time: | 8-10H |
Range: | Load 55km, unload 75km |
Configuration | |
Chassis: | High-strength Steelwork |
Motor: | 7.5kw 3440r/min |
Controller: | MC3336 72V/400Ah AC motor |
Battery: | USA Trojan 6V*12pcs |
Charger: | Intelligent high frequency off-board charger |
Transaxle: | Overall transaxle |
Suspension System: | Leaf Spring Assembly |
Steering System: | Gear & chain steering system |
Brake System: | Front Disk brakes Rear drum brakes |
Roof/Windshield: | High-strength composite board roof/automobile special safety glass |
Tyre: | 165/70R14 vacuum tyre,alum rim |

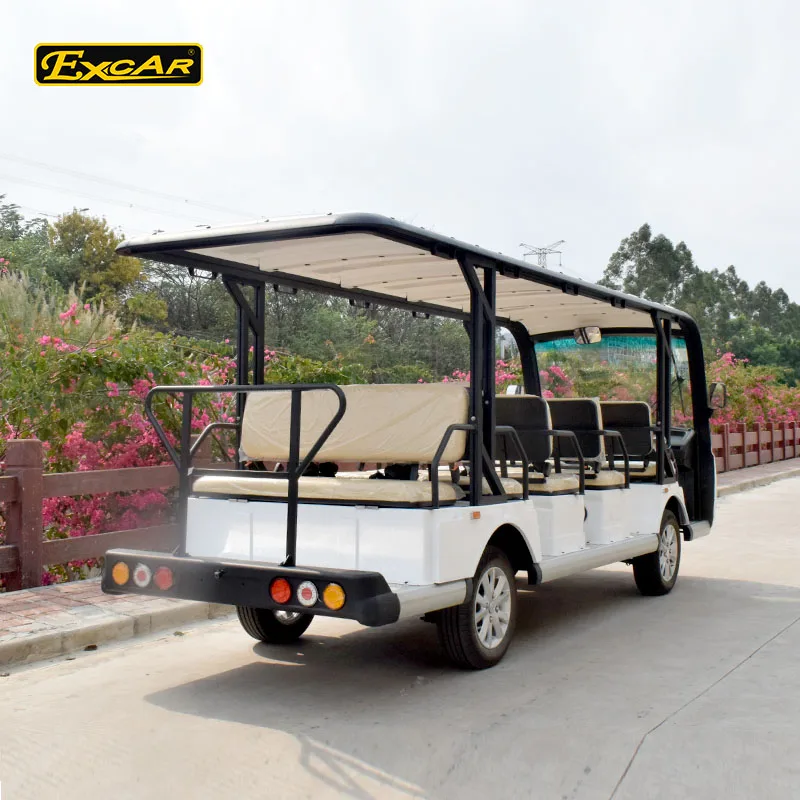

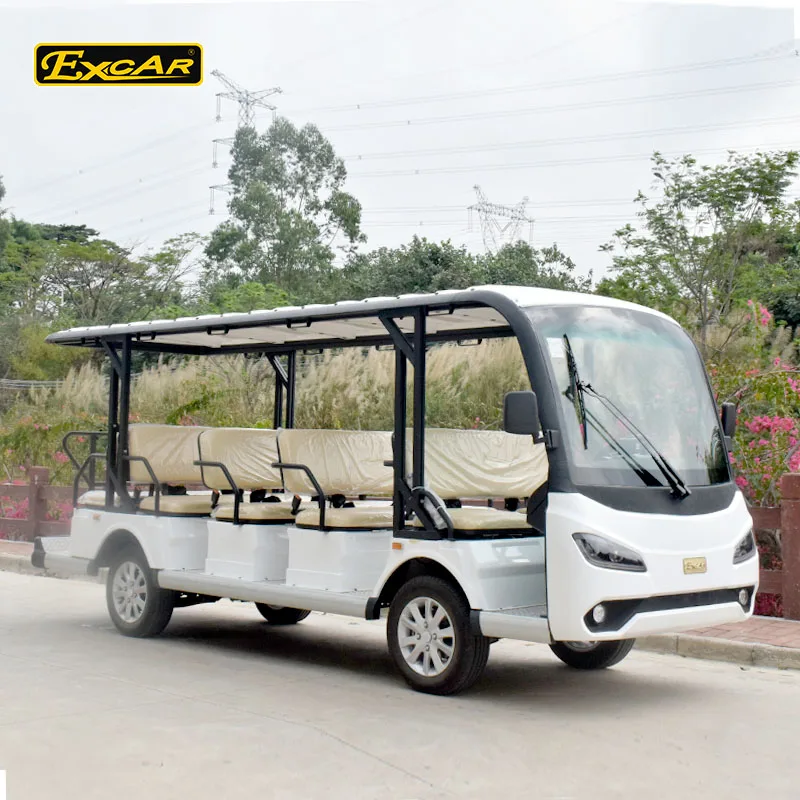

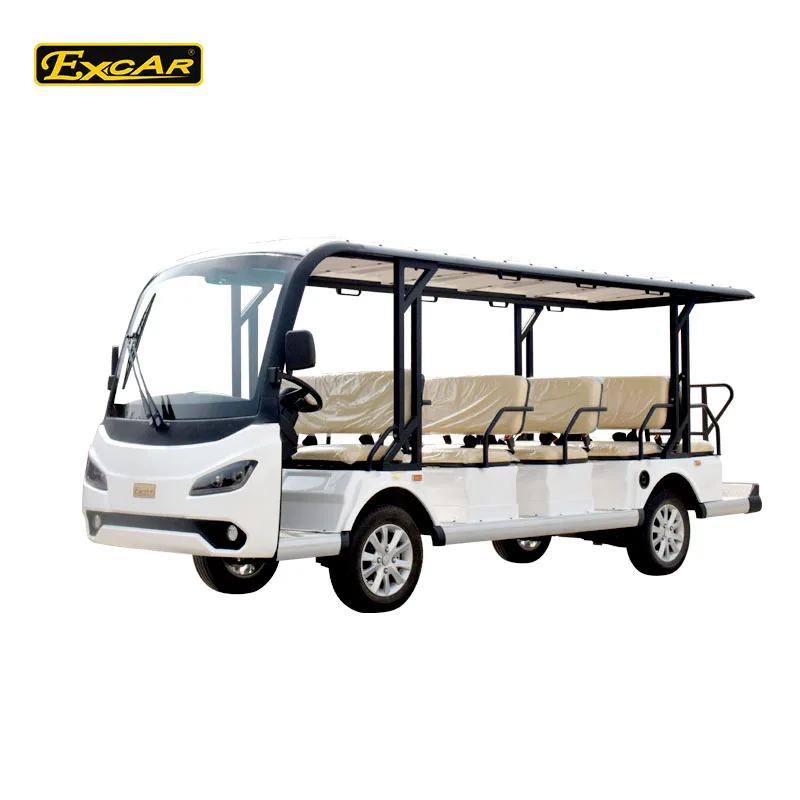

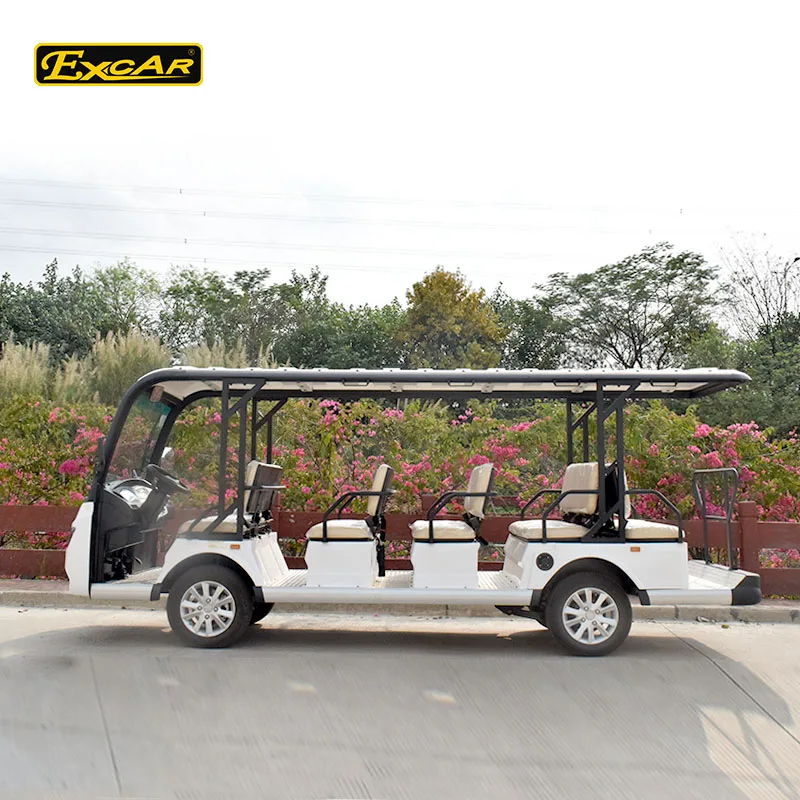

Product Show:
Optional colours:
Packing & Shipping:
1,LCL Shipment Packing :golf cart roof move-off packing, steel frame , cartoon paper cover.
2,FCL Shipment Packing : golf cart packed by plastic foam & plastic film
Our services:
Warranty : 1 year fully Warranty , offer golf cart FREE components under EXW shipped term.
Company Information:
Dongguan Excellence Golf & Sightseeing Car Co.,Ltd
Address: No.72 Fulai Road,Liuwuxiang,Liaobu,Dongguan,Guangdong,China
Website:www.excar.com.cn
Excar is established in 2006.
Our golf cart now become the No.1 choice for the golf course in China.
Excar possesses advanced facilities and owns a group of technicians to keep innovation.
