Product Overview
Description
Product Overview
The interlayer bonding strength refers to the ability of the cardboard to resist the separation between layers, and is a reflection of the internal bonding ability of the paper, which is very important for the processing of multi-layer paper and cardboard. Low internal bonding value or uneven distribution may cause problems when paper and cardboard are laid flat in offset printing presses using viscous ink; too high bonding strength value will cause difficulty in processing and increase production costs.
Features At A Glance
The non-damped encoder reduces the friction of the bearing and improves the measurement accuracy.
ARM processor, 7-inch color touch screen, Chinese menu, simple and convenient operation.
It can store 16000 sets of batch data, which is convenient for users to check historical measurement data.
The sample preparation and test are separated, and the sample preparation adopts pneumatic pressure. Compared with ordinary hydraulic paper samplers, no maintenance such as oil injection is required.
Communication with computer software (purchase separately)
ARM processor, 7-inch color touch screen, Chinese menu, simple and convenient operation.
It can store 16000 sets of batch data, which is convenient for users to check historical measurement data.
The sample preparation and test are separated, and the sample preparation adopts pneumatic pressure. Compared with ordinary hydraulic paper samplers, no maintenance such as oil injection is required.
Communication with computer software (purchase separately)

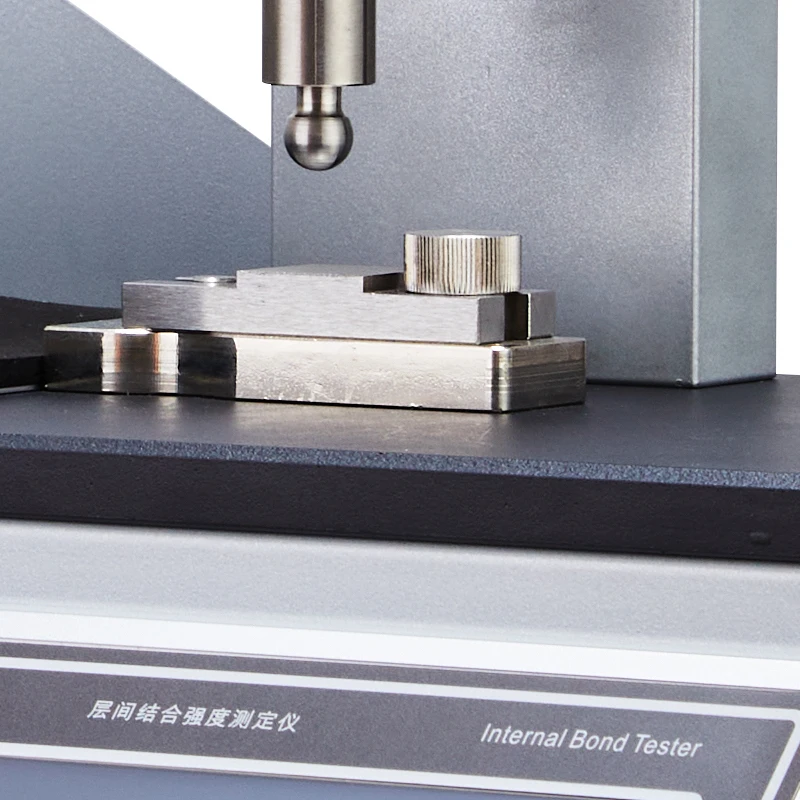

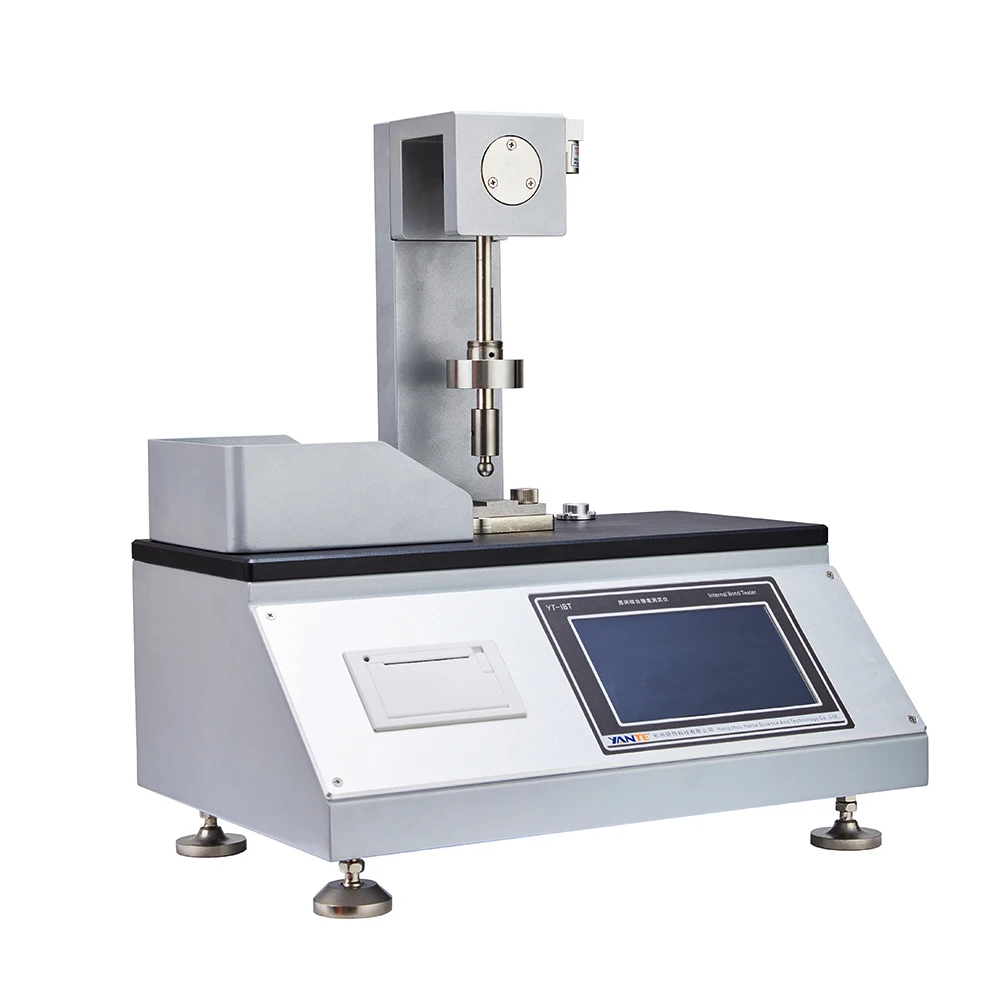

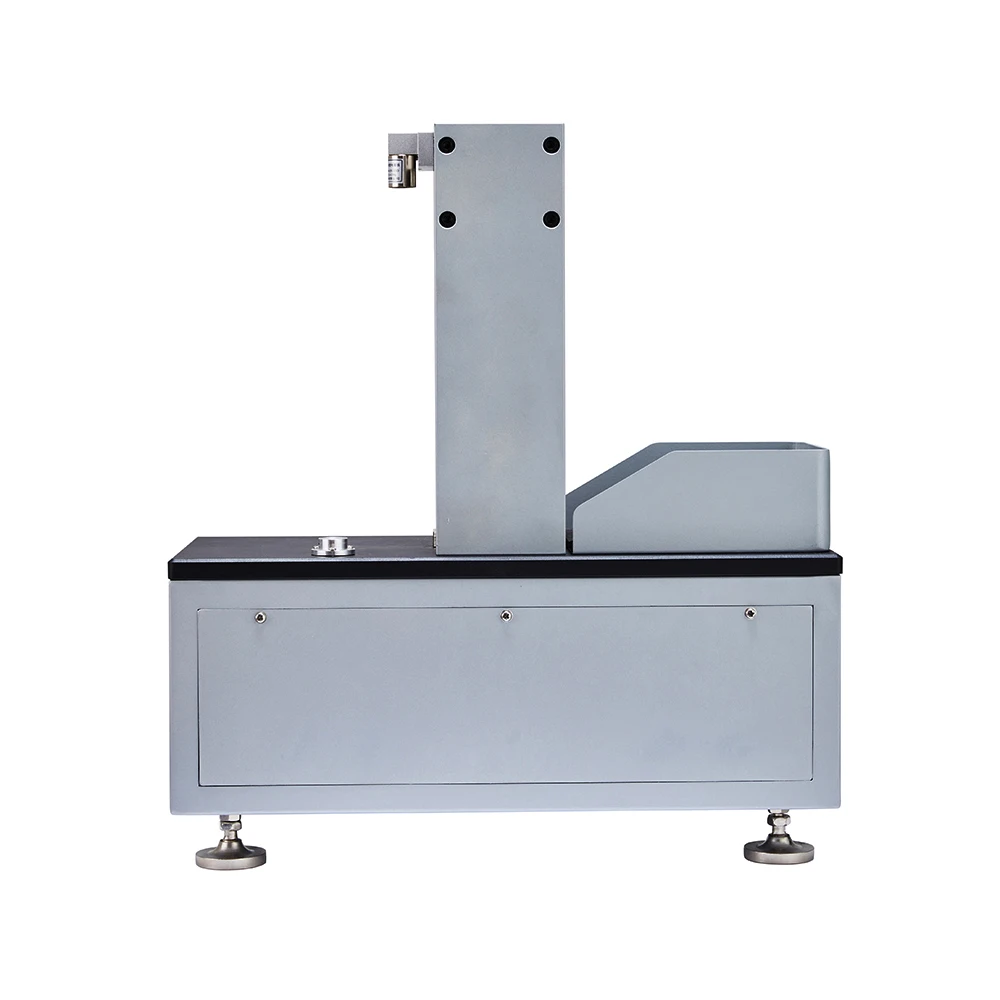

Details Images
Application Range
Box board, white board, gray board, white cardboard
Execute Standard
GB/T26203-2010
Sales And Service Network
Product Paramenters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen |
4 | Specimen size | 25.4mm*25.4mm |
5 | Specimen holding force | 0～60kg/cm²(Adjustable) |
6 | Impact angle | 90° |
7 | Resolution | 0.1J/m² |
8 | Measuring range | A：（20～500）J/ m² B：（500～1000）J/ m² |
9 | Indication error | A：±1J/ m² B：±2J/ m² |
10 | Unit | J/m² |
11 | Data storage | Can store 16000 batch data; up to 20 test data under each batch |
12 | Print | Built-in thermal printer |
13 | Communication Interface | RS232(Default) (USB, WIFI optional) |
14 | Dimension | 460×310×515 mm |
15 | Net Weight | 25kg around |
