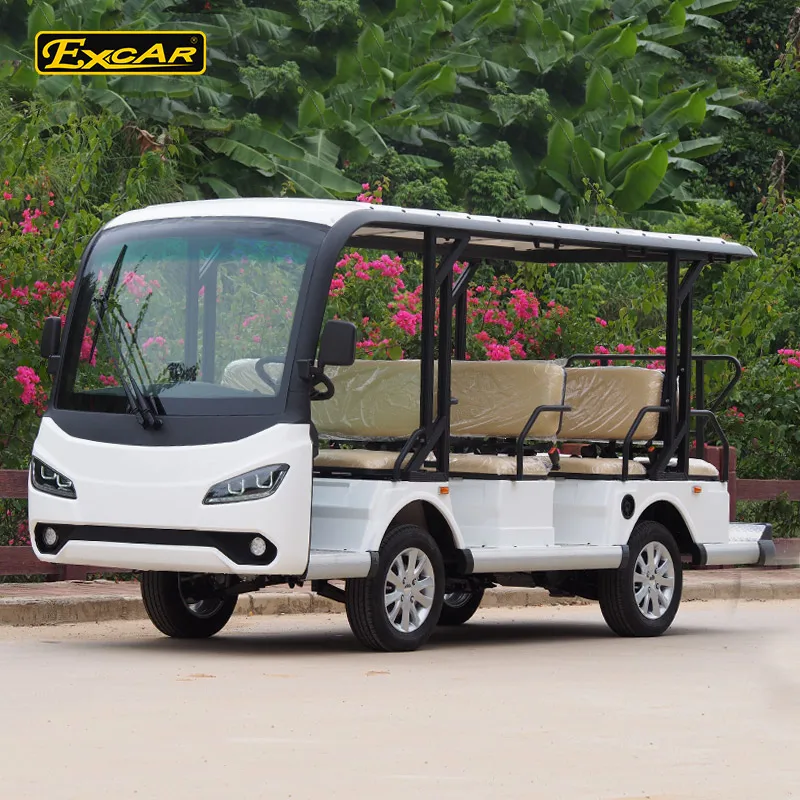

Battery Operated 11 Seater Electric Sightseeing Cart

Product Overview

Description

Battery Operated 11 Seater Electric Sightseeing Cart



Standard Configration :with   72V 3.7KW DC system







Product Description:



11 seats performance view - AC system
Model Name:	G1S11
Bus Size:	L5050×W1480×H2300mm
Weight(with battery):	1200kgs
Wheel Space:	2700mm
F/R track:	1200/1230 mm
Min Ground Clearance:	135mm
Max Forward Speed:	27km/h
Max Speed Braking Space:	≤4 m
Min Turning Radius:	5m
Max Climbing capacity:	25%
Max Pull:	8.5kN
Rated Power:	7.5 KW
Voltage:	72V
Range:	Load 55km, unload 75km
Configuration
Chassis:	High-strength Steelwork
Motor:	7.5kw 3440r/min
Controller:	MC3336 72V/400Ah AC motor
Battery:	USA Trojan 6V*12pcs
Charger:	Intelligent high frequency off-board charger
Transaxle:	Overall transaxle
Suspension System:	Leaf Spring Assembly
Steering System:	Gear & chain steering system
Brake System:	Front Disk brakes Rear drum brakes
Roof/Windshield:	High-strength composite board roof/automobile special safety glass
Tyre:	175/70R14 vacuum tyre,alum rim

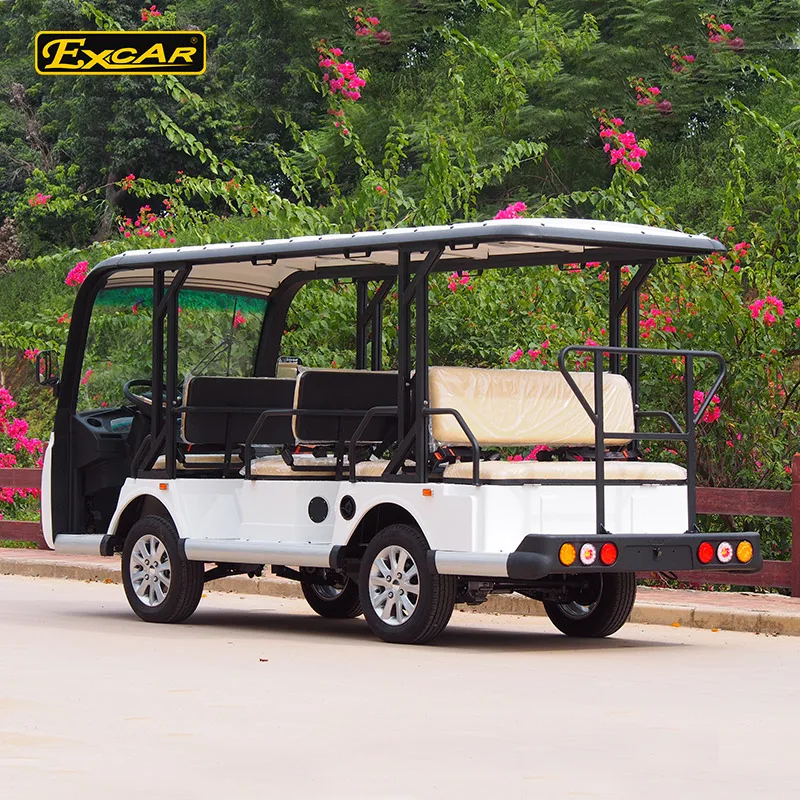

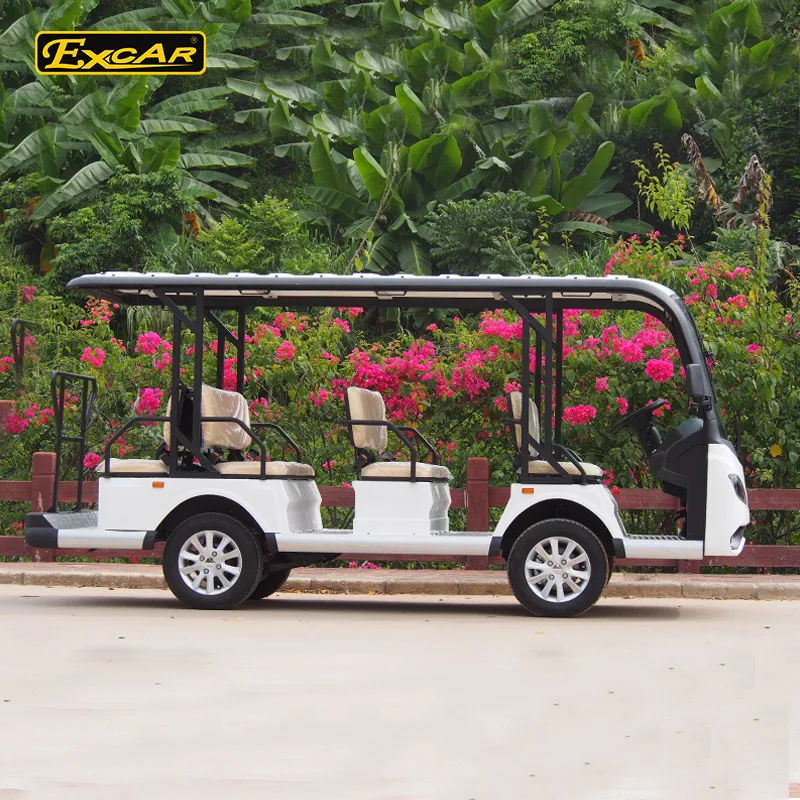

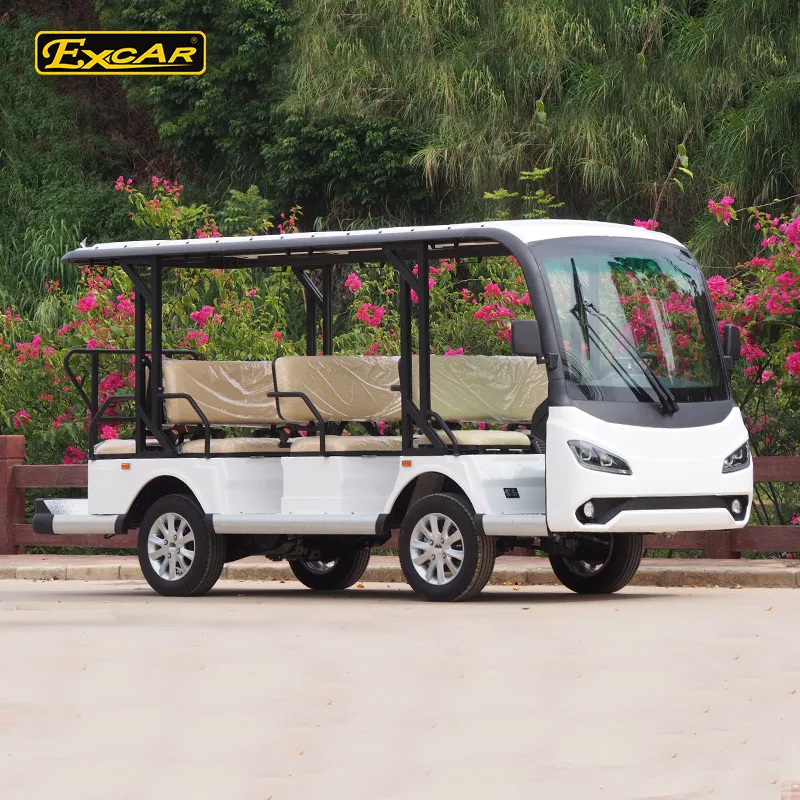

Product Show:

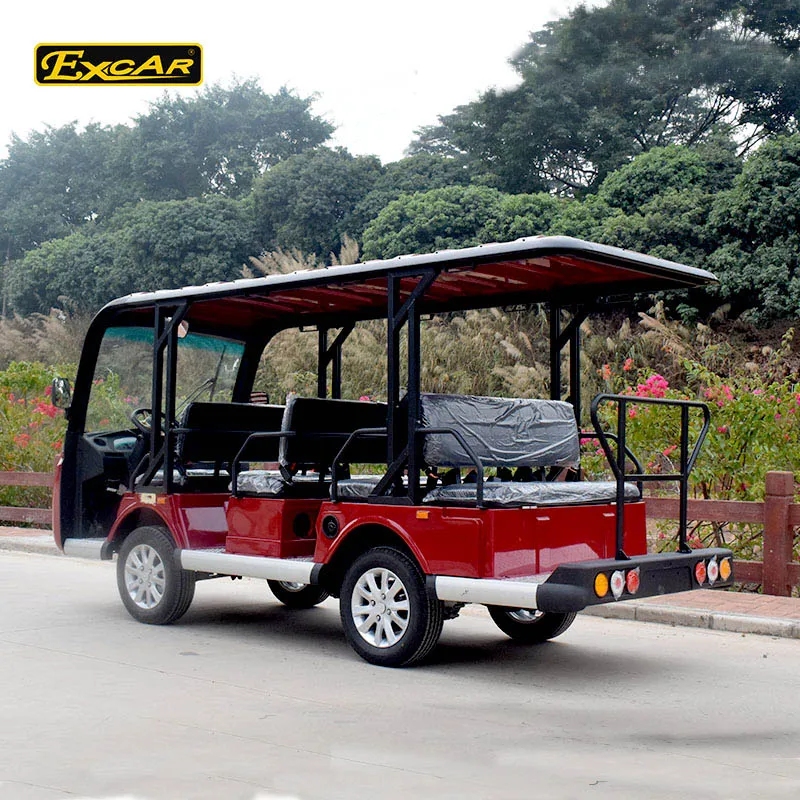

Optional colours:

 Packing & Shipping:



  1,LCL Shipment  Packing :golf cart roof move-off packing, steel frame , cartoon paper cover.

2,FCL  Shipment Packing : golf cart packed by plastic foam & plastic film











Warranty  :  1 year fully Warranty , offer golf cart FREE components under EXW shipped term.







  Website:www.excar.com.cn



Excar is established in 2006.
Our golf cart now become the No.1 choice for the golf course in China.
Excar possesses advanced facilities and owns a group of technicians to keep innovation.





About US



Dongguan Excellence Golf & Sightseeing Car Co., Ltd. (Excar) is a high technological company with our own research and development department. Our factory is located in the Liuwuxiang Industry Zone, at the east of Songshang Lake Road and the north of Guanshen Highway. It enjoys superior location and convenient transportation.
Excar Concentratees on researching, developing and manufacturing electric cars in the field of four-wheel electric cars. For golf cars and sightseeing cars, we have great confidence that we could make it better and better to meet the needs of our clients.
Refer to the specification standards of imported electric cars, we designed and created a new series of golf cars named Discovery for Chinese golf course especially.
Excar is devoted to before and after sale services and setting up service centers to support our customers. One of our duties is to supply exchangeable parts and technical support for golf cars of E-Z-GO and club cars. We are always ready to serve every golf course sincerely.
