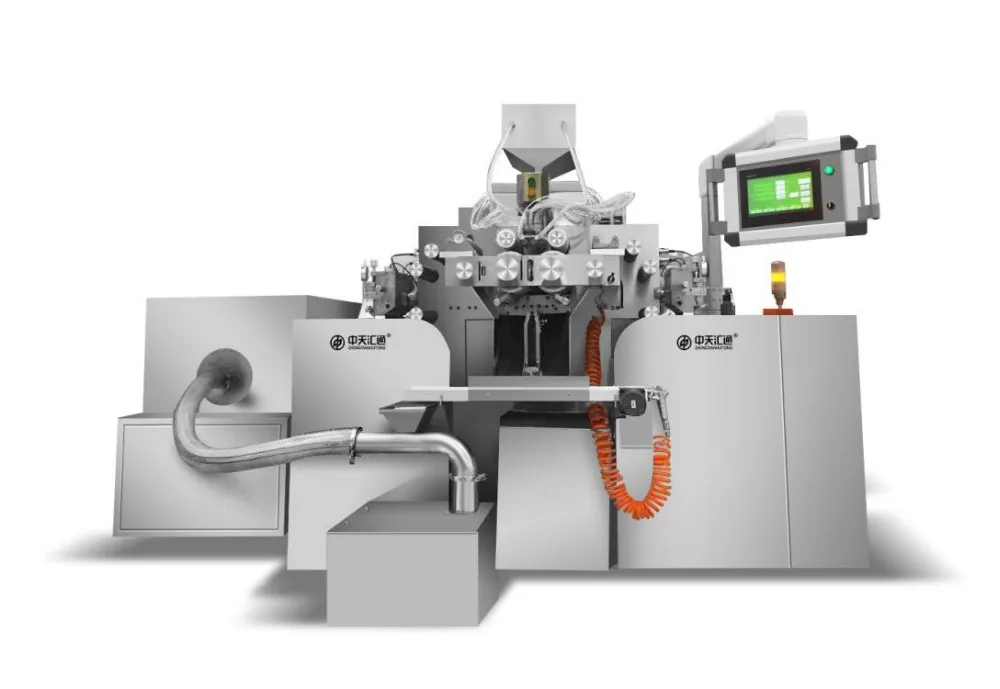

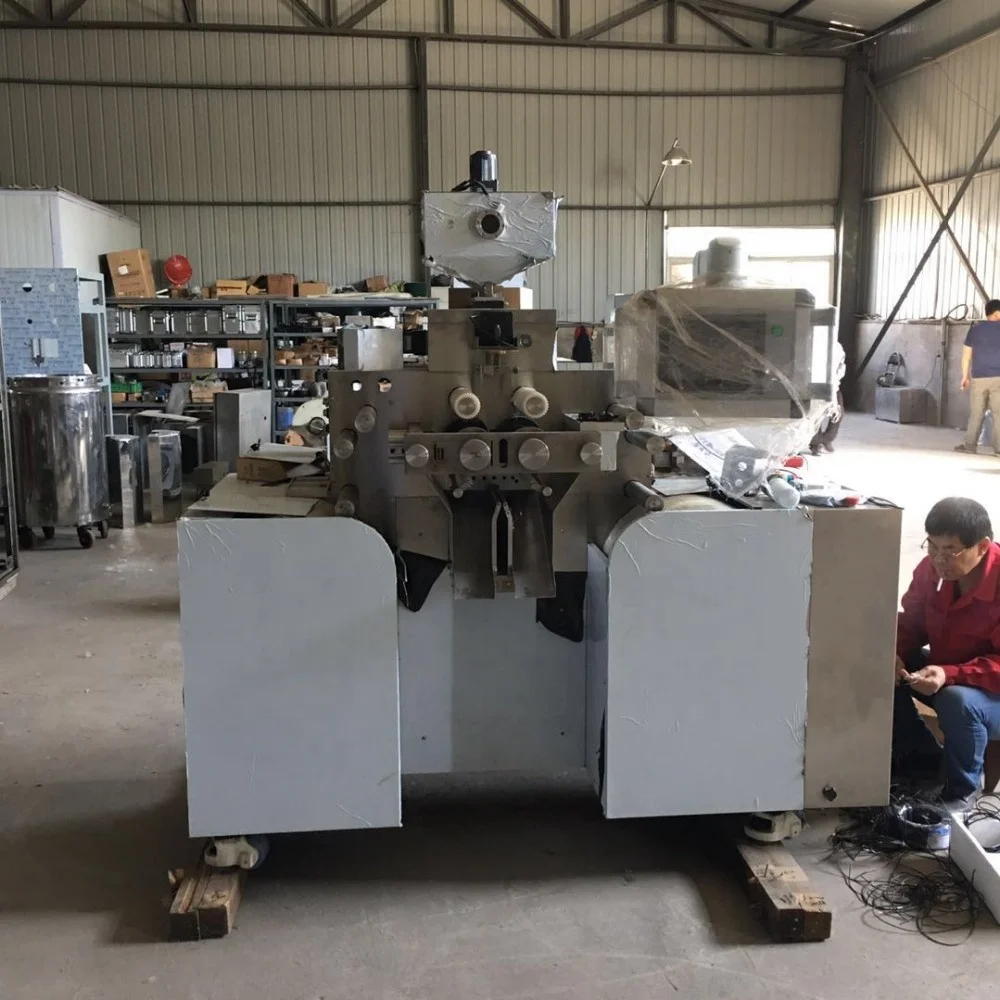

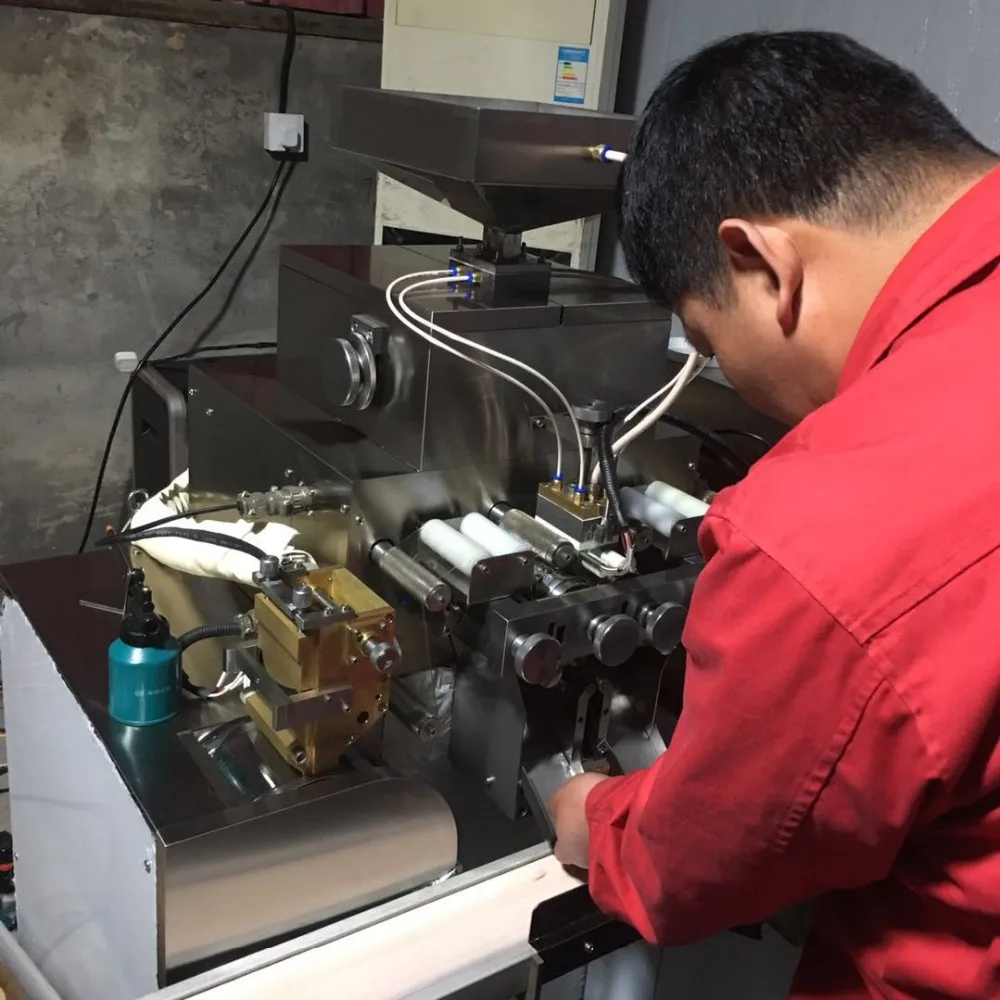

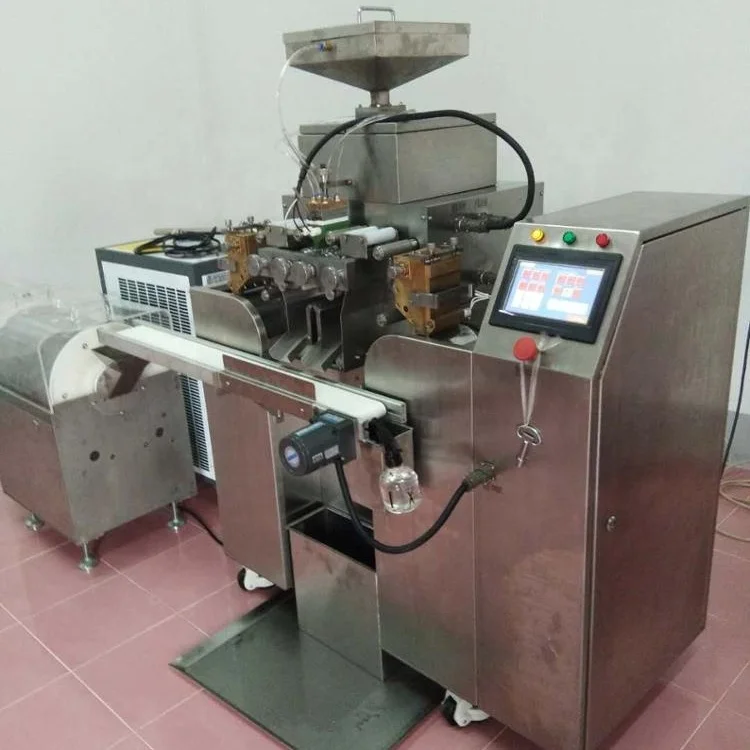

Cosmetic Soft Capsule Machine
HZP-B cosmetic capsule machine is the new production developed by our company in 2012,it is the small model of cosmetic capsule machine,it is easy to operate , automatic control technology, the whole set of equipment including a main engine and control syssterm a dryer, chemical rubbertank, batching tank, colloid mill and other needed
Main Engine
Die roll size\t115mm X 125 mm
Die roll speed\t0-4 rpm
Charge for a single plunger \t0-1.5 ml
Main Motor Power\t0.55 Kw
Machine Power\t6 Kw
Power supply\t220 V 50 Hz
Over dimension\t1380mm X 715mm X 1702mm

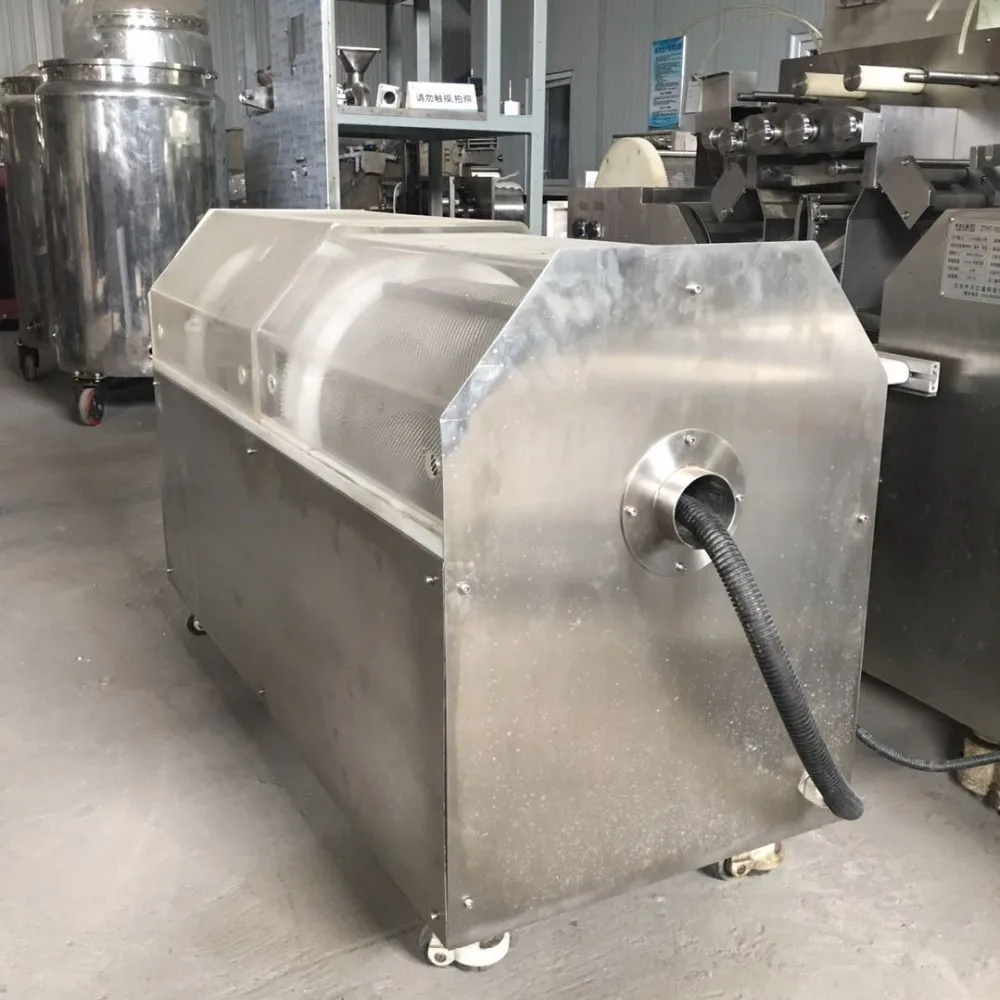

Dryer
Basket Size\tΦ450mm x 500mm

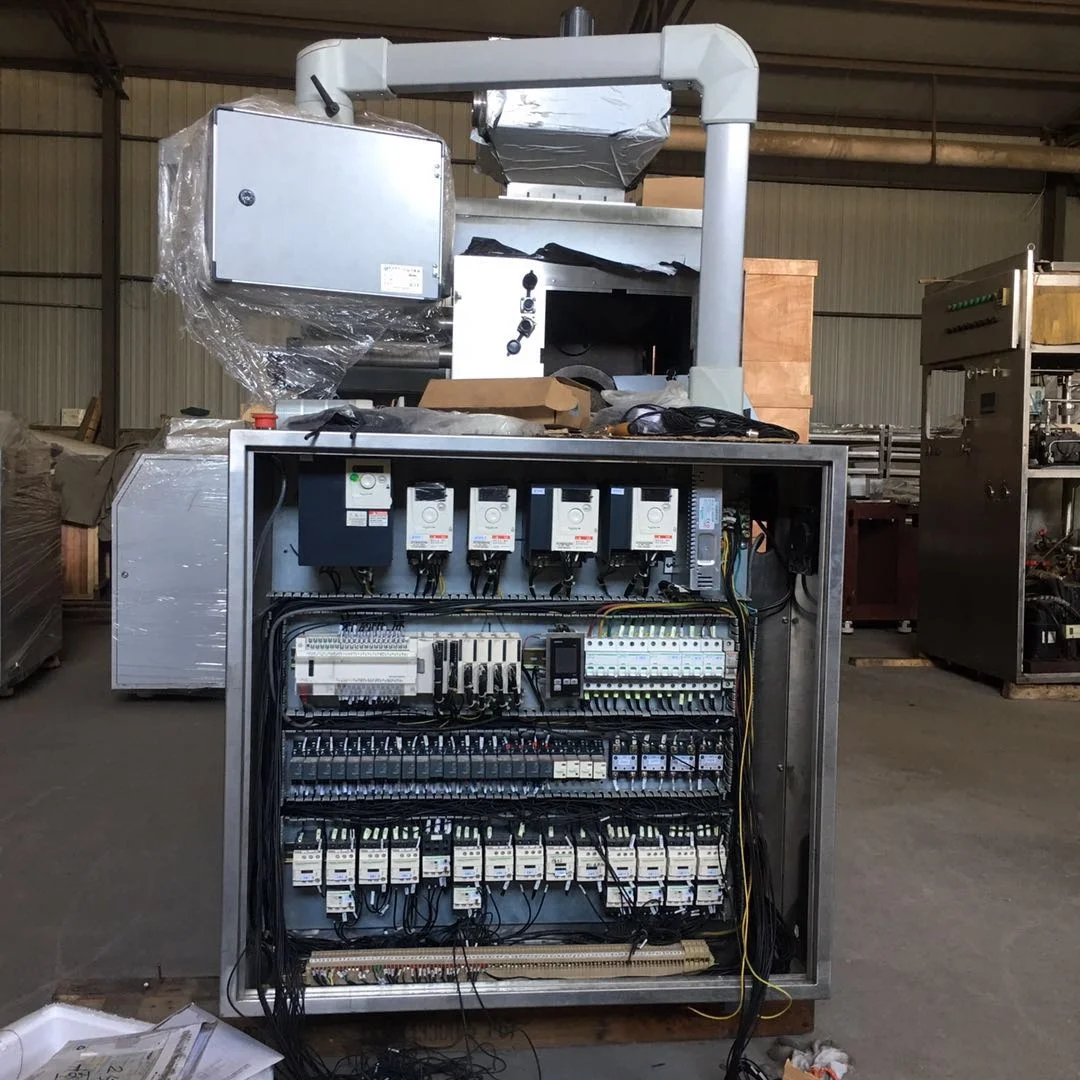

Control\tCentral control system
Electric spes\t200V /50HZ/50HZ 1 PH
Required power\t90 W
Main Motor\t0.2Kw X 2 motors
Pan Motor\t0.2 Kw X 2 Fans
Dimension\t500mm X 400mm X 700mm
Material\tSUS 316 for control area

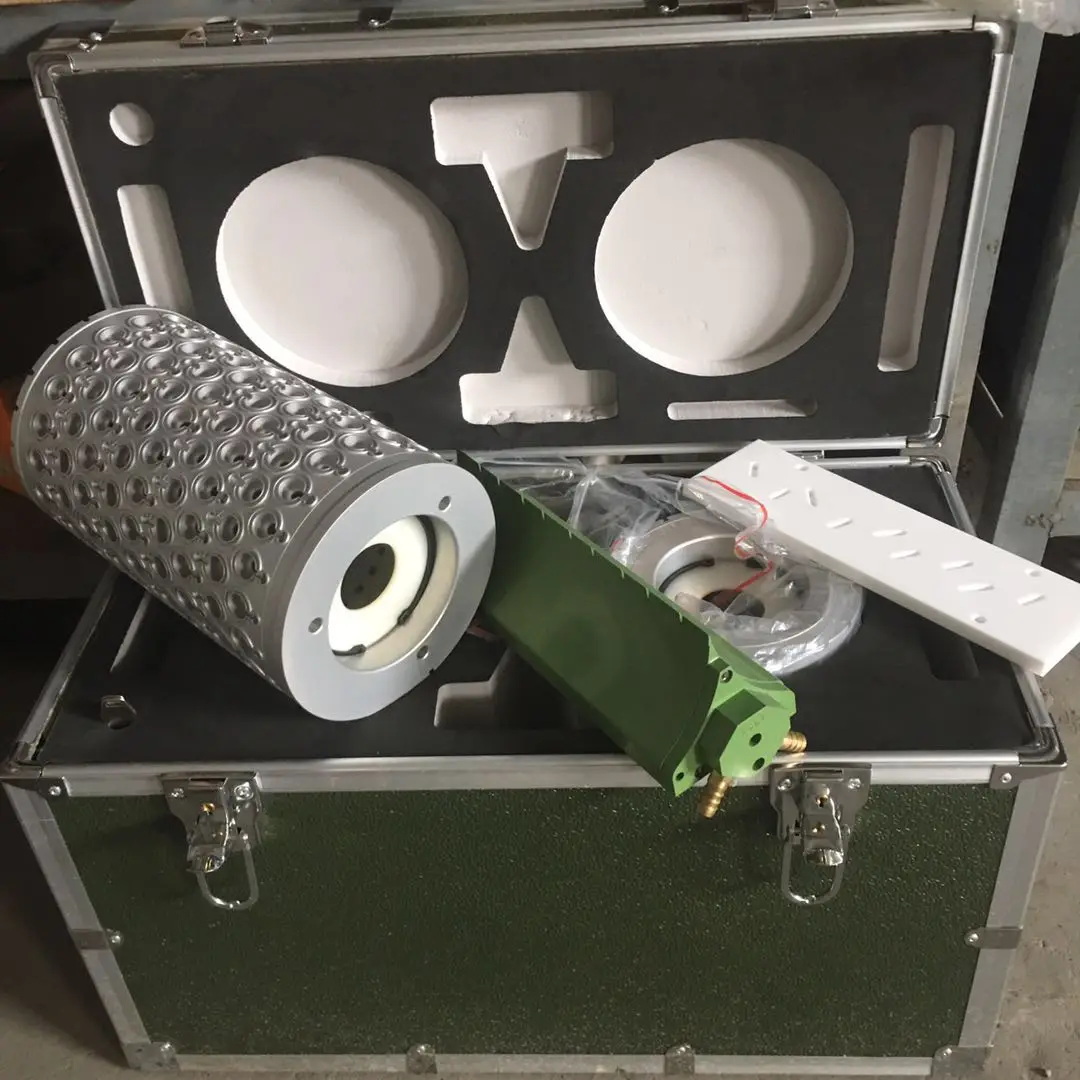

Rolling Die
Material\tAL 7075 (Duralumin
Injection segment \t1 set
Distribution plate \t1 set
Time gear\t1 set
Capsule Dry and Trailer
Material\tPPE
Dimension\t760mm X 490mm X 55mm
Capacity\t2500 capsule
Trailer
Material\tSUS 304
Dimension\t775mm X 510mm X 115mm
Four casters\tEquipped on the bottom
Air Compressor
Material\tSUS 304
Dimension\t420mm X 220MM X 360mm
Weight\t2 Kg
Voltage\t220 V / 50 Hz
Power\t≤320 W
Air flow\t≤3.3³/H

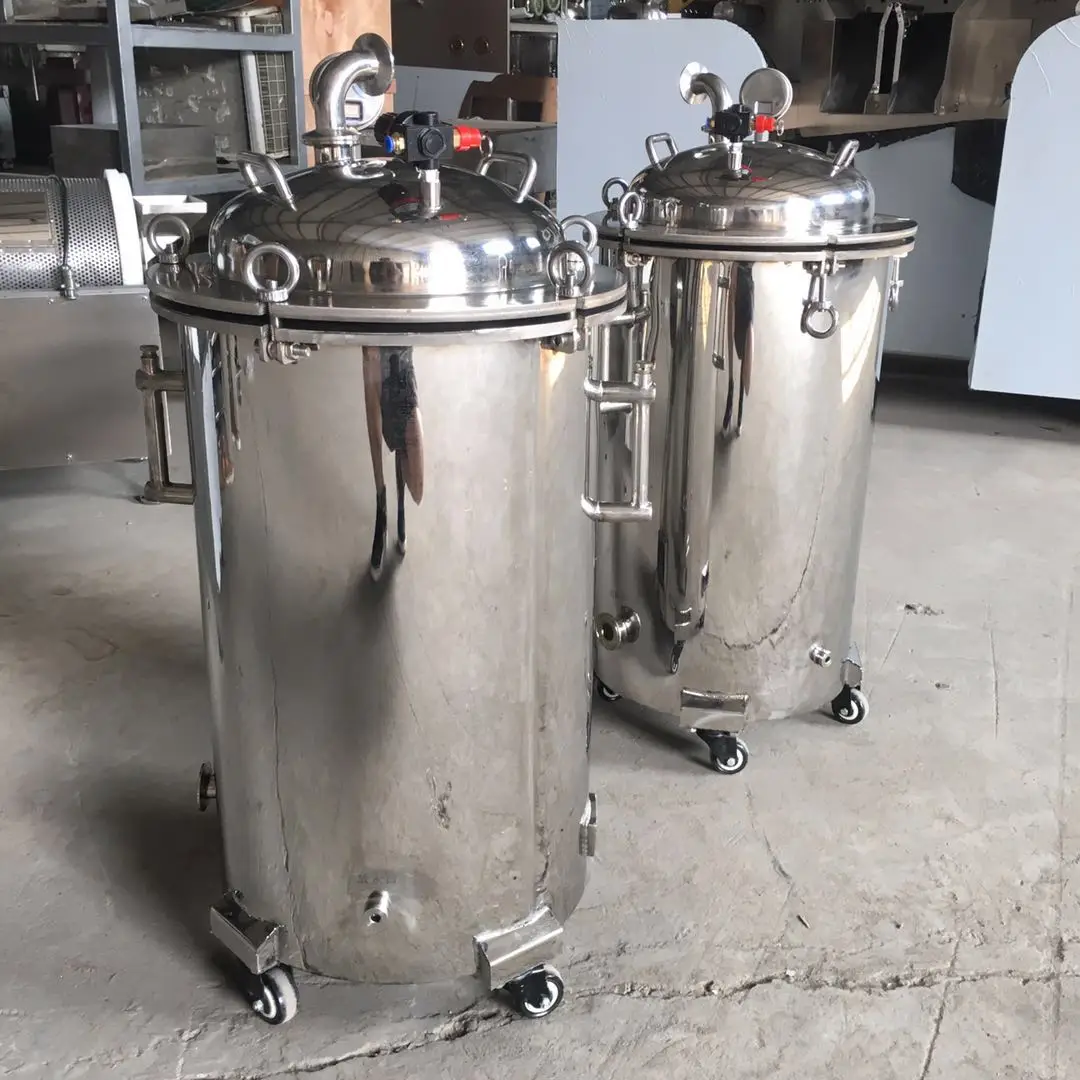

Gelatin Melting Tank
Material\tSUS 304
Dimension\tΦ400mm X 700mm
Weight\t40 Kg
Power\t1 Kw
Voltage\t220V / 2.2Kw
Frequency\t50 Hz / 60 Hz
Max rate\t16 rpm 9fixed
Max temp\t90--100℃
Max capa\t30 liter *1 tan
Detailed Images
FAQ
About Our Machine and Company
Q: Are you a factory or a trading company
A: We are a factory manufacturer for pharmaceutical equipment and soft capsule making machine we provide prefect OEM and after service.
Q: Where is you factory ? How can i visit your factory
A: Our factory is located in Beijing City, near the airport, we are warmly welcome you visit our factory, we can pick you up as Beijing International Airport .
Q: How can I know the machine is designed for my product?
A; You can sent the samples to us, the we will test it on machine
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
Q: How about your after sales service
A: First, before the transportation , we offer the training course for your technical ,if he come to our factory, and next, after the transportation, we have 12 month warranty for the machine, and if you need we can sent our technical and engineer to your factory and help you with the equipment commissioning
Our Service
Before Transportation
Before the transportation , we offer the training course for your technical ,if he come to our factory, and next, after the transportation, we have 12 month warranty for the machine, and if you need we can sent our technical and engineer to your factory and help you with the equipment commissioning
After Transportation
We will take video and clearer picture for you. If chance, we can take video online and show you.Online video service ,24 hour technology support by mail or online.if you need we can sent our engineer to your palace.
