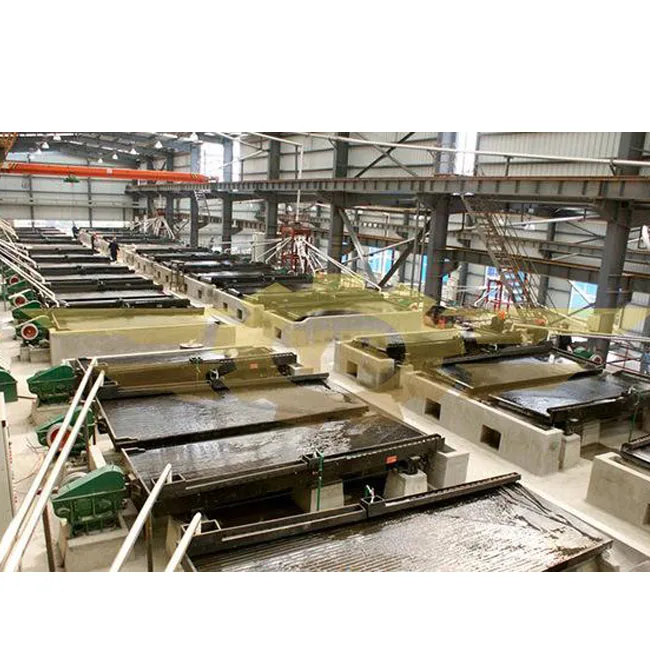

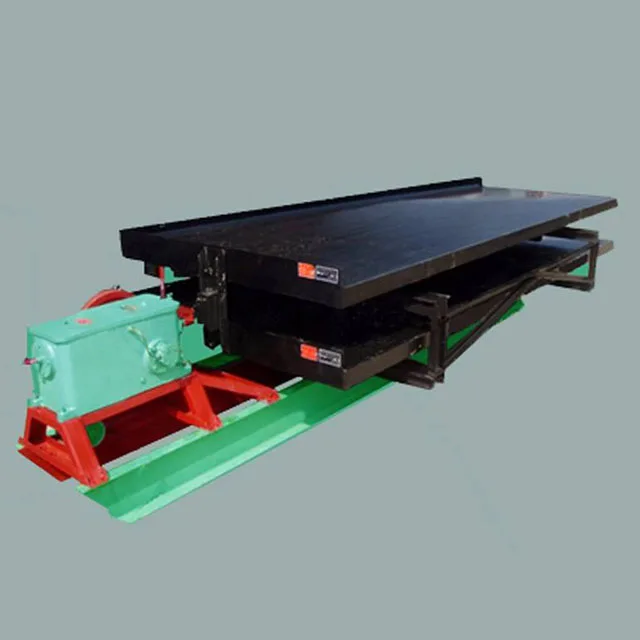

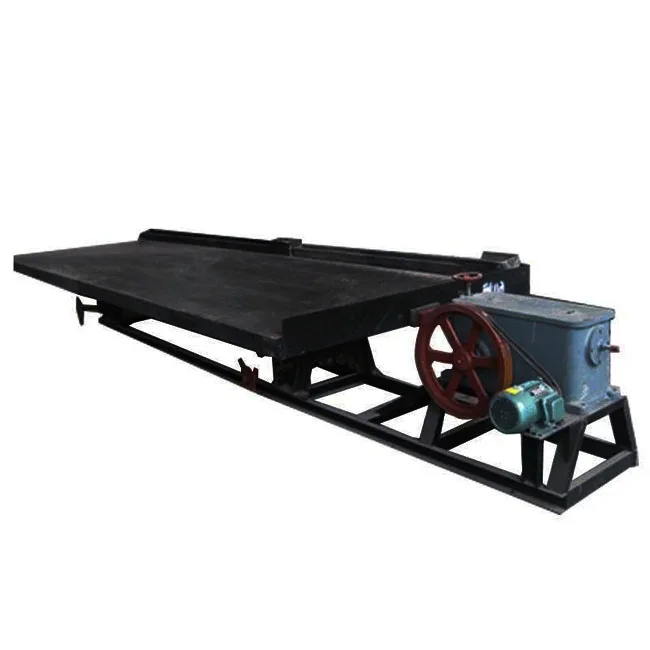

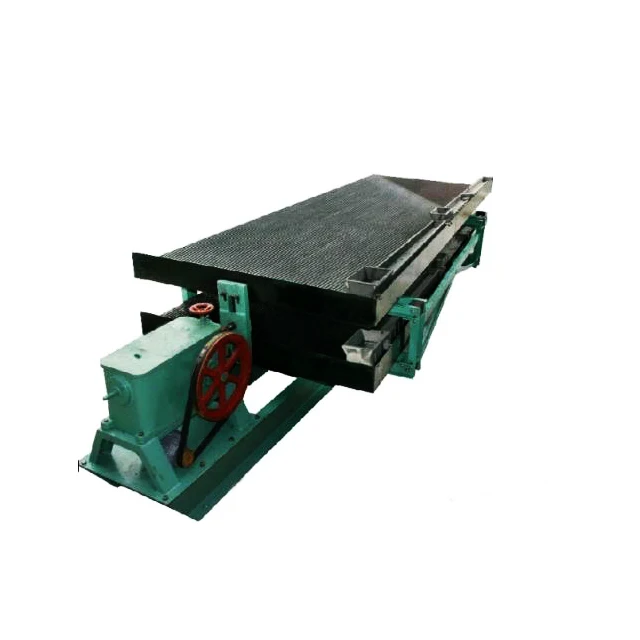

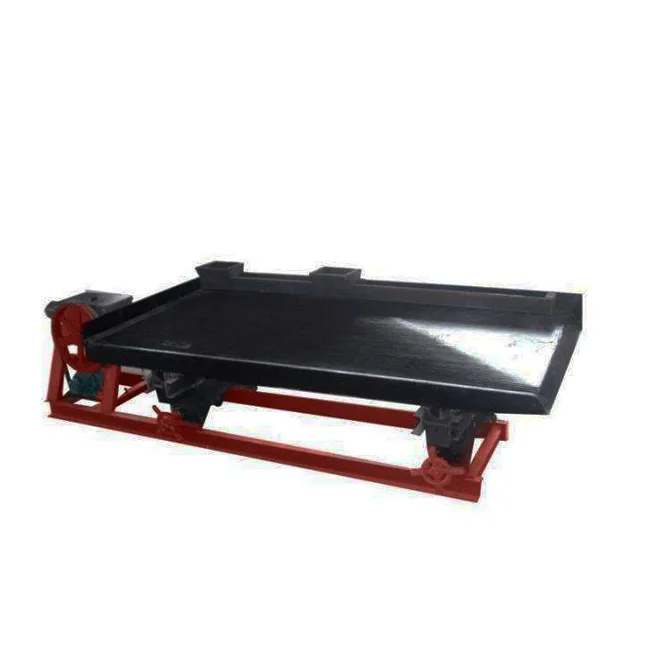

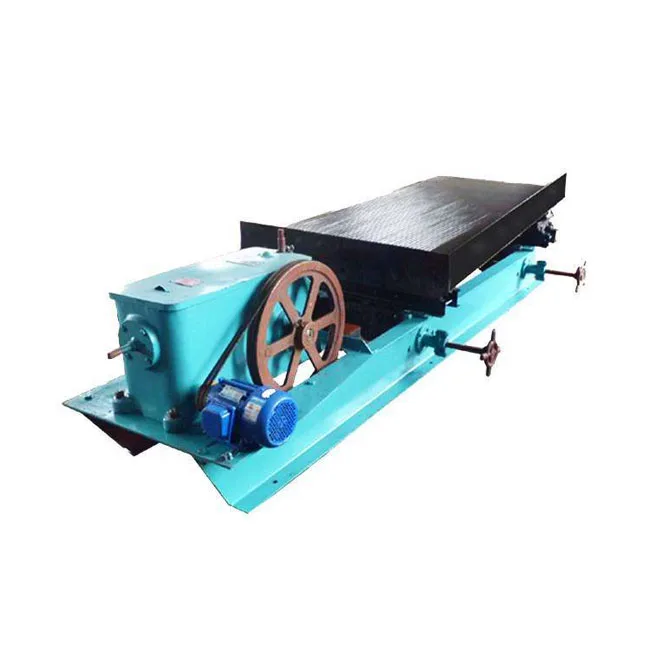

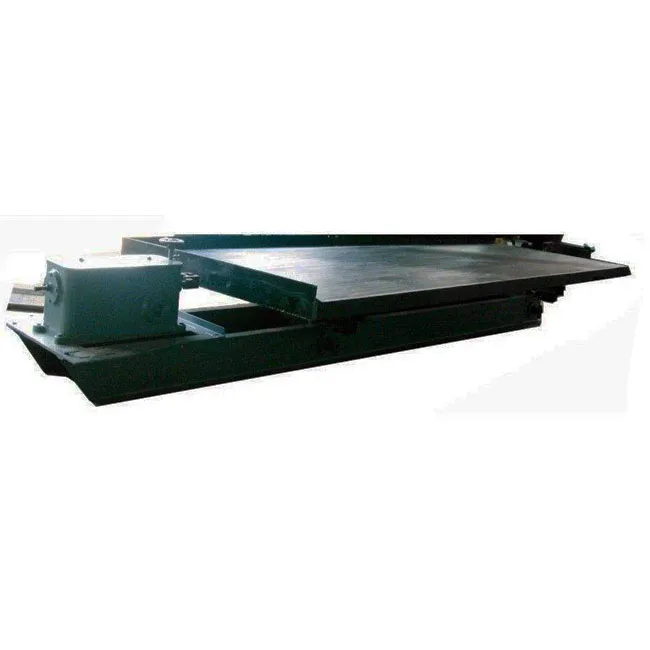

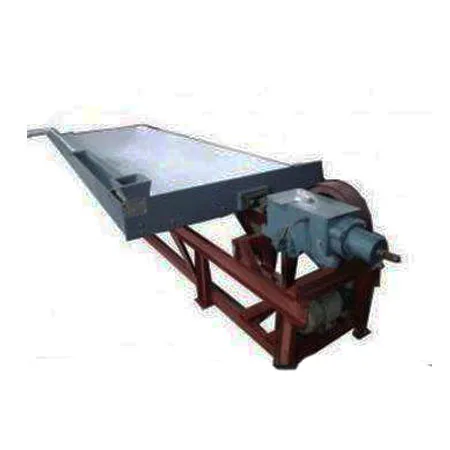

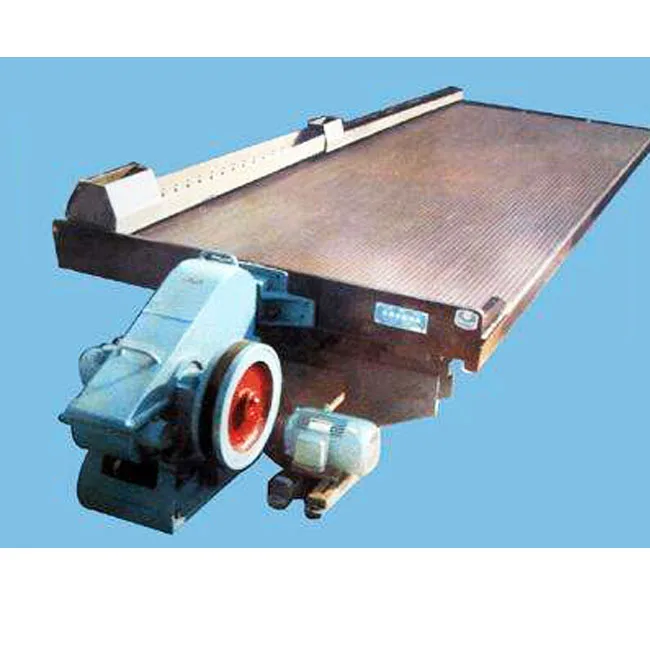

Mineral manganese gold shaking table shaker is one of the gravity ore dressing main equipment.It is easy to operate as it can produce high level concentrate,second concentrate and middling products and tailings at one time,it is the important ore dressing equipment.It is widely used to separate wolfram,tin,niobium,other rare metal and precious metal ore and also used to separate iron,manganese and coal,etc.
Features
1.High recovery ratio
2.High concentration ratio
3.Easy installation
4.Simple operation
5.Deck constructed of fiber glass
6.Long working life
7.Adjustable stroke length and speed
Technical data
Name
Coarse sand table
fine sand table
Slime table
Table dimension
Length(mm)
4450
4450
4450
Gearing side wide(mm)
1855
1855
1855
Concentrate side wide(mm)
1546
1546
1546
Max feed-in material size(mm)
2
0.5
0.15
Feed-in material capacity(t/d)
30-60
10-20
15-25
Feed-in materials concentration(%)
25-30
20-25
15-25
Travel length(mm)
16-22
11-16
8-16
Frequency(f)
15-48
48-53
50-57
Water for cleaning table(t/d)
80-150
30-60
10-17
Transverse gradient
2.5-4.5
1.5-3.5
1-2
Longitudinal gradient(%)
1.4
0.92
--
Table final angle
32-42
40
42
Dressing area
7.6
7.6
7.6
Table length ratio
2.6
2.6
2.6
Power(kw)
1.1
1.1
1.1
Packaging & Shipping
1.International export standard packing of Mineral manganese gold shaking table shaker
2.small parts are woodened box package 3.main engine nude,container,or customer'requirement
Company Information
Henan Zoomjo Mining Machinery Manufacturing Co., Ltd, as a joint-stock enterprise, is focusing on the production of large-sized mining machinery including ball mill, rotary kiln, etc. Located in jiaozuo city, a industry city with a long history for large equipment and machinery manufacturing, Zoomjo is becoming more and more connected to the world. For more details, please refer to our website: www.zoomjomac.com
Inquiry
Please fill in your need products and your messageand do not forget mailand/or phone if you like to be contacted.
We are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,
What is theraw material do you want to process?
What is thecapacity per hour do you need?
What is theraw material input size?
What is theoutput size of your product?
I hope you can tell me these details, i will give you the best quotation ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
FAQ2
Q1.How long is the warrenty of your equipments? The warranty period of our equipments is one year. Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service. What minerals are you separating? What's the maximum size of your raw minerals? How much capacity do you need per hour for your project? Q3.Can you test our samples?Do you provide beneficiation flow chart? Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc. Q4. If I need the complete crushing plant can you help us to build it? A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
