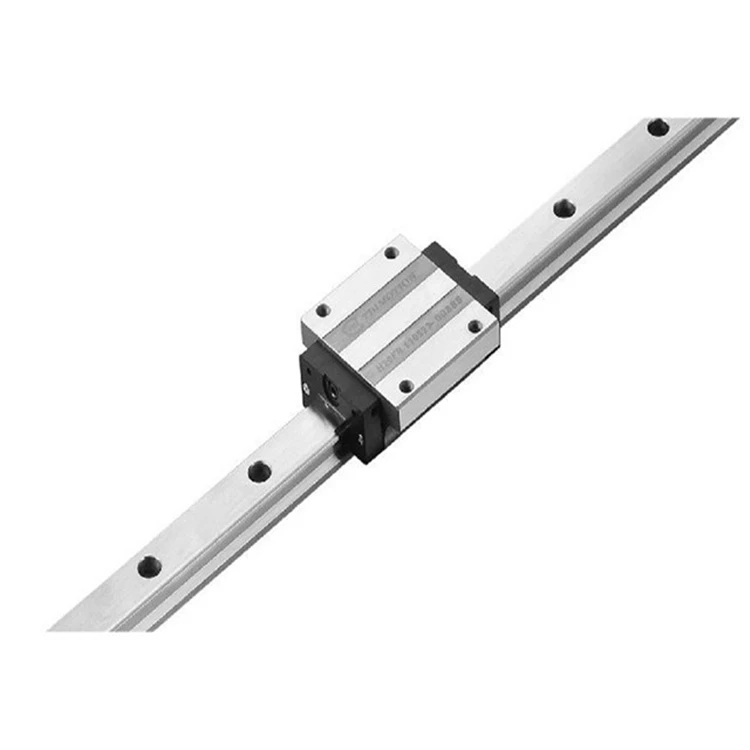

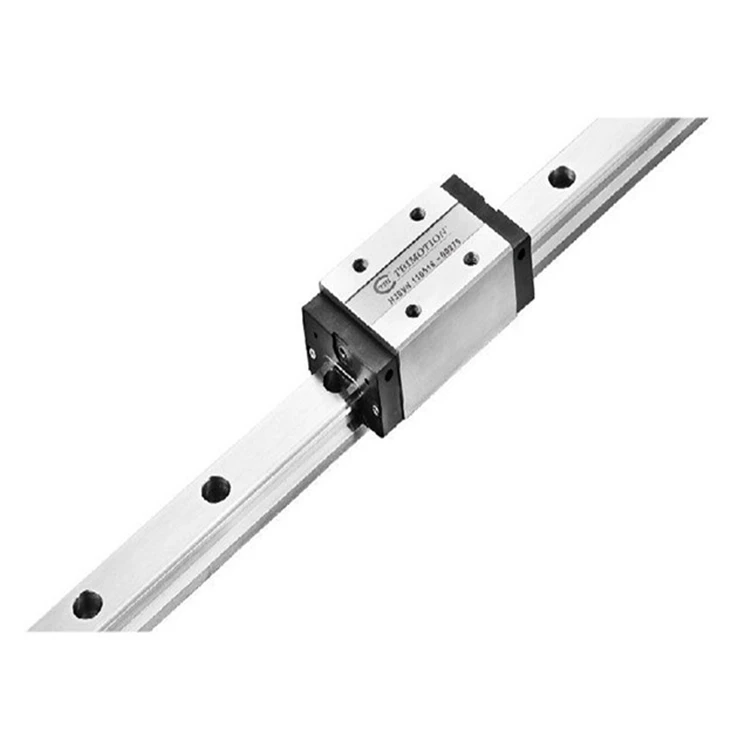

Taiwan TBI brand TRS35VN ball slide CNC machine tool linear bearing steel linear guide rail

Product Overview

Description

Features of TBI MOTION Linear Guide

1-1-1 High Accuracy
Linear Guide has little friction, only a small driving force is needed to move the load. Low friction
helps the temperature rising effect to stay low. Thus, the friction is decreased and the accuracy can
be maintained for a long period than tradition slide system.
1-1-2 High Rigidity
The design of Linear Guide features an equal load rating in all directions that provide sufficient
rigidity load in all directions, self-aligning capability to absorb installation-error. Moreover, a sufficient
preload can be achieved to increase rigidity and makes it suitable for any kind of installation.
1-1-3 Easy for Maintenance
Compared with high-skill required scrapping process of traditional slide system, the Linear Guide
can offer high precision even if the mounting surface is machined by milling or grinding. Moreover,
the interchangeability of Linear Guide gives a convenience for installation and future maintenance.
1-1-4 High Speed
Linear Guide block, rail and ball apply by contact point of rolling system. Due to the characteristic
of low friction, the required driving force is much lower than that in other systems, thus the power
consumption is low. Moreover the temperature rising effect is lower even under high speed
operation.



Product Name	TaiwanTBI
Material	Bearing Steel
Advantage	High Precision, Large Load Capacity, Low Noise, High Rigidity
Delivery Details	3-30 Days After Order
Applications	CNC Machine Tools,Electronic Equipment,Automation      Equipment,Laser Equipment, Medical  Equipment   (CT),Lathe,Standing Uniform   Floor,Horizontal MilingMachine,Planer,Shearing Machine Etc.
