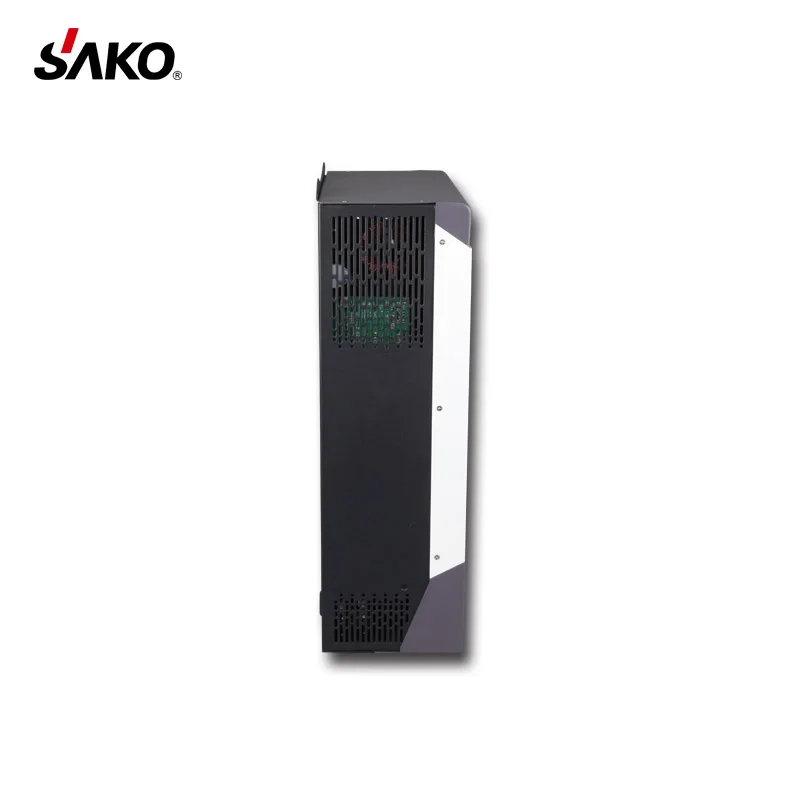

3000W Hybrid Inverter Parallel Function Work Without Battery Inbuilt MPPT Solar Charger
- Category: >>>
- Supplier: Shenzhen Sako Solar Co. Ltd.
Share on (62316456398):
Product Overview
Description
Product Description
3000W Hybrid Inverter Parallel Function Work Without Battery Inbuilt MPPT Solar Charger
Contact info:
-Frank Li
-Phone(whatsapp/wechat):+8613826916427

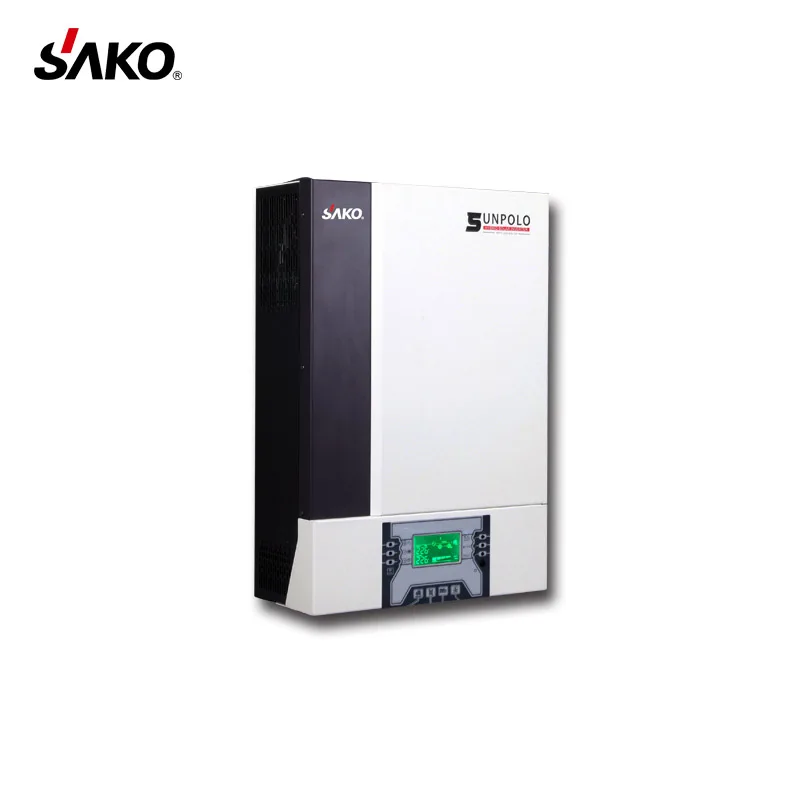

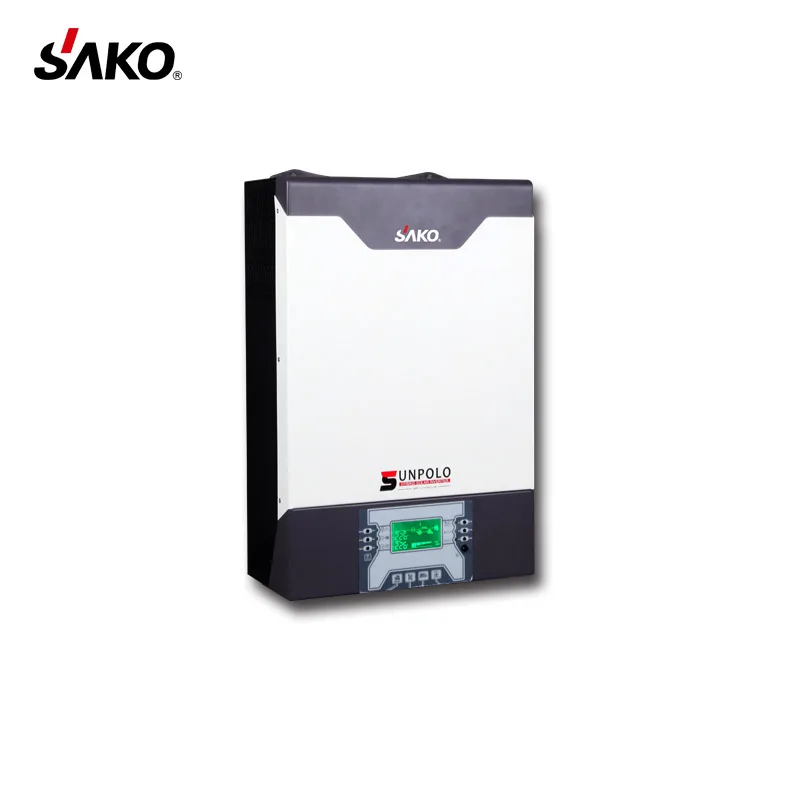

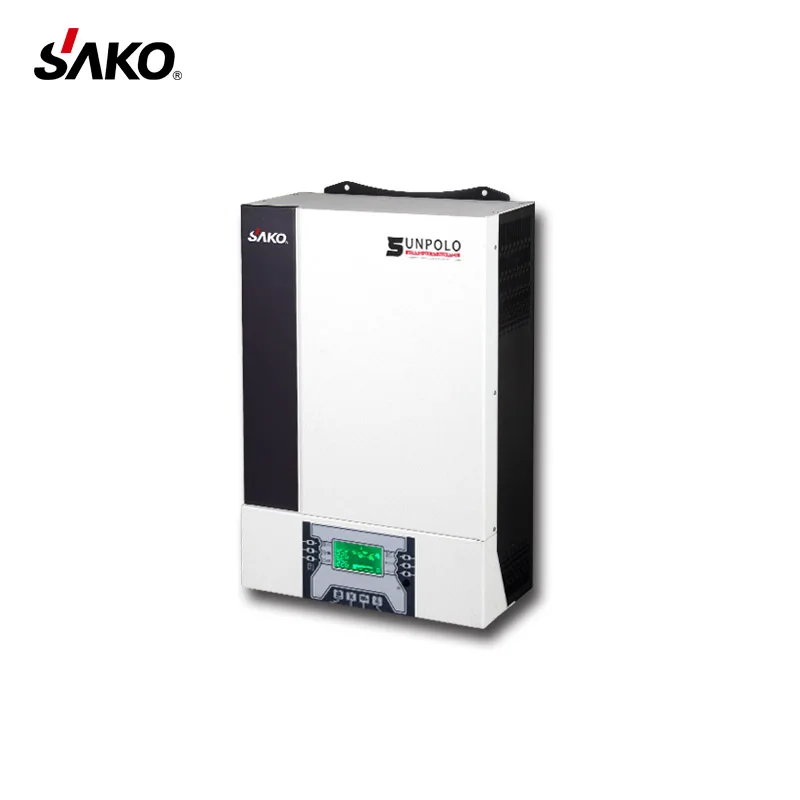

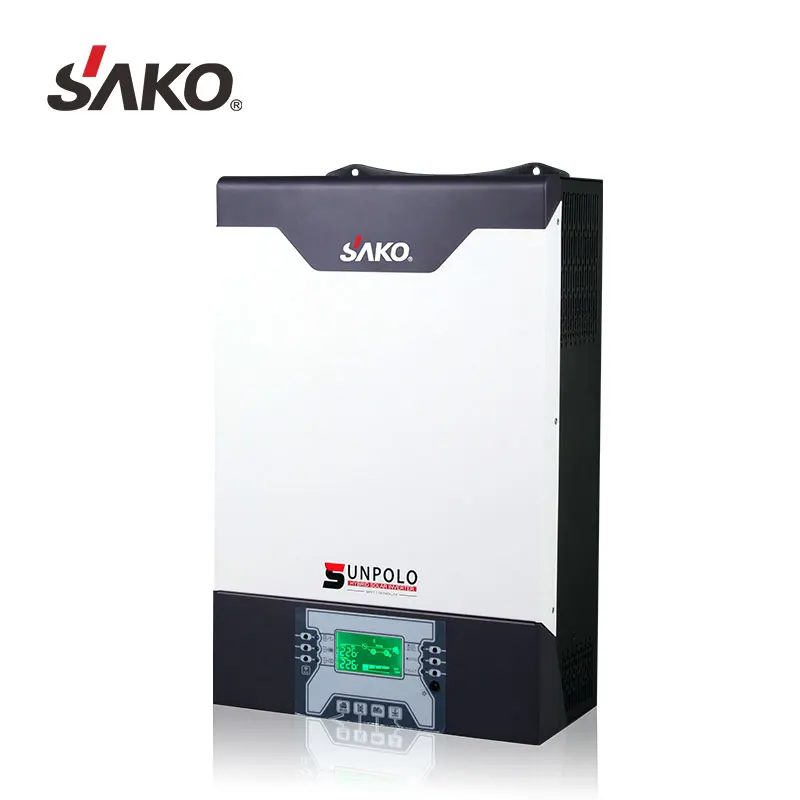

"Sunpolo" is our off-grid solar inverter, AC input / generator input / solar input - 3 kinds of energy source, each one can drive the machine individually.
Inbuilt high voltage MPPT solar charge controller which can take max usage of solar.
Can work with or without battery which offer choice for people to save installing cost.
Have parallel function which can enlarge the capacity.
| SUNPOLO TECHNICAL PARAMETER | ||
| Rated Power | 3KW | 5KW |
| INPUT | ||
| Voltage | 230VAC | |
| Voltage Range | 176-280 VAC at 100% load | |
| 110-280 VAC at 50% load | ||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation(Batt.Mode) | 230VAC±3% | |
| Surge Power | 6400VA for 5 sec | 10400VA for 5 sec |
| Efficiency(Peak) | >95% ( Rated R load, battery full charged | |
| Transfer Time | 10ms typical (UPS) | |
| 20ms typical (Appliances) | ||
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 32 VDC | 64 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum PV Array Power | 4000W | 5000W |
| MPP Range@ Operating Voltage | 120-430VDC | 120-430VDC |
| Maxmum Solar Charge Current | 80A | 80A |
| Maximum AC Charge Current | 60A | |
| PHYSICAL | ||
| Dimension,D X W X H (mm) | 303*471*146/530*377*217 | |
| Net Weight(kgs) | 11.5 | 12.2 |

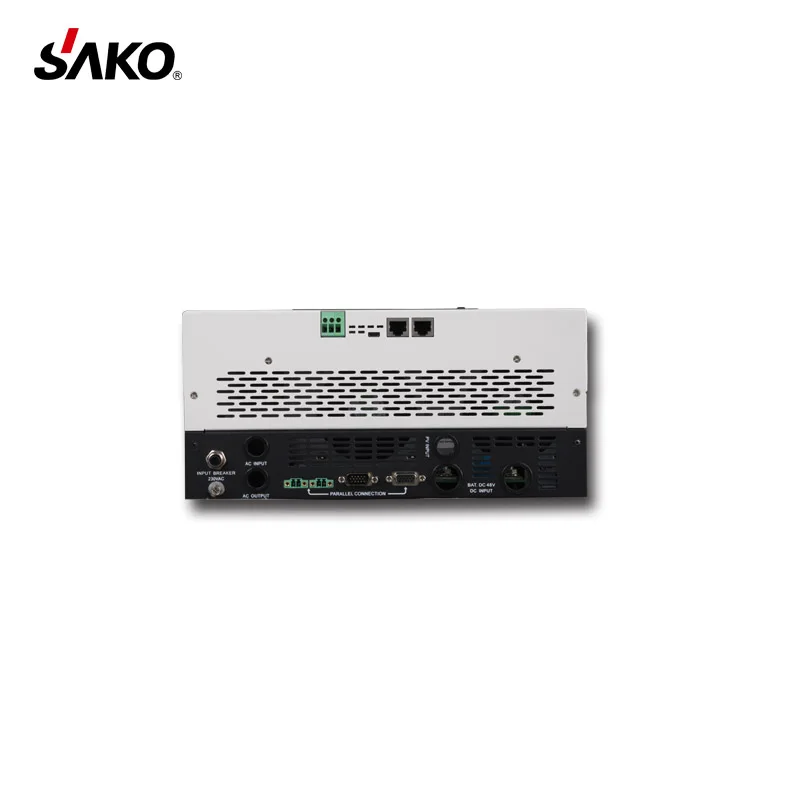

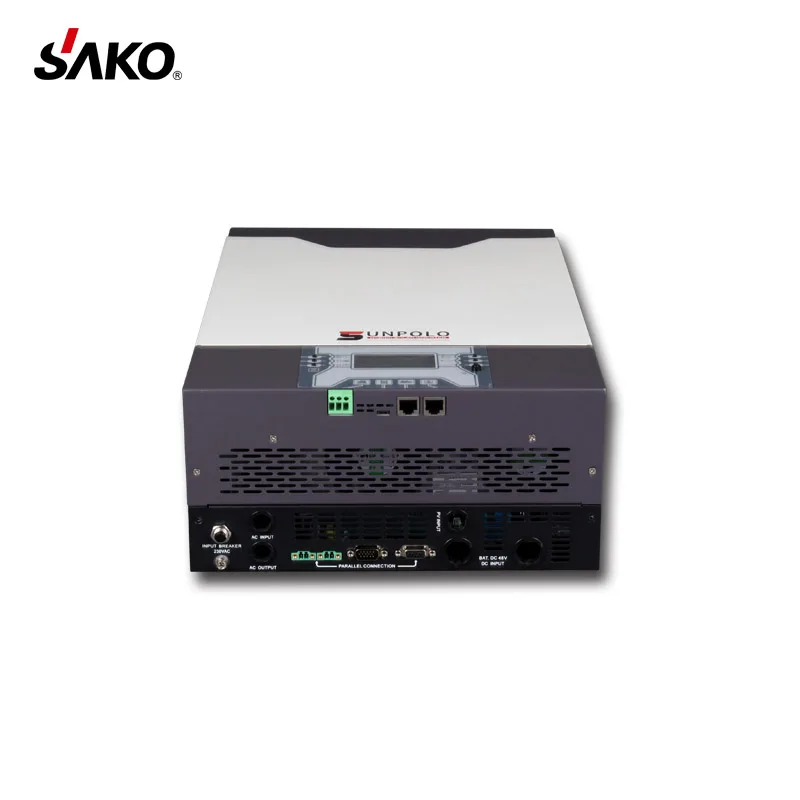

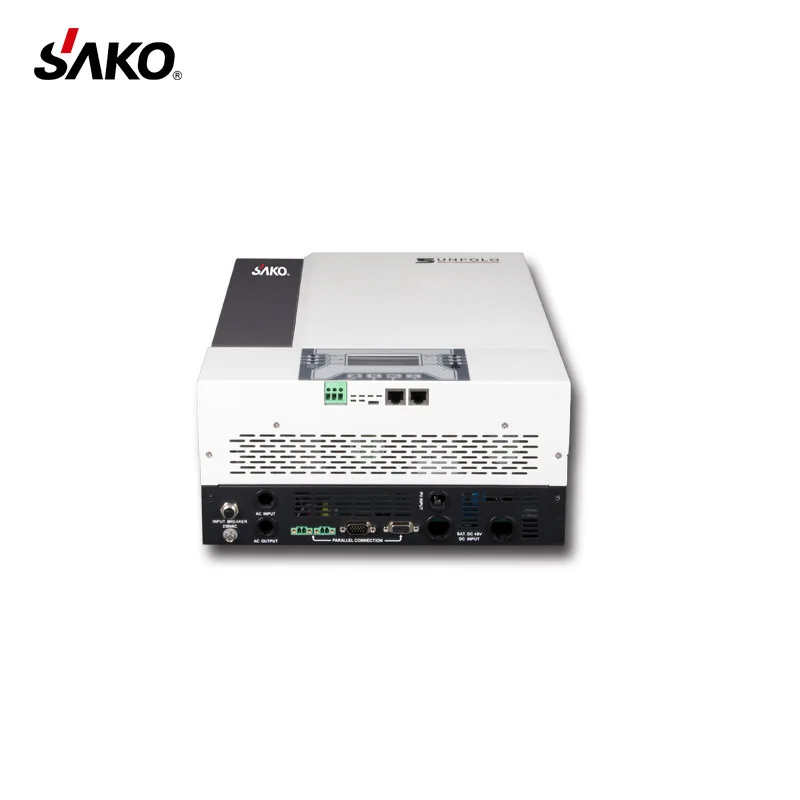

| Communication Interface | Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface, 9pcs in parallel(only 5KVA) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10℃ to 50℃ | |
| Storage Temperature | -15℃ to 60℃ | |
| *Product specifications are subject to change without further notice | ||
More products
Company Information
Certifications
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
