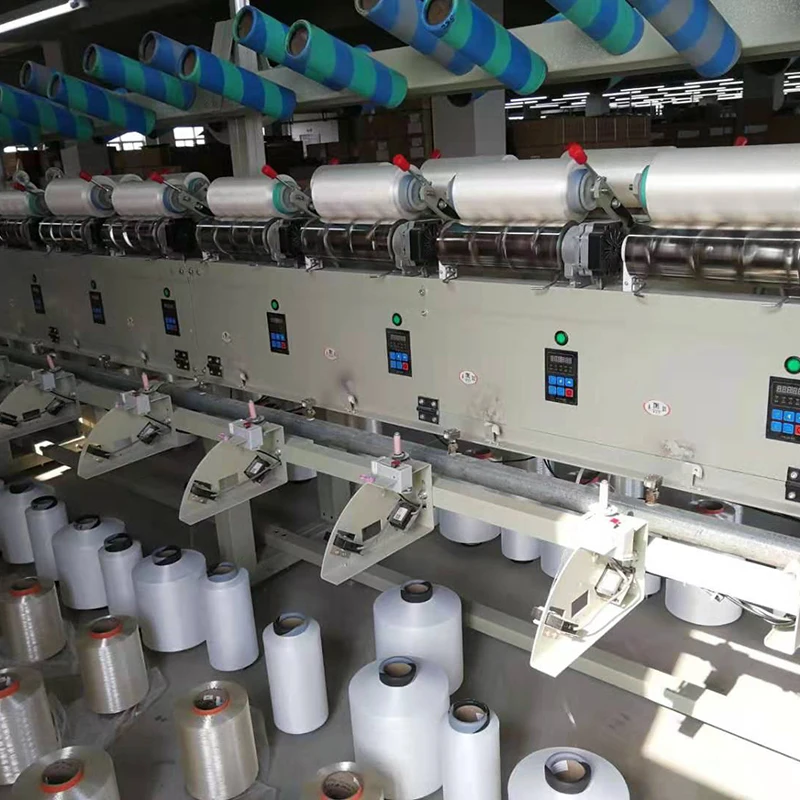

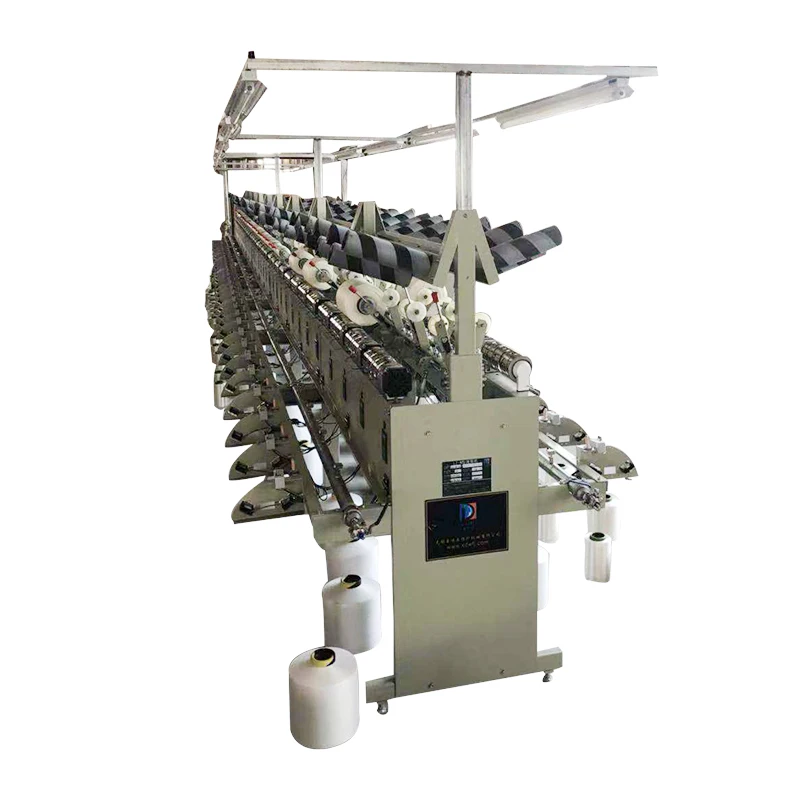

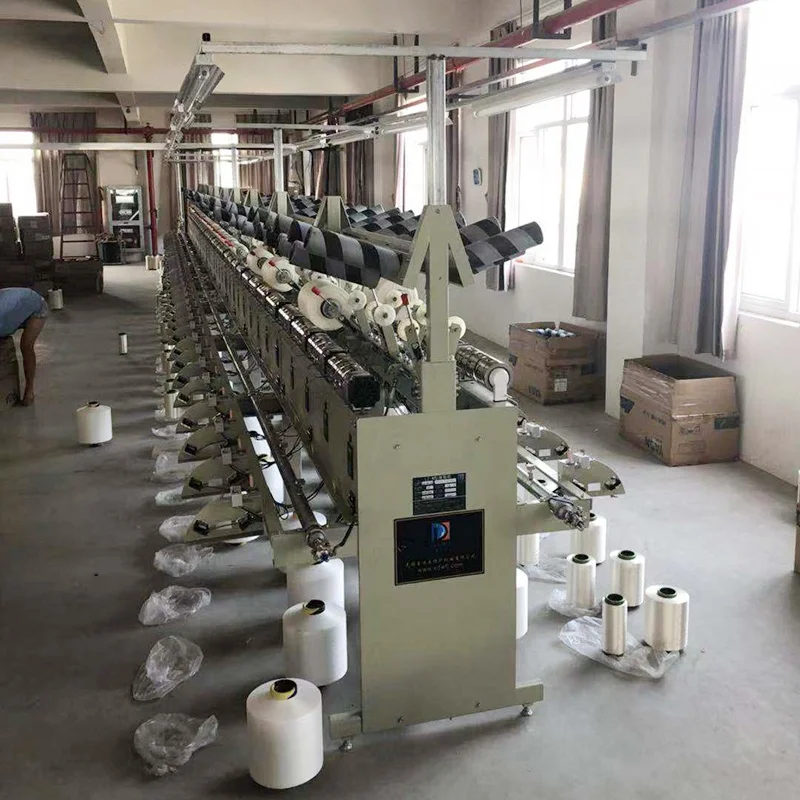

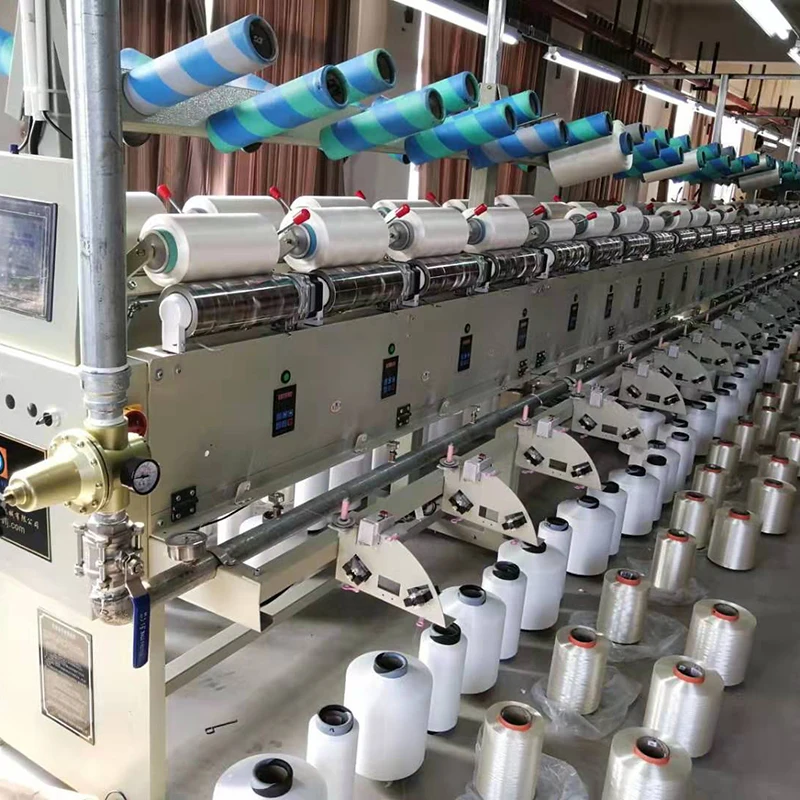

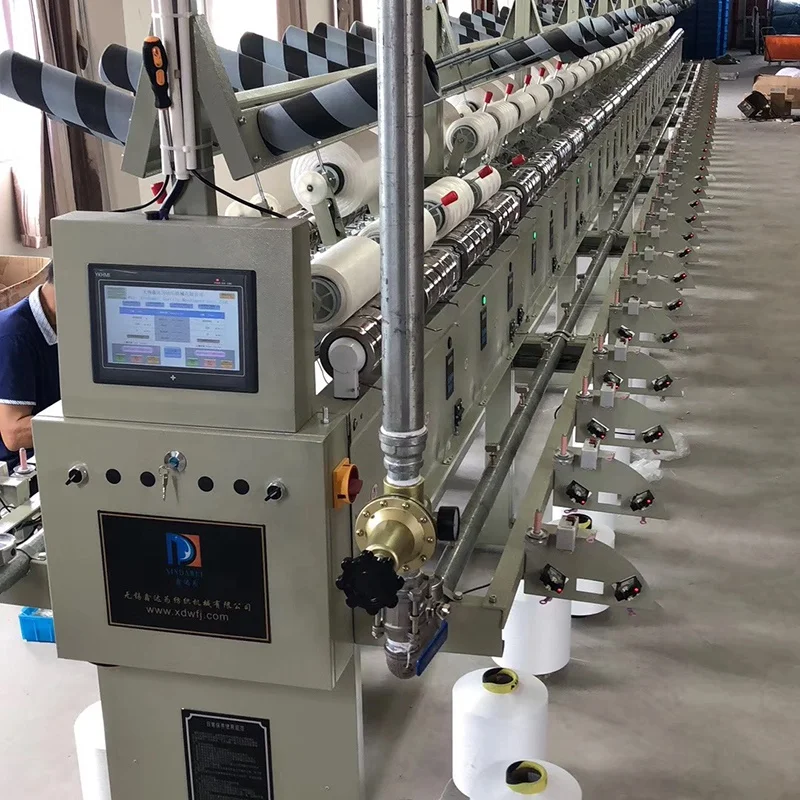

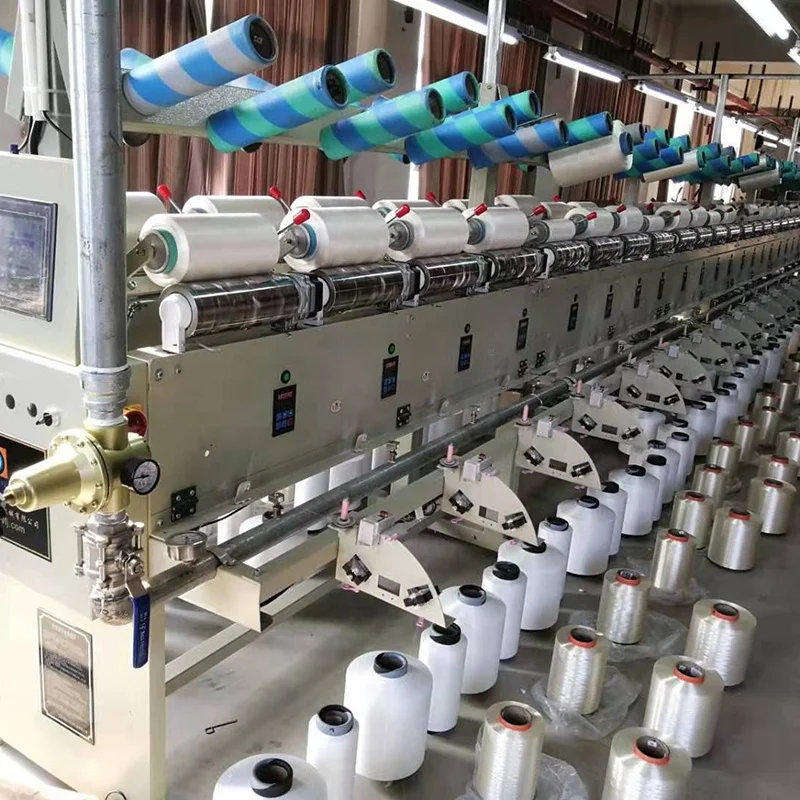

Polyester Multifilament Yarn Winding Machine
- Category: >>>
- Supplier: Wuxi Xindawei Textile Machinery Co. Ltd.
Share on (62316459109):
Product Overview
Description
Product Description
Single Spindle(Unit) for Sample
1. Automatic stop at preset diameter and at yarn break, speed up to 800 m/min.
2. Special winder for the production of bobbin size from 280-305mm.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 96 spindles ready for opearation.
4 Spindles(Units)
1. Automatic stop at preset diameter and at yarn break, speed up to 800 mt/min.
2. One head is for doubling winder, 3 heads or 5 heads are for two for one twisting machine.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Equipped with one single head yarn winding machine.
Detailed Images
Packing & Delivery
Specifications
Certifications
Related Products

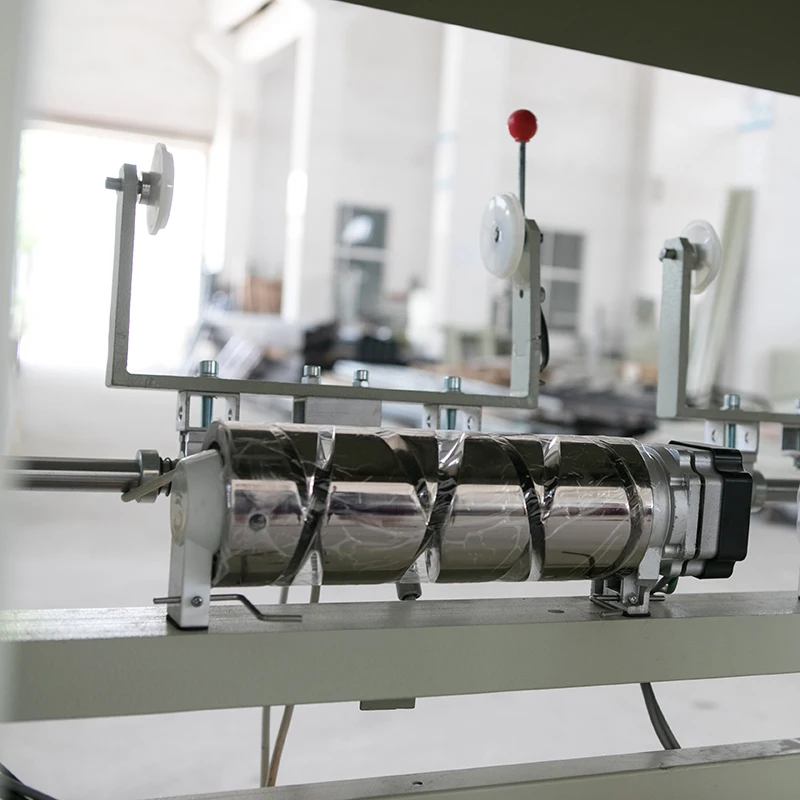

Super Plastic Winding Drum
Lead: 152mm
Outer diameter: 82mm
Length: 176mm
Turns: 2 .5
Ni-P Alloy Winding Drum
Lead: 146mm
Outer diameter: 95mm
Length: 176mm
Turns: 2
Ni-P Alloy Winding Drum
Lead: 150mm
Outer diameter: 82mm
Length: 176mm
Turns: 2.5
