Металлическая галогенная лампа натрия, электронный балласт 70W100W150W250W400W, балласт газовой лампы

Product Overview

Description

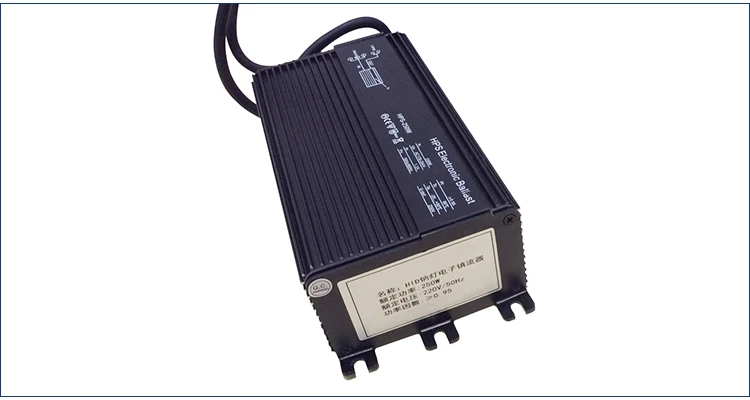

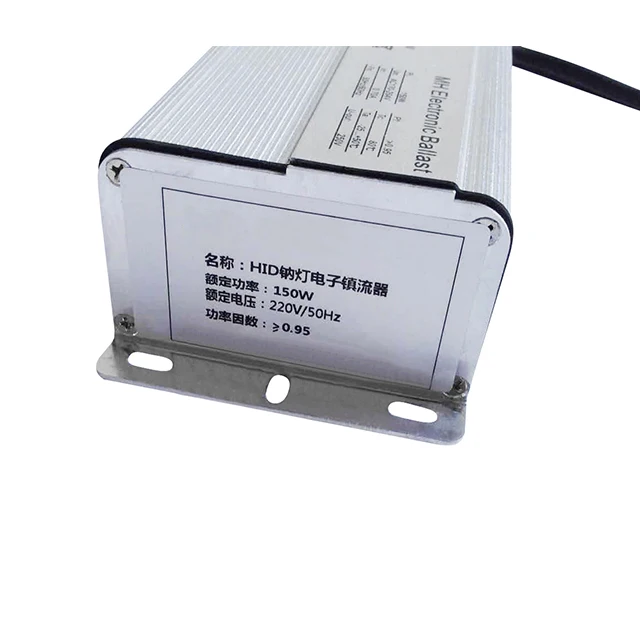

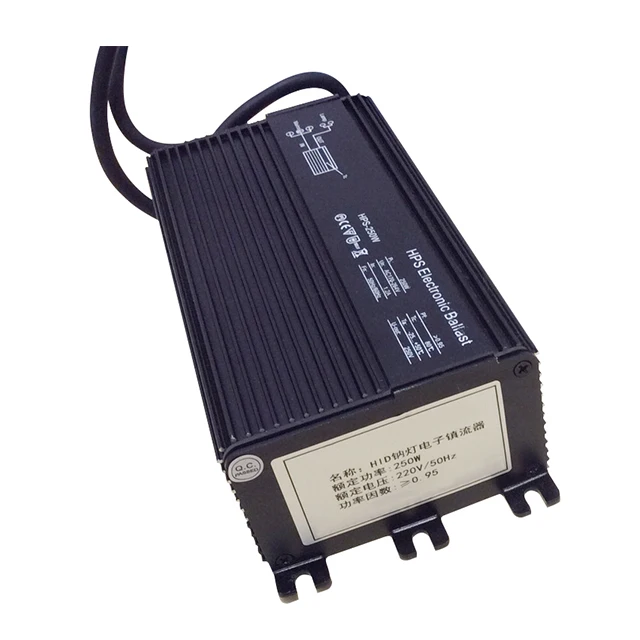

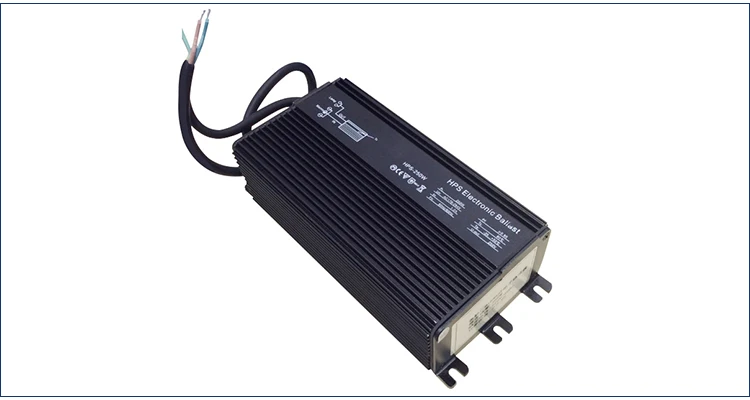

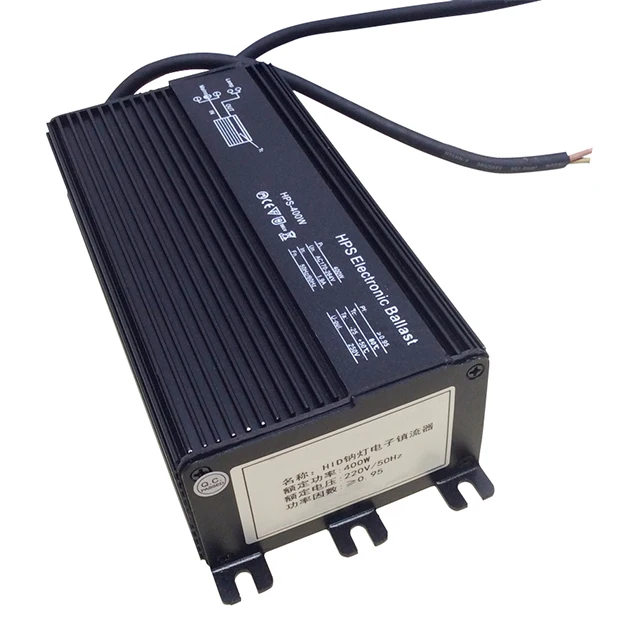

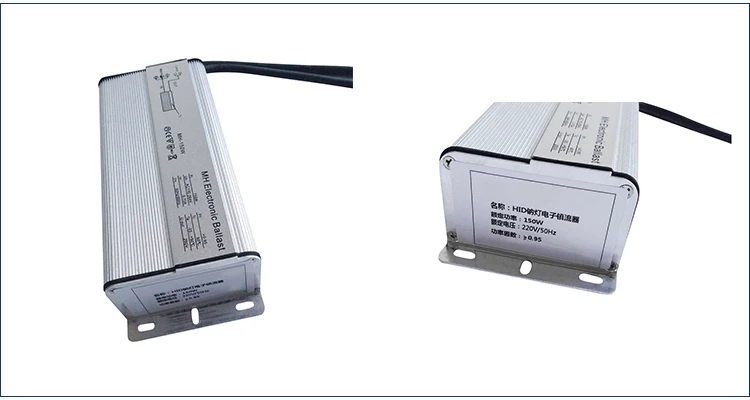

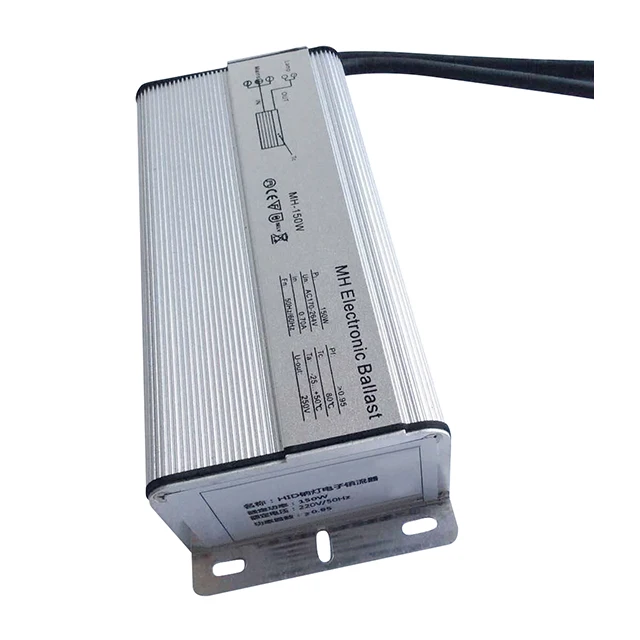

Sodium lamp metal halide lamp electronic ballast 70W100W150W250W400W gas lamp ballast

This product is used for NG series high-pressure sodium lamp, which can stabilize the working current of the bulb in the lighting circuit. Small size, enameled wire temperature resistance higher, lower temperature rise, good temperature resistance performance, built-in heat protector, effectively prevent overheating caused by the damage of the electrical components of the light source.
At the same time, it has the function of heat dissipation. Appropriate space for heat dissipation should be left around. The ambient temperature is -30℃ ~ +40℃, and the storage temperature is -40℃ ~ +90℃. Good insulation should be maintained between the output lines and between the ground when starting up the kv voltage. The input line should be connected with safety or automatic switch about 3 ~ 5 times the rated current. If the ballast is damaged, it cannot be opened by itself. It should be replaced by the supplier or returned by the supplier for warranty. Ballasts have their own trigger function and cannot be fitted with triggers or use bulbs with internal triggers. The type and power of the bulb used should match the ballast.

Our electronic ballasts are small in size, light in weight, beautiful in appearance, small in noise, low in temperature rise, full in function and excellent in performance. It can not only improve the lighting quality, but also reduce the running cost. It has remarkable economic effect and good social effect.

As a kind of economical and practical ballast, the electronic ballasts of high-intensity discharge lamps will become the mainstream product of the replacement of inductive ballasts
