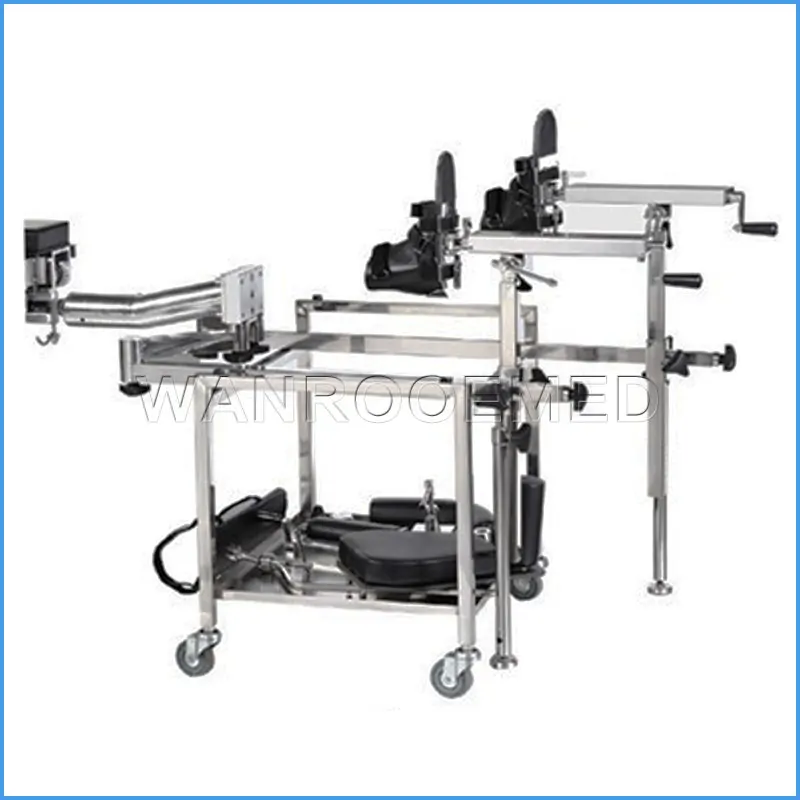

AOTA1005 Hospital Room Operating Table Orthopedic Leg Traction Frame

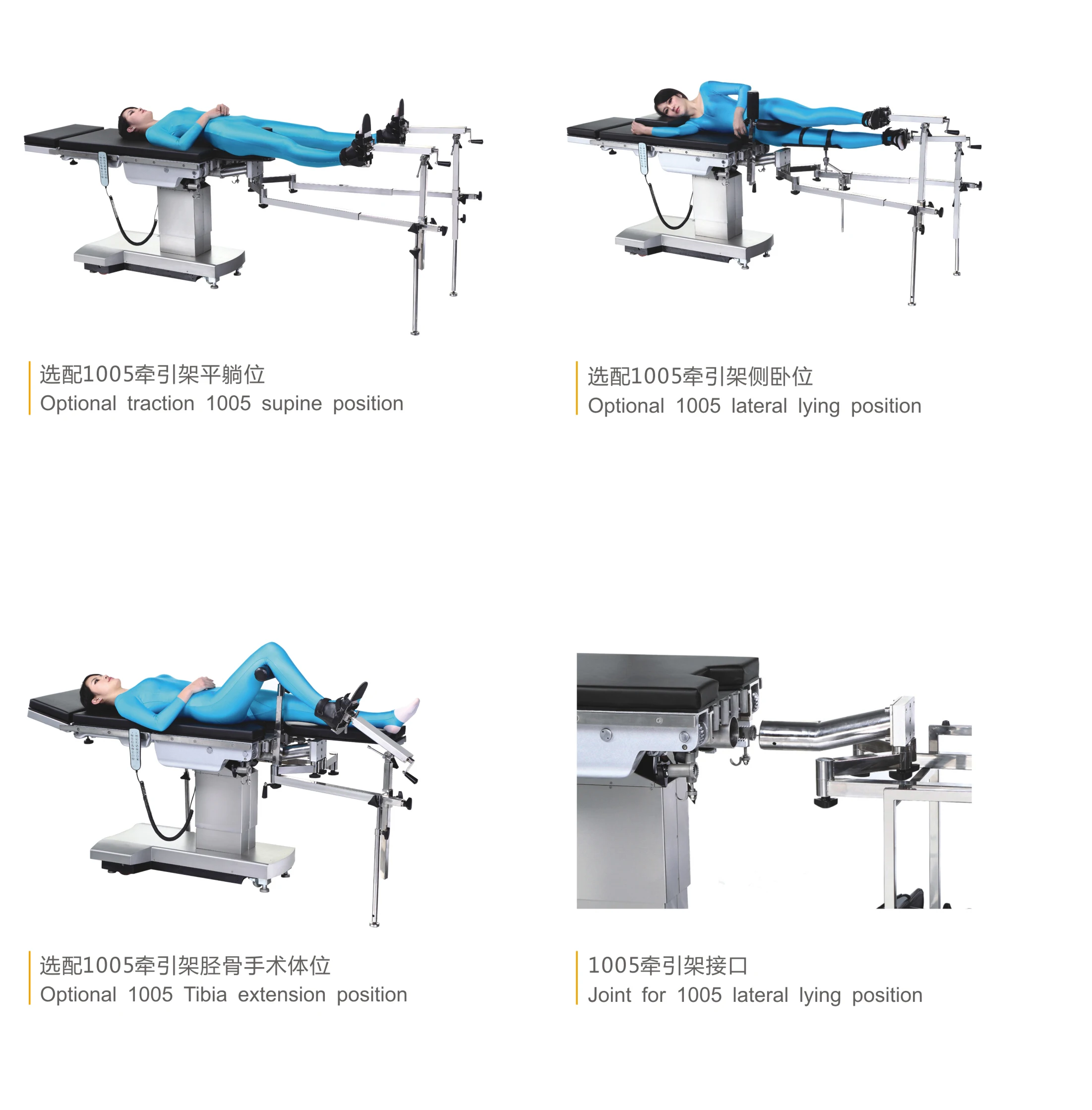

1005 orthopedic traction manly used for lower limb orthopedic surgery. It can cooperated with different type of operating table,

This traction frame controlled manually, various position can be used by control the knobs.

The orthopedic traction is characterized by delicate structure, provide input connector,easy to assembly.

You can adjust the height of the orthographic as you wish,convenient for doctors to use other operating tables.

Exposed metal part adopts 304 stainless steel material.

Move the orthopedic traction to the suitable place.

Slacken the knobs both sides of inner support component to adjust the height of the orthopedic,make sure the connector can fix the operating table’s connector,lock the screw.

1.  Adjustment of leg plate’s height:

Slacken the knob under the leg plate holder, then change the height.

2.  Adjustment of leg plate’s angle:

Slacken the knob at the upper end of leg plate ,then change the angle and direction.

3.Adjustment of foot plate’ angle:

Slacken the knob ,turn ring gear, then change the angle and direction.

4.Adjustment of foot plate traction:

Clockwise rotation to move the foot plate forward,contra rotate to move the foot plate backward.

5. Adjustment of foot plate’s height:

Slacken the knob up the support assembly, then you can change the height.

6. Adjustment of the traction frame external support component:

Slacken the knob on the sing gear, then you can change the angle.

7. Adjustment of the foot supporter:

Slacken the brake of the universal wheel,at the same time slacken the screw on the top of the foot holder,screw it after change the angle.

8.Adjustment of the leg support:

Slacken the fixing clamp, move the leg support to the suitable place,then screw the fixing clamp ,please pay attention that the degree you slacken the fixing clamp.

Tabletop minimum height:≤740mm

foot plate displacement:≥200mm

Lowest Leg plate≤540mm,traction trip≥200mm

Adjustment of the foot plate’angle range≥60°

The angle range of foot supporter≥180°
