T 160 PTP High Speed Woodworking Saw Milling Wood Cutting CNC Router

Share on (62316499425):


Price:RUB 3,335,844.72

Quantity:


Product Overview

Description


NO.

Machine index

parameter

1.

Working rage

X rage

1200MM

Y rage

3300MM

2.

Minimum plate size

>80MM

3.

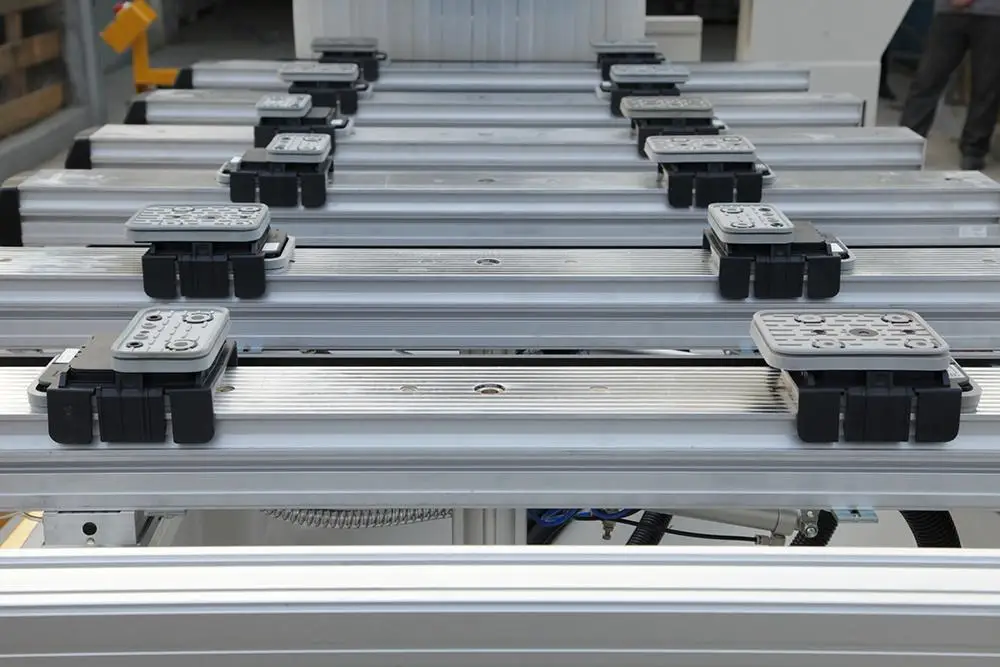

Working table

1270*1550mm Movable table 6 group(each group with 2pcs vacuum chuck)

4.

Machine Precision

Processing precision

±0.05MM

Repeat positioning

±0.01MM

5.

Machine structure

Working table

Movable working table and vacuum chuck

X,Y,Z

Y axis:screw rack ;XZ axis:ball screw

6.

speed

Y axis moving speed

60M/MIN

7.

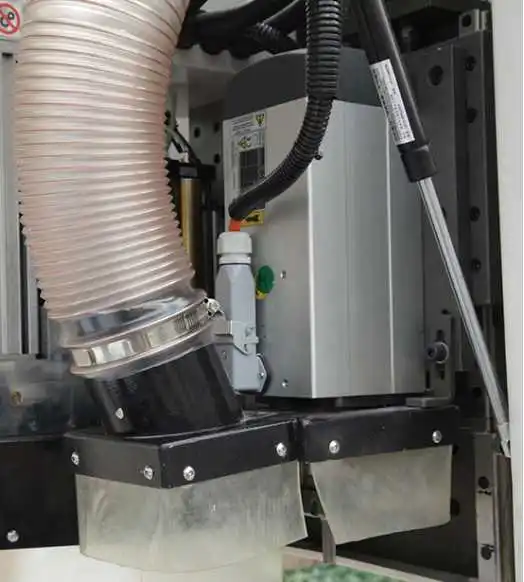

spindle

Spindle power

6KW

Spindle rotating

24000R/MIN

8.

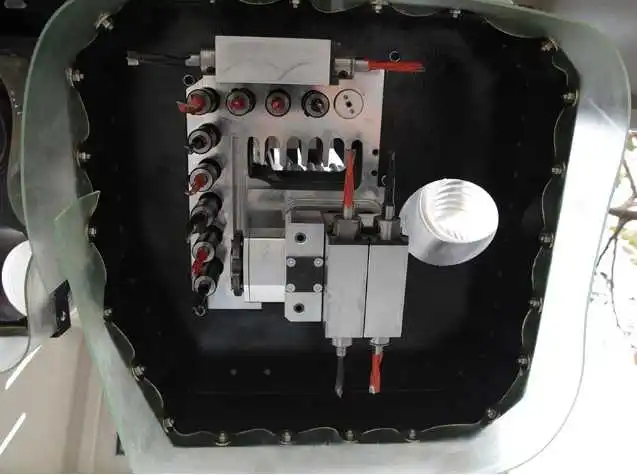

Number of drill rows

Vertical 9 pcs,horizontal 6pcs ,saw bit 1 pcs

9.

power

2HP

10.

Rotating speed

5400RPM

11.

Working Voltage

AC380V/50HZ

12.

Control system

syntec computer Control System

13.

Operation instruction

G-code, *.NC

14.

Size of machine

3300x4700x2000mm

15.

Machine NW

2600kg



Production process
Packing & Delivery
Our Company
EXHIBITION
FAQ

1. What kinds of processing can the CNC router do?

A: The CNC Router can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for

abnormal shape's cutting.

2.What kinds of materials can the CNC router work on?

A: It can work on a lot of different materials besides kinds of wooden materials, such as acryl,

light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade

laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices.

3.Guarantee & After-sale Service

A..12 Months warranty under normal use and lifelong maintenance we supply

B..24 hours technical support by phone, email and other online contact.

C..Free training on machine operation, daily maintenance etc. in seller's factory.

D..We can send engineer go to overseas training

4.Delivery Time

Usually, for normal model, within 15 -20 days after get the deposit

5. Payment Terms

A.T/T in advance

B.L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.

C.Other kinds of payment we can consider if acceptable for us

Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!

1. what is you product?

2. what is the material of you product, and the size( length/width/thickness)?

3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?

4.what is the working area do you want?

5. do you have any other technical requirements? the more the better.

if you can provide some pictures of your products,that would be great!

Welcome to visit our factory, we can arrange pickup. our factory is located in Lunjiao town, Shunde District Foshan City,

1 hour drive from Guangzhou airport

30 minutes drive from Lecong international furniture town

20 minutes drive from Leliu furniture hardware town

40 minutes drive from Foshan building material town
