High precision pulse metal detector XP800i detection depth 16 meters
- Category: >>>
- Supplier: Shenzhen Kaierteren Security Inspection Equipment Co. Ltd.
Share on (62316509230):
Product Overview
Description
Product Description
Title goes here.
Operation method:
(1) knob key switch: turn on knob and volume (turn to 10 after turning on)
(2) sensitivity of knob construction: always maintain this state when adjusting to 5 detection (depth effect is the best)
(3) knob building power: adjust to the number 6 or so. if the machine is stable at this time, it can be adjusted to the higher level (the specific depth needs sensitivity and reset button to coordinate with adjustment)
(4) balanced and stable: generally adjusted to 0 (the greater the number, the more stable the machine is, the shallower the depth is) detection is not affected by mineralization reaction and salt substances
(5) Red button reset key: Press and hold the reset key for 2-3 seconds after all the above adjustments have been made (the machine has been adjusted)
Note:
Phones: The external sound of the earphone is automatically disconnected when the earphone jack is plugged in.

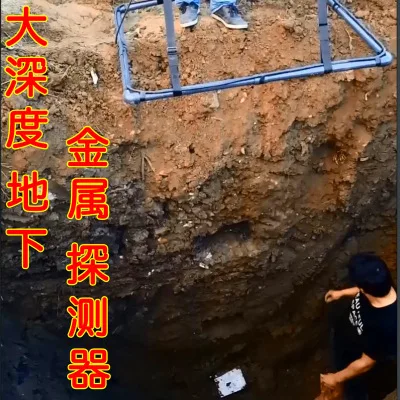

When the machine is in operation, keep the power off, plug in the coil, and then start the machine to test the effect. when the coil is placed on the ground, it is necessary to keep the coil 30cm above the ground for actual operation, adjust the height of the machine and then detect it.
Depth of detection: according to the size and depth of the measured object.
The 1m frame takes (buried) copper metal as an example: it can detect 1.3m-1.8m.
The 1m frame takes (buried) 30cm metal as an example: it can detect 2m-2.5m.
The 2m frame takes (buried) 30cm metal as an example: it can detect 3.8m-4.8m.
The 2-meter frame takes (buried) 100 cm metal as an example: it can detect 15 -16 meters
The larger the measured object, the larger the coil frame, and the deeper the detection depth.
(1) knob key switch: turn on knob and volume (turn to 10 after turning on)
(2) sensitivity of knob construction: always maintain this state when adjusting to 5 detection (depth effect is the best)
(3) knob building power: adjust to the number 6 or so. if the machine is stable at this time, it can be adjusted to the higher level (the specific depth needs sensitivity and reset button to coordinate with adjustment)
(4) balanced and stable: generally adjusted to 0 (the greater the number, the more stable the machine is, the shallower the depth is) detection is not affected by mineralization reaction and salt substances
(5) Red button reset key: Press and hold the reset key for 2-3 seconds after all the above adjustments have been made (the machine has been adjusted)
Note:
Phones: The external sound of the earphone is automatically disconnected when the earphone jack is plugged in.
When the machine is in operation, keep the power off, plug in the coil, and then start the machine to test the effect. when the coil is placed on the ground, it is necessary to keep the coil 30cm above the ground for actual operation, adjust the height of the machine and then detect it.
Depth of detection: according to the size and depth of the measured object.
The 1m frame takes (buried) copper metal as an example: it can detect 1.3m-1.8m.
The 1m frame takes (buried) 30cm metal as an example: it can detect 2m-2.5m.
The 2m frame takes (buried) 30cm metal as an example: it can detect 3.8m-4.8m.
The 2-meter frame takes (buried) 100 cm metal as an example: it can detect 15 -16 meters
The larger the measured object, the larger the coil frame, and the deeper the detection depth.
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 58X16X39 cm
- Single gross weight:
- 2.8 kg
- Package Type:
- Standard exporting Carton
- Picture Example:
- Lead Time :
Quantity(Piece) 1 - 1 2 - 100 101 - 1000 >1000 Est. Time(days) 5 10 30 To be negotiated
