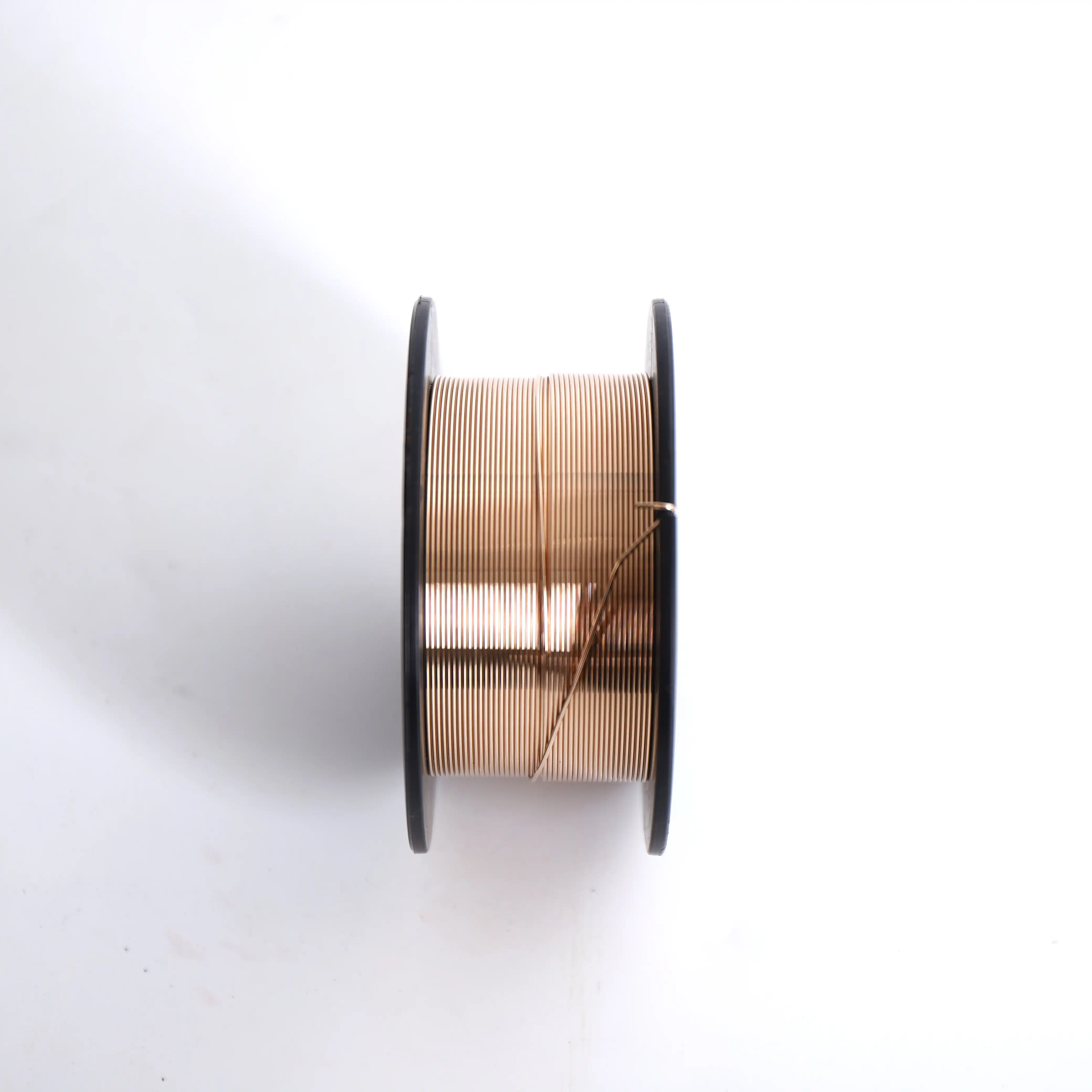

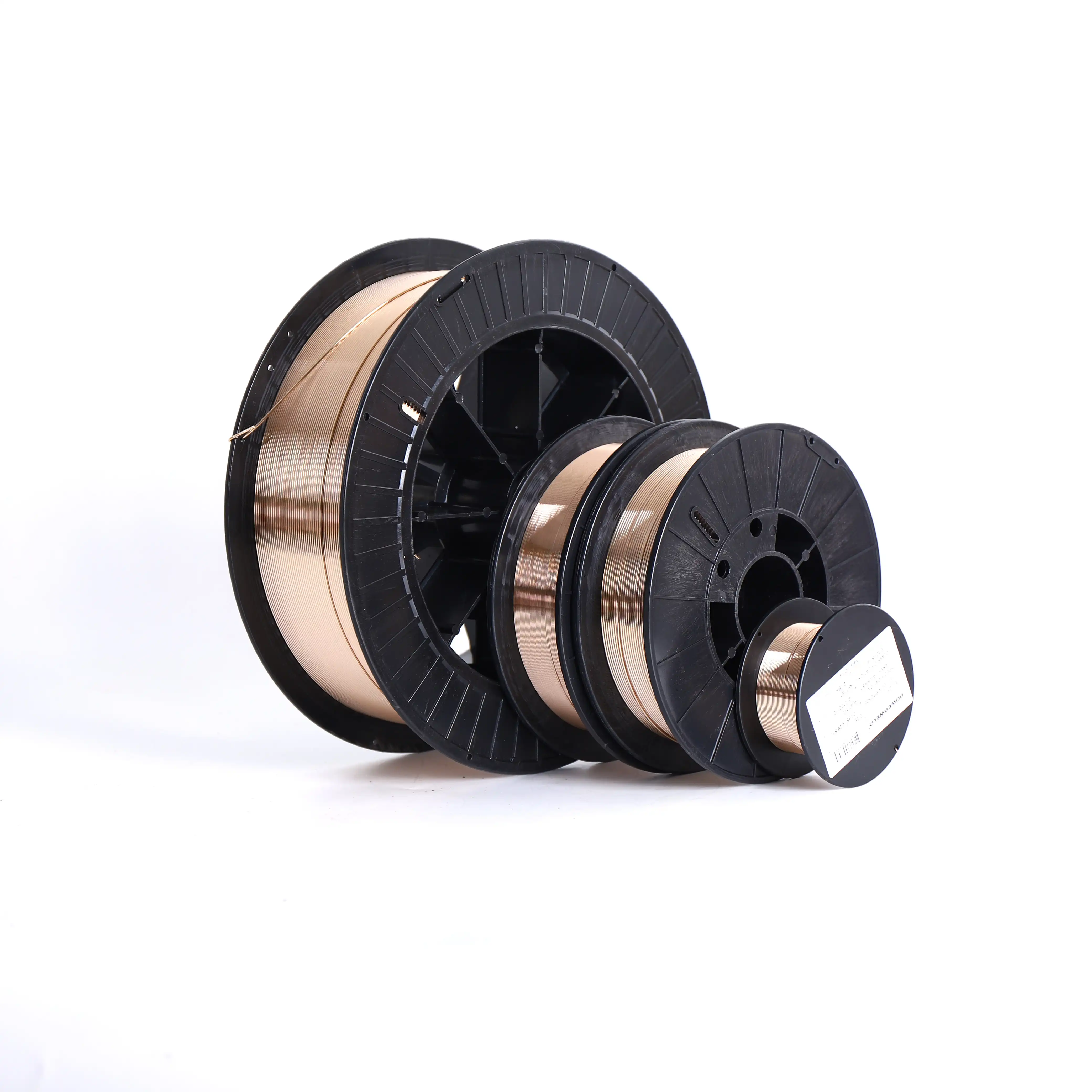

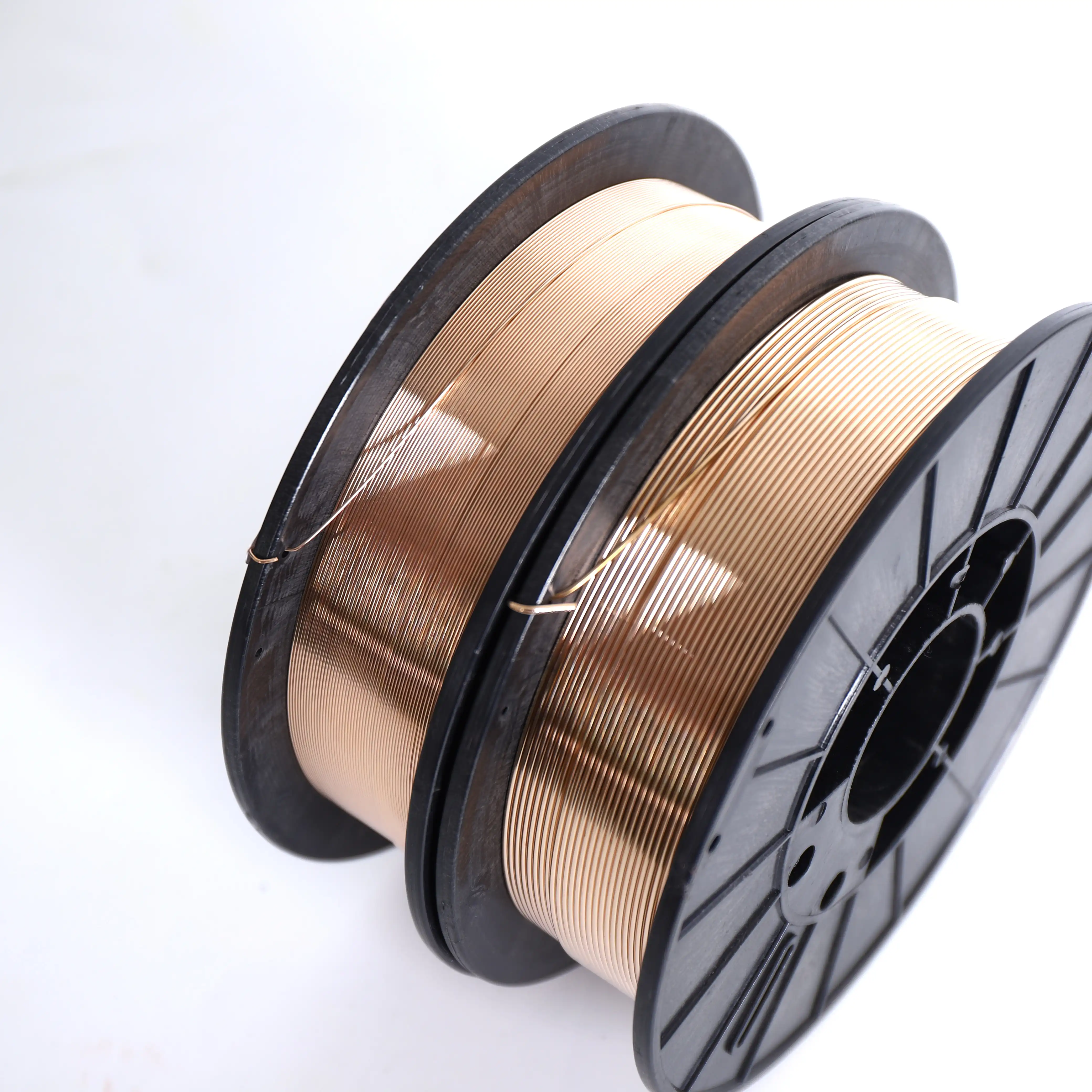

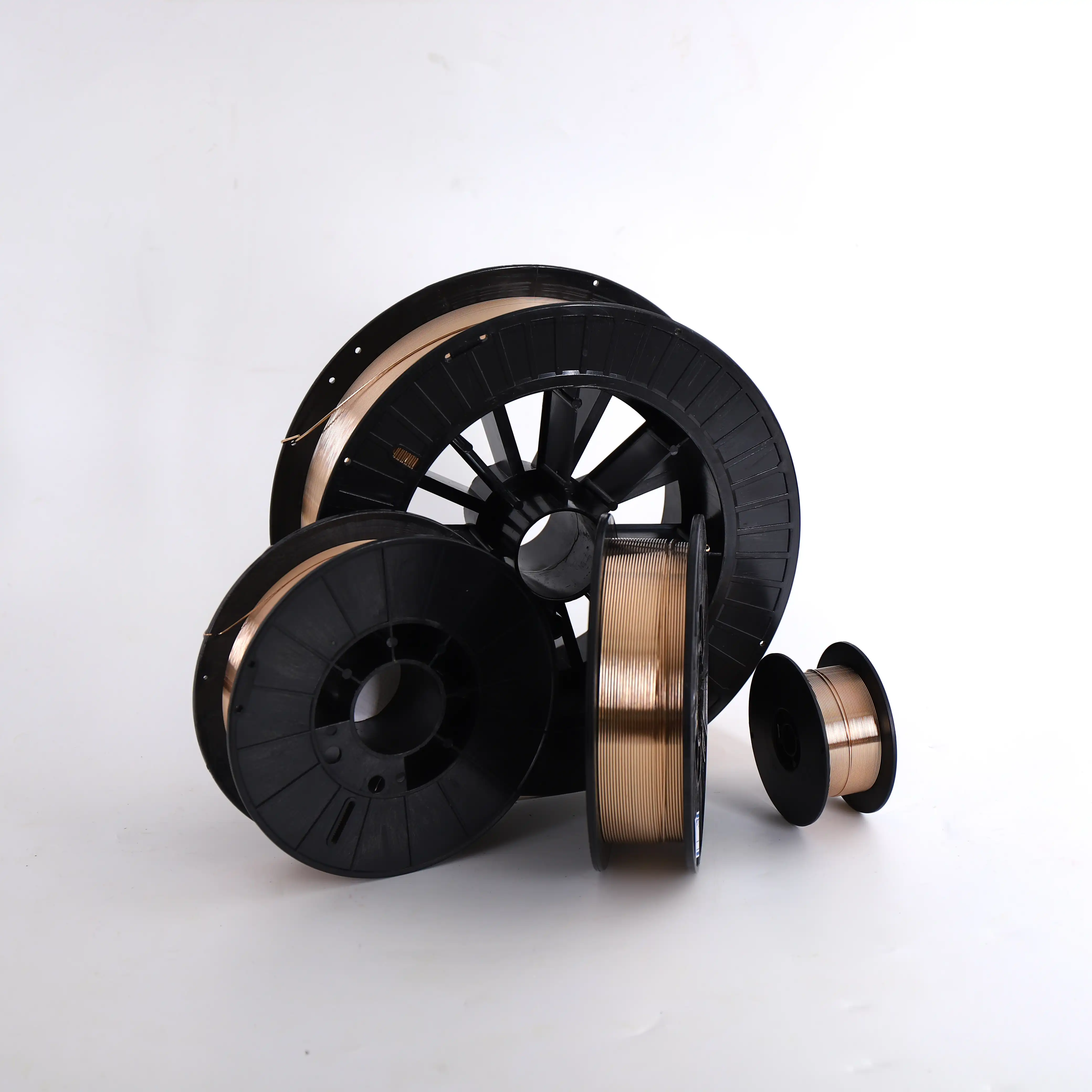

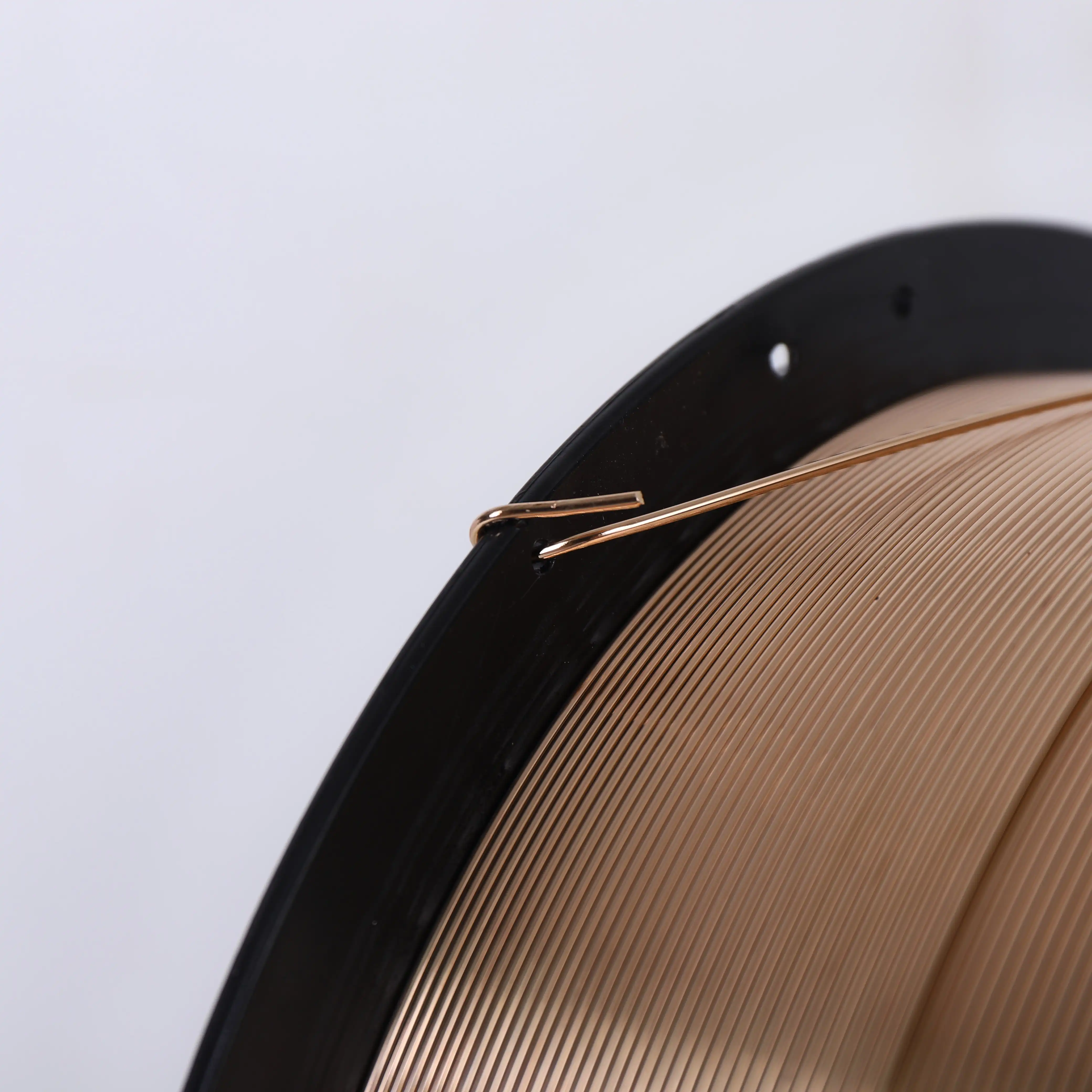

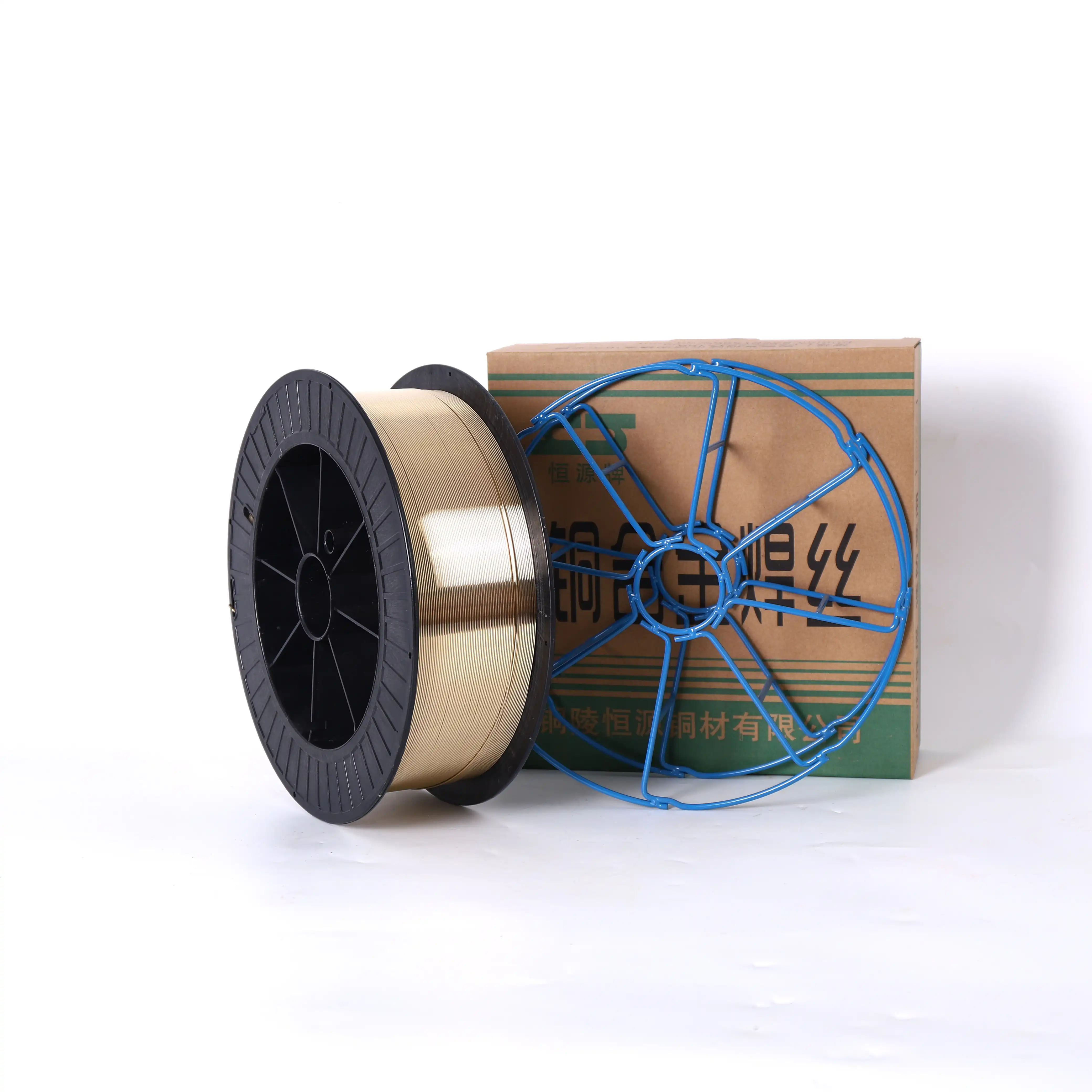

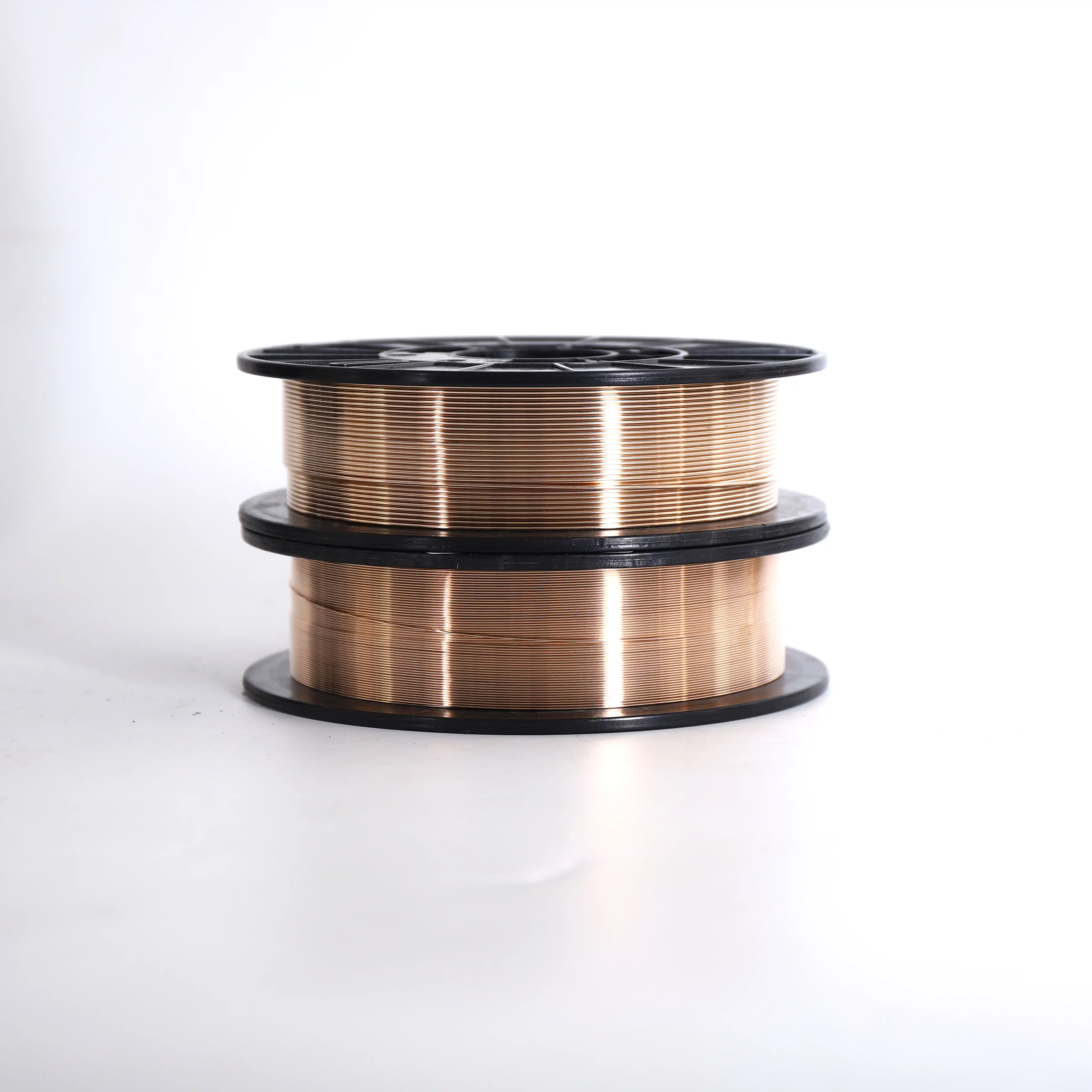

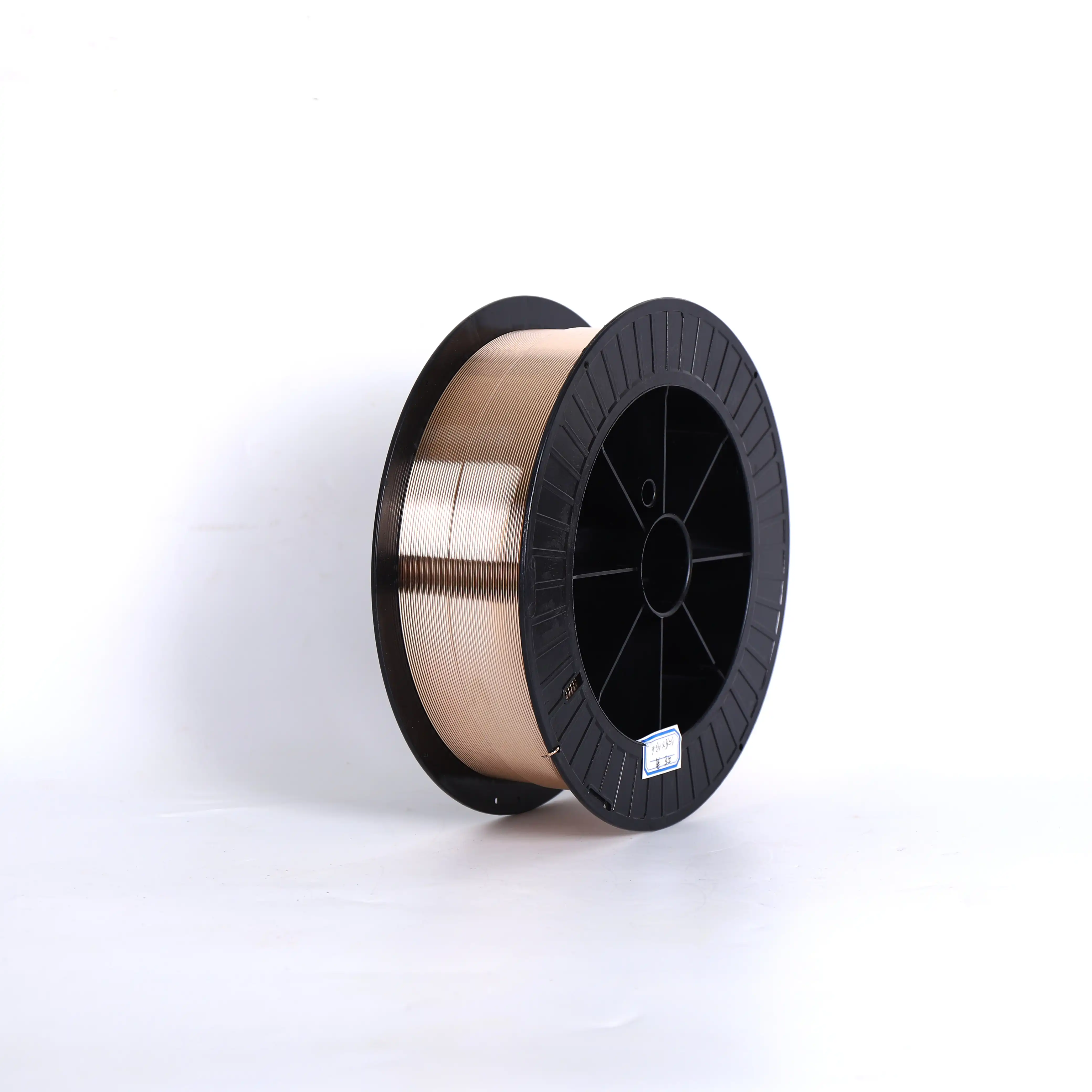

Durable Silicon Bronze welding rod for argon arc welding CuSi3 ERCuSi A
- Category: >>>
- Supplier: Tongling Hengyuan Welding Materials Co. Ltd.
Share on (62316540255):
Product Overview
Description
PRODUCTS DESCRIPTION
Silicon Bronze | Tin Brass | |
TRADE MARK | S211 | |
Equivalent to AWS | ERCuSi-A | |
Thermal conductivity | 35 W/m.K | |
Density | 8.45kg/dm3 | |
Electrical conductivity | 3.5-4.0 S.m/mm^2 | |
Coefficient of thermal expansion | 18.1 10^-6/K(20-300℃) | |
Notched bar impact work | 55J | |
Shielding Gas | Argon | |
Standard | Class | Alloy | Chemical Composition | ||
ISO24373 | Cu6560 | CuSi3Mn1 | Cu:bal. Al:0.02 Fe:0.5 Mn:0.5~1.5 P:0.05 Pb:0.02 Si:2.8~4.0 Sn:0.2 Zn:0.4 Other:0.5 | ||
GB/T9460 | SCu6560 | CuSi3Mn | Cu:bal. Al:max0.01 Fe:max0.5 Mn:max1.5 Pb:max0.2 Si:2.8~4.0 Sn:max1.0 Zn:max1.0 Other:max0.5 | ||
BS EN14640 | Cu6560 | CuSi3Mn1 | Cu:bal. Al:0.01 Fe:0.5 Mn:0.5~1.5 P:0.02 Pb:0.02 Si:2.8~4.0 Sn:0.2 Zn:0.2 Other:0.4 | ||
AWS A5.8 | C65600 | ERCuSi-A | Cu:bal. Al:0.01 Fe:0.05 Mn:1.5 Pb:0.02 Si:2.8~4.0 Sn:1.0 Zn:1.0 Other:0.50 | ||
DIN 1733 | 2.1461 | SG-CuSi3 | Cu:bal. Al:max0.01 Fe:max0.3 Mn:0.5~1.5 P:max0.02 Pb:max0.02 Si:2.8~4.0 Sn:max0.2 Zn:max0.4 Other:max0.4 | ||
Best for butt and the hard facing of brass,especially for the MIG welding of zinc coated steel sheet.Pre-heat suggested when MIG hard facing for large size products and use pulsed argon arc welding while hard facing on steel.
Tin Brass | ||
Solids-Temperature | 910℃ | |
Liquids-Temperature | 1025℃ | |
Density | 8.5kg/dm3 | |
Tensile Strength | 330-370N/mm2 | |
Elongation | 40% | |
Brinell Hardness | 80-95HB | |

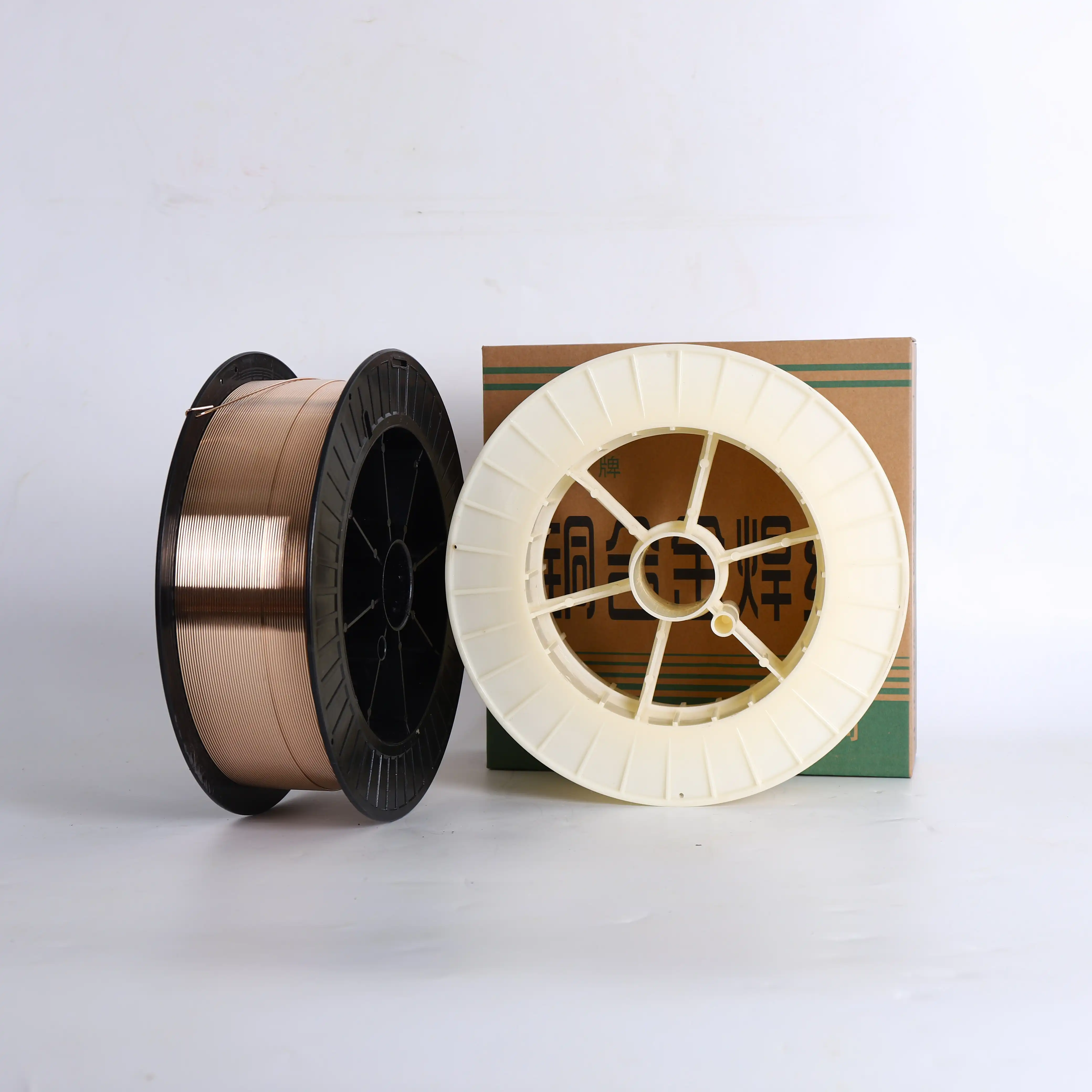

PACKING & SHIPPING
15kgs inner a carton box
Can be customized according to customer needs
1000kgs inner a wooden case
Can be customized according to customer needs
Loading and transporting to the port
Can be customized according to customer needs

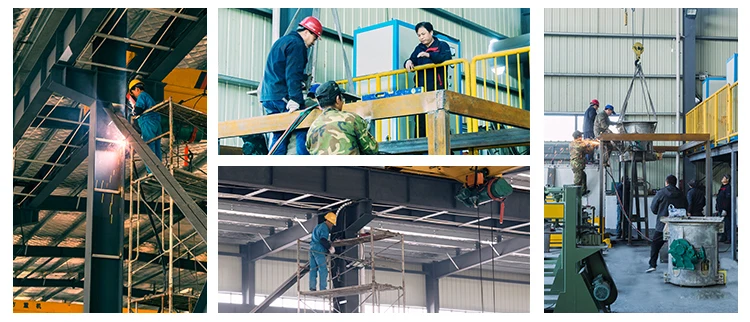

ABOUT US
Tongling Hengyuan Welding Materials Co., Ltd.which was founded in 2007 , is a professional manufacturer of copper and copper alloy welding materials.Company adopted GB/T9460, BS EN14640, AWS, DIN standards, the production of copper, Silicon Bronze, Aluminum Bronze, Tin Bronze, White Copper, Brass, Copper Base Alloy welding materials, and is widely used in automobiles, ships,engineering machinery, metallurgy, electric power, aviation, aerospace, oil and other fields.Our company has been to Arabia, Dubai, Germany, the United States, France, the Middle East, and Vietnam for many times to conduct academic exchanges.Through years of communication with the majority of users and accumulated experience, the company provides each customer with high-quality, reliable copper alloy series welding materials and thoughtful and detailed pre-sale and after-sales service, "integrity-based, win-win cooperation" is the company's corporate culture and purpose, we will cast a common dream with the spirit of craftsmen.
RELATED PRODUCTS

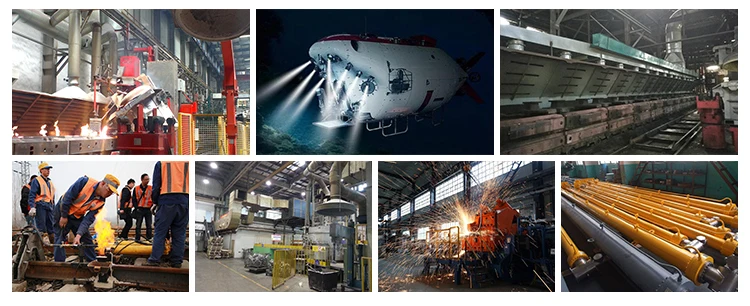

PRODUCTS APPLICATION
Our products are suitable for automobile casting, high pressure valve iron, hydraulic rod, marine casting, aerospace casting,ocean exploration, precision machinery, deep sea scale, marine water scale, high pressure valve, etc. Our company is a world leader in the field of copper alloys, and has made outstanding contributions to the field of copper alloy welding in the world.Our company has been to Arabia, Dubai, Germany, the United States, France, the Middle East, and Vietnam for many times to conduct academic exchanges and promote the world. Development in the field of copper alloy welding.
FAQ
Q: Are you trading company or manufacturer ? | ||||||||
A: We are manufacturer. | ||||||||
Q: How long is your delivery time? | ||||||||
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. | ||||||||
Q: Do you provide samples ? is it free or extra ? | ||||||||
A: Yes, we could offer the sample for free charge but do not pay the cost of freight. | ||||||||
Q: What is your terms of payment ? | ||||||||
A: L/C, D/P and T/T. | ||||||||
If you have another question, please feel free to contact us. | ||||||||
