OEM Auto Scan Cost Effective Hot Seller Rugged Barcode Scanner Android 2D GT 1900
- Category: Scanners >>>
- Supplier: Foshan,Xincode,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
HOT SELLING
Technical Parameters
| X-1900A Technical Parameter | |||||||
| Model | X-1900A | ||||||
| Item | Wired 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 375mW(working);226mW(Standby);750mW(maximum)[Average power consumption] | ||||||
| Weight | 145.0g±5g(Without wire) | ||||||

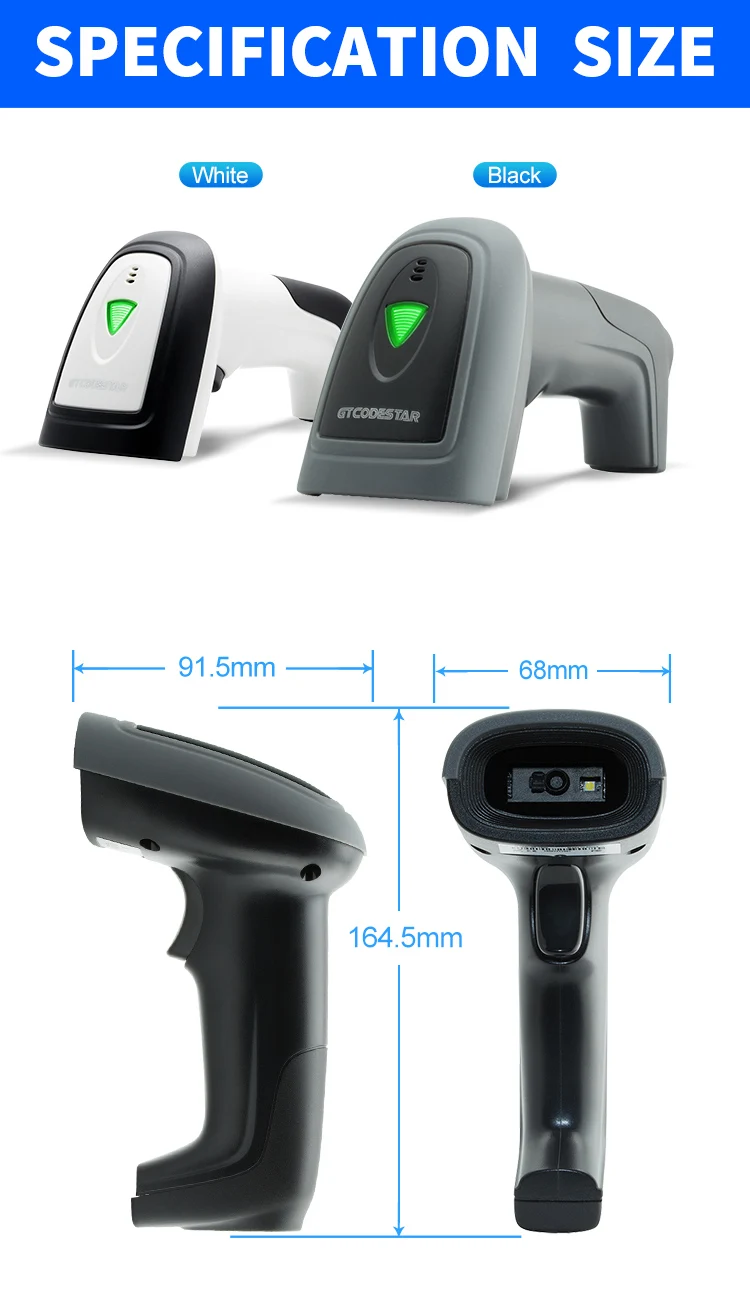

| Size | L * W * H:176.9 * 68.3 * 90.5(unit:mm) | ||||||
| Color | Black,black grey,Black orange | ||||||
| Performance Parameter | |||||||

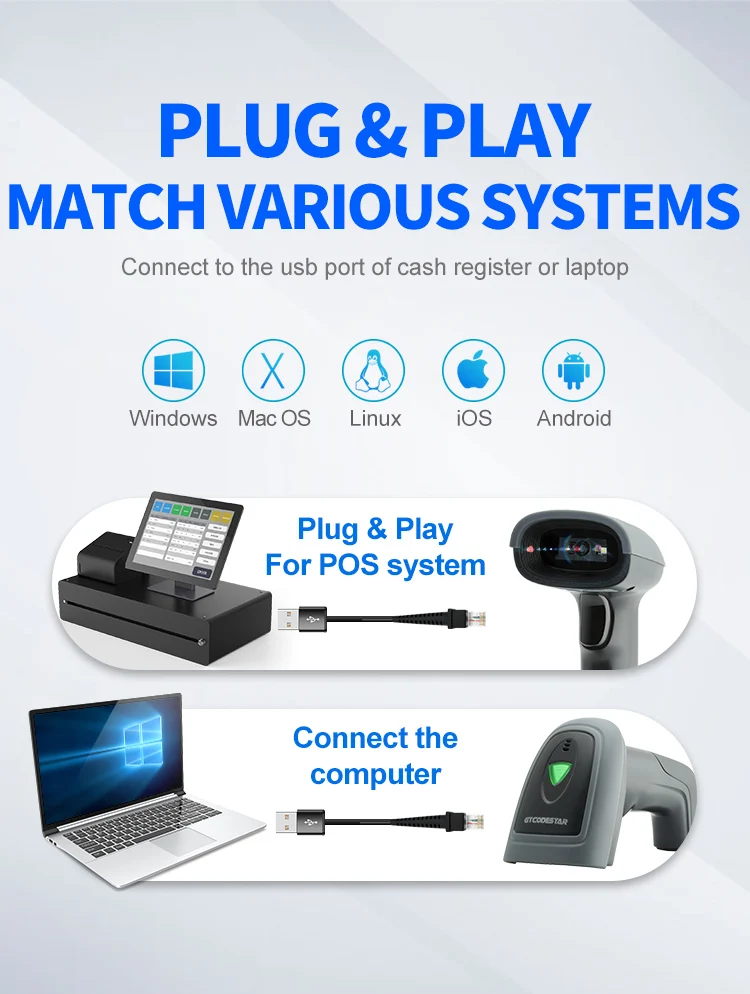

| Interface | USB ;(RS232 serial port can be customized) | ||||||
| System Supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language Supported | English; French; Italian; German; Spanish; Russian; Finnish; Norwegian; Japanese; Arabic; Irish; Polish; Dutch; Czech; Portuguese; Swedish; Turkish Q; Turkish F [Support virtual keyboard] | ||||||
| Sensor | 640×480 Planar CMOS sensor | ||||||
| Light Source | Red light LED aiming + white light LED lighting | ||||||
| processor | 32-bit ARM MCU + DSP | ||||||
| Motion tolerance | 100cm/sec(10mil QR) | ||||||
| Resolution | 4mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Manual mode; Self-sensing mode; | ||||||
| Prompt Mode | Buzzer, Indicator Light(LED) | ||||||
| Print Contrast | 25% | ||||||
| Decoding Capability | 1D | Code25-Interleaved Code25-Standard Code25-Matri ISSN+2 ISSN+5 Code39-Regular Code39-FullASCII Code93-Regular Code93-FullASCII Code128 A/B/C Code11 UPCE0/E1 EAN/GS1/UCC-128Auto Codabar Code32 EAN/JAN-13 UPC-A JAN/EAN-8 | |||||
| 2D | MICRO QR Data Matrix QR AZTEC PDF417 | ||||||
| Scanning Angel | Rotation angle 360°, elevation angle 30°, deflection angle 45° | ||||||
| Scanning Depth | Code39 4.17mil(15byte):6cm - 12cm Code128 4.17mil(16byte):7cm - 10cm Data Matrix 10.83mil(8byte):5cm - 16cm Code QR 10.83mil(8byte):7cm - 12cm | ||||||
| Environmental parameters | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||

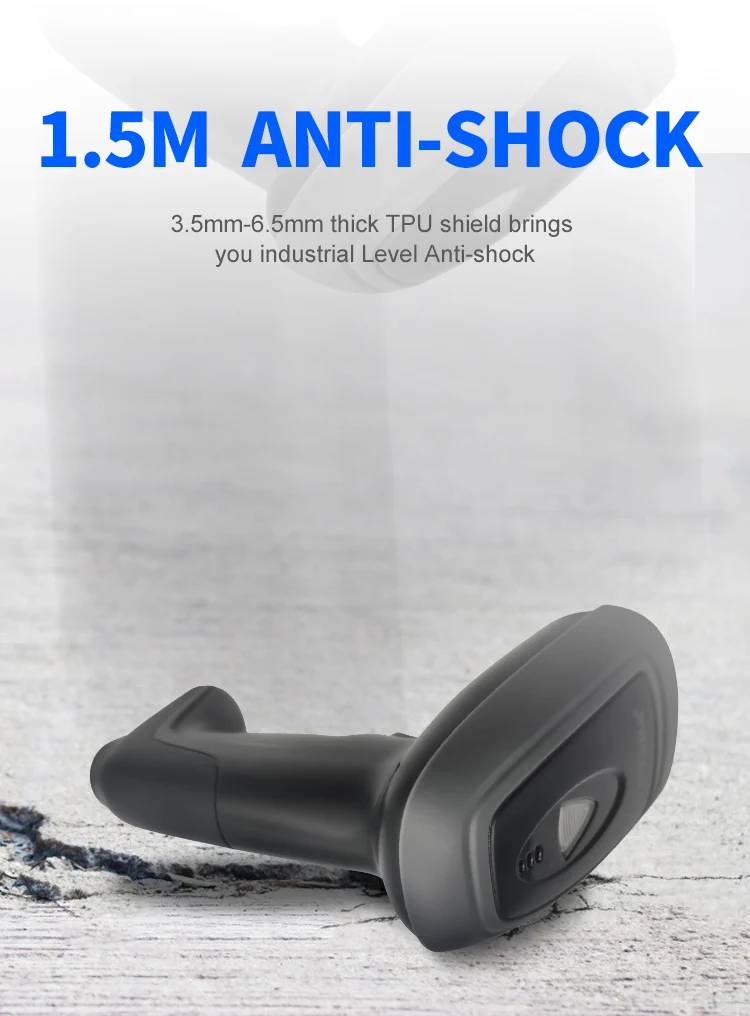

| Shock Resistance | 1.5m free fall on concrete surface | ||||||
Send Inquiry :
Click for more information ! ! !
Company Information
FAQ
1. How about the quality? Professional QC team and testing machine(Engine age testing,wire bending machine, switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,etc. |
2. Why so competitive? With almost 10 years experience,we owned a large domestic market in China. We are the best seller in China.So large quantity will reduce our raw material cost directly. What's more,we have mature technology to save cost. |
3. How to control the performance stable? We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery. |
4. Is OEM or ODM available? Yes.We are the factory directly.We can make it as your requirement. 5. Why customer choose us? ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service. 6. How about the factory? We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields. |
