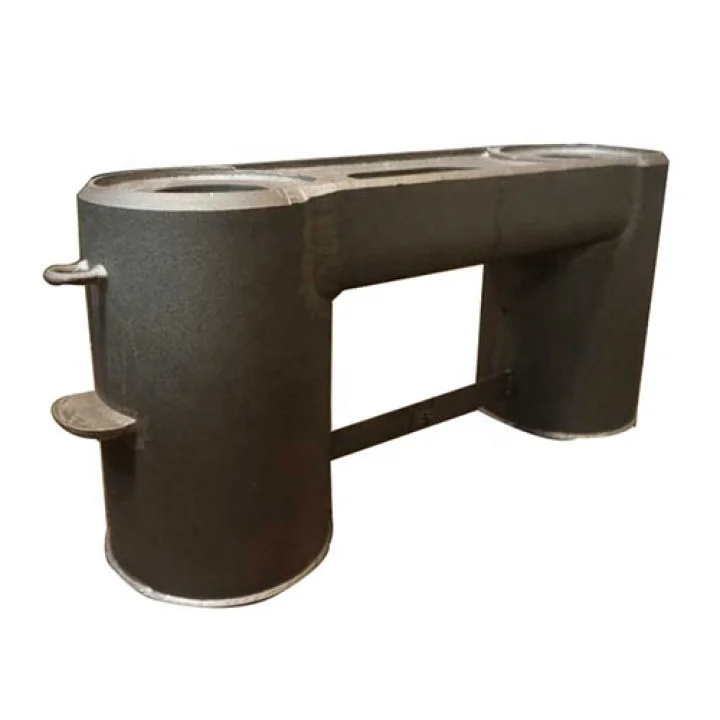

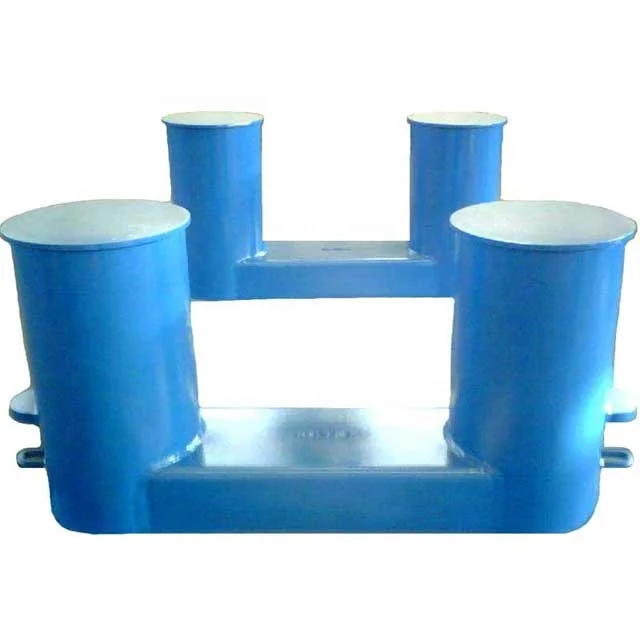

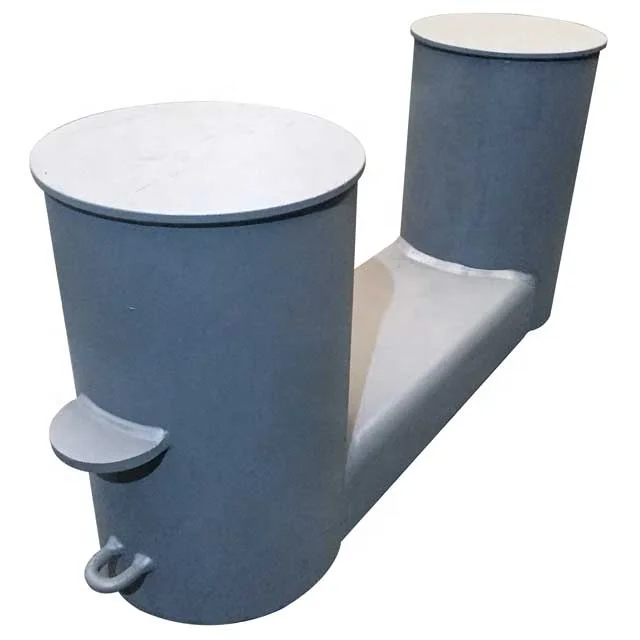

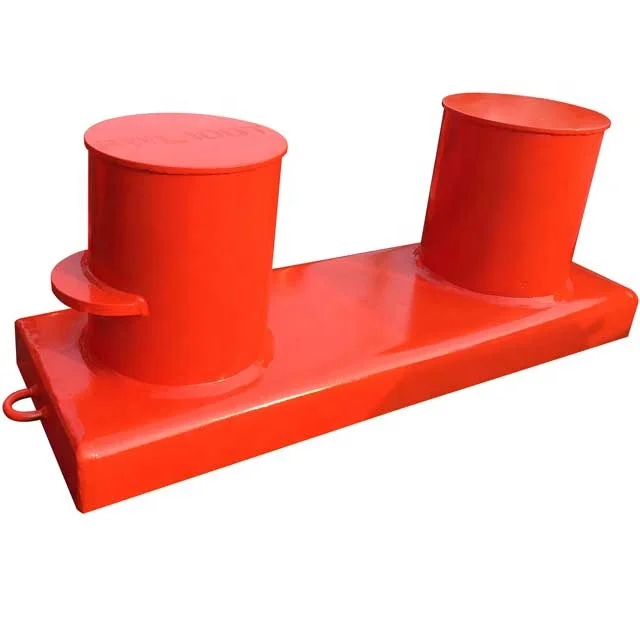

Marine DIN82607 Double Steel Pipe Bollard






Product Description




    The Marine DIN82607 Double Bitt Steel Pipe Bollards is a post used on ship’s deck or quay. It is a simple and cost-effective way to fulfill mooring requirements and safely secure vessels alongside jetties, berths, wharves and dolphins in ports and harbors. It is welded by qualified steel tubes with plates.


    Besides the DIN82607 double bitt steel pipe bollards, different types and sizes of the bollards are available, including the single cruciform bollard, double cruciform bollard, NS2584 type bollard, JIS F-2001 type bollard, and other customized type bollard according to the requirement of clients.

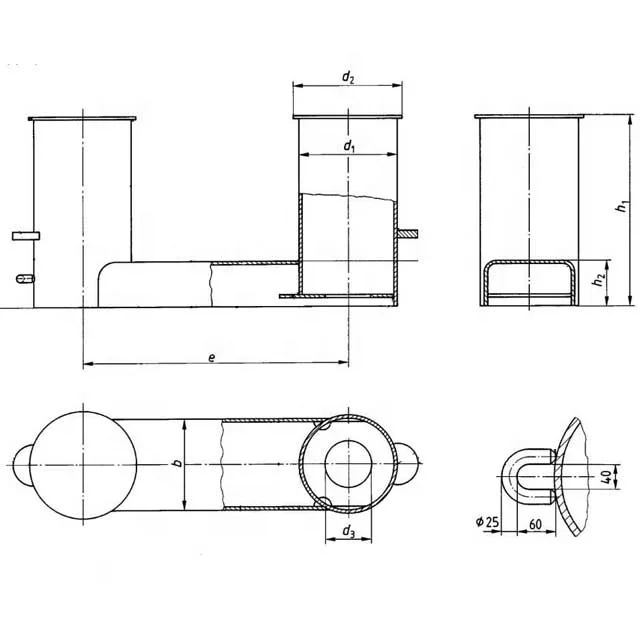

Technical Parameters

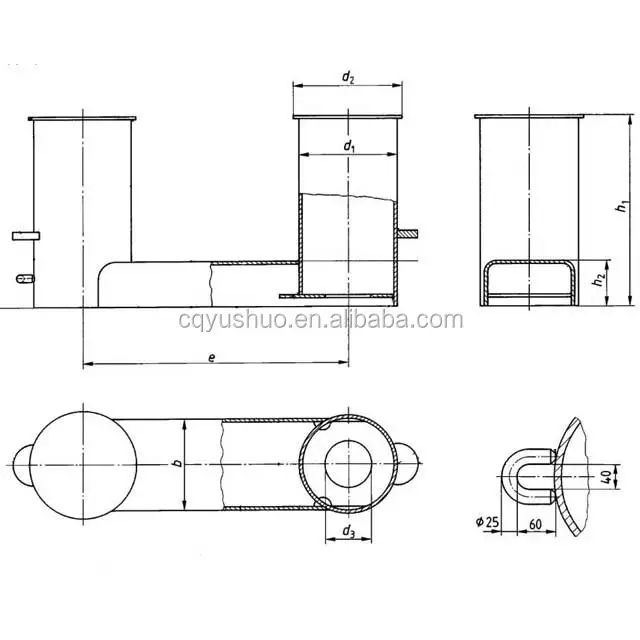

Technical Parameters for Marine DIN82607 Double Bitt Steel Pipe Bollards:































































































Nominal Dia.


(mm)



Dimensions (mm)




Weight


(kg)



L



T



H



E



D



10



855


160370430

139.7x6.3



21



20



875


245475570

219.1x8



50



30



1060


300570700273x10

95



50



1290


355670880323.9x10

148



80



1495


3907801050355.6x14.2

257



120



1745


4908601200475x16

459



200



1945


5459701350508x17.5

617



320



2179


60010001400559x20

765

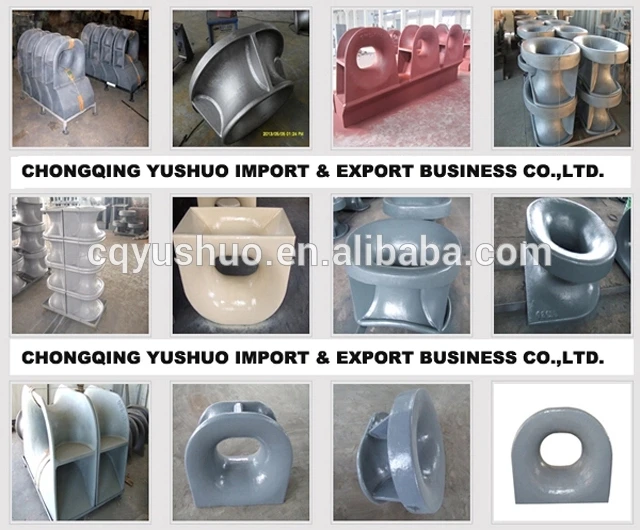

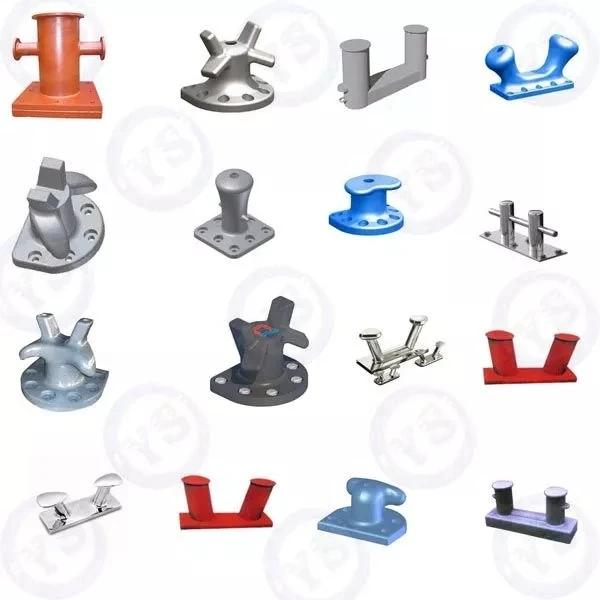

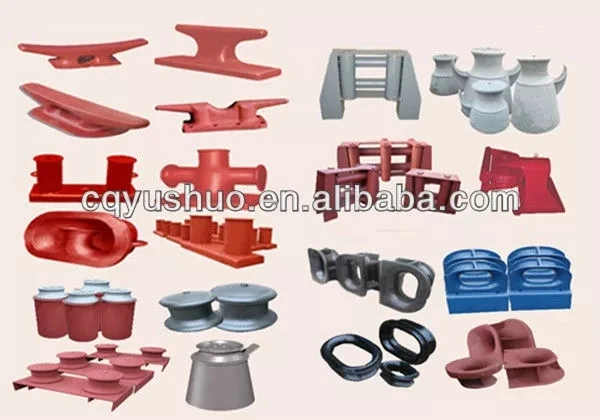

Related Products


Related Products.webp.jpgRelated Products1.webp.jpgRelated Products2.webp.jpg

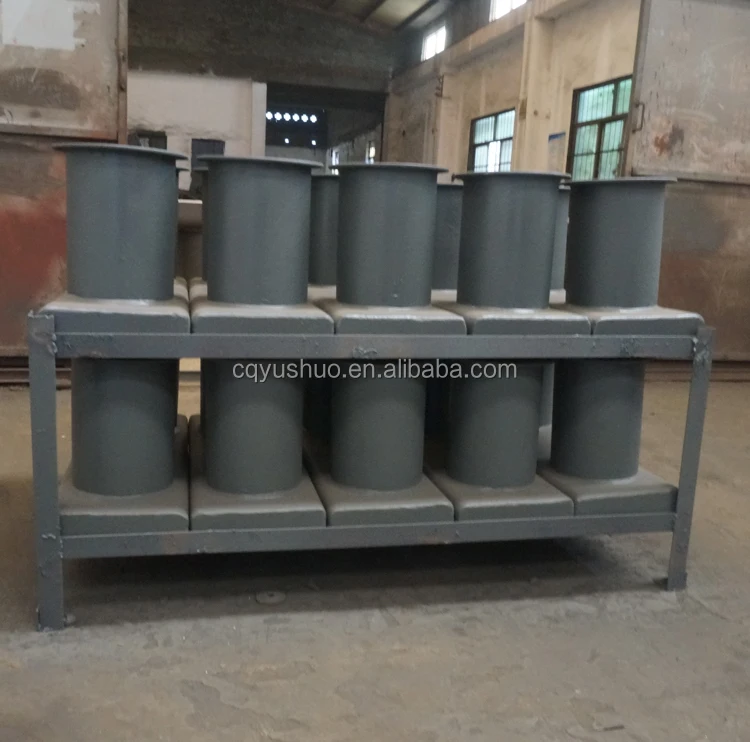

Packaging & Shipping
