  • China Supplier Fully Automatic Four Lanes Nespresso Compatible Nespresso Coffee Capsules Coffee Pod Filling Sealing Machine
China Supplier Fully Automatic Four Lanes Nespresso Compatible Nespresso Coffee Capsules Coffee Pod Filling Sealing Machine
China Supplier Fully Automatic Four Lanes Nespresso Compatible Nespresso Coffee Capsules Coffee Pod Filling Sealing Machine
China Supplier Fully Automatic Four Lanes Nespresso Compatible Nespresso Coffee Capsules Coffee Pod Filling Sealing Machine
China Supplier Fully Automatic Four Lanes Nespresso Compatible Nespresso Coffee Capsules Coffee Pod Filling Sealing Machine
China Supplier Fully Automatic Four Lanes Nespresso Compatible Nespresso Coffee Capsules Coffee Pod Filling Sealing Machine
China Supplier Fully Automatic Four Lanes Nespresso Compatible Nespresso Coffee Capsules Coffee Pod Filling Sealing Machine
China Supplier Fully Automatic Four Lanes Nespresso Compatible Nespresso Coffee Capsules Coffee Pod Filling Sealing Machine

China Supplier Fully Automatic Four Lanes Nespresso Compatible Nespresso Coffee Capsules Coffee Pod Filling Sealing Machine

Share on (62316583400):


Price:$159,999.00 - $160,000.00

Quantity:


Product Overview

Description



Product Description

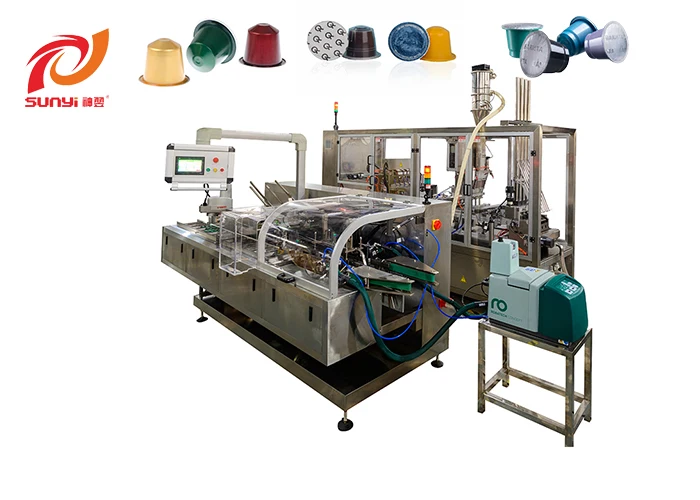

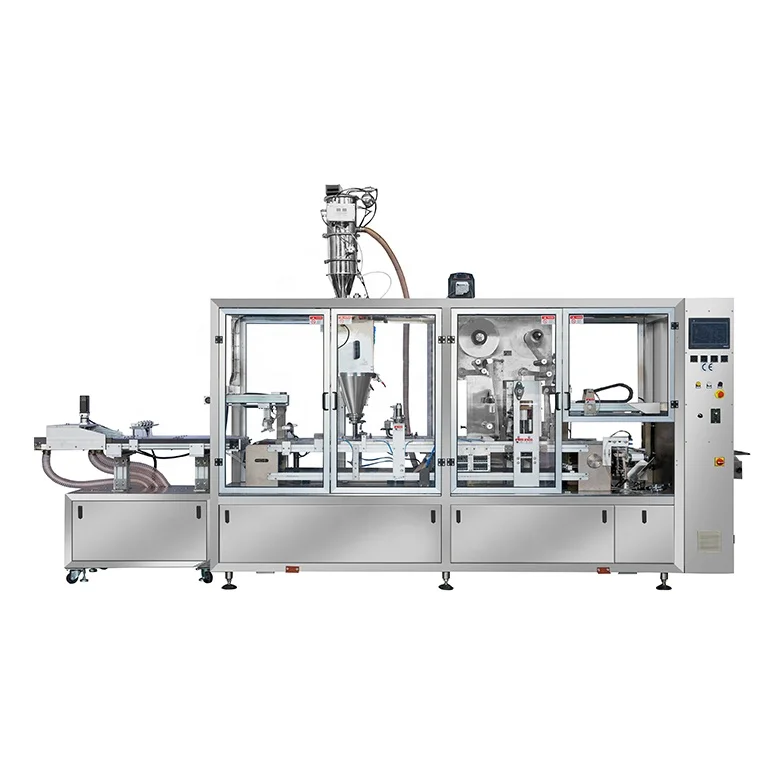

This Europe Standard Fully Automatic Four Lanes Nespresso Coffee Pod Packaging Machine (Model: SKP-4) of Sunyi Machinery is fully automatic and muti-function coffee capsules filling sealing packaging machine, which is with higher-speed and lower-noise than ordinary coffee capsule filling machine.

With good appearance, stable performance, high filling speed and filling accuracy, this machine have won a variety of customers at home and abroad.
This machine main body frame and foodstuff contact part adopts food grade stainless steel. This machine can meet Max. 160-200cups/min. And we also have lower speed machine models (SKP-1, SKP-1N, SKP-2) and bigger capacity machine models (SKP-6, etc.) for your options.
If any further questions, please don’t hesitate to contact us.







Main Function
*Easy clean hopper system,change material type in a short time.
*Running brush and vacuum collect dust machine clean machine's mold,ensure machines' stable running at Non-dust condition.
*All production process with visualization on the touchscreen,continuously monitoring all relevant parameters.
*Special design diagonal roll film unwind system,will have 15%-30% less material consumption compared with conventional methods.
*camera sensor to check lids sealing, if it's not good, it will be rejected.


Technical Parameters
Filling weight range:
0-20g
Filling accuracy:
0.1-0.3g
Max speed:
160~200Cups per minute
Hopper capacity:
10-24L
Control system:
OMRON SCHNEIDER ROCKWELL
Displayer:
10 Inch touchscreen
Power supply:
220V/380V
Dimension:
4880mm*1000mm*2100mm




Certifications




Machine details


Horizontal Capsule Loading (Option)
Manually putting the stackable capsule cup in the four lanes conveyor. The capsules cup will be transfered automatically to the next part when the machine is started. Then, a robot arm will pickup the cups and place them into the modules automatically. (Sunyi company Patented Innovation)
Vertical Cup Feeder (Option)
Manually putting the stackable capsule cup in the four vertical stacks. The capsules cup will be released into the modules automatically.


Rotary Cups Unscrambler & Elevator (Option)
Rotary Cups Unscrambler & elevator is used to turning the cups in order automatically. The customer only need to pour the cups into the elevator, then the cups will be turned in a line.
With photoelectric sensor, both the elevator and the round unscrambler can run to feed the cups automatically.


Auger Material Feeder (Option)
Automatically feeding the material into the machine hopper
Vacuum Pump Material Feeder (Option)
Automatically feeding the material into the machine hopper by vacuum pump suction.


Capsule Film Sensor
When the capsules is transfered here, the capsule film sensor is used to judge whether the film exists or not. If yes, it will go on to next part, which is important part before sealing.


Filling Stations
* Transparent visual window hopper to check the material clearly;
* Nitrogen Flush function from the filling station to the sealing station, including the visual hopper as well;
* Optional UV lamp sterilization
*Optional anti-static device for a better filling accuracy because the fresh powder will take place statics while flowing through the metal pipe.



Pre-cut Aluminum Lids
Automatic Suck and place the pre-cut lids onto the cups
Rolled Film Cutting & Sealing
Automatically cut the rolled film and form a lids and heat seal the lids onto the cups directly.
Then, there will be another twice-sealing station for better sealing effect.


Capsule Conveyor Belt
Manipulator will grasp the production and put them on the conveyor belt.When capsule is tra -nsfered to the part.The whole manufactur ing process will end.


Our Service


Perfect Technical support and service system
We have a professional technical consulting, training and after-sales service team,12 months product warranty period, as well as within 24 hours rapid reaction after-sales service system.
Choosing us won't be your wrong decision.


Exhibition:






FAQ:

1. What advantages you have?
* Over 10 Years professional working experience in the coffee capsules filling packing machine only.
* With abundant of technology reserve and lots of innovative patents
* With very strict standard on each machine that sold to all over the world.
* With world famous components application.
* One-stop packaging solutions
* Sunyi machine has been exported to over 40 countries all over the world.
* Professional after-service system
* With distributors in USA, Mexico, Thailand, Russia, Italy, etc...
*Prompt response to the after sales service.

2. How can you guarantee that we can receive a good quality machine?
* Sunyi Machinery is the direct factory-based company, we can supply visual-audio factory inspection service.
* From the machine processing parts to the electric-pneumatic parts, from the machine assembling to the electric-pneumatic
adjustment, from the package to the shipment, we have a set of strict QC standard.
* After the machine is ready, we will send each customer their machine photos and machine testing videos.
After confirmation by the customers, then we are permitted to arrange the delivery.
* After receiving the machine, we can set out technicians to customer factory for machine installation as agreed if need.
* Within the 12 months warranty, any broken parts will be delivered to customers by express for free of charge.
After the warranty, the broken parts will be discharged only at the lowest cost price.

3. Do you provide and help about the product operation?
* We have English version operation manual and videos for all products, and all the icons will be displayed by English or
nominated language.
* After receiving the machine, we can supply the remote guidance on Internet for machine installation and operation.

4. During the COVID-19, How can I visit the factory?

* During the COVID-19, we can supply 360 degree VISUAL-AUDIO factory inspection services.
* If any questions, we can show you the details on the Internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc.


Packing & Delivery




Wooden Case Related

*clean machine and Vegetable oil protect machine not rust

*Stretch film packaging

*Wooden tray

*wodden case
