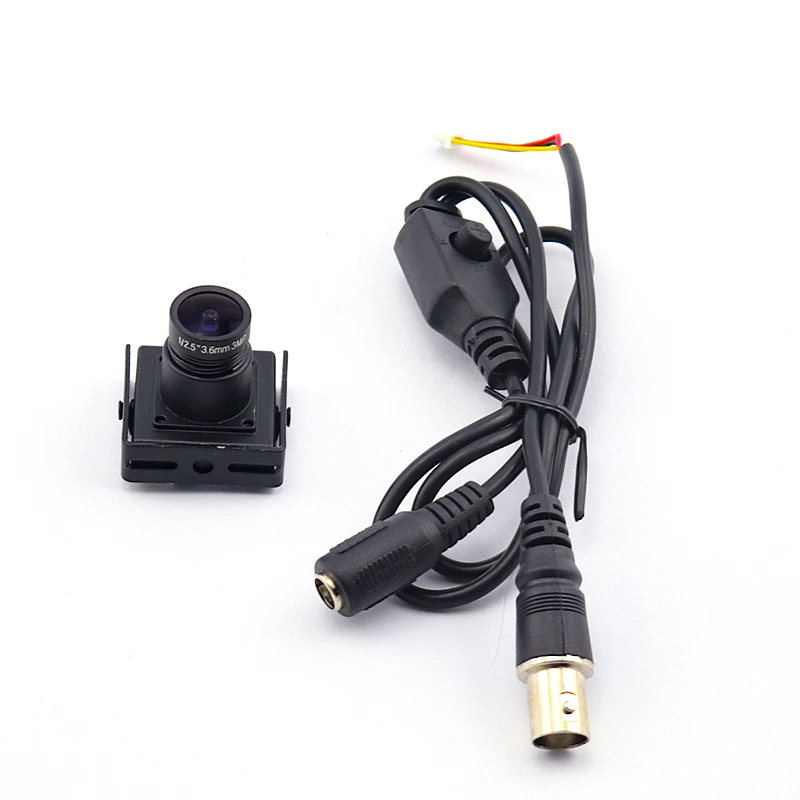

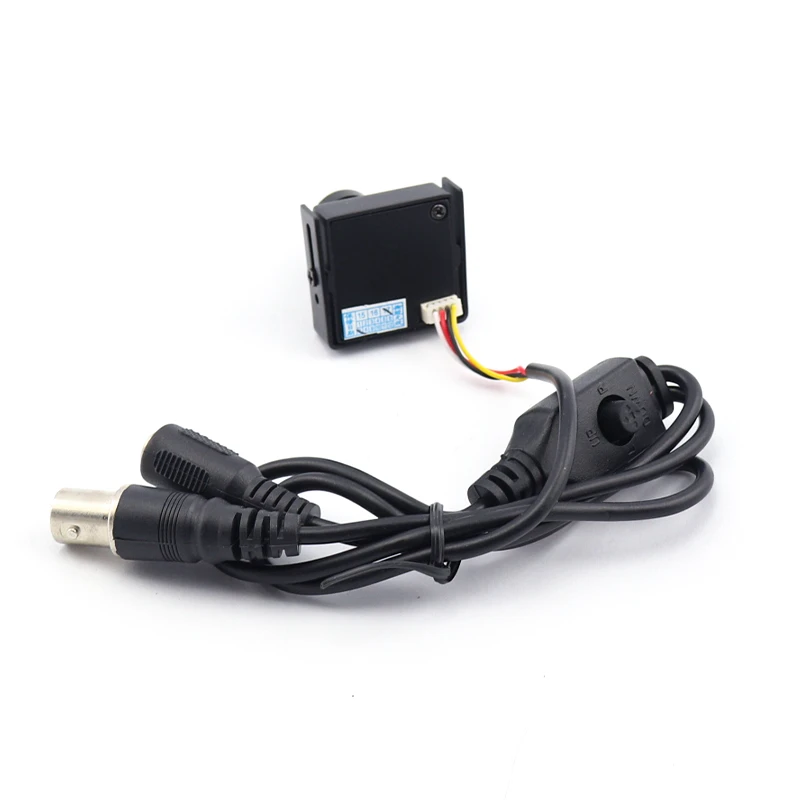

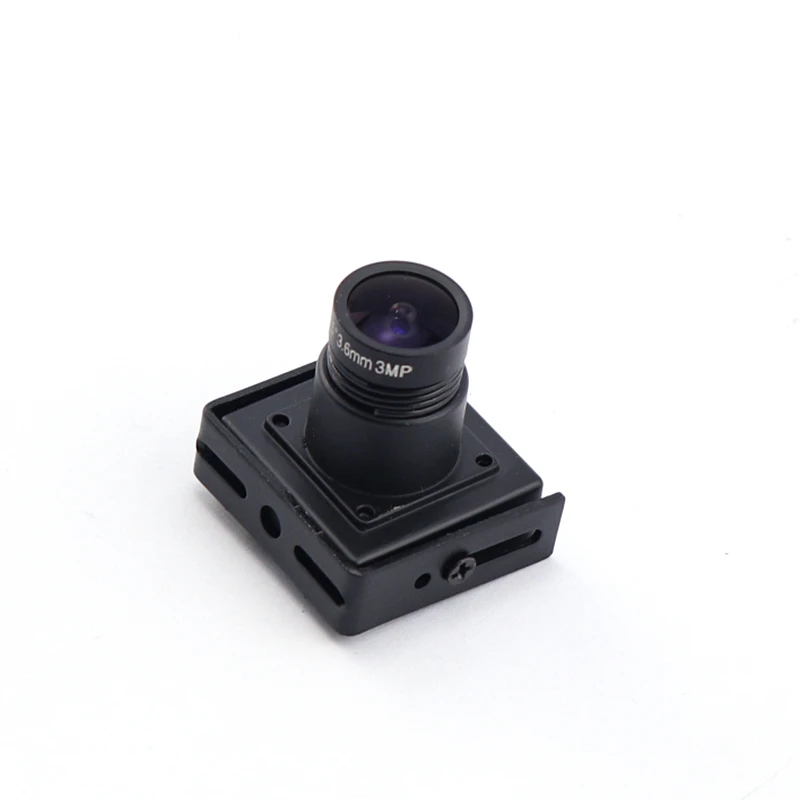

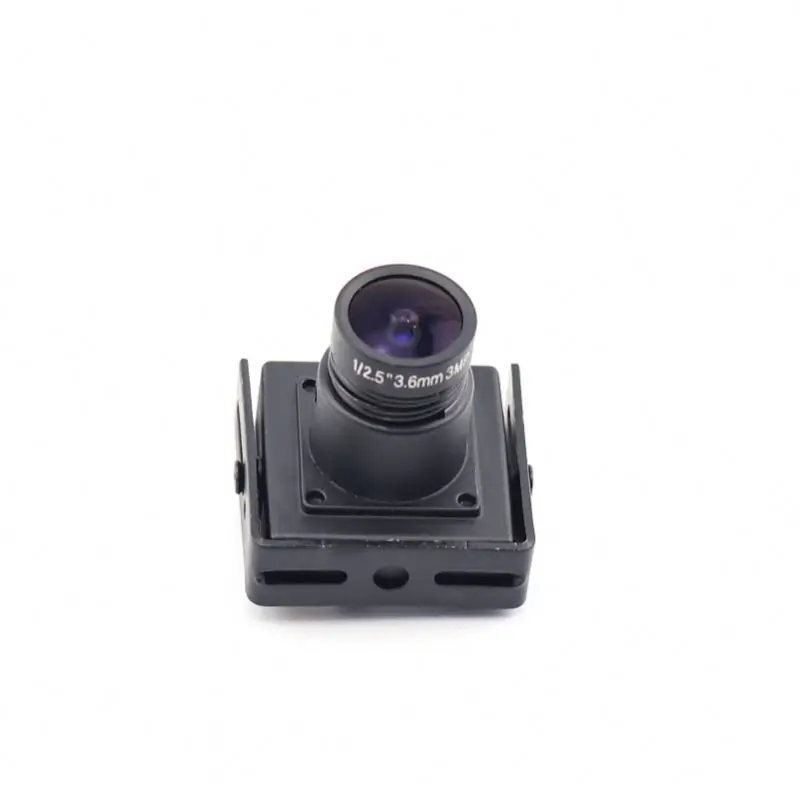

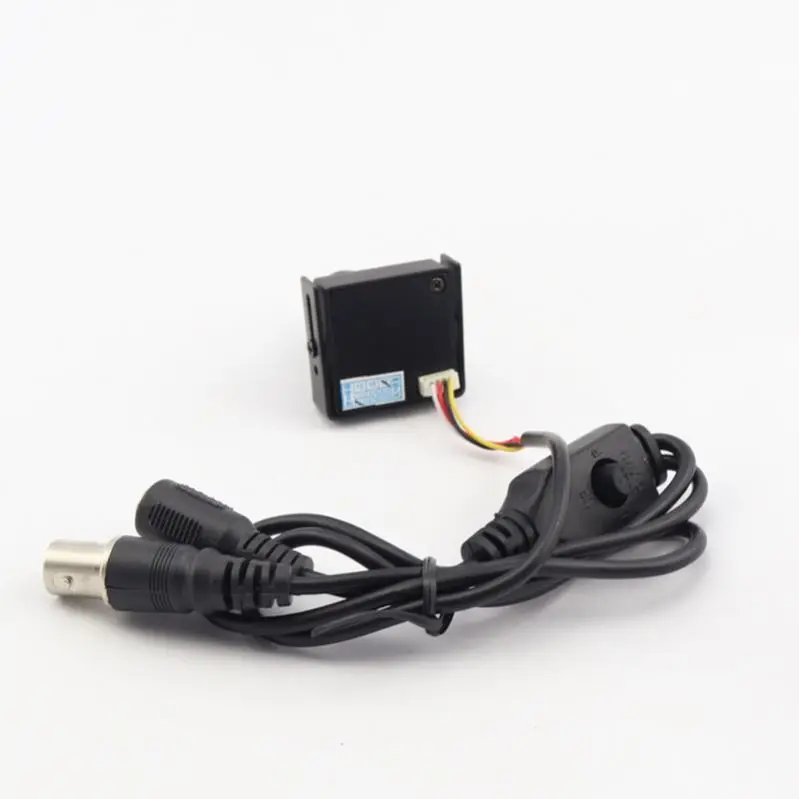

Nextchip 2090 810811 DSP Aerial Photograph Analog Camera With OSD Menu 700TVL Mini Square ATM Camera 25*25Mm FPV Color Cam
- Category: >>>
- Supplier: Shenzhen Geniuspy Intelligent Technology Co. Ltd.
Share on (62316583822):
Product Overview
Description
Product Description
Nextchip 2090+810811 DSP Aerial Photograph analog camera with OSD menu 700TVL Mini Square ATM Camera 2525mm FPV color cam
- NAME :Mini Square Camera 700TVL s ony Effio CCD Mini CCTV Camera
- senor:
- 1/3" s ony CCD, 700TVL, 0.01 Lux (F1.2)/ 0 Lux IR On
- system:
- NTSC&PAL Optional
- Size:
- 25*25mm
- TVL:
- 700TVL
- Interface:
- bnc+d c default with osd menu
- For:
- indoor place&Car&prison &army &Car&vehicle Use
- keyword:
- Mini CCD Camera
- lens:
- 3.6mm lens default -3.7/2.1/2.8/2.5/6MM more Lens Optional
- Support:
- OEM&ODM&SMALL Orders
Specifications:
700TVL Hi-res Mini Square Camera
1. Wide voltage: d c12V
2. Low Illumination: 0.01LUX
3. With OSD menu
---1/3” s ony SuperHAD II CCD + Nextchip 2090+811810, 700TVL
---Wide range power supply d c 5-15v, more convenient for different applications
---Low Current Frequency
---Nice back light compensation and good image, used for the ATM surveillance or under sharp contrast in lighting conditions like aeria video
Specification Of the Camera:
| Image Device | 1/3” s ony Super HAD II CCD + Nextchip 2090 DSP | |
| Number of Pixels | PAL : 752(H) x 582(V) 440K / NTSC :768(H) x 494(V) 380K | |
| Scanning System | PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec | |
| Sync System | Internal Synchronization | |
| Horizontal Resolution | 700 TV Line | |
| Minimum Illumination | 0.01Lux | |
| S/N Ratio | More Than 48dB | |
| Gamma Characteristic | 0.45 | |
| Video output | 1Vp-p 75 Oms , Negative | |
| Lens | 3.6mm board lens by defaut | |
| (wide angle lens, lens for option) | ||
| Electronic Shutter | PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto | |
| Working Voltage/Current | d c 5-15V / 60mA-130mA | |
| Housing | Black | |
| Dimension | 25x 25mm | |
| OSD Menu (On Screen Display) functions | Exposure | ON/OFF |
| White Balance | Adjustable | |
| BLC | Adjustable | |
| Day&Night | Color / B/W | |
| DPC | ON/OFF | |
| Motion Detection | ON/OFF | |
| Privacy | Available | |
| Parking Line | ON/OFF | |
| Language | Selectable | |
