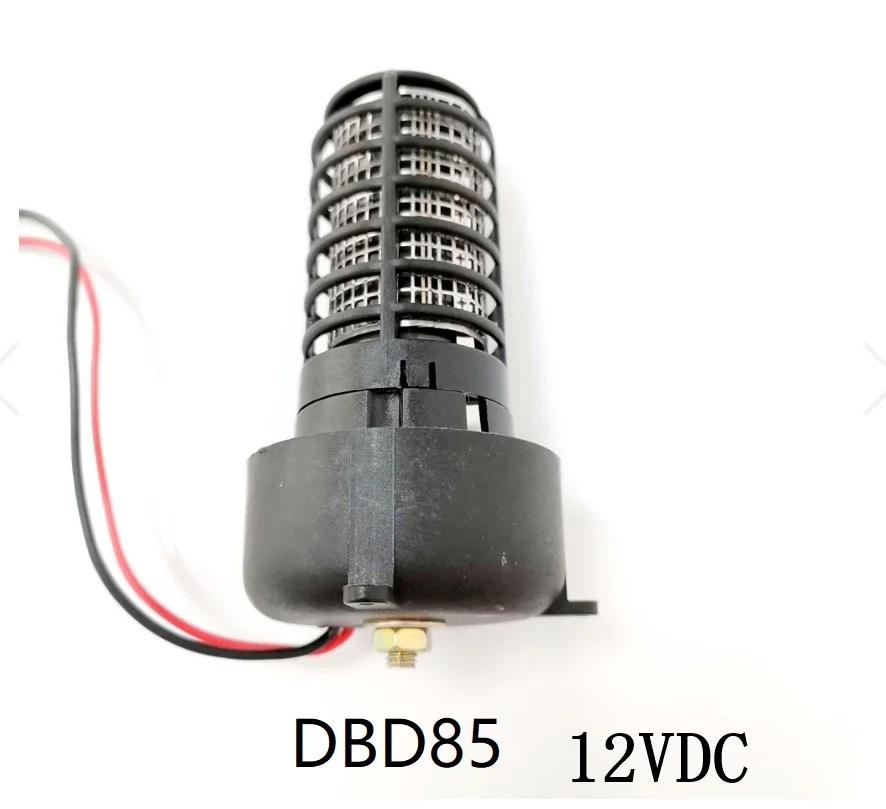

Plasma DBD Ionizer-DBD85-12V
DBD85-12V is a plasma discharge tube for air cleaning , which is designed to have all circuits inside the tube.
With high-energy and higher efficiency compared to other Ion Cluster modules, DBD85 series of products are the ideal cchoice for installation in HVAC systems , inside of diffusers , air conditioner for room cleaning or other Air Purification
products.

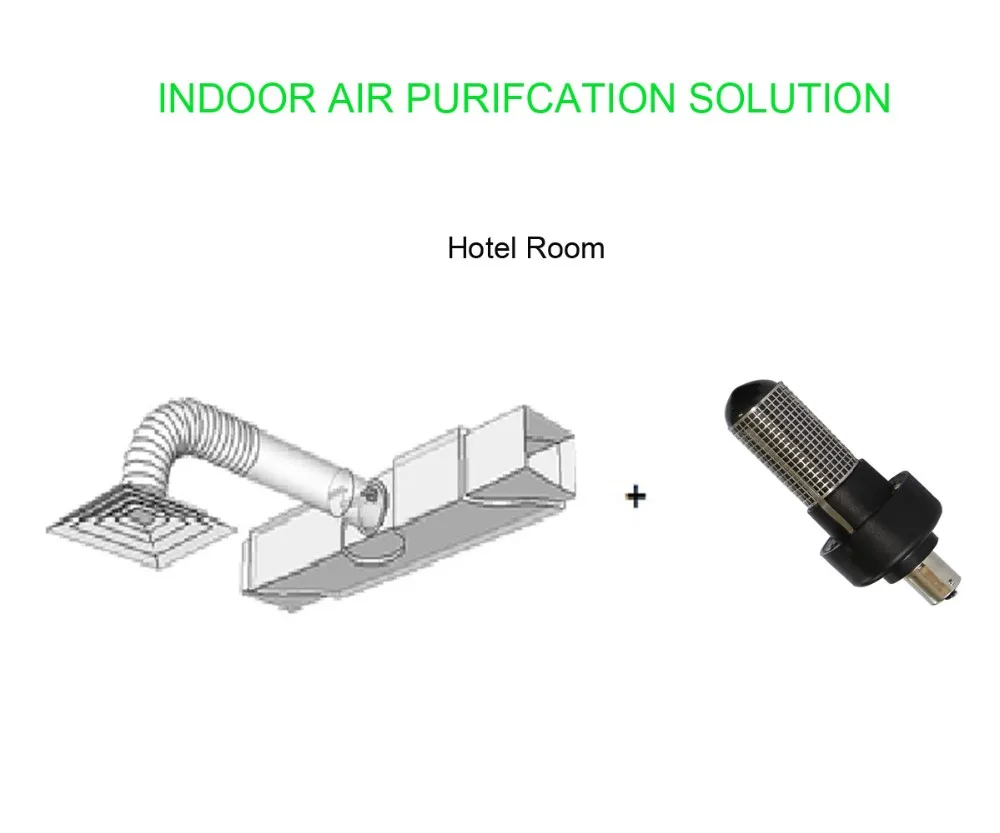

Indoor Air Solution
Hotel Room ,HVAC System or Diffusers
-There's a risk of virus infection because of the smell of
user in the room that many people use .
- In the case of central air conditioning , DBD85 series is
best choice to be used in the diffuser or HVAC Air Outlet,
effectively remove the residual odor, viruses and bacterias.
- Easy to install and optimized for use in about 15 sqm.of
room.
Bio-Clean Room
- In case of Bio-Clean room and Bio-Clean Booth,
we will adopt UV light and Ion Cluster DBD85 to sterilizer
the air.
- UV only sterilize and irradiated area, so it only sterilizes
the air that is inhaled.
- Ion Cluster DBD85 can spread all over the room to
sterilize.

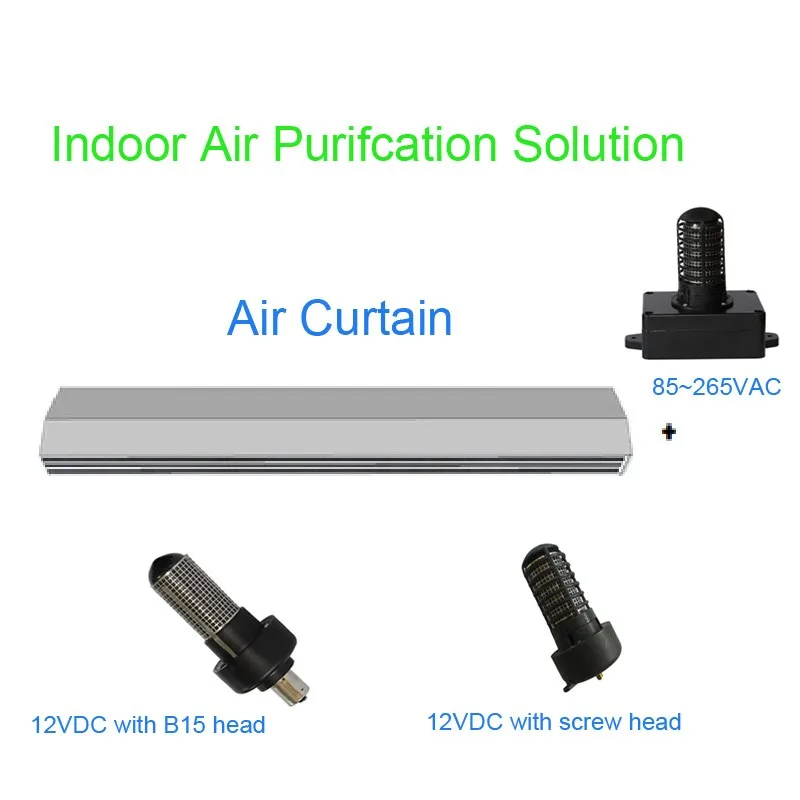

Air Curtain
There're three types of DBD85 can be selected as follows:
-DBD85S-12V is the bulb with M5 screw connecting head, .
-DBD85-12V is the bulb with B15 connecting head.
-DBD85-220V is the bulb with AC to DC converter case and power supply is 85VAC~265VAC.
- Air Sterilization for indoor room.
- Air Sterilization for the outside.
Testing Result
Testing Feedback for DBD Ionizer | ||||||||||
Items | Flow speed | Distance | Negative Ions | Positive Ions | Ozone Output | |||||
M | CM | millions/cm3 | millions/cm3 | PPM | ||||||
2pcs of DBD85 | 1 | 40 | 7 | 4 | 0.5 | |||||
1pc of DBD85 | 1 | 40 | 1.5 | 1 | 0.4 | |||||

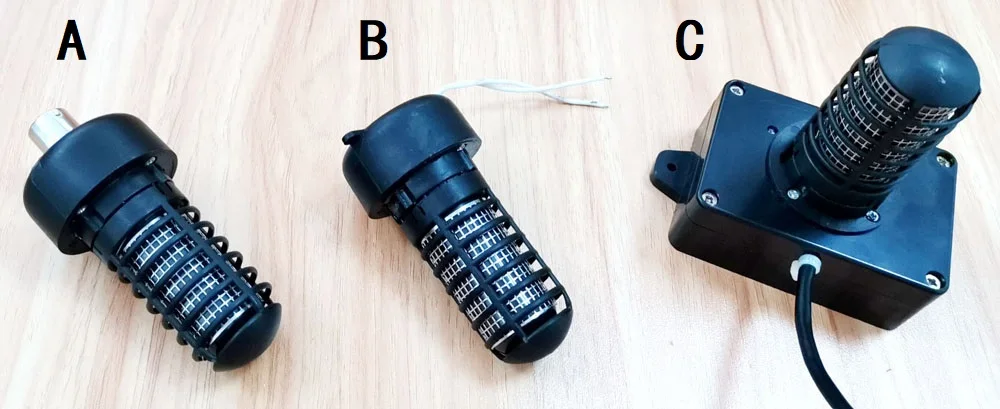

Details Images
- A) DBD85-12V , input voltage is also 12VDC, but with B15 connecting head
- B) Ionizer DBD85S-12V , input voltage is 12VDC, connecting power by screw type of head
- C) DBD85-220V, the input voltage is 85~220V/50HZ, with one black case on the bottom

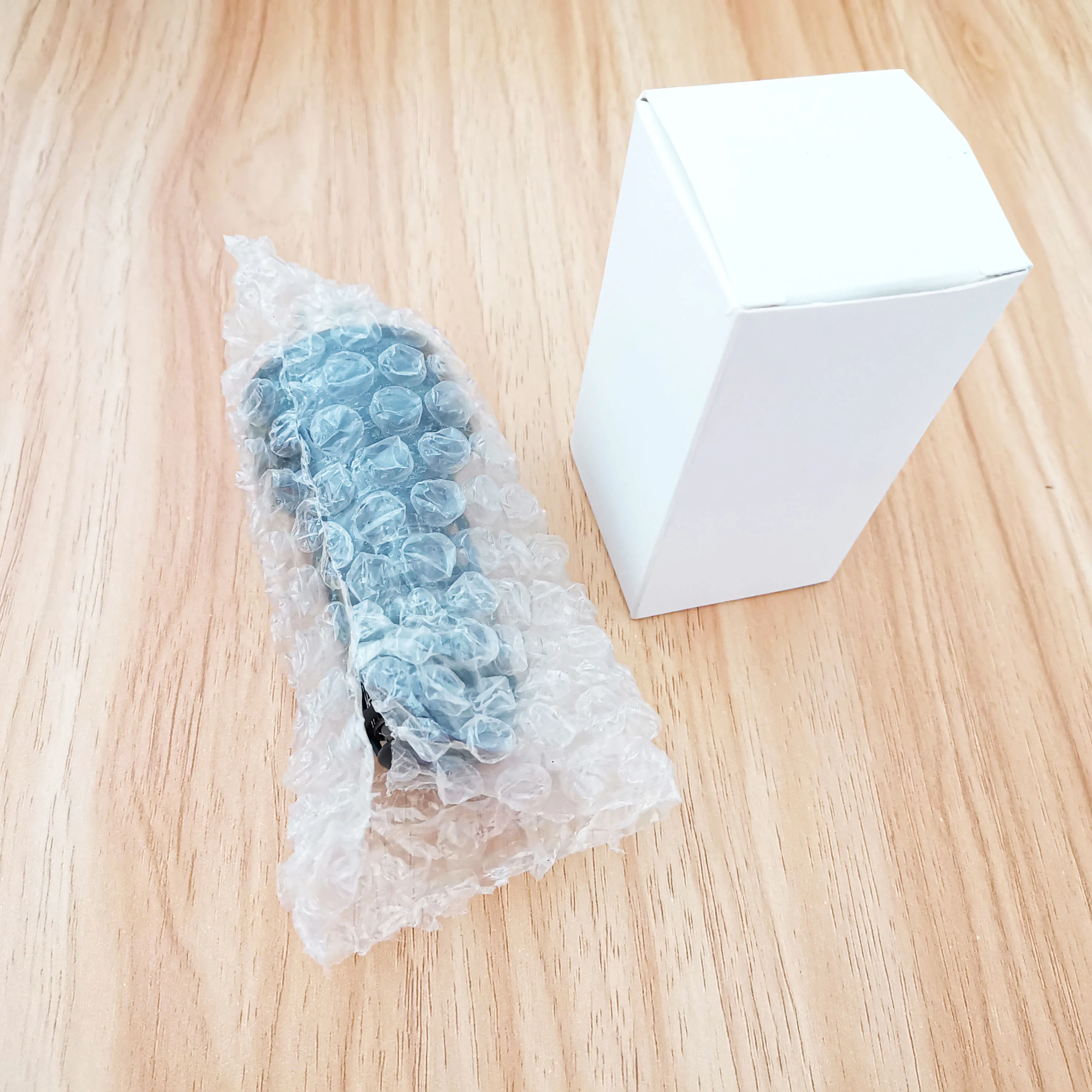

Product packaging
Unit white per box
