SIMCOM SIM7100A SMT Type LCC Modem for USA Quad Band LTE FDD B2/B4/B5/B17

Product Overview

Description

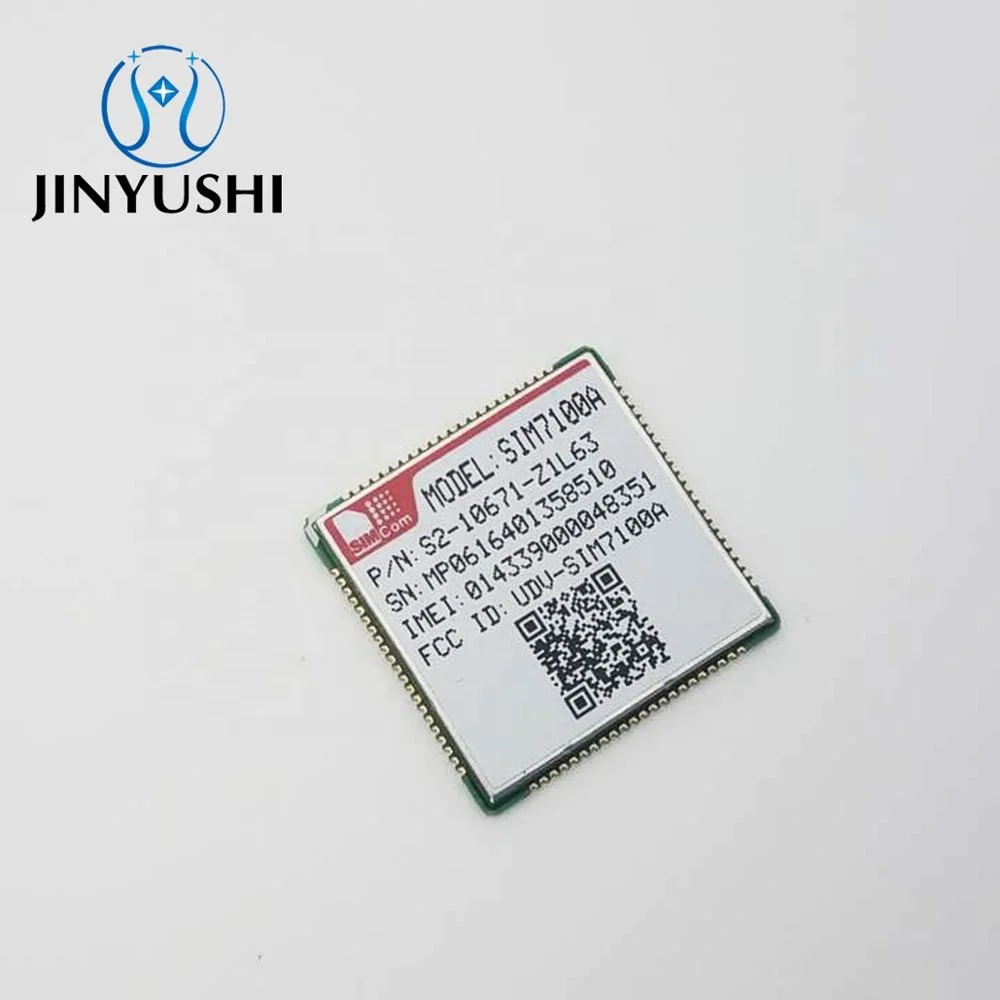

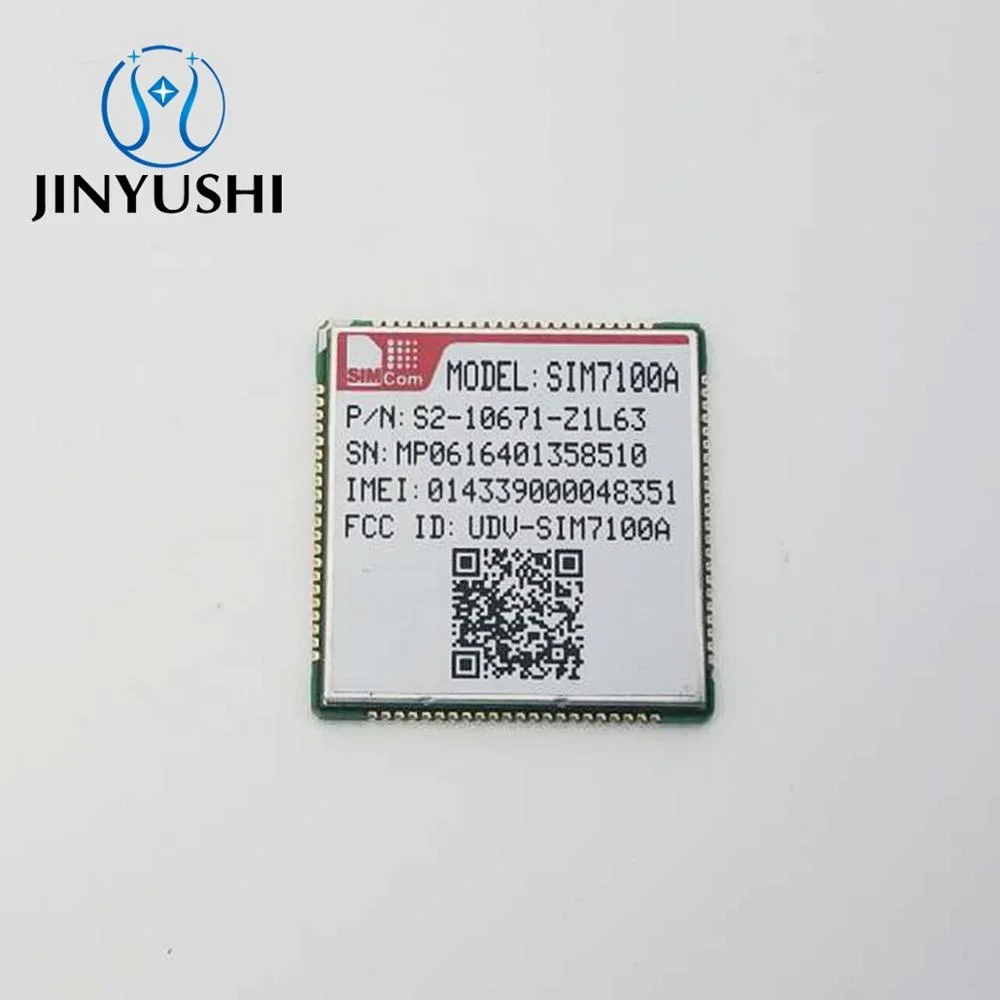

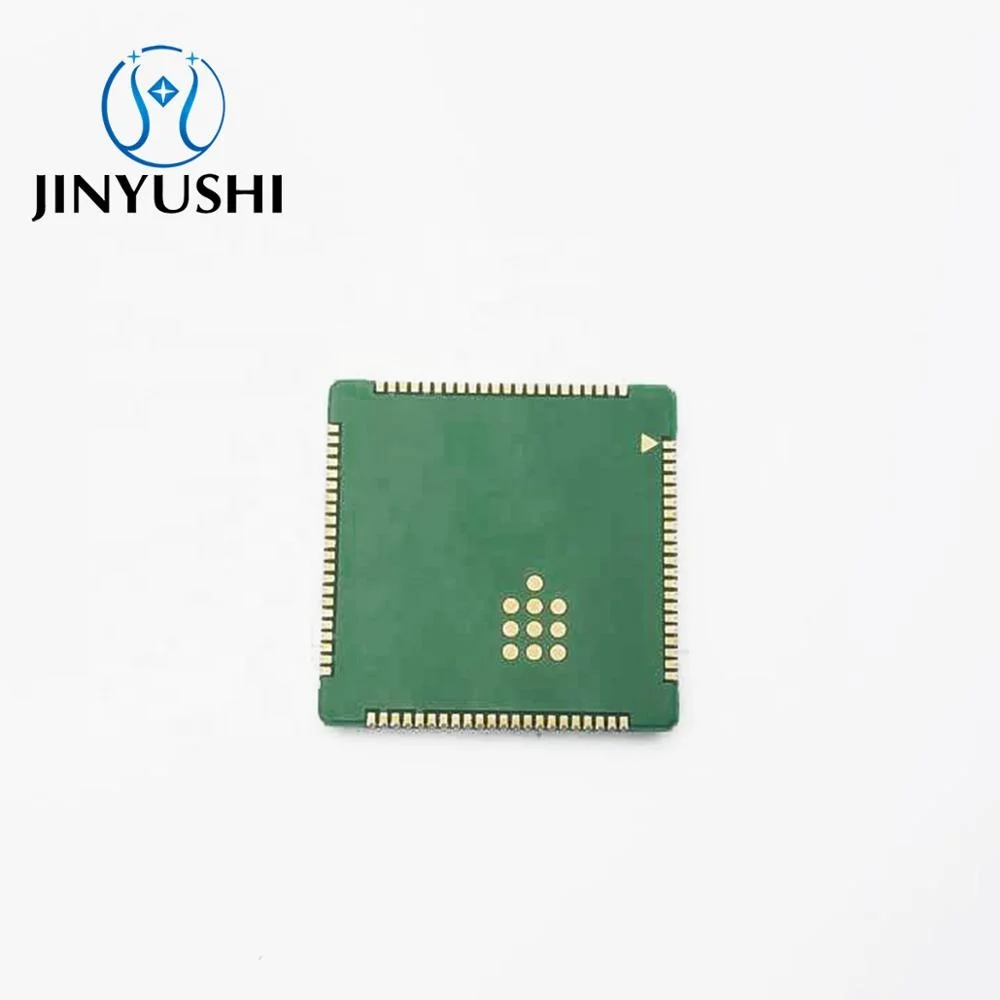

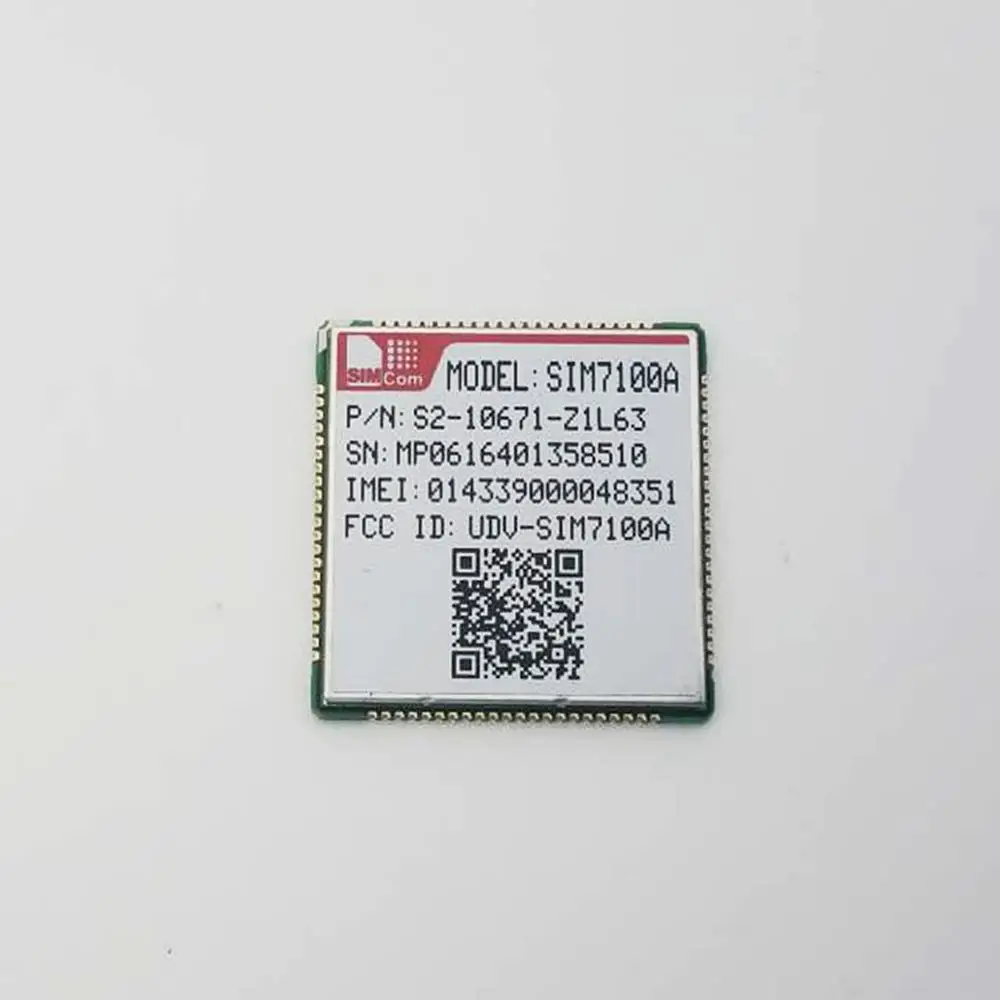

SIMCOM SIM7100A LCC LTE+GPS Module New Original



Feel free to contact us if you need any AT Command Newest Firmware datasheet hardware design windows drivers Linux Android drivers documents and so on



All the SIM7100X-H series support the customized PCB Board





LTE Cat-3 Module



SIMCom presents an ultra compact and reliable wireless module SIM7100X which is based on Qualcomm MDM9215multiple-mode LTE platform. SIM7100X is a complete multi-band LTE /WCDMA/GNSS module designed with very powerful processors integrating application core:Cortex™ A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer's application.

General features

SIM7100A

• Quad-Band LTE-FDD B2/B4/B5/B17

• Dual-Band UMTS/HSDPA/HSPA+ B2/B5



SIM7100C

Four-Band LTE-TDD B38/B39/B40/B41

• Three-Band LTE-FDD B1/B3//B8

• Dual-Band TD-SCDMA B34/B39

• Dual-Band UMTS/HSDPA/HSPA+ B1/B8

• GSM/GPRS/EDGE 900/1800 MHz



SIM7100E

• Five-Band LTE-FDD B1/B3/B7/B8/B20

• Dual-Band LTE-TDD B38/B40

• Dual-Band UMTS/HSDPA/HSPA+ B1/B8

• Dual-Band GSM/GPRS/EDGE 900/1800 MHz



SIM7100JC

• LTE-FDD B1/B3/B8/B18/B19

• LTE-TDD B41

• Tri-Band UMTS/HSDPA/HSPA+ B1/B6/B8

• Dual-Band GSM/GPRS/EDGE 900/1800MHz



SIM7100JE

• LTE-FDD B1/B8

• Dual-Band UMTS/HSDPA/HSPA+ B1/B8

• Dual-Band GSM/GPRS/EDGE 900/1800MHz



• Control Via AT Commands

• Supply voltage range: 3.4V~ 4.2V

• Operation temperature: -40℃ to +85℃

• Dimension: 30*30*2.9mm

• Weight: 5.8g

• LTE-FDD/Rel-9 Cat3

• HSPA+ DC-HSPA+,Rel-10 HSPA+

• GNSS gpsOne Gen 8B;standalone;assisted,XTRA-SIM7100A/C/E/JC

Specifications for Data transfer

• LTE-FDD

- Uplink up to 50Mbps,

- Downlink up to 100Mbps

• LTE-TDD

- Uplink up to 18Mbps,

- Downlink up to 80Mbps

• TD-HSDPA/HSUPA

- Uplink up to 2.2 Mbps,

- Downlink up to 2.8 Mbps

• TD-SCDMA

- Uplink up to 128Kbps,

- Downlink up to 384Kbps

• HSPA+

- Uplink up to 5.76 Mbps,

- Downlink up to 42 Mbps

• UMTS

- Uplink/Downlink up to 384Kbps

• EDGE Class:

- Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)

• GPRS

- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)

• CSD

- GSM data rate 14.4Kbps

- WCDMA data rate 57.6Kbps

- WCDMA 64kbps CSD for Video call



Other features

• USB Driver for Microsoft Windows 2000/XP/Vista/7/8

• USB Driver for Windows CE/Mobile

• USB Driver for Linux /Android

• RIL supporting for Android/Windows CE/Mobile

• Automatic installation

• Linux API SDK

• Firmware update via USB

• TCP/IP/IPV4/V6 Multi-PDP,MT PDP

• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS

• DTMF

• Gobi SDK to the Win7/Win8/Linux

• MBIM to Win8

• Source code of the PC manager of the device for reference

Interfaces

• USB2.0

• UART

• SIM card

• SPI

• I2C

• Keypad(5*5)-(SIM7000C/E/JC/JE)

• Constant current sink

• GPIO

• ADC

• PCM *

• SDIO



Certifications

SIM7100A

• FCC

• PTCRB

• ATT( ongoing )

• ROHS

• REACH



SIM7100C

• CCC

• TA

• CTA(onging)

• ROHS

• REACH



SIM7100E

• CE ( ongoing )

• ROHS

• REACH



SIM7100JC

• Telec ( ongoing )

• Jate ( ongoing )

• ROHS

• REACH



SIM7100JE

• Telec (ongoing )

• Jate (ongoing )

• Softbank(ongoing)

• ROHS

• REACH
