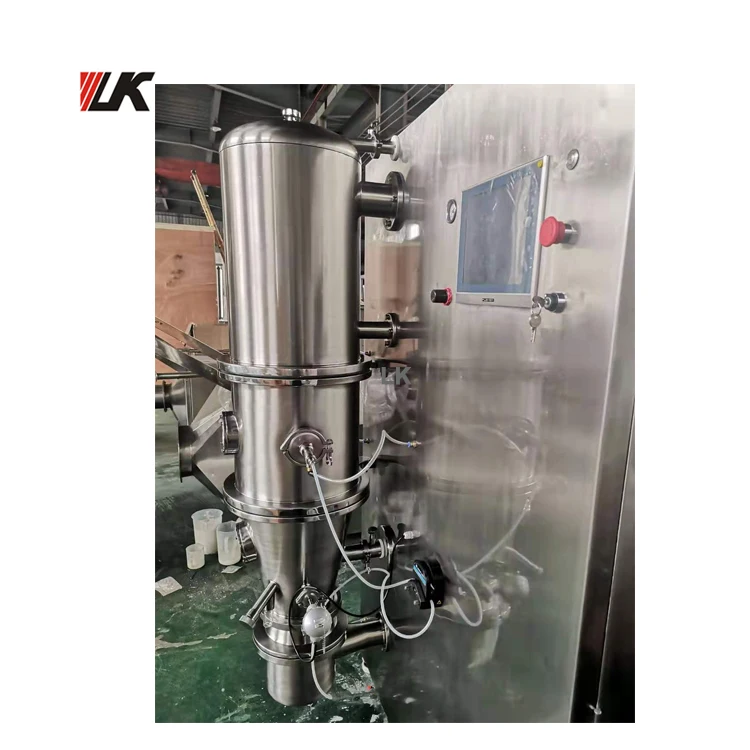

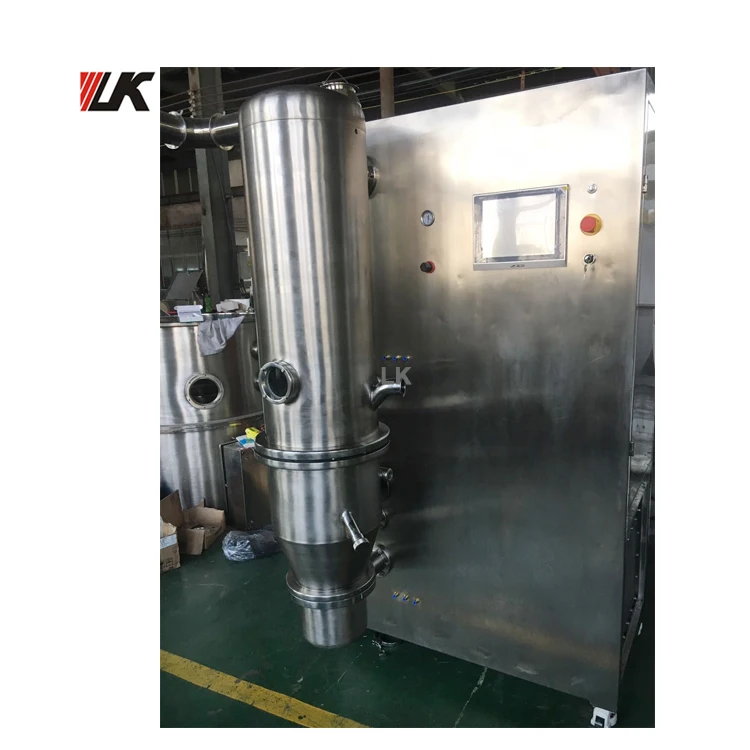

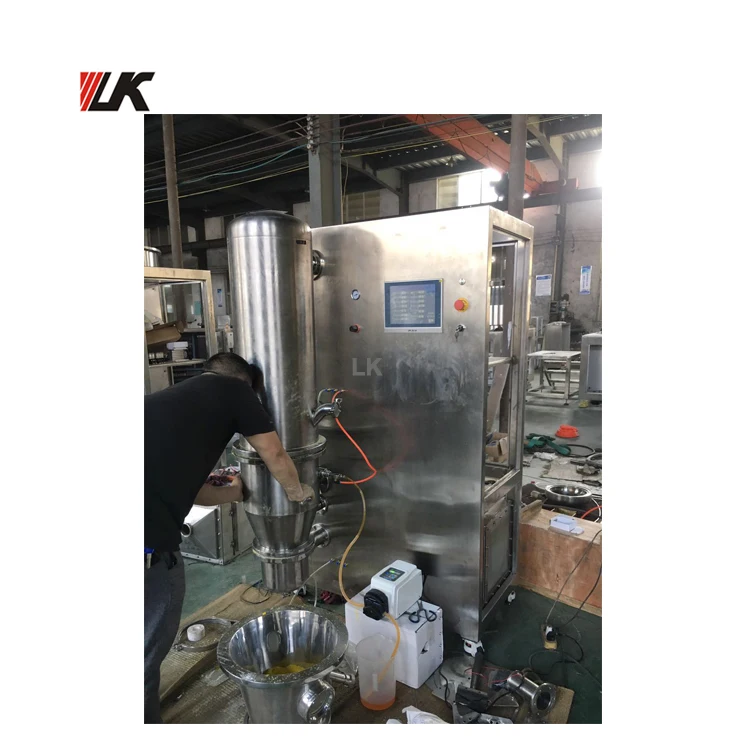

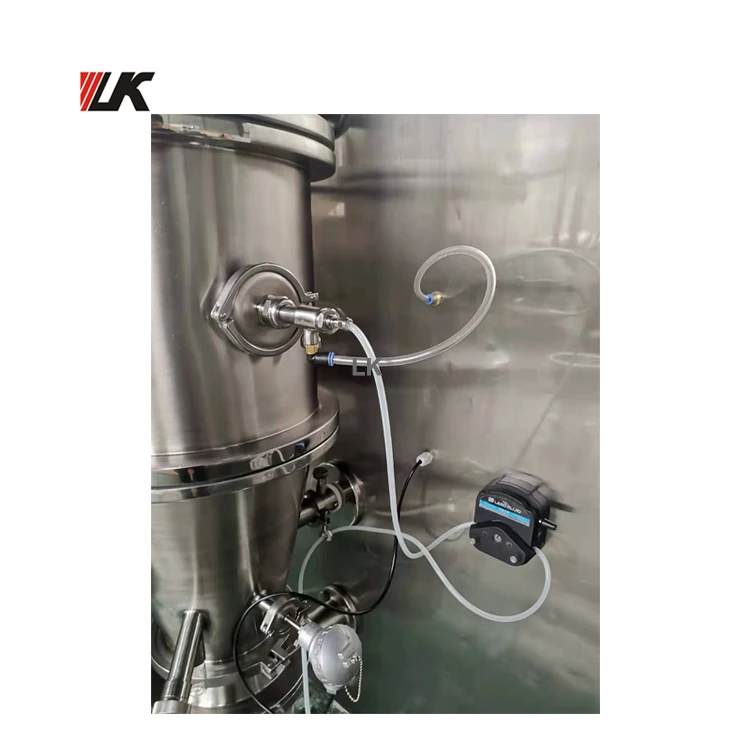

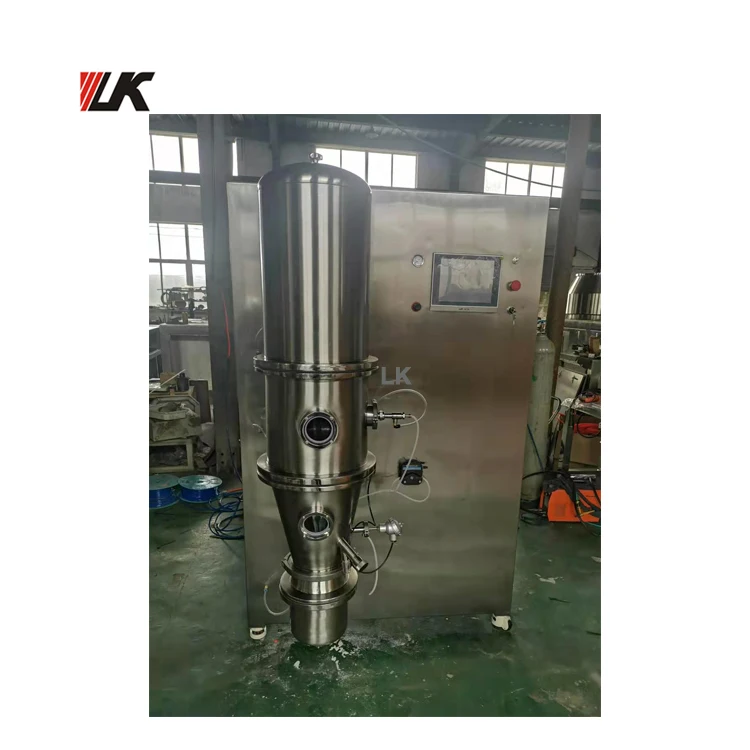

FG-120 All in one laboratory fluid bed dryer machine with top bottom spray
Product Description
This machine unit is suitable for mixing and granulating powder kind materials in such industries as pharmaceuticals, chemical, food and so on. It has been approved by province creative products and certified by CE (CONFORMITE EUROPEENNE).
Characteristics
1.This machine unit is controlled by PLC in the whole process (HMI-optional) to unify the technology and guarantee stable quality, which can also be operated manually, convenient to find out the technical parameters and process. 2.It integrates the wet mixing, granulating and drying functions. 3.It saves labor resource and improves the production efficiency. 4.It’s the ideal equipment for producing Chinese patent medicines, synthetic instant soluble medicines, tablets and capsules.
Technical Parameter
Model
Fluid bed granulating drier
Wet mixing granulator
Swing straightening granulator
Overall dimension of connected machine unit
LFL60
FL60
HLSG100
YK100
4300*4050*3600MM
LFL120
FL120
HLSG200
YK160
4800*4700*3900MM
LFL200
FL200
HLSG400
YK250
5200*5000*4900MM
Samples
Company Information
Wenzhou Liangke Machinery has specialized in production of solid preparation process machine for more than 20 years, including wet granulator, roll compactor, fluid bed dryer, mixer, tablet press, coating machine, capsule filling machine etc. Also engaged in pharmaceutical trade,chemical trade as well as food trade with qualified team and mature technology.
Certifications
Packaging & Shipping
Our Services
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine, training how to * Sample testing support. use the machine. * View our Factory. * Engineers available to service machinery overseas.
