Automatic PS PP PET PVC Plastic Disposable Cup/Bowl lids and Covers Small Size Thermoforming Machine

Product Overview

Description

Plastic  cup covers,lids thermoforming machine



Features

1)  Sensor controls are adopted by pneumatic system.

2)  Automatic, equipped with PLC touch screen.

3)  AVF-L series support frequency conversion, and can adjust the length of stroke easily. It is simple and convenient to change the mold.

Product Introduction

AVF-L series automatic blow molding and plastic sucking lids forming machine are developed by our research and development personnel according to the demand of packing market. In combination with the advantages of aluminum-plastic blister packing machine and plastic sucking forming machine, AVF-L series is a new type production developed in light of pharmaceutical standard GMP and food standard QS.    This machine adopts a fully automatic flow covering blow molding or plastic suction molding, punching and diet cutting as the special properties of products required by the users.  It is applicable to the plastic ware such as PVC, PET, PS medicine trays, and cup lids thermoforming boxes. And have a good selling in this market.

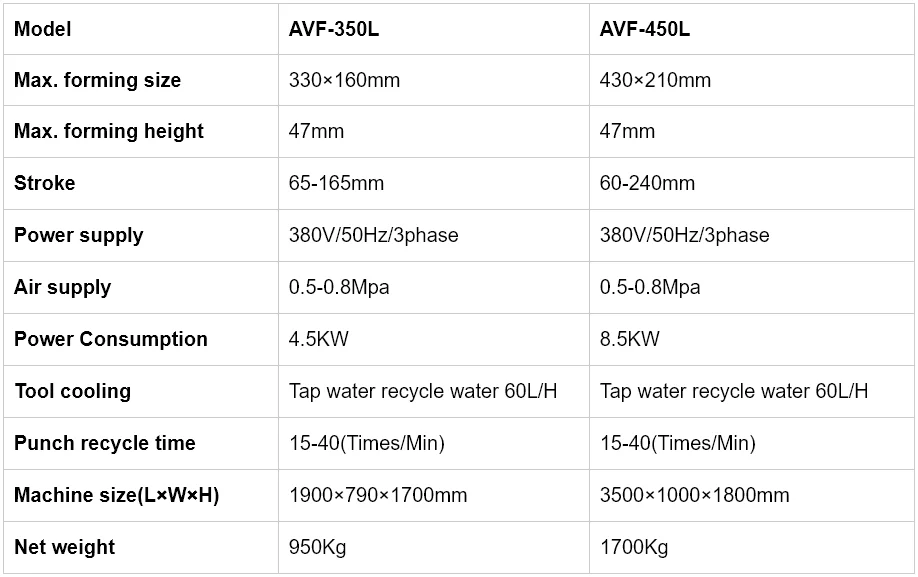

Technical Data AVF-L series

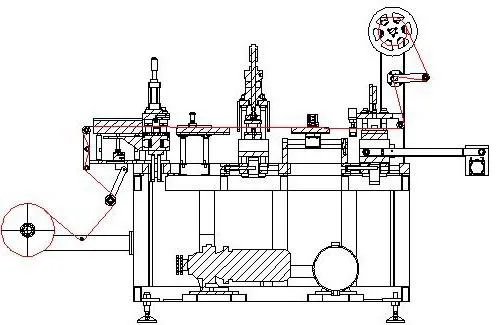

Schematic diagram

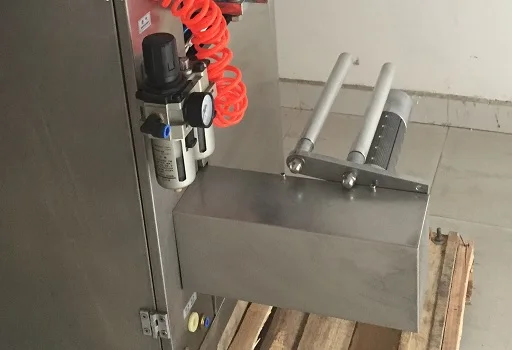

Material upload part

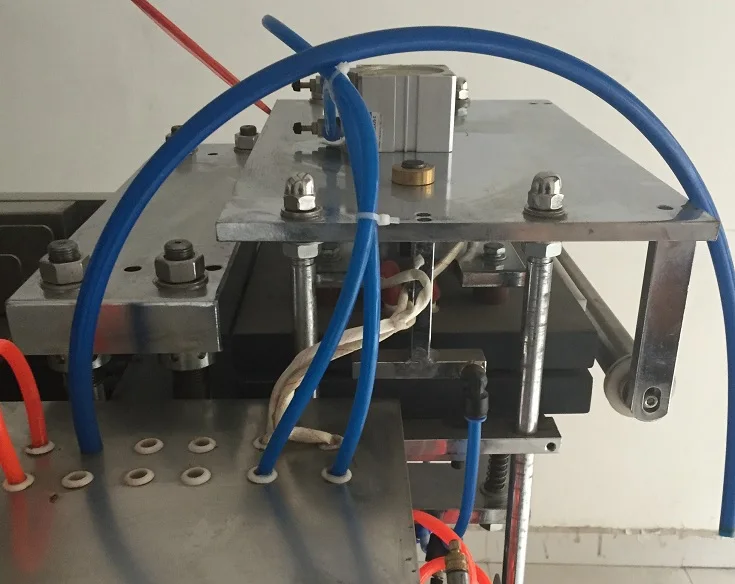

Heating and forming part

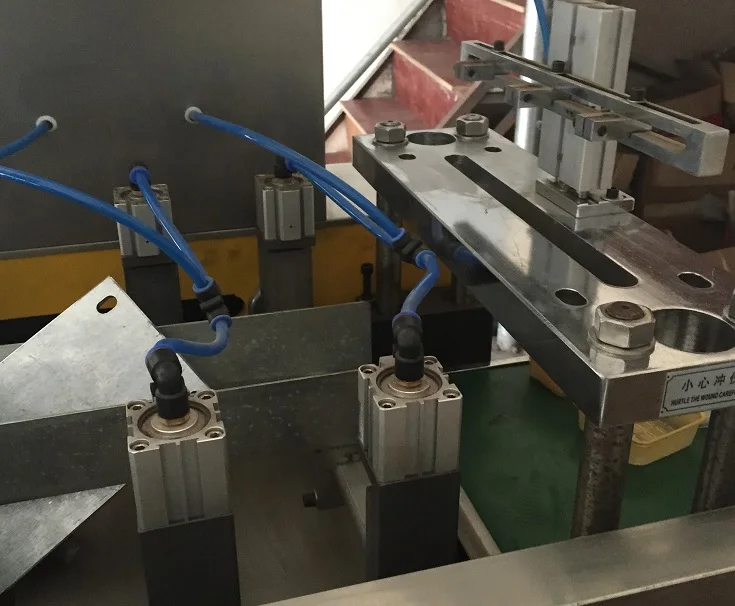

Pneumatic clamp device

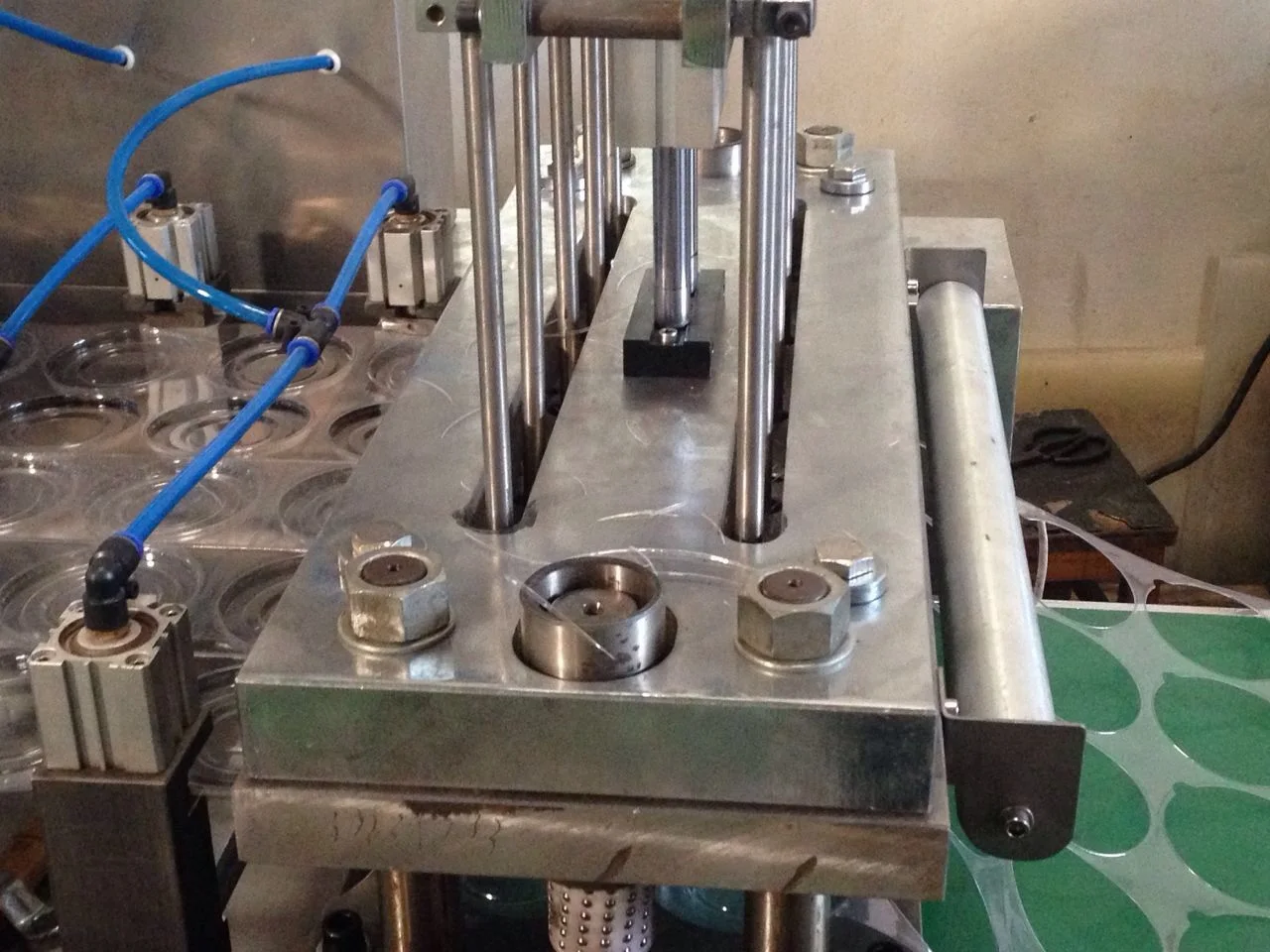

Punching and conveyer part

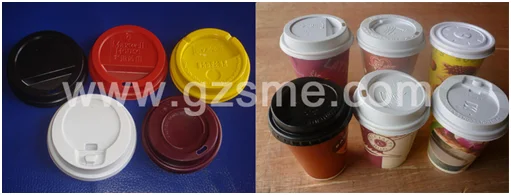

Samples
