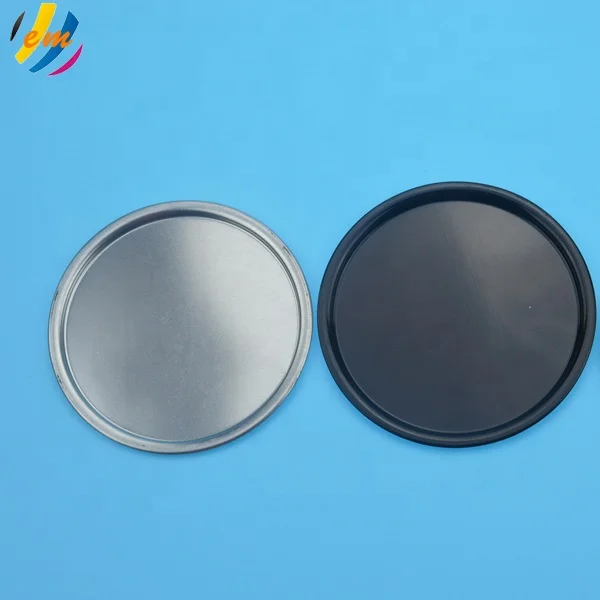

Various metal end cap for cardboard paper mailing tube box

Product Overview

Description

Material:    Tinplate

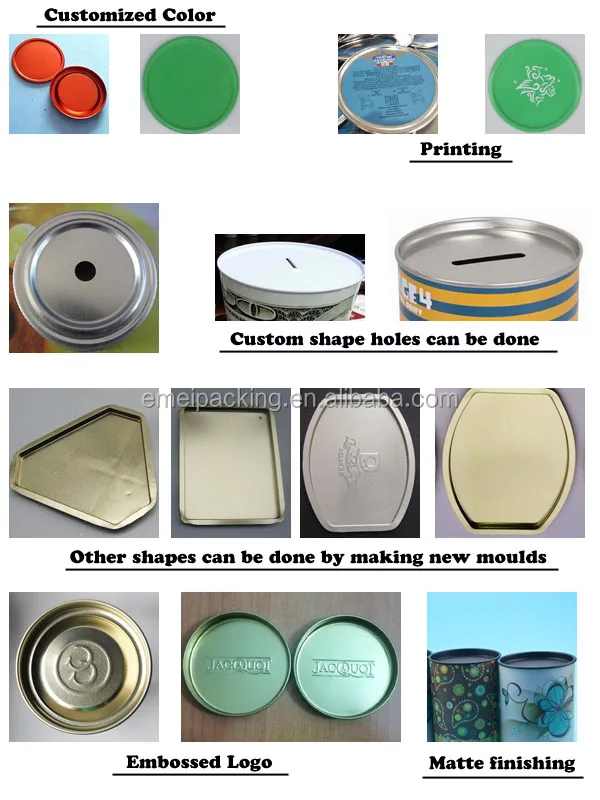

Shape : round    ( * Flat or Raised styles for top Plug ; * Customized shape can be done through making new mould, like oval,rectangle )

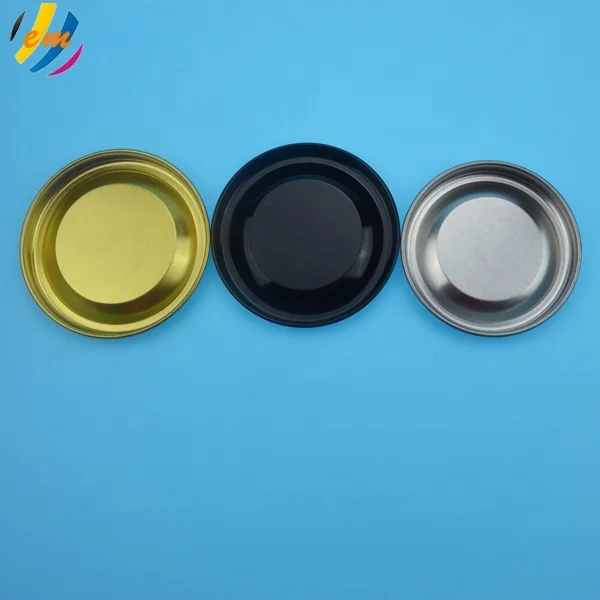

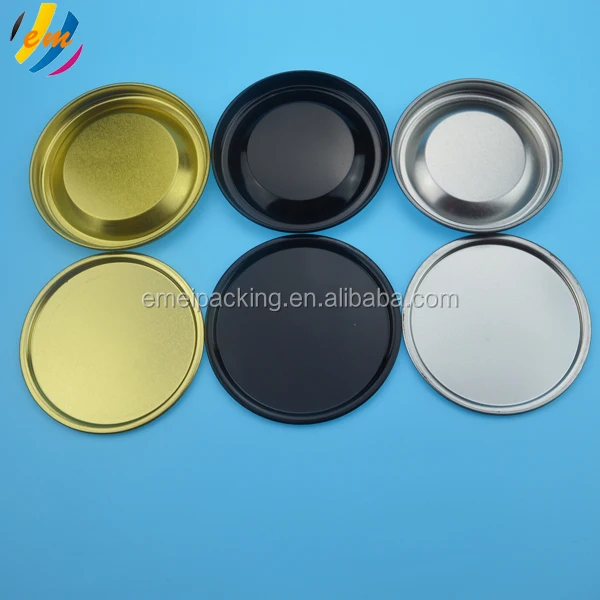

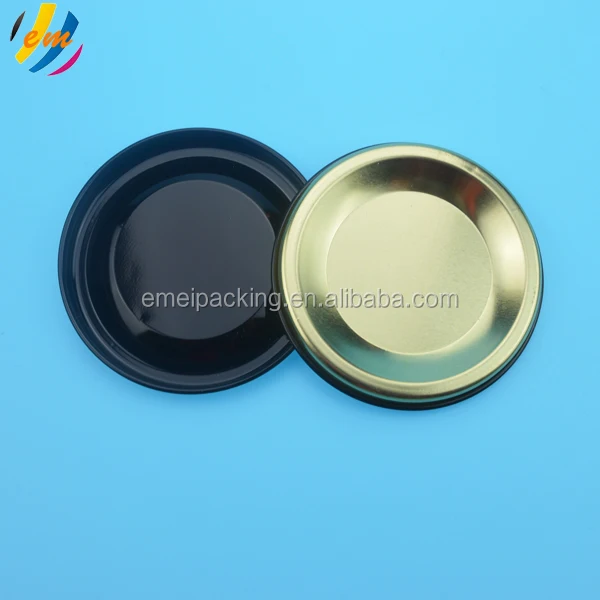

Color :  gold, silver and  black ( the most popular three colors ,other color is avialbale )



Logo : embossed /printed



Thickness :  Top plug - 0.22 mm  ,Bottom - 0.19 mm



Finishing : glossy  ( matte finishing is possible too,  more MOQ )



Sealing :  Top  plug  ( put into the cylinder by hand , removeable )

                Bottom   ( closed by machine ,not reopenable)



MOQ : 10000 pcs    ( top plug and bottom can be offered separately )



Use :  paper tube, plastic tube or other cylinder products

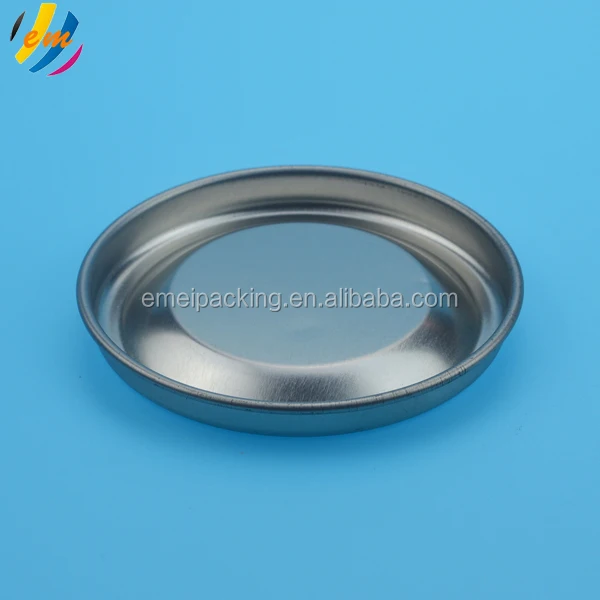

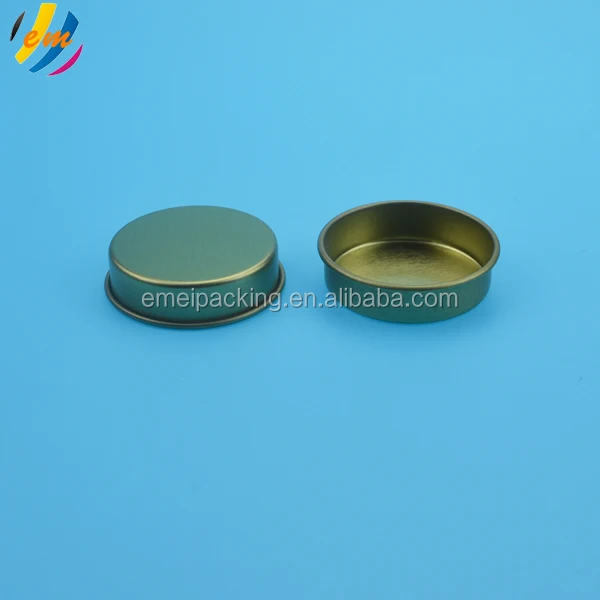

Top plug
ID (mm)	Shape	ID (mm)	Shape	ID (mm)	Shape
30	Flat	120	Flat + Raised	73	Flat
40	Flat + Raised	123	Raised	74
53	Flat + Raised	124	Flat	78.5
59.5	Flat + Raised	126	Flat + Raised	80
60	Flat	130	Raised	83
63	Flat + Raised	135	Raised	85
65	Flat + Raised	145	Flat + Raised	88.5
70	Raised	150	Flat	90
73	Flat + Raised	154	Raised	92
74	Raised	Bottom		95
78.5	Flat + Raised	28	Flat	99
80	Flat + Raised	30		103
83	Flat + Raised	38		105
85	Raised	43		110
88.5	Raised	46		113.5
90	Flat + Raised	48		115
92	Flat + Raised	50		120
95	Raised	53		121.5
99	Flat + Raised	57		124
103	Raised	59.5		126
105	Raised	60		130
109	Flat	63		135
110	Flat + Raised	63		145
113.5	Flat	65		150
115	Flat + Raised	70		154
