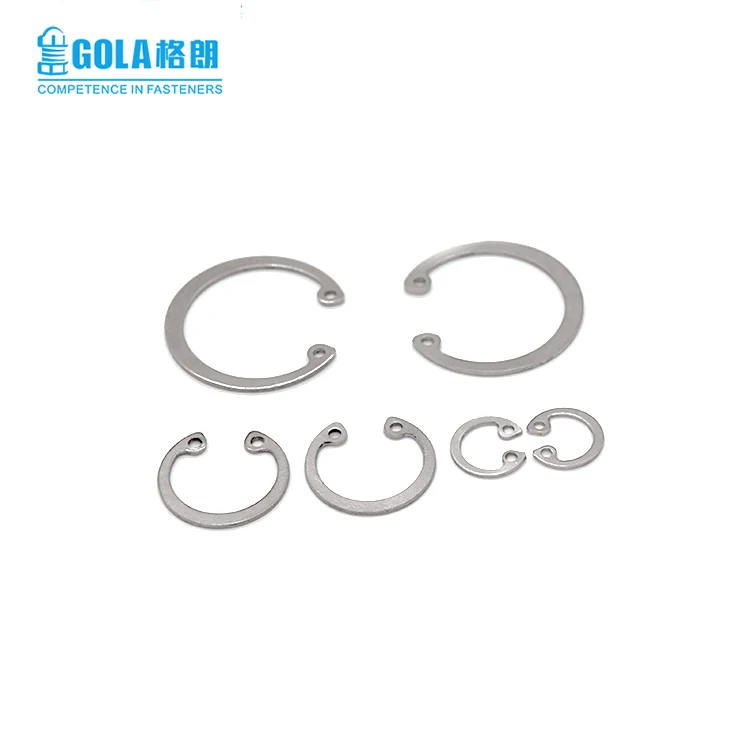

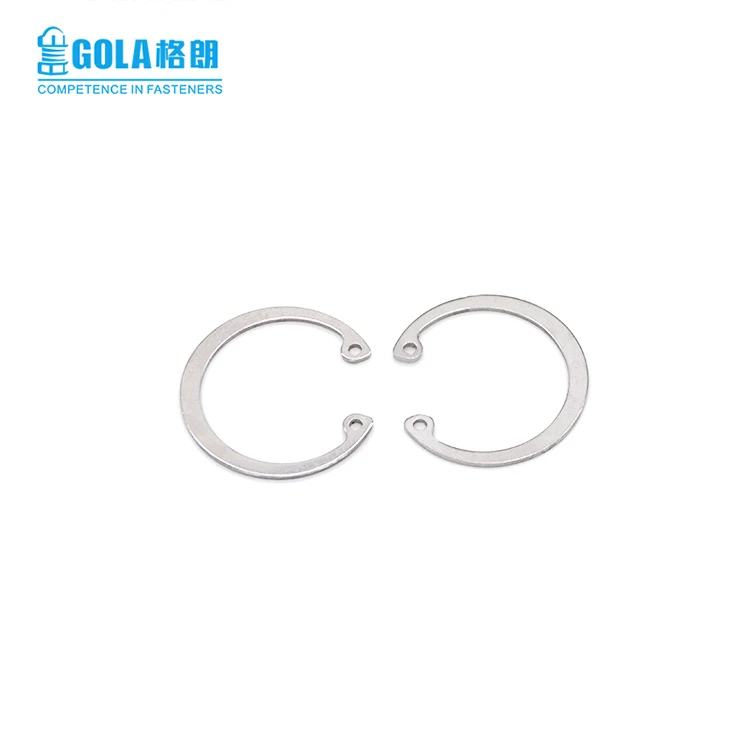

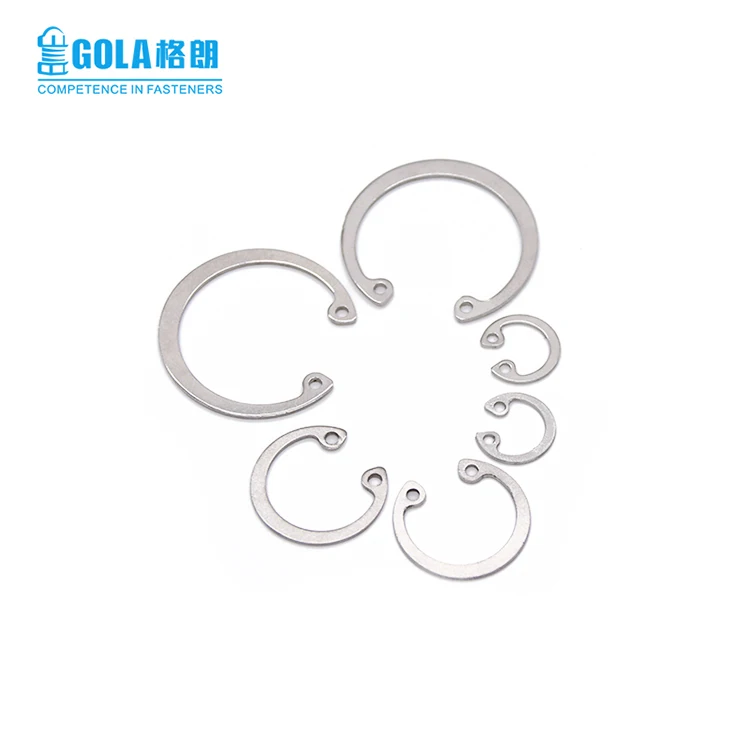

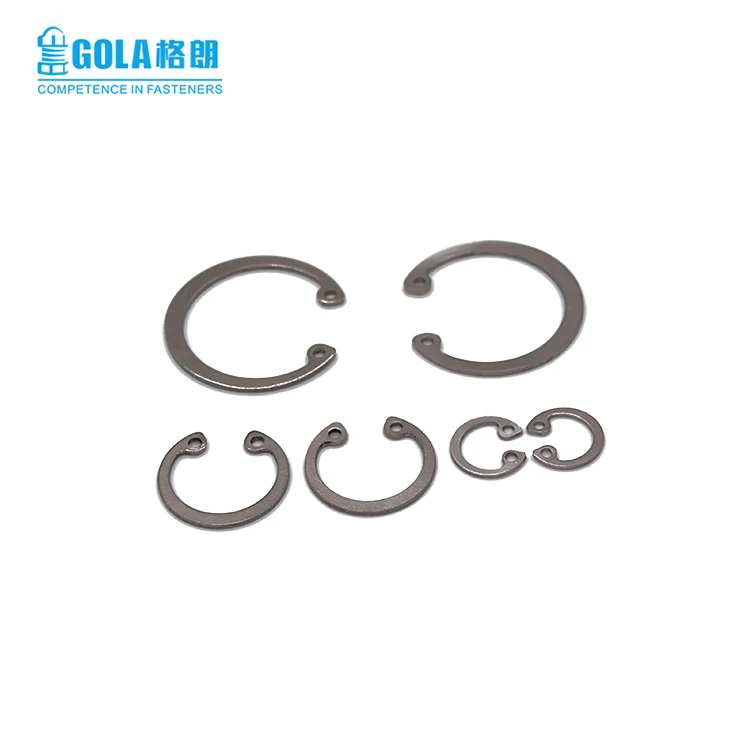

Product | Internal Snap Ring |
Material | SS304, SS316, Carbon Steel |
Standard | GB/T, DIN, ANSI |
Size | M8 M10 M20 M30 M50 M80 M100 M200 |
Finish | Nature |
Package | Carton( 6 packs in one carton, and weight is around 22-25kg) |
Lead time | 5 to 15 working days |
Customize | Available |
MOQ | No MOQ for standard item, negotiable for customized item. |

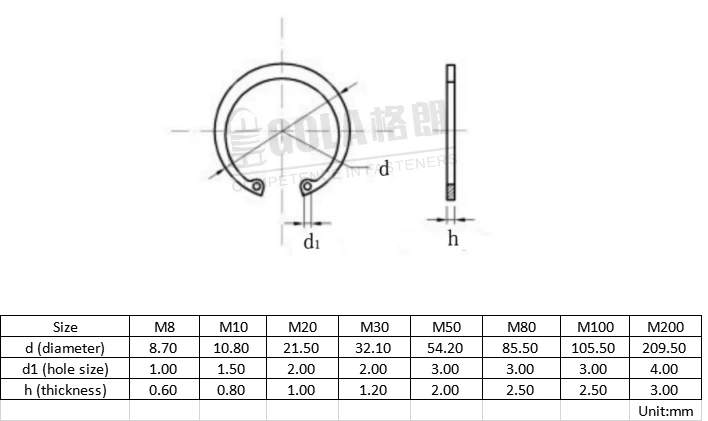

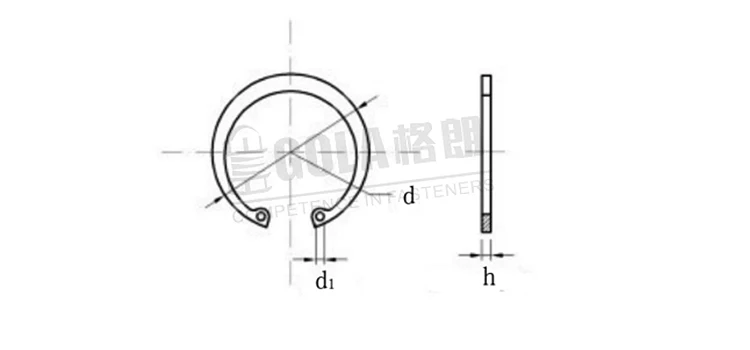

Size | M8 | M10 | M20 | M30 | M50 | M80 | M100 | M200 |
d (diameter) | 8.70 | 10.80 | 21.50 | 32.10 | 54.20 | 85.50 | 105.50 | 209.50 |
d1 (hole size) | 1.00 | 1.50 | 2.00 | 2.00 | 3.00 | 3.00 | 3.00 | 4.00 |
h (thickness) | 0.60 | 0.80 | 1.00 | 1.20 | 2.00 | 2.50 | 2.50 | 3.00 |





ITEM | CHEMICAL ELEMENTS COMPOSITION | ||||||||||||||
C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ni(%) | Cr(%) | Mo(%) | ||||||||
SS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-11.0 | 18-20 | ||||||||
SS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16-18 | 2.0-3.0 | |||||||
