aluminum honeycomb sandwich sheet panels 12mm with different specification
- Category: Aluminum Composite Panels >>>
- Supplier: Shanghai,Alumetal,Decorative,Material,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

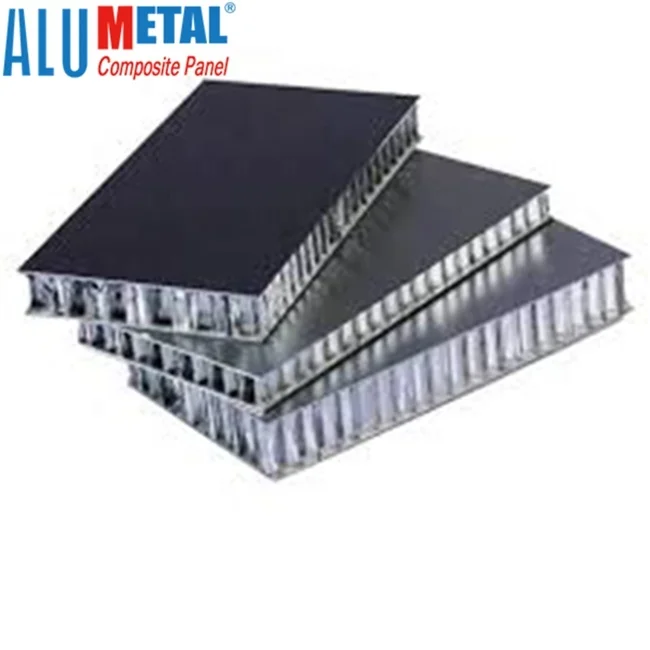

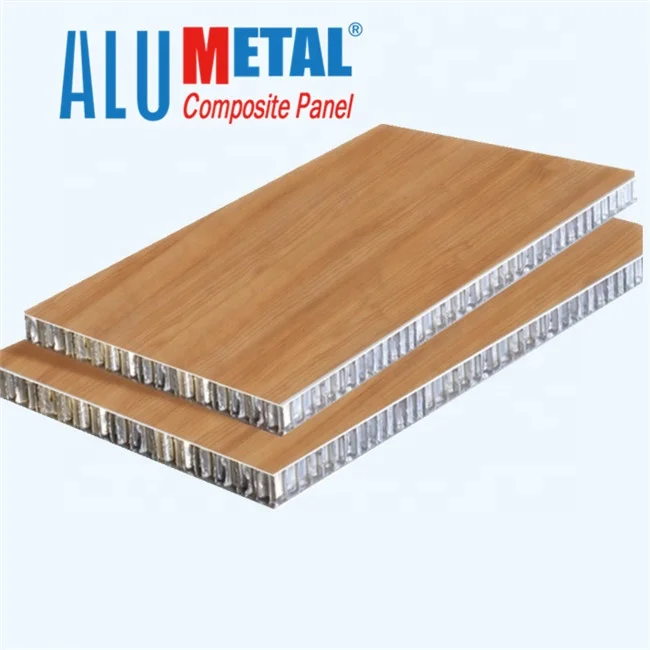

Alumetal Aluminum Honeycomb Panel
Alumetal Aluminum honeycomb panels are comprised of two layers of aluminum sheets on top and bottom sides with inner aluminum honeycomb
structure in the middle. The honeycomb structure is known to be lightweight while enhance the rigidity of panels in a large scale.
Feature :
structure in the middle. The honeycomb structure is known to be lightweight while enhance the rigidity of panels in a large scale.
Feature :
Light Weight,
Sound&Heat Insulation,
100% Fireproof,
Moisture & Corrosion Resistance,
Super Flatness & Rigidity,
EasyInstallation,
Environmental Protection.
Specifications of Alumetal A2 Fireproof Aluminum Honeycomb Core Panel | ||||||||
Material | Aluminum+Aluminum Honeycomb Core+Aluminum | |||||||
Panel Thickness | 4mm, 8mm, 10mm, 15mm, 25mm, Max 200mm | |||||||
Skin Thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm | |||||||
Core Foil Thickness | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm | |||||||
Width | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm | |||||||
Length | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm | |||||||
Honeycomb Core Cell Size(mm) | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) | |||||||
Honeycomb Core Cell Side Length(mm) | Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm | |||||||
Coating | PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc | |||||||
Color Option | Metal,Matt,Glossy Color; Nano,Brushed,Granite,Wooden etc | |||||||
Edge | Open/Close | |||||||
Aluminum Alloy | AA3003 H18, AA5052 H18 | |||||||
Customized Service | Welcome to send us your idea for customized demands | |||||||
Application:
1. Building
2. Solar Energy
3. Ground Transportation
4. Marine
5. Furniture
6. Industry
1. Building
2. Solar Energy
3. Ground Transportation
4. Marine
5. Furniture
6. Industry
Package & Shipment
Export wooden cases
Export wooden cases to protect the aluminum honeycomb panels in good condition
Export wooden case
The quantity in each cases are calculated by your total thickness and the container type
Color Chart Catalog
Welcome to Contact us for Getting Our Color Chart Catalog,Any Color is Available!
Special surface ,such as stone ,marble ,fiberglass and HPL are also available.
Certifications
Our Factory
Warmly welcome to contact us to visit our factory anytime!We have confidence that you will be satisfied with our workshop management and strict quality control!
1.What is your MOQ(Minimum Order Quantity)?
50m2 for one color and one specification and the color needs to be on our color chart
2.What is the production time ?
The production time is within 2 weeks after receiving the deposit and it also depends on the quantity you need.
3.What about your payment terms ?
It can be TT(30% deposit in advance and 70% needs to be paid according to the copy of BL),LC at sight ,DP at sight and other
payment ,such as Paypal ,West Union ,Wechat Pay ect .
4.What is the panel size and thickness?
4.1. Width: 1000-2000mm; 1220mm, 1250mm, 1500mm are recommended.
4.2. Length: accept custom length, 2440mm, 3050mm, 4050mm, 5000mm are recommended .
4.3 Panel Thickness:5-500mm, normally 10, 15,20, 25,30mm
4.4Aluminum thickness:Cell size,1/4",1/3",1/2”,3/4",4/5" ect. Aluminum foil thickness: 0.04-1.0mm
5.Do you have any test certificates?
Yes, stable good quality is important for long time business cooperation.SGS,CE and ISO:9001 has been passed in our factory.
6.Do you service OEM?
Yes, OEM accept. Custom size ,custom color (Ral color , Pantone color,the color can be matched as your sample ),custom protective film and custom shape ect .
7.Do you offer sample?
Yes, Free samples are available with our Alumetal Color Chart ,please tell your address .
8.How about the warranty for the honeycomb panels ?
PE coated ACP warranty is 5 years and PVDF coated ACP warranty is 15 years ,Alumetal warranty letter will be provided with the documents if needed .
50m2 for one color and one specification and the color needs to be on our color chart
2.What is the production time ?
The production time is within 2 weeks after receiving the deposit and it also depends on the quantity you need.
3.What about your payment terms ?
It can be TT(30% deposit in advance and 70% needs to be paid according to the copy of BL),LC at sight ,DP at sight and other
payment ,such as Paypal ,West Union ,Wechat Pay ect .
4.What is the panel size and thickness?
4.1. Width: 1000-2000mm; 1220mm, 1250mm, 1500mm are recommended.
4.2. Length: accept custom length, 2440mm, 3050mm, 4050mm, 5000mm are recommended .
4.3 Panel Thickness:5-500mm, normally 10, 15,20, 25,30mm
4.4Aluminum thickness:Cell size,1/4",1/3",1/2”,3/4",4/5" ect. Aluminum foil thickness: 0.04-1.0mm
5.Do you have any test certificates?
Yes, stable good quality is important for long time business cooperation.SGS,CE and ISO:9001 has been passed in our factory.
6.Do you service OEM?
Yes, OEM accept. Custom size ,custom color (Ral color , Pantone color,the color can be matched as your sample ),custom protective film and custom shape ect .
7.Do you offer sample?
Yes, Free samples are available with our Alumetal Color Chart ,please tell your address .
8.How about the warranty for the honeycomb panels ?
PE coated ACP warranty is 5 years and PVDF coated ACP warranty is 15 years ,Alumetal warranty letter will be provided with the documents if needed .
Successful Projects
Global Fairs
Alumetal Attend different kinds of fair evey year to meet our new and old customers! You are warmly to visit our booth !
Send your inquiry now ! Alumetal is always there to support you !
