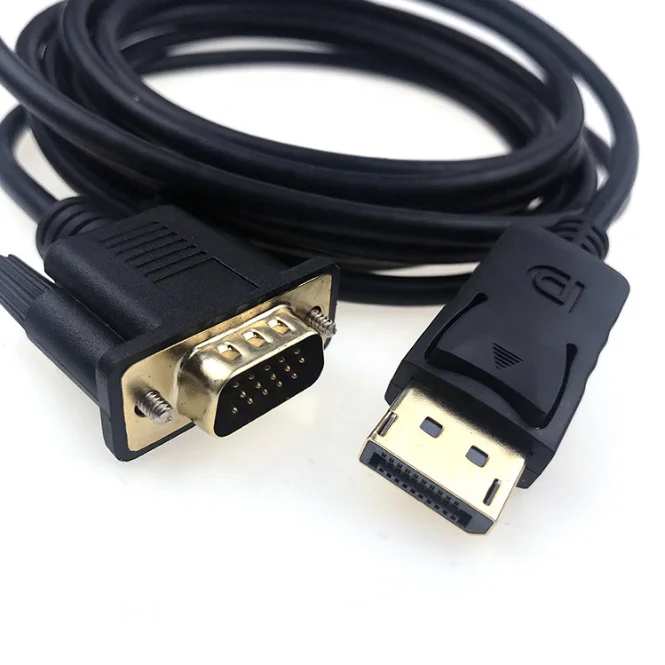

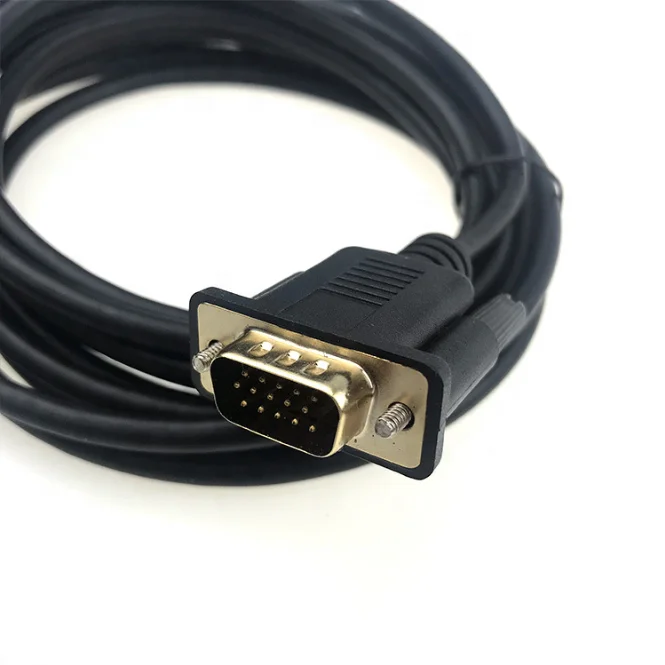

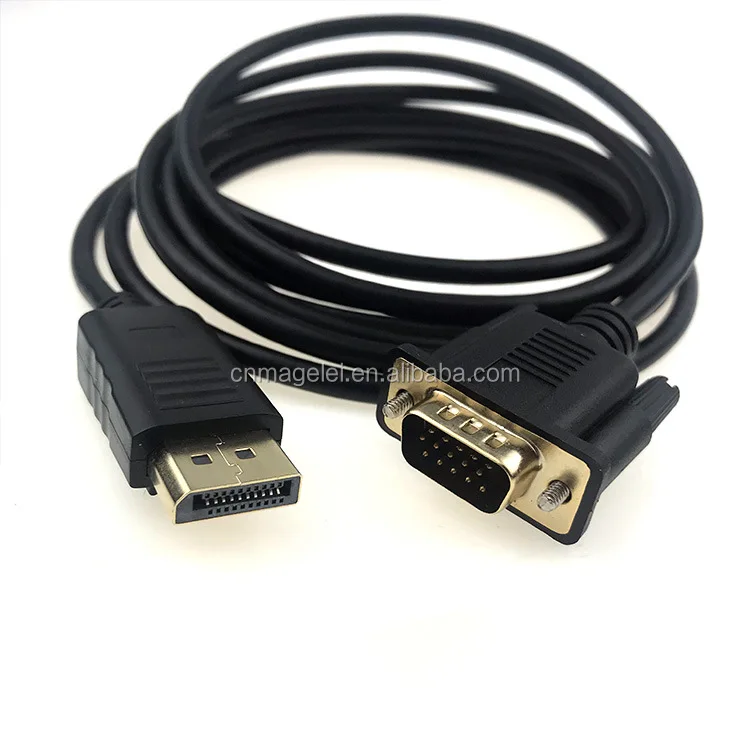

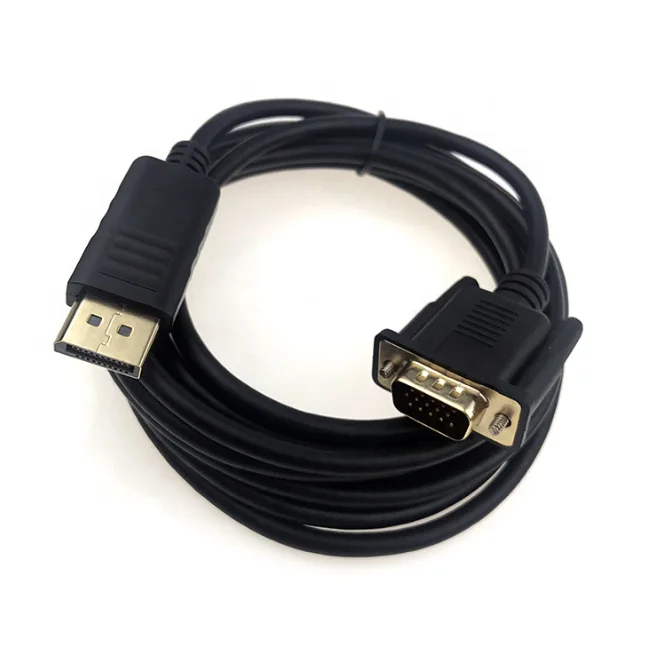

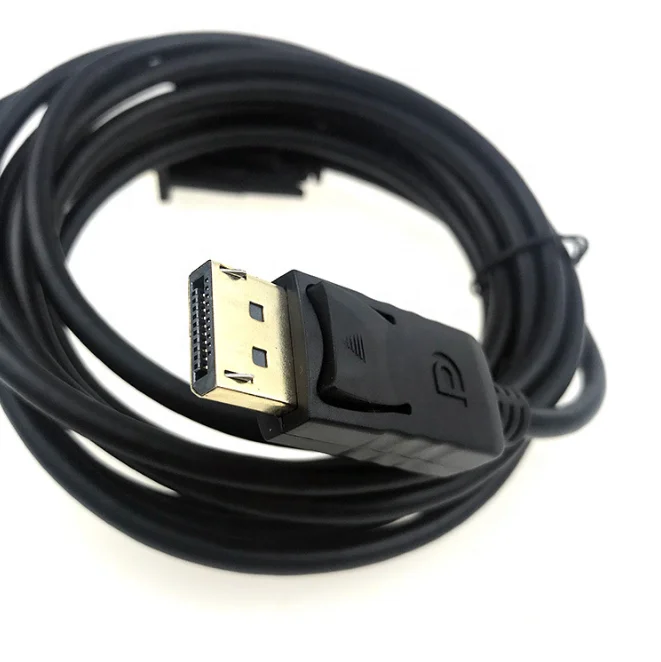

1M 3M 1080P 10.8Gbps Displayport DP V1.1 to VGA Male to Male DP to VGA Cable for HDTV DP to VGA Adapter AV Cable

1M 3M 1080P 10.8Gbps Displayport DP V1.1 to VGA Male to Male DP to VGA Cable for HDTV DP to VGA Adapter AV Cable
Features:

• Support DisplayPort v1.1;


• Support conversion of DisplayPort signals to HDMII signals;


• Support 20pin DisplayPort interface;


• Supports video bandwidth up to 10.8Gbps;


• Maximum support for QXGA (1920*1200) resolution output;


• Supports 1Mbps bidirectional auxiliary channel;


• Support one-way, single-channel, four-wire connection;


• Support hot swap.


• Built-in conversion chip, no external power supply required


• Designed in strict accordance with DisplayPort standard, the port adopts lock design, and the signal transmission is stable and reliable.

Introduction:

DisplayPort is one of the specifications for next-generation image display interface technology that connects notebook computers and consumer electronics devices to displays to deliver high-quality image signals. According to iSuppli's prediction, the rapidly emerging DisplayPort technology will be expected to inherit the VGA and DVI interface market, becoming the mainstream technology in the PC field, and keeping pace with HDMI technology in the leading consumer electronics field. The coexistence of these two technologies creates the need for voltage conversion during signal transmission between the two interfaces.

Built-in conversion chip, can convert the DISPLAYPORT signal into HDMI/DVI/VGA signal, and can meet the requirements of HDMI 1.3 version to reach 10.2G bandwidth. For example, increase the HDMI revolution DVI mother line or adapter can connect DVI display device.

Applications:

Applicable to all computers with DisplayPort interface, DV, tablet, MP4 and other output to VGA display projector.

Details:

*Video input signal: 5Volts p-p (TTL)

*Maximum signal connection range up to 1920x1200, 1080p

* Video expander bandwidth: 154MHz / 144MHZ

*Input and output connections:

Input: DisplayPort male 20pin;

RGB analog video output: HDMI, DVI, VGA 15PIN female;

Support resolution: 800*600, 1024*768, 1280*720, 1280*1024, 1920*1080
