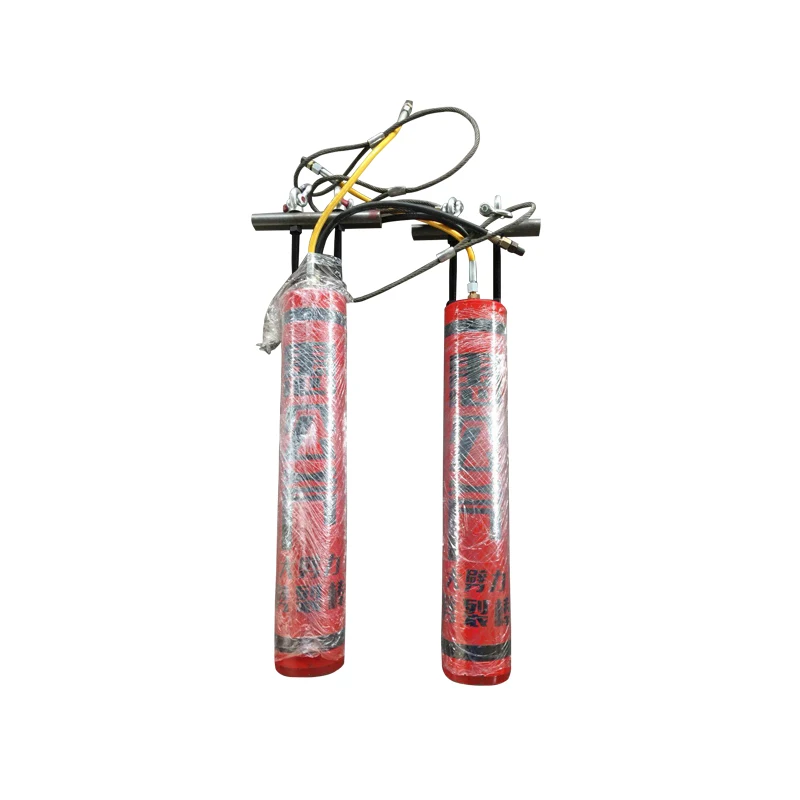

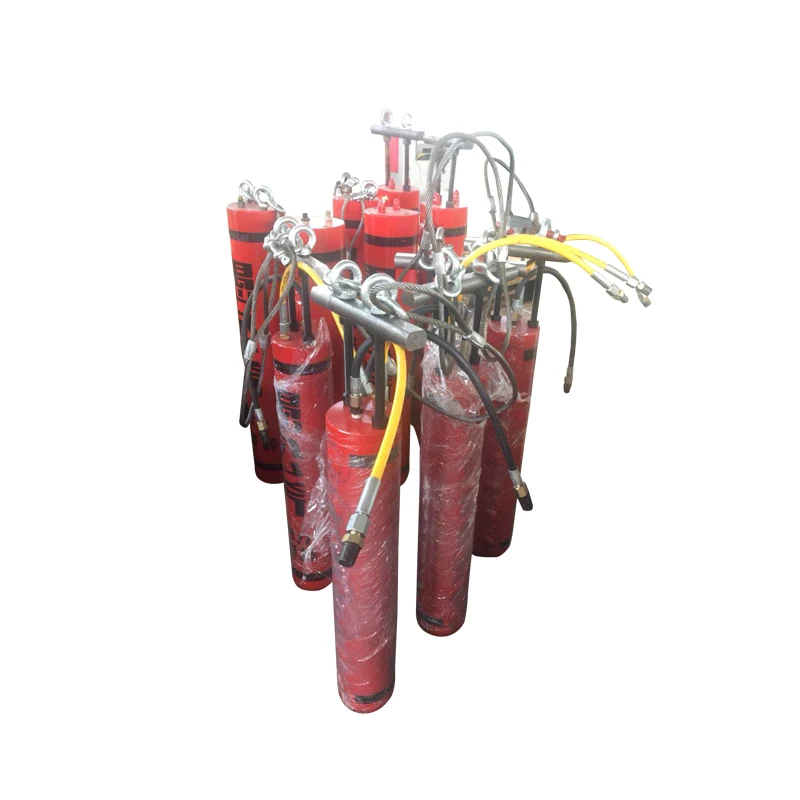

Hydraulic rock splitter/Quarry Stone Cutting Machine/concrete stone splitter machine
- Category: >>>
- Supplier: Shanxi Wanzejinda Machinery Manufacturer Co. Ltd.
Share on (62316986681):
Product Overview
Description
Associated Brands
Product Description
| Model | YGF-P110 | YGF-P130 | YGF-P150 | YGF-P180 | YGF-P220 |
| Borehole diameter(mm) | 110 | 130 | 150 | 180 | 220 |
| Body length(mm) | 800 | 800 | 800 | 1200 | 1200 |
| Drilling depth(mm) | 1000-1500 | 1000-1500 | 1000-1500 | 1500-2000 | 1500-2000 |
| Actual splitting force(KN/each) | 1600 | 1700 | 2280 | 3000 | 3800 |
| Weight(kg) | 60 | 95 | 130 | 185 | 270 |
| Rated working pressure(Mpa) | 100~120 | 100~120 | 100~120 | 100~120 | 100~120 |
| Spatial distance(mm) | 1000~1500 | 1000~1500 | 1000~1500 | 1000~1500 | 1000~1500 |
| Engine | Electric | Electric | Electric | Electric | Electric |
| Diesel | Diesel | Diesel | Diesel | Diesel |

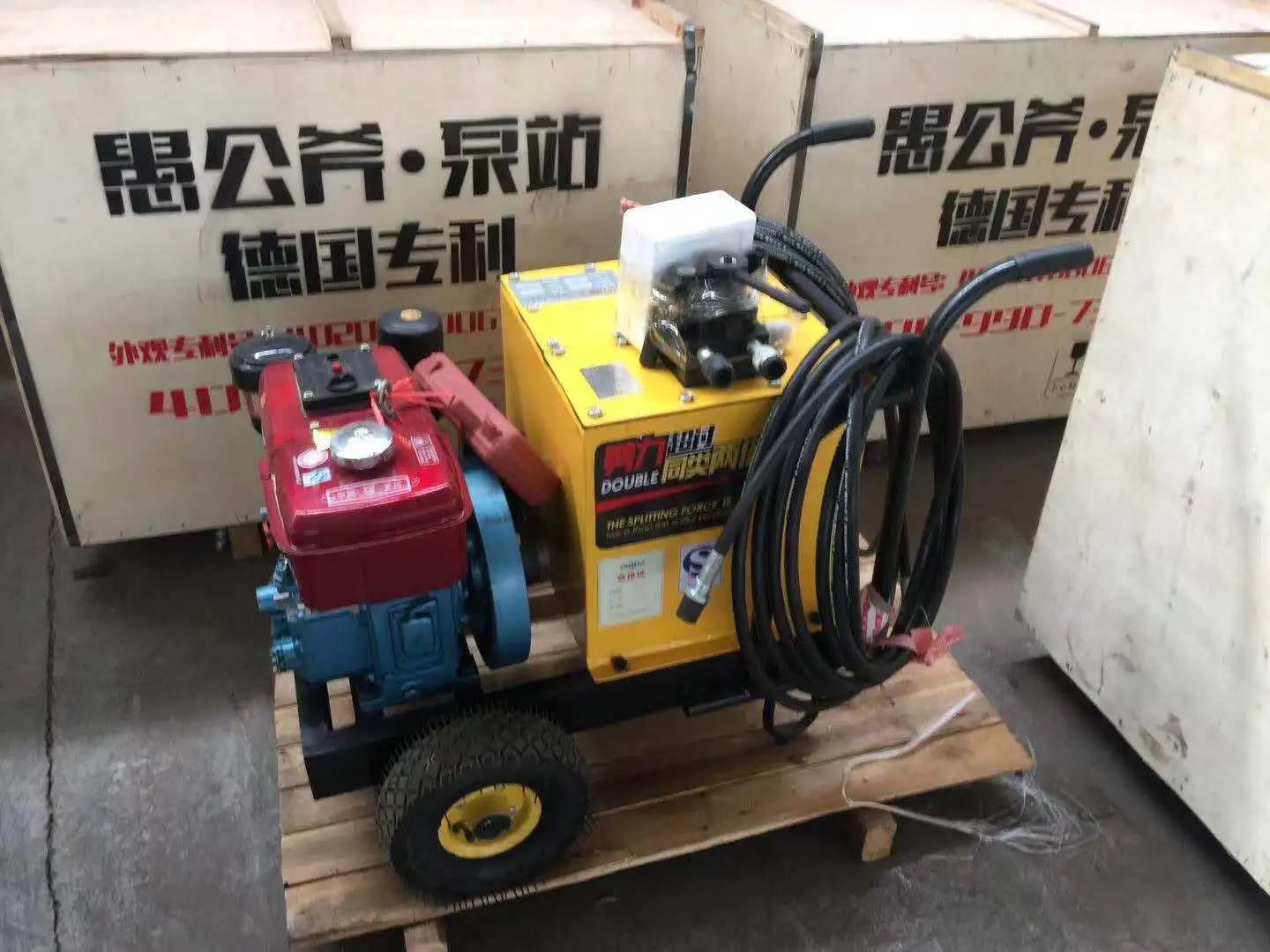

| PIC | Model no. | YGF-8P Diesel pump station |
 | Rotate speed | 2200r/min |
| Hydraulic operating temperature | subzero 20 to 85 degree centigrade | |
| Optimum temperature | 30 to 80 degree centigrade | |
| Rated pressure | 60Mpa | |
| Peak pressure | 80Mpa | |
| Weight | 215kgs | |
| Size | 1050x710x880mm | |
| Hydraulic tank capacity | 58L | |
| Oil tank volume | 6L |

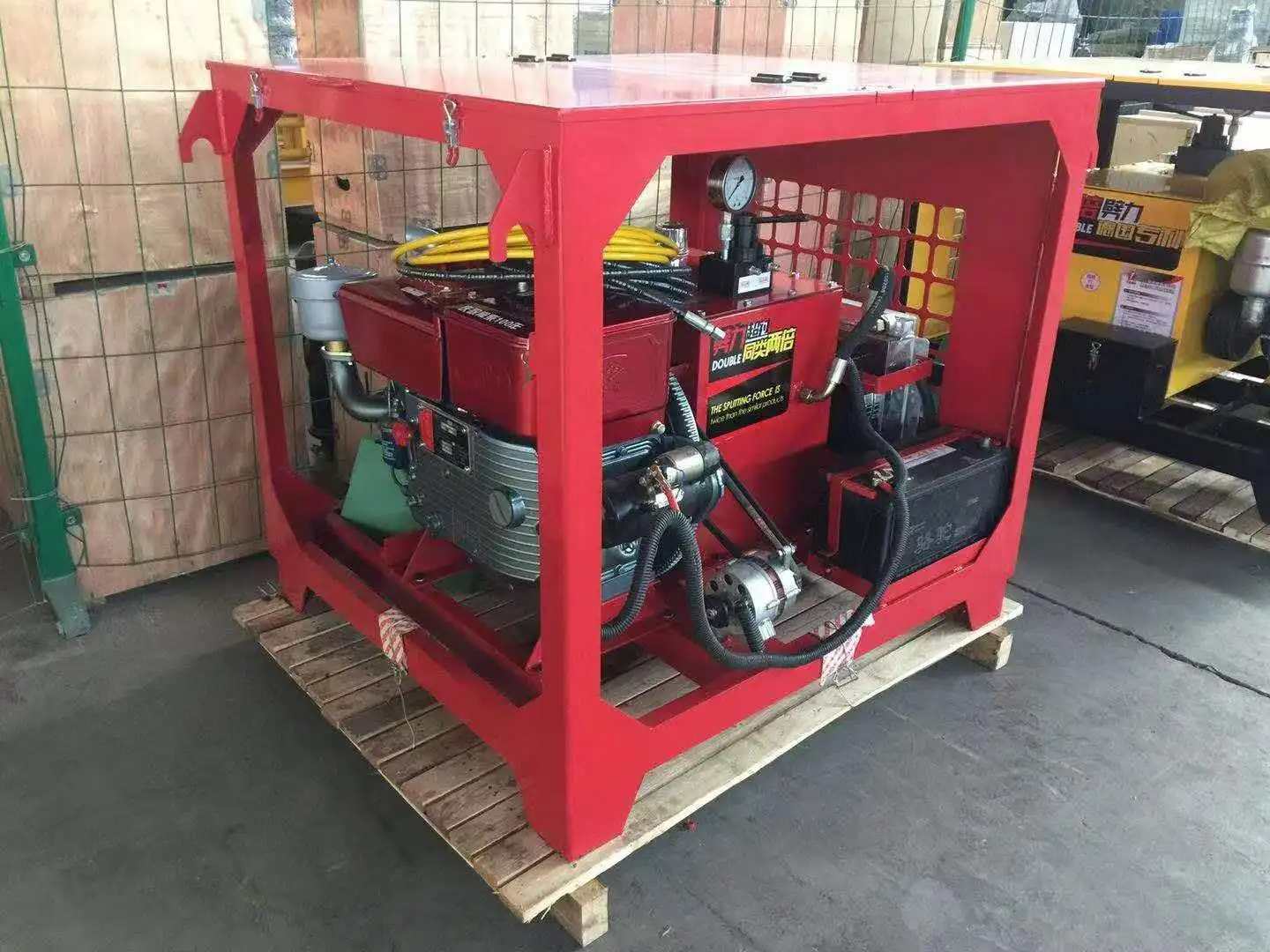

| PIC | Model no. | YGF-18P Diesel pump station |
 | Rotate speed | 2300r/min |
| Hydraulic operating temperature | subzero 20 to 85 degree centigrade | |
| Optimum temperature | 30 to 80 degree centigrade | |
| Rated pressure | 100Mpa | |
| Peak pressure | 120Mpa | |
| Weight | 420kgs | |
| Size | 1180x1140x1090mm | |
| Hydraulic tank capacity | 100L | |
| Oil tank volume | 11L |

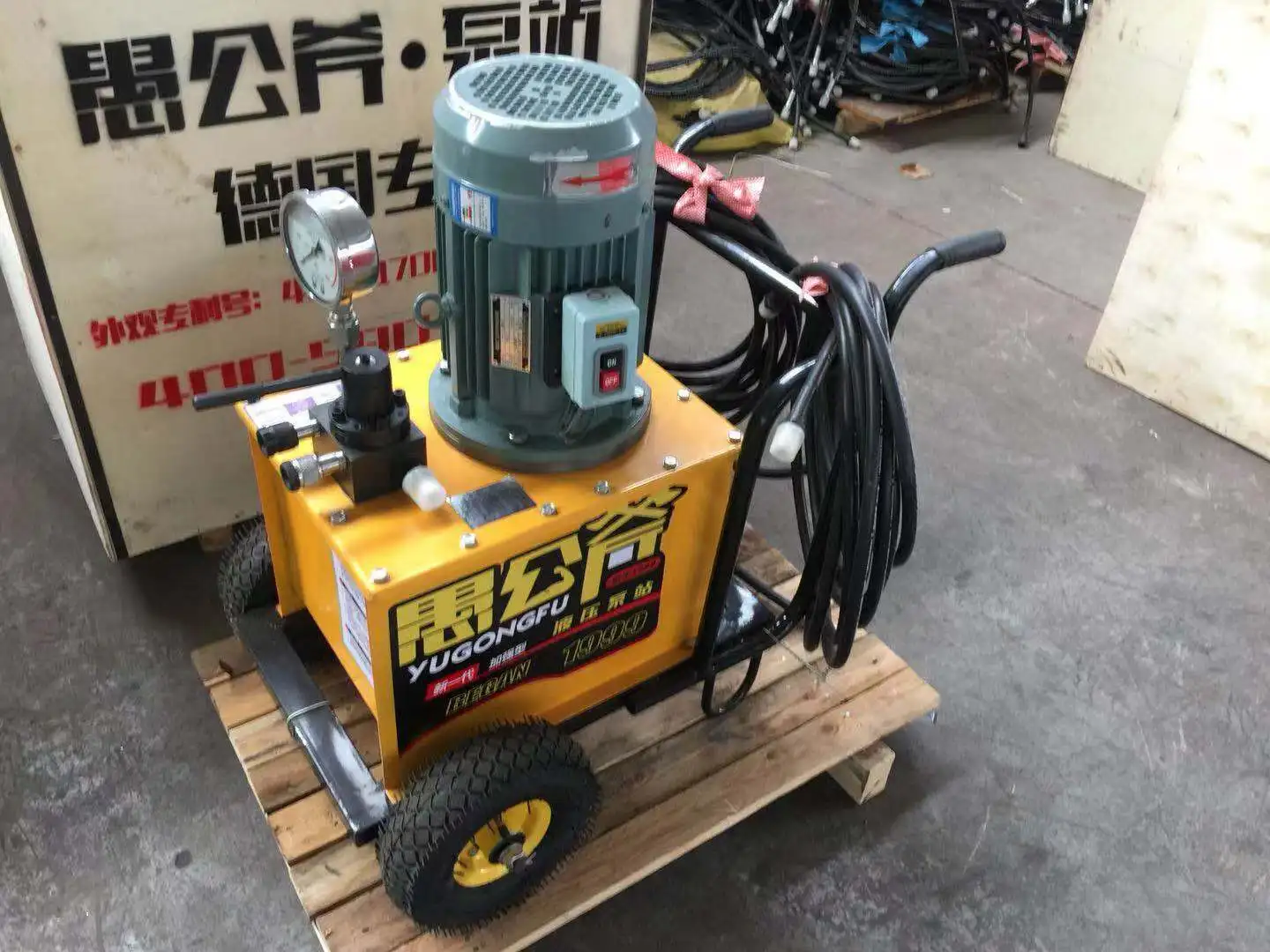

| PIC | Model no. | YGF-4KW Electric pump station |
 | Rotate speed | 1440r/min, 380V/50HZ |
| Hydraulic operating temperature | subzero 20 to 85 degree centigrade | |
| Optimum temperature | 30 to 80 degree centigrade | |
| Rated pressure | 40Mpa | |
| Peak pressure | 60Mpa | |
| Weight | 155kgs | |
| Size | 700x600x840mm | |
| Hydraulic tank capacity | 40L | |

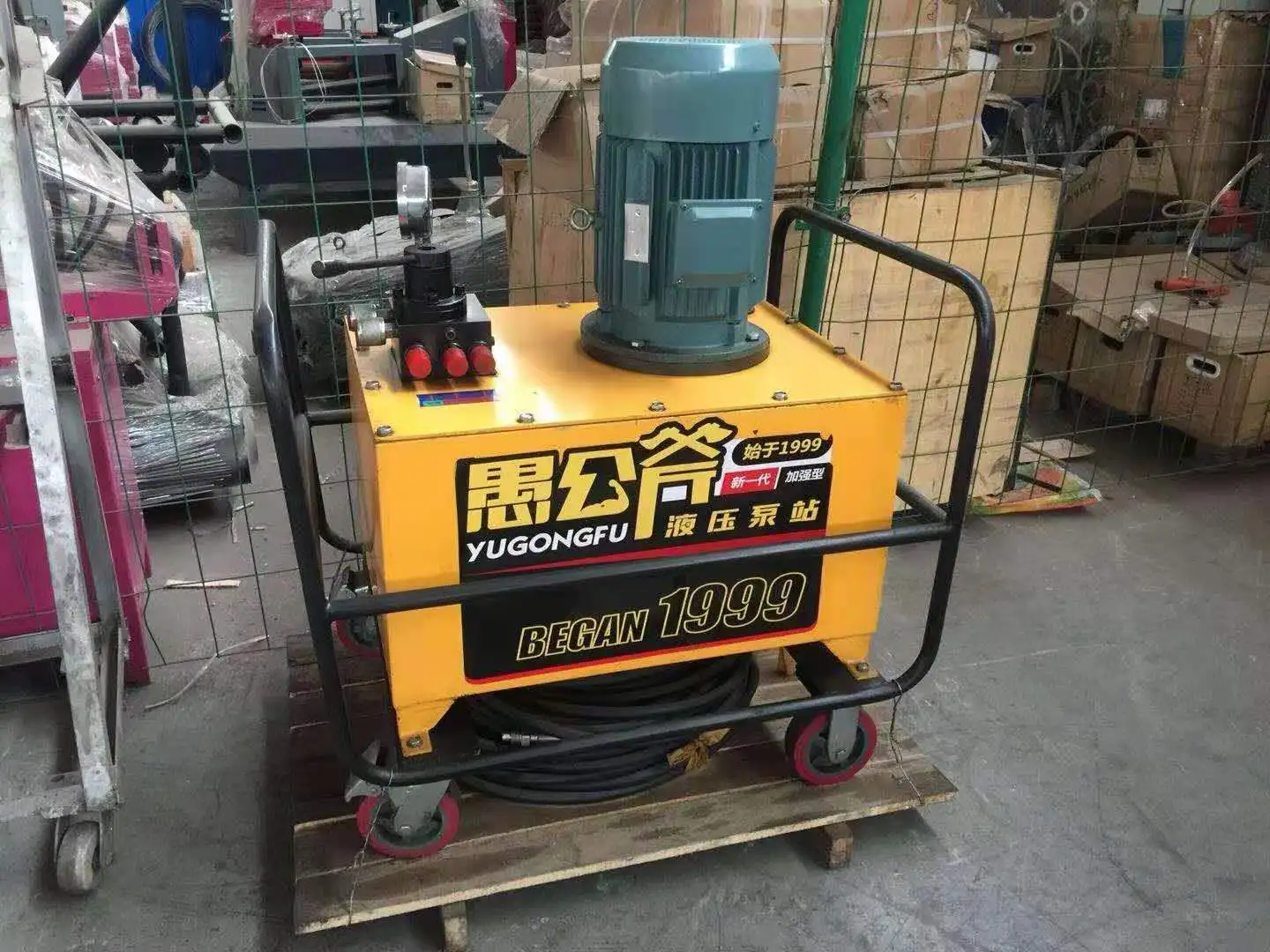

| PIC | Model no. | YGF-7.5KW Electric pump station |
 | Rotate speed | 1440r/min, 380V/50HZ |
| Hydraulic operating temperature | subzero 20 to 85 degree centigrade | |
| Optimum temperature | 30 to 80 degree centigrade | |
| Rated pressure | 60Mpa | |
| Peak pressure | 80Mpa | |
| Weight | 560kgs | |
| Size | 800x650x1140mm | |
| Hydraulic tank capacity | 120L | |

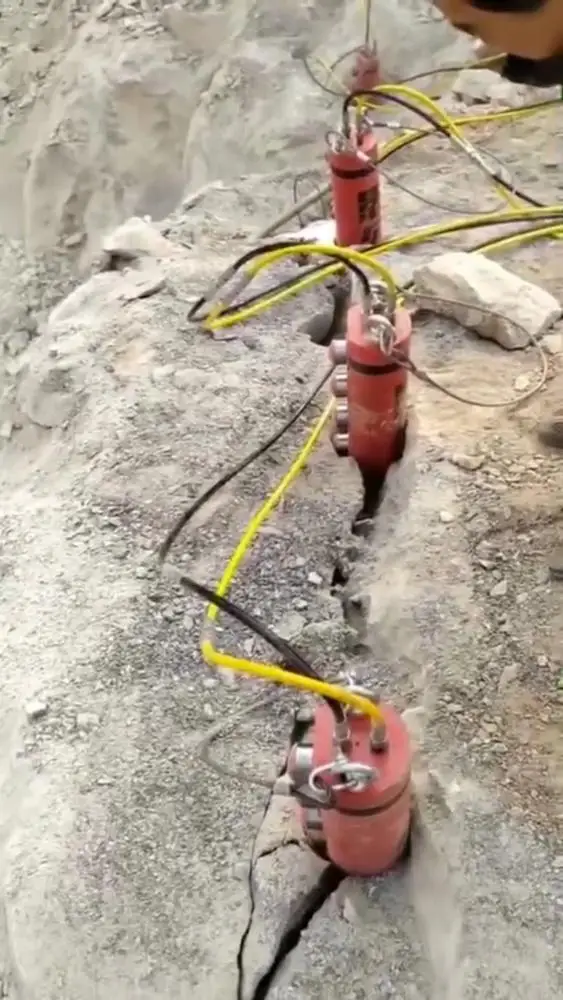

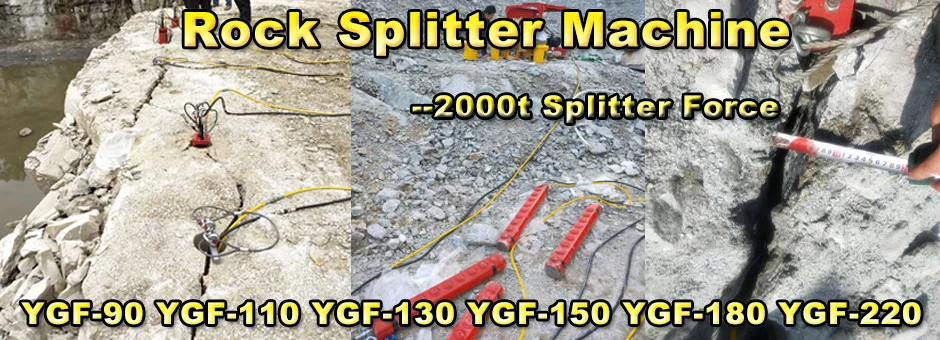

Product Uses

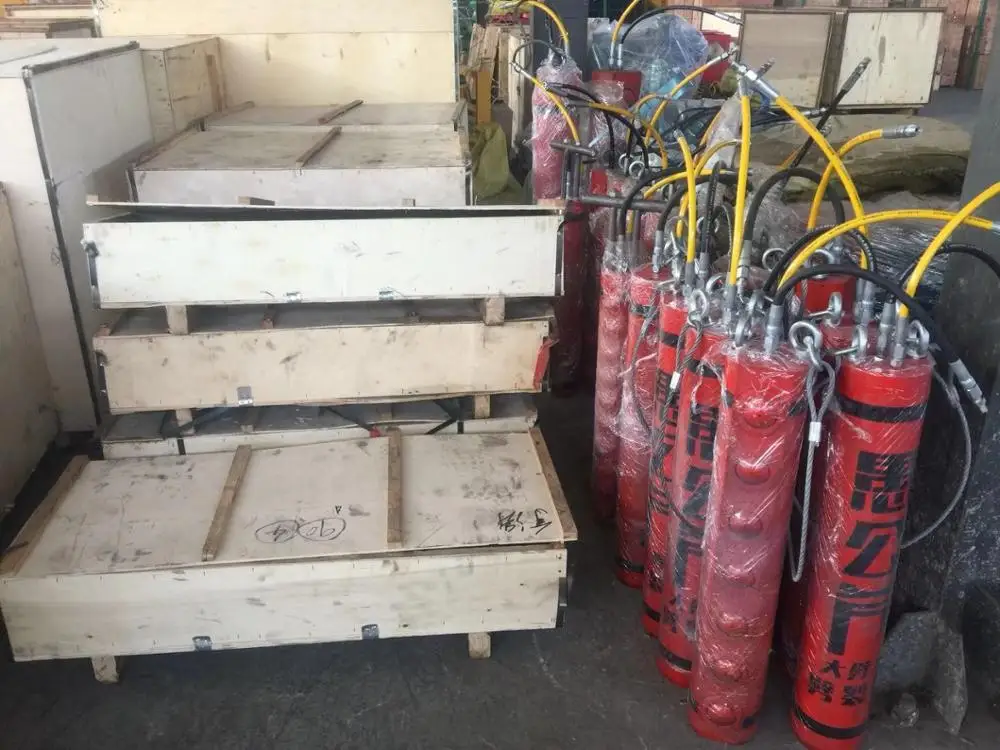

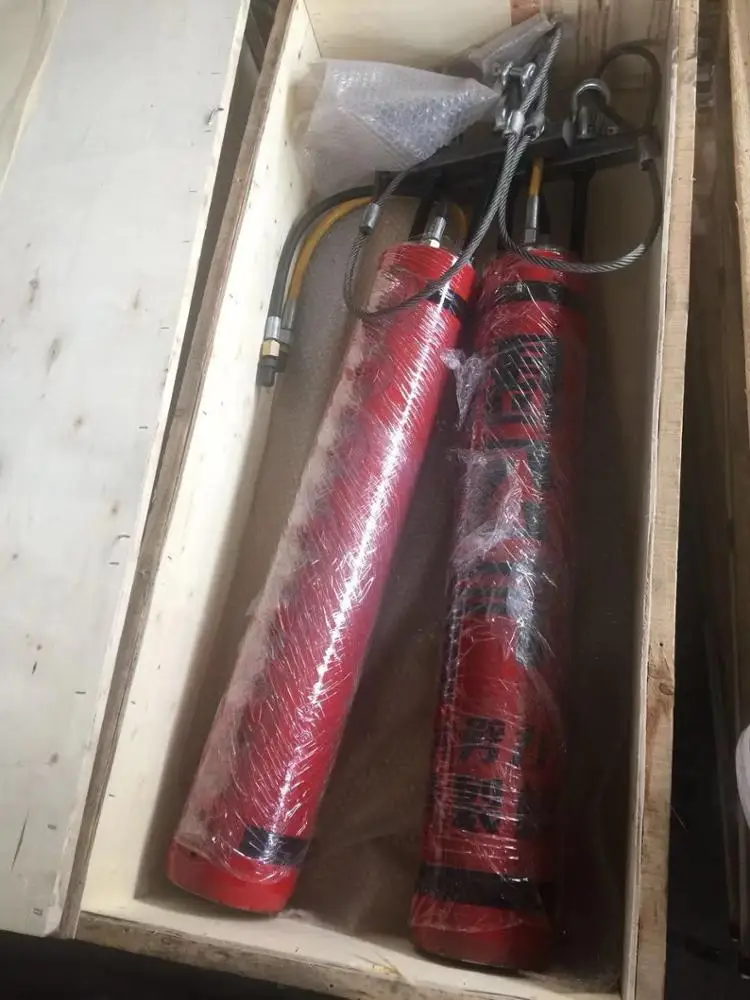

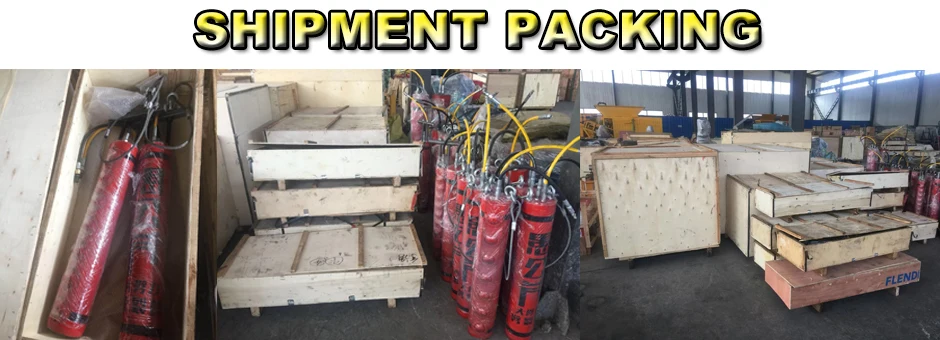

Packaging
Company Information
SHANXI WANZEJINDA MACHINERY MANUFACTURERING CO., LTD
was established in1998 and located in Taiyuan, Shanxi with over 4000 square meters workshop and having 500 employees. The sea transportation is very convenient, only 600km away from Tianjin port. Our compay focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments. Our machine is widely used in engineering, mine, tunnel, bridge, highway, subway, culvert and hydropower projects.
