China horizontal screw discharge sedimentation decanter centrifuge

Product Overview

Description

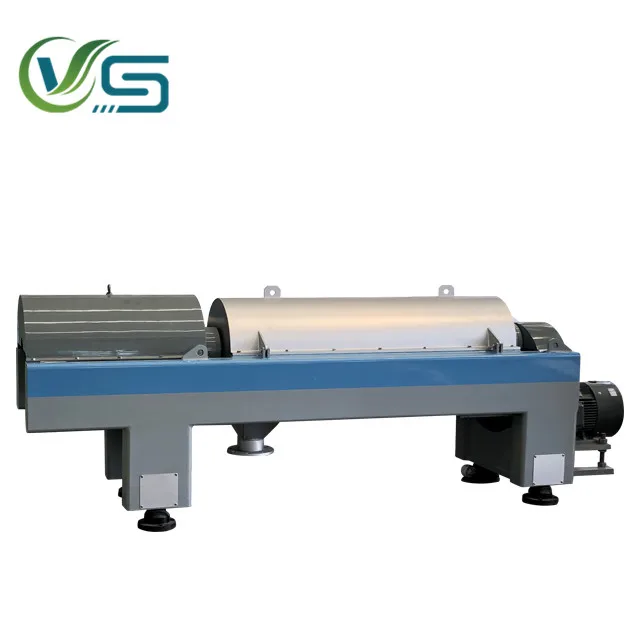

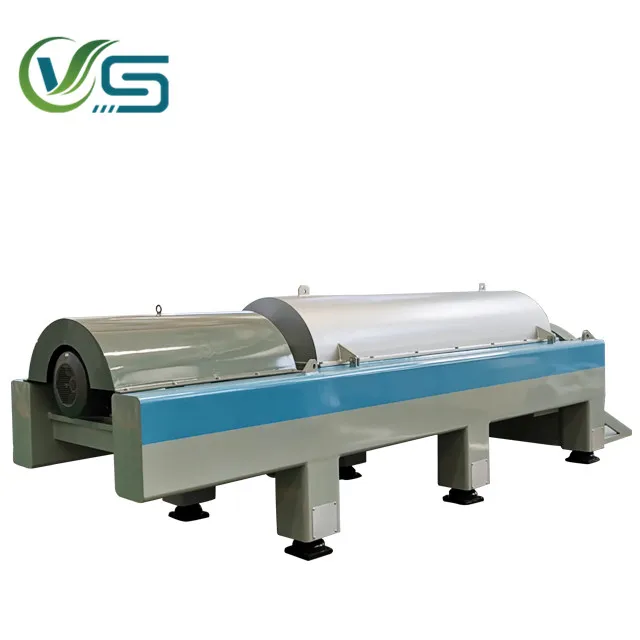

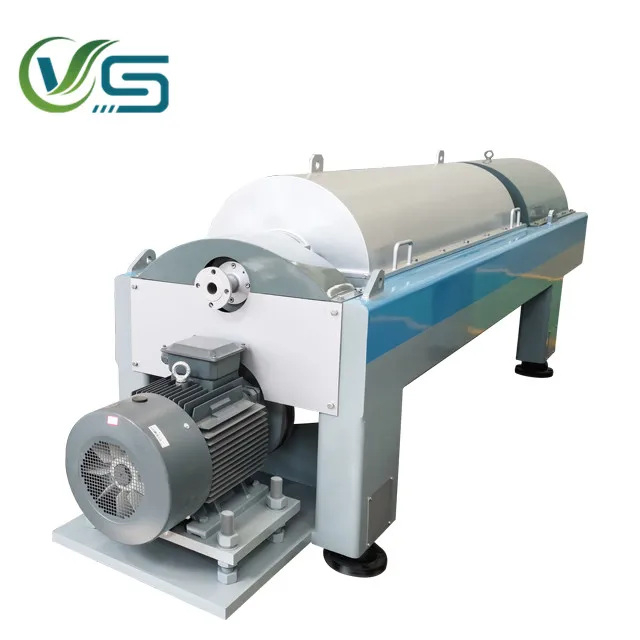

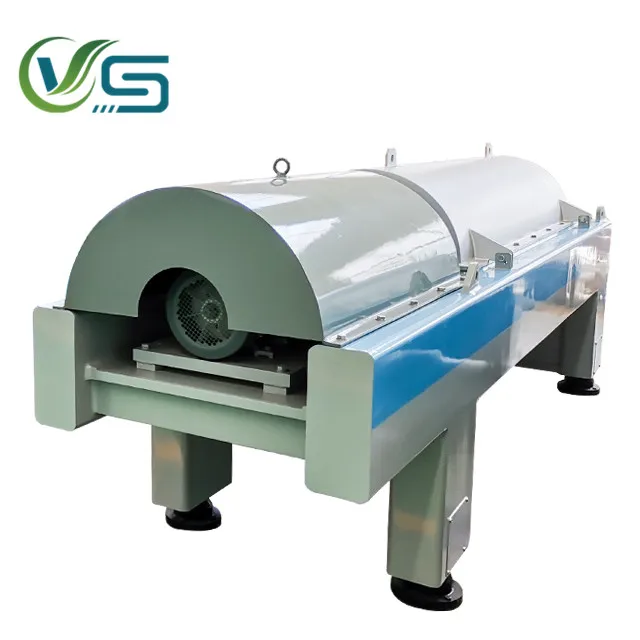

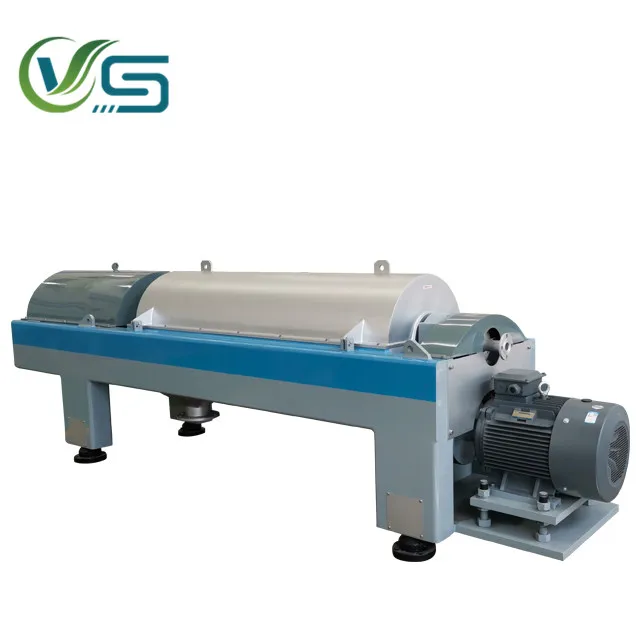

China horizontal screw discharge sedimentation decanter centrifuge

screw discharge sedimentation decanter centrifuge is a mechanical device that uses centrifugal sedimentation principle to continuously separate suspension containing density difference.

This product has the following characteristics:
1. with high speed, high separation factor, large aspect ratio.
2. All parts in contact with the material are made of high quality stainless steel with sufficient strength and superior corrosion resistance.
3, the drum body has a large aspect ratio, high speed, and a variety of angles of the drum cone structure.
4. The screw feeder adopts a special molding method, the pitch error is small, the blade deformation is small, and the material life can be improved.
5. The performance of the differential system is reliable.
6. The horizontal screw centrifuge with BD baffle deepens the liquid pool.
7. The main motor and the auxiliary motor are controlled by frequency converter to realize stepless speed regulation, which has wide application range for materials and simple debugging.
8. Adopt reasonable tolerance control and advanced processing technology.

The parameters of the two-phase decanter centrifuge are as follows:

Model	Drum Diameter (mm)	Drum Length (mm)	Maximum Speed (r/min)	Power of Main/auxiliary(kw)	Weight(kg)
HCLW200	200	800	5500	7.5/4	800
HCLW250	250	1000	5000	11/5.5	1000
HCLW300	300	1200	4200	15/11	1300
HCLW350	350	1400	4000	18.5/15	1800
HCLW400	400	1500	3600	22/18.5	2500
HCLW450	450	1800	3200	30/22	3000
HCLW500	500	2000	3000	45/30	3800
HCLW550	550	2200	2800	75/45	4200
HCLW650	650	2600	2500	90/75	5500

The parameters of the three-phase decanter centrifuge are as follows (need to be customized):

Model	Drum Diameter (mm)	Drum Length (mm)	Maximum Speed (r/min)	Outline Size (mm)	Weight (kg)
HCLWS355	355	1600	3800	3495*980*1180	2000
HCLWS400	400	1800	3550	3590*1000*1205	2500
HCLWS450	450	2000	3450	3965*1080*1385	3000
HCLWS500	500	2200	3450	4330*1140*1470	4000
HCLWS550	550	2280	3200	4842*1170*1590	5500



In addition to the horizontal screw centrifuge we also have a butterfly centrifuge for everyone to choose.



Zhengzhou VOS Machinery Equipment Co., Ltd. is a professional manufacturer of various models woodworking machinery such as wood crusher, wood shaving machine, disc type wood chipper, branch shredder machine, drum wood chipper, wood pallet crusher machine etc. We promise the machine high quality with high working efficiency.

1. Q:What is the Quality Warranty for the products?

A:We offer 1 year quality warranty for all of our products.



2. Q:How can I choose the most suitable product?

A: Please tell us your detailed capacity, application, power and so on, then we will match the most appropriate product for you, or you can choose the exact model in the product manual. If you don’t know the details of the product, please tell us the usage, then the most suitable model will be recommended for you.



3. Q: What's your payment way?

A: Usually we accept T/T, L/C, Western Union or PayPal.



4. Q: What's your delivery time?

a. The stock samples can be sent to you within 3-5days by international express after received

b. The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)

If you are interested in our screw discharge sedimentation decanter centrifuge, please contact us for more detailed information.
