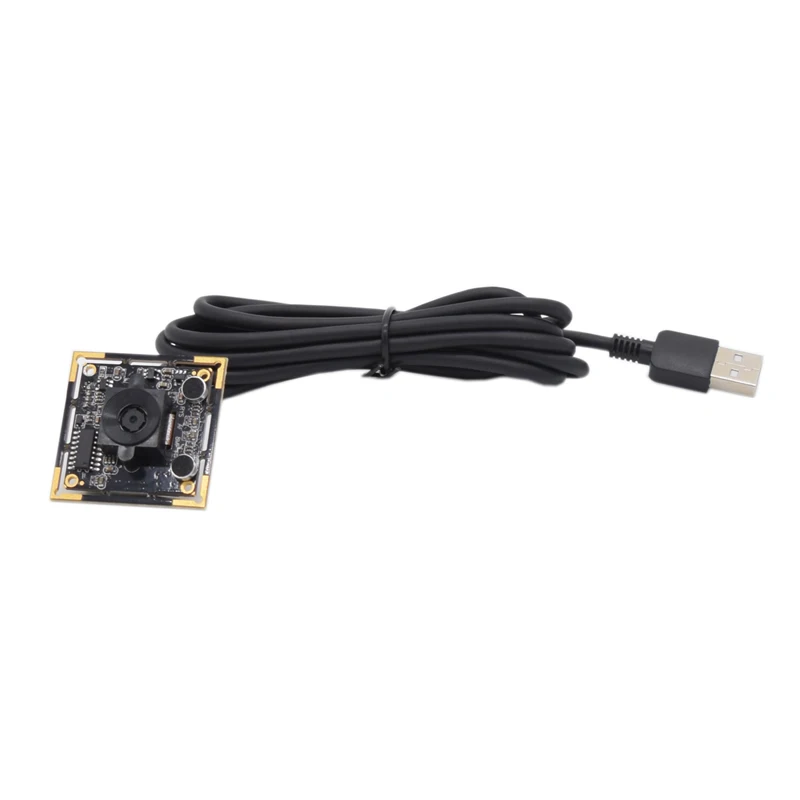

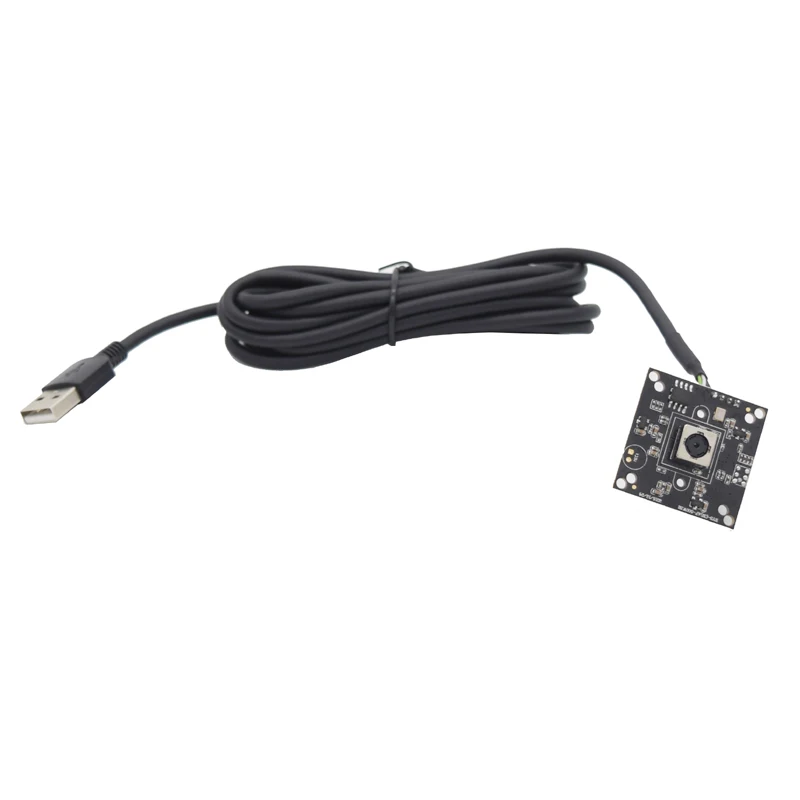

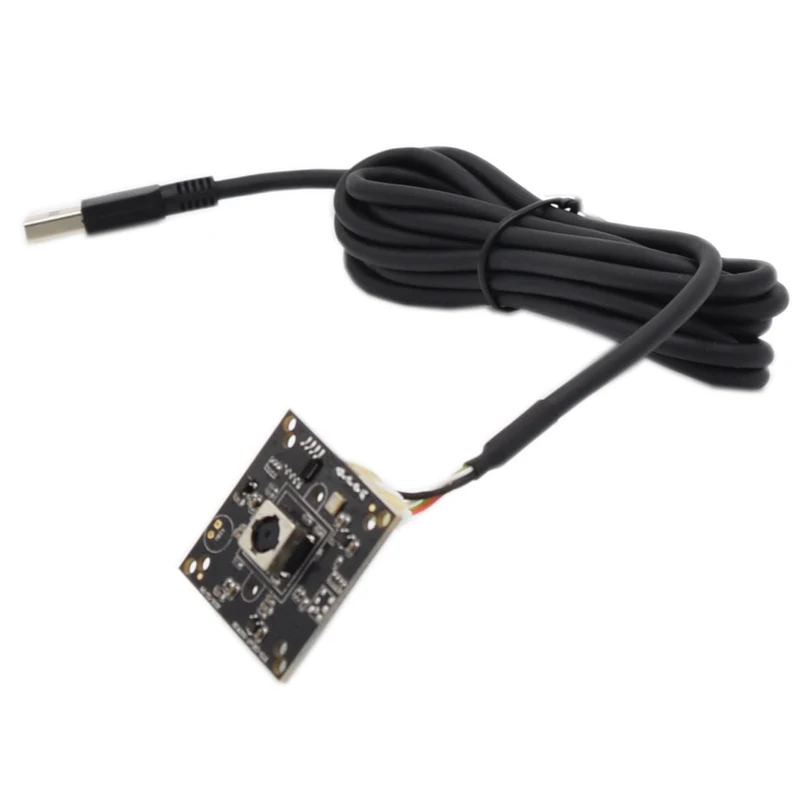

5MP Autofocus CMOS Sensor HQCAM Usb Board Camera Module For Telescope/ Endoscope/microscope
- Category: >>>
- Supplier: Shenzhen Hanqin Electronic Technology Co. Ltd.
Share on (62317096906):
Product Overview
Description
This camera is designed for all kinds of Android hosts.
1. Android boards usually do not support Windows running 2592*1944. It's easy to not map, exit carton, camera crash, video card, or flicker, image black/flash screen, etc. do not necessarily appear at the same time. T
2. The company intentionally compresses the resolution of 1920*1080P, and modifies the driver information to ensure stable and smooth operation of video under Android kernel.
3. Existing cases: various models of Ruixinwei, part models of Fuzhi, part models of ARM, part models of industrial computer, etc.
1. Android boards usually do not support Windows running 2592*1944. It's easy to not map, exit carton, camera crash, video card, or flicker, image black/flash screen, etc. do not necessarily appear at the same time. T
2. The company intentionally compresses the resolution of 1920*1080P, and modifies the driver information to ensure stable and smooth operation of video under Android kernel.
3. Existing cases: various models of Ruixinwei, part models of Fuzhi, part models of ARM, part models of industrial computer, etc.
In MJPEG state: at 2592*1944 resolution, the frame rate is 10 frames, 1600*1200 is 15 frames, 1920*1080 is 30 frames, 1280*720 is 30 frames.
Resolution & frame :
2592×1944@10fps MJPEG; 2fps YUY2
1920×1080@30fps MJPEG; 5fps YUY2
1600×1200@15fps MJPEG; 5fps YUY2
1280×720@30fps MJPEG; 5fps YUY2
Compression format: MJPEG \\ YUY2
Interface: USB2.0
Lens Parameter : 70 degree
Housing: Aluminum Mini Case
Voltage: DC5V
USB Video Class (UVC): Support
OTG support: Smartphone support
Auto exposure AEC: Support
Auto white blance AEB: Support
Adjustable parameters: Brightness/Contrast/Color saturation/Definition/Gamma/WB
Operating Temperature: -20°C to 70°C
Support OS: Windows, Linux, Android, Mac
usb
| PRODUCT CATEGORIES | ||||||||
 |  |  |  | |||||

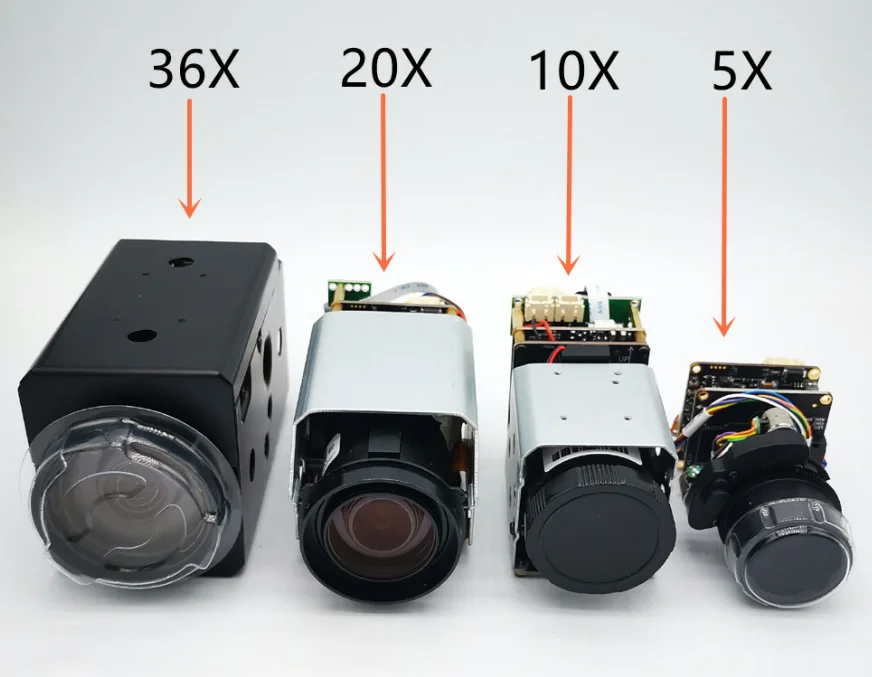

| web camera | usb camera size 15x15mm | 4K imx179 zoom | USB ZOOM CAMERA | |||||
 |  |  |  | |||||
| endoscopic | Iris recognition | Global Shutter | Binocular camera | |||||
Welcome to customize all kinds of industrial cameras, MID cameras, laptop camera, advertising camera, videophone camera, high-speed camera, monitor camera, evaluation machine, display desk camera, elderly newspaper reader camera, object recognition camera, face recognition camera, two-dimensional digital camera, etc. Mobile detection cameras, Android cameras, etc. Support secondary de velopment and customization. It can provide 300,000,500,000,1.3 million,2,000,3,000,5 million pixel cameras, support 100 degree wide angle, 120 degree wide angle, 150 degree wide angle and 170 degree wide angle, and support night vision with lights and microphone functions. Welcome to call us to provide a request for a customized plan | ||
