Fully Automatic Medical Syringe Injection Ampoule Blister Packing Machine
- Category: >>>
- Supplier: Wenzhou Urban Machinery Co. Ltd
Share on (62317106471):
Product Overview
Description
Products Description
Model | DPB-80 | DPB-110 | DPB-150 | DPB-250 |
Punch frequency | 10-33times/min | 10-33tims/min | 10-35times/min | 6-50times/min |
Production capacity | 2400plates/hour | 2400plates/hour | 1200-4200plates/hour | 35000-23000pcs/hour |
Max. Forming area & Depth | 105x70(standard depth <15mm) | 115x90(standard depth <15mm) | 145xll0(standard depth <15mm) | 240x70x26mm |
Max. Depth 25mm | Max. depth 26mm | Max. depth 26mm | ||
Standard Stroke range | 30-80mm | 35-90mm | 50-120mm | 40-160mm |

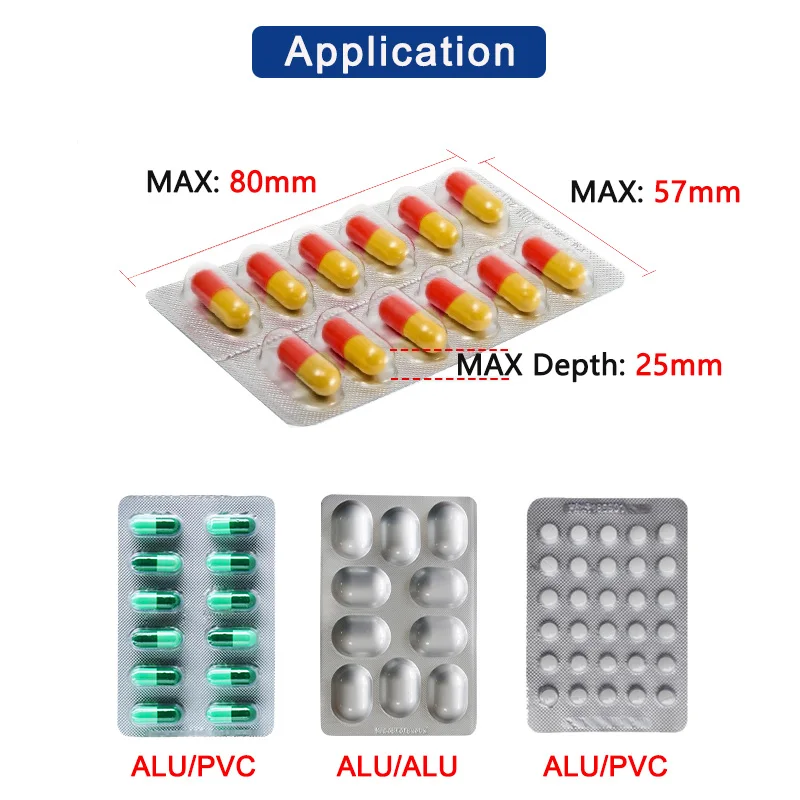

Standard plate size | 80x57mm | 80x57mm | 80x57mm | 80x57mm |
Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Compressed air required | Air compressor>0.3m3/min | Air compressor>0.3m3/min | Air compressor>0.3m3/min | Air compressor>0.3m3/min |
Total power supply | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw | 380V220v 50Hz 6.2Kw |
Main motor | 0.75Kw | 0.75Kw | 1.5KW | 1.5KW |
PVC hard Film | 0.15-0.5xll0mm | 0.15-0.5X HOmm | 0.15-0.5x 160mm | 0.15-0.5x 160mm |
PTP Aluminum film | 0.02-0.035 x HOmm | 0.02-0.035 x HOmm | 0.02-0.035 x 160mm | 0.02-0.035 x 250mm |
Mould cooling | Tap water or Recycling water | Tap water or recycling water | Tap water or recycling water | Tap water or recycling water |
Overall Dimension(LxWxH) | 1450x590x 1100mm | 1600 x 620 x1420mm | 2315 x 635 x 1405mm | 3000x730x1600mm |
Weight | 465kg | 485kg | 890KG | 1400kg |
Noise | <75dBA | <75dBA | <75dBA | <75dBA |
Main Features:
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement. It adopts imported frequency inverter.
3. It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement. It adopts imported frequency inverter.
3. It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
Our Advantages

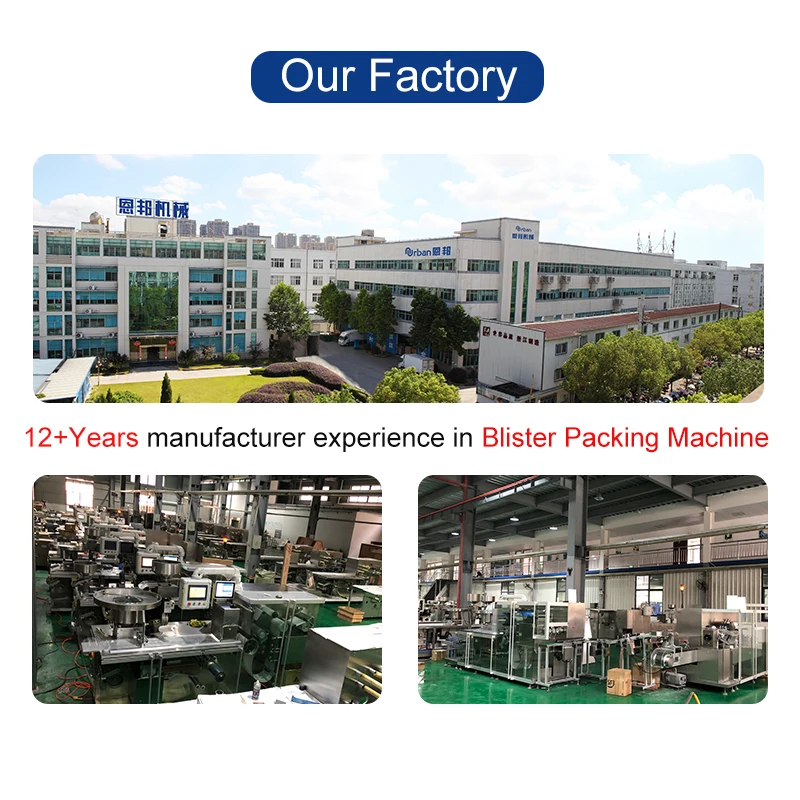

Company Profile
