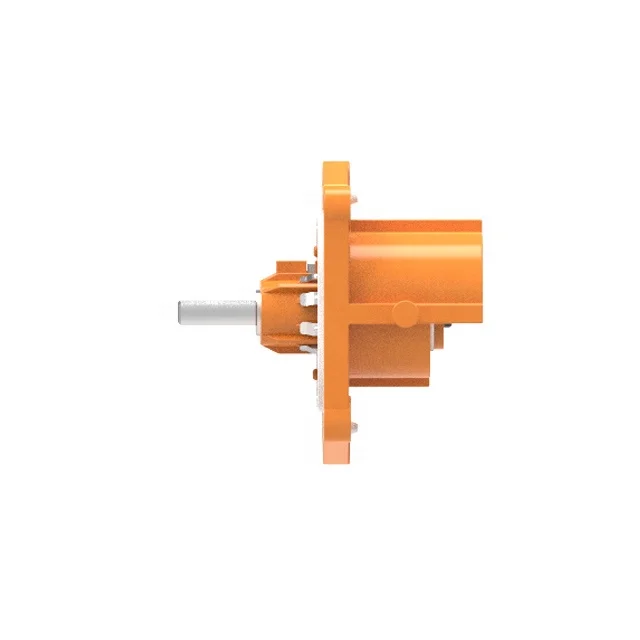

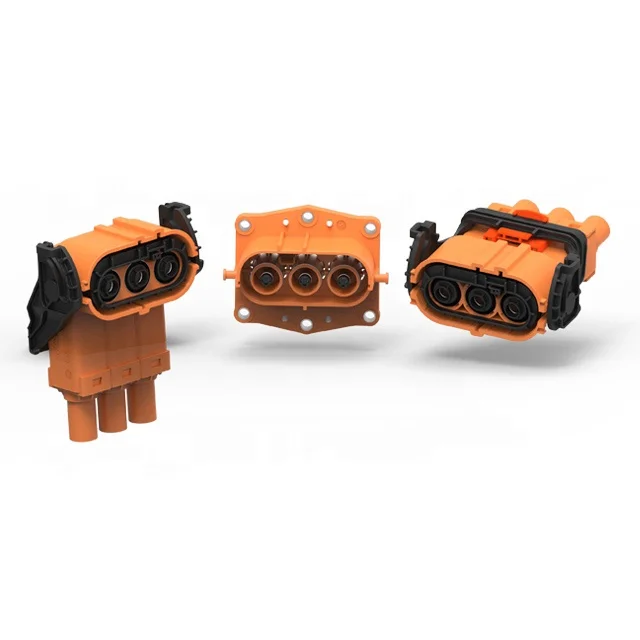

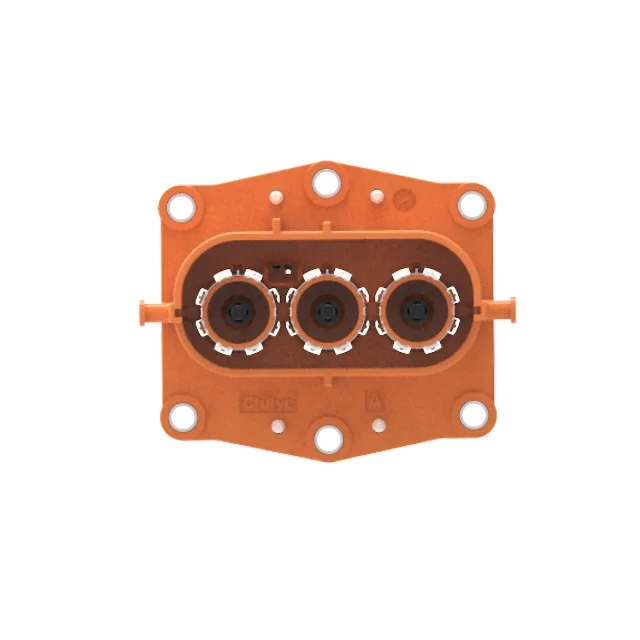

HVC 800 series 3 ways HVIL connector for EV

Product Overview

Description





High Voltage Connectors

HVC series connectors integrate touch-proof design, good EMC shielding performance,

high IP rating, high voltage interlock loop (HVIL),
providing safe and reliable high voltage connection solutions to electric vehicles and hybrid electric vehicles.









HVC 800 Series



Application

Power battery, motor control, drive motor, inverter



Description

• HVIL

• Mechanical self-locking

• Touch-proof

• 180° and  90° plug

• Six types of keyway design to prevent incorrect mating

• Shielding: 360° shielding

• Conductor cross-sections: power circuit :25 mm² to 50 mm²

                                            HVIL circuit:  0.5 mm²

Technical Features

• Terminal size: 8mm

• Maximum current: 250A(85°C)

• Rated voltage: 1000V

• Operation temperature : -40°C to +125°C

• IP rating: Mated: IP67, IP6K9K

                     Unmated: IP2XB
