Product Overview

Description





Products Description

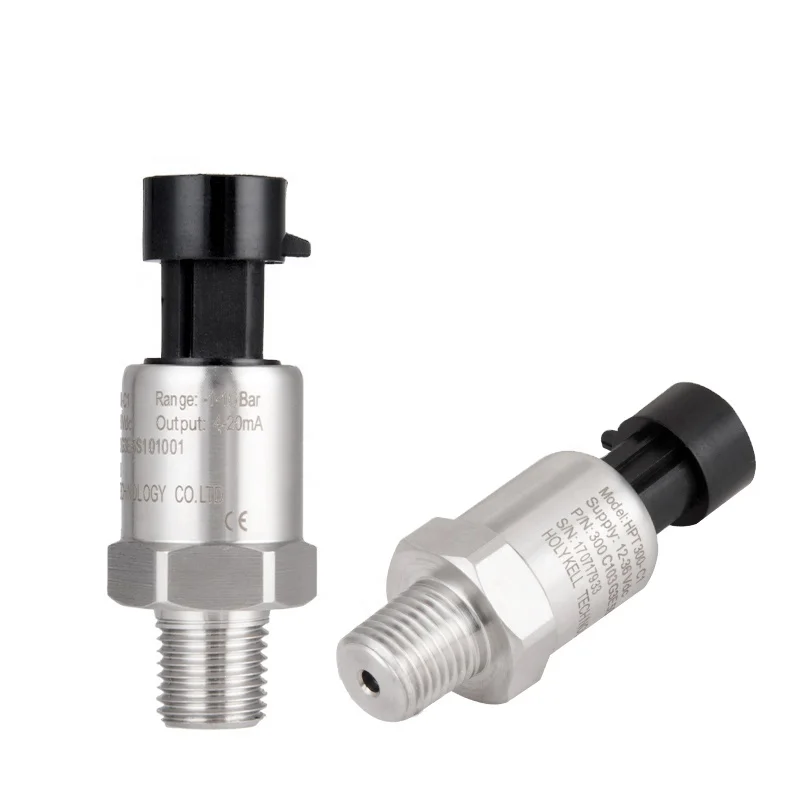

HPT300-C The pressure transducer with integrated Germany Ceramic sensors for manufacturing, and the advanced circuit design to avoid influences on the product caused by the temperature, humidity, mechanical fatigue and medium, thus to improve its permanent stability in the industrial environment. Its measuring range -1 to 200Bar, long lifetime 100 million pressure cycles, stainless steel body material, thread and output signal can be customized.


Product Parameter


Measuring range
-1 to 0 ...0 to 200bar
Material
stainless steel
Pressure type
Gauge /Negative/Absolute pressure optional
Accuracy
±0.5%F.S
Overload
150% F.S.
Burst Pressure
200% F.S.
Working Temp
-35℃~105℃
Storage Temp
-40℃~125℃
Output
4-20mA/ 0-5V/ 0-10V/ 0.5-4.5V
Power supply
10-30VDC/ 8-30VDC/ 5VDC
IP rating
IP67
Electronic connection
Packard 3 Pin Connector
Pressure connect port
1/8’’NPT male, 1/4’’NPT male/Female,
7/16’’-20 UNF Female (by Customized)


Product Details




Customization


Factory Direct Sale, Support Customization

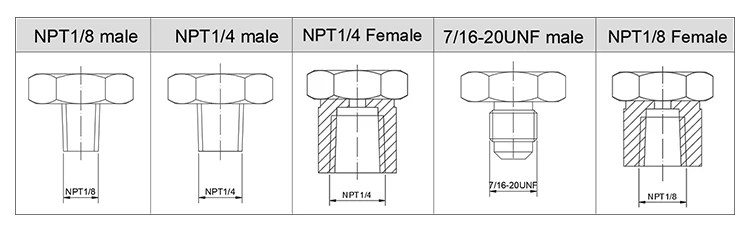

1. Thread can be customized
1/8’’NPT male, 1/4’’NPT male/Female, 7/16’’-20 UNF male/Female




2. Output can be customized
4-20mA, 0-5V, 0-10V, 0.5-4.5V

3. Power supply can be customized
10-30VDC, 8-30VDC, 15-30VDC, 5VDC


Related Products




Product Application






Why Choose Us












FAQ



Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.

Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need, you can tell us and we will try our best to satisfy you.

Q:Could I visit your factory?
A:Of course, if you need we will help you to visit our factory.

Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Q. How to order?
A. In order to send you correct solution and best offer, please provide the following information when send inquiry, thanks !
1. What is the process medium? Water, oil or others.
2. Measure range: 0-10bar or..?
3. Output signal:4-20mA, 0-10V or..?
4. Require quantity?
