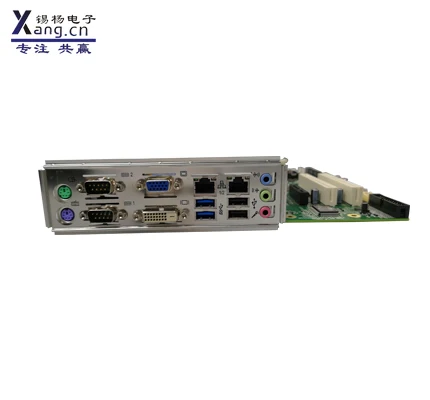

EC9-1501-ZX is a single board computer with Embedded ATX structure based on mega
byte domestic chip platform, which adopts advanced ZX-C4701 four-core processor and
ZX-100S chipset, and supports VGA+DVI dual display function.Support PCIe X16 (actu
al speed X8), PCIe X4, PCI extension bus extension, mainly for bank ATM/VTM self-help
terminal, self-help tax terminal, petroleum and petrochemical, highway ETC, governme
nt security computer and other applications. High-end performance and rich feature co
nfigurations can play an important role.
Characteristics
Chipsets that support home-made megabyte 4-core CPU (ZX-C4701) and ZX-100S, ZX
-C4701 and ZX-100S have the same performance as G1820 and H81 support two 1333
/1600MHz DDR3 memories. The maximum memory capacity can be up to 32GB VGA,
DVI-D dual display function to support six USB2.0,3 USB3.0,9 serial ports to support P
CIe X16 (actual speed is X8), PCIe X4, PCI bus expansion support TCM module, with a u
nique secure encryption system.Operating systems that support SM3 and SM4 nationa
l secret algorithms: win7, win8, win10, Linux and domestic bid-winning Kirin and other
operating systems (can achieve the localization of all software and hardware)
Product specification
| Processor | Support for open ZX-C+ quad-core processor, this board uses ZX-C4701 |
| Chip set | ZX-100S chipset |
| Memory | Provides two 1333/1600MHz DDR3 U-DIMM memory slots that support a maximum capacity of 16GB per root memory and total support for 32GB |
| Display interface | Support for VGA, DVI-D dual display, VGA supports a maximum resolution of 2560 to 1600, DVI-D supports a maximum resolution of 2048*1536@60Hz |
| Audio frequency | Adopt HDA standard and support MIC-IN/LINE-OUT |
| LAN | Provides 2 10/100/1000Mbps network interfaces (Intel I210 network card), LAN1 supports network wake-up |
| Memory | Provides 3 SATA 2.0 interfaces, 1 M-SATA interface, 1 Mini-pcie slot |
| I / O interface | Provide 10 serial ports, of which COM1,COM2 supports RS-232/422/RS-485 mode selection, COM1 and COM2 support 5V/12V live optional at the same time, provide 6 USB2.0 interfaces, and provide 3 USB3.0 interfaces. Provide 2 PS/2 interfaces (keyboard and mouse interface), 1 8-way digital I / O interface, 1 TCM interface and 1 LPT interface (pin interface, which can be drawn through wire) |
| Extended bus | Provide 2 PCI, 1 PCIEX4 (actual speed is PCIEX1), 1 PCIEX16 |
| Working temperature | -10 ℃ ~ 60 ℃; humidity: 5% 95% (non-condensed) |
| Storage environment | -20 ℃ ~ 80 ℃; humidity: 5% 95% (non-condensed) |
| Watchdog | Level 255, programmable second / minute, timeout interrupt or system reset |
| Power supply | Powered by standard ATX power supply |
| Size (W × D × H) | 244 mm (length) × 244 mm (width) |
Ordering information
| Material number | Type number | Description |
| 1030 023261 | EC9-1501-ZX | Embedded ATX structure single board computer / ZX-100S/ quad core processor ZX-C4701//2 strip DDR3/DDR3L UDIMM memory slot,Maximum support for 16GB / VGA+DVI-D dual display / 2 gigabit network ports / 6 USB2.0/3 USB3.0/10 serial ports (2 post external, 8 pins) 3 SATA3.0/1 MSATA/1 PS2 external / 1 LPT pin / 1 8-way GPIO/, 1 TCM bus interface / 1 audio module (LIN-IN,LIN-OUT, MIC-IN) / an 8-way GPIOPCI_Ex16 (actual speed * 8) / 1 PCI_Ex4/2 / PCI/ Mini-PCIE |
| 0010 094811 | IPC-810E/ EC9-1501-ZX/2G/500G/250W/ has no light | 4U, 19 "standard IPC-810E machine / EC9-1501-ZX motherboard / ZX-100S / quad processor ZX-C4701/2G memory / 500G hard disk / ATX 250W power supply / no optical drive / motherboard 2 network ports, 10 serial ports (6 external),4 pins), VGA+DVI-D double display external, 9 USB (2 USB3.0 external, 2 USB2.0 external, 1 USB3.0 pin, 4 USB2.0 pin), 1 audio combination external, 1 PS/2 keyboard and mouse interface external; 1 LPT pin, 1 8-way GPIO pin, 1 PCIE*16 (actual speed * 8), 1 PCIE*4, 2 PCI, 1 Mini_PCIE/ extension. |
| 0010 094821 | IPC-820/ EC9-1501-ZX/2G/500G/250W/ has no light | 4U, 19 "standard IPC-820 machine / EC9-1501-ZX motherboard / ZX-100S / quad processor ZX-C4701/2G memory / 500G hard disk / ATX 250W power supply / no optical drive / motherboard 2 network ports, 10 serial ports (6 external), 4 pins), VGA+DVI-D double display external, 9 USB (2 USB3.0 external, 2 USB2.0 external, 1 USB3.0 pin, 4 USB2.0 pin), 1 audio combination external, 1 PS/2 keyboard and mouse interface external; 1 LPT pin, 1 8-way GPIO pin, 1 PCIE*16 (actual speed * 8), 1 PCIE*4, 2 PCI, 1 Mini_PCIE/ extension. |
| 0010 096311 | IPC-630/ EC9-1501-ZX/2G/500G/250W/ has no light | IPC-630 compact wall mount machine / EC9-1501-ZX motherboard / ZX-100S / quad-core processor ZX-C4701/2G memory / 500G hard disk / ATX 250W power supply / no optical drive / motherboard 2 network ports external, 10 serial ports (6 external), 4 pins), VGA+DVI-D double display external, 9 USB (2 USB3.0 external, 2 USB2.0 external, 1 USB3.0 pin, 4 USB2.0 pin), 1 audio combination external, 1 PS/2 keyboard and mouse interface external; 1 LPT pin, 1 8-way GPIO pin, 1 PCIE*16 (actual speed * 8), 1 PCIE*4, 2 PCI, 1 Mini_PCIE/ extension. |
