Product Overview

Description


WELCOME

CDB SERIES LARGE SPINDLE HOLE PRECISION LATHE
Large spindle bore of 65mm
Main spindle dynamic balanced, and supported at 2 points with taper roller bearings of Harbinbrand
Outward appearance featuring large plains, making the machine more good-looking
Gapped bed ways, which are super-audio frequency hardened
All gears hardened and ground by Reishauer grinding machine
Leadscrew and feed rod interlocked, both with overload protection
Automatic feed stopper
Configuration variable totally according to orders:
Metric or inch system; Right or left hand wheel; Large plane type; Halogen lamp; Quick change tool past; DRO; T-slot compound; Chuck guard; Leadscrew hood; Rapid traverse motor; Electromagnetic brake; Forced lubrication system.

\t
MODEL
\t
CD6236B
\t
CD6240B
\t
CD6250B
\t
CD6260B
\t
CAPACITIES
\t
Max. swing over bed (mm)
\t
360
\t
400
\t
500
\t
600
\t
Max. swing over cross slide
\t
185
\t
225
\t
325
\t
360
\t
Center distance (mm)
\t
1000, 1500, 2000mm
\t
Max swing in gap (mm)
\t
490
\t
530
\t
630
\t
730
\t
Valid length of gap
\t
260mm
\t
Bed width
\t
330mm
\t

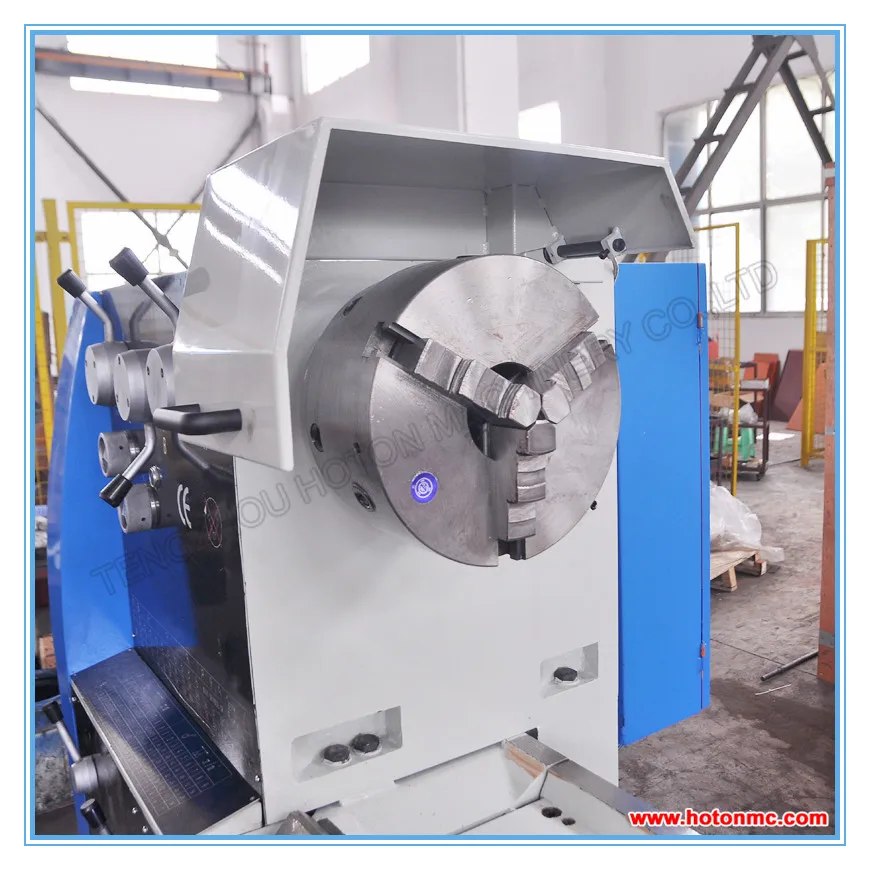

HEADSTOCK
\t
Spindle hole
\t
65mm
\t
Spindle nose
\t
ISO-C6 or ISO-D6
\t
Spindle taper
\t
Metric 70mm
\t
Spindle speeds (Number)
\t
22-1800rpm (15 steps)
\t
FEEDS
\t
Metric threads range (Kinds)
\t
0.5-28mm (66kinds)
\t
Inch Threads range (Kinds)
\t
1-56 /inch(66kinds)
\t
Module threads range (Kinds)
\t
0.5-3.5mm (33kinds)
\t
Diametral threads range (Kinds)
\t
8-56 DP(33kinds)
\t
Longitudinal fees range (Kinds)
\t
0.072-4.038mm/rev(0.0027-0.15 inch/rev) (66kinds)
\t
Cross feeds range (Kinds)
\t
0.036-2.019mm/rev(0.0013-0.075 inch/rev) (66kinds)
\t
\t
\t
\t
Rapid traveling speed of carriage
\t
5m/min (16.4ft/min)
\t
Leadscrew size: Diameter/Pitch
\t
35mm/6mm
\t

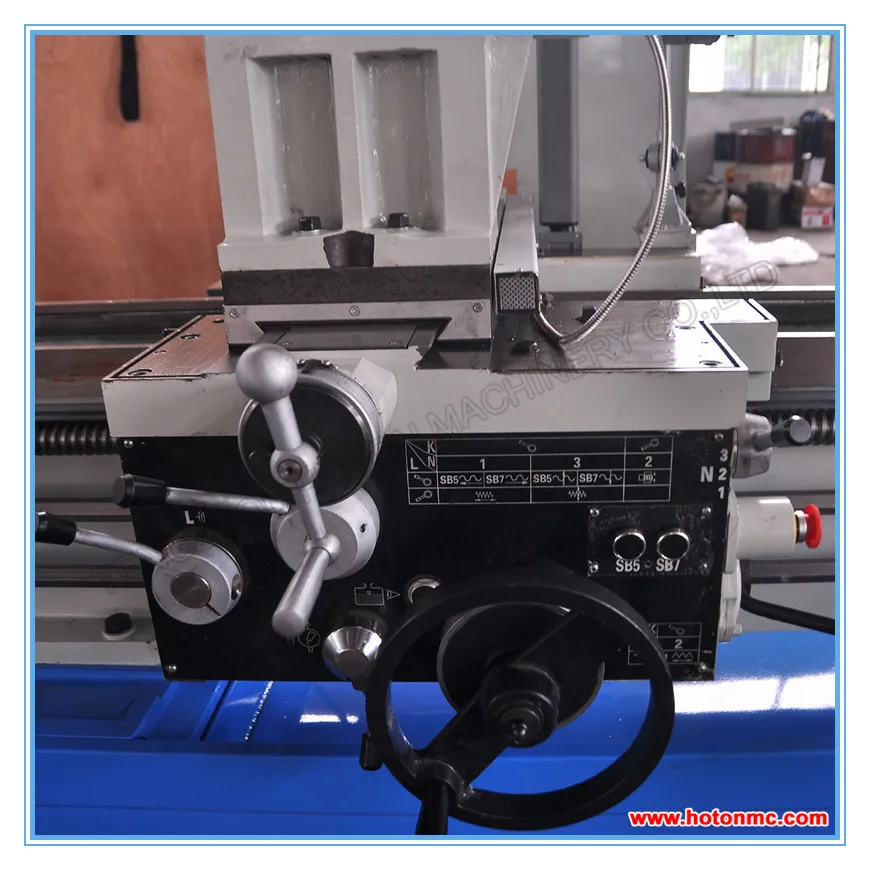

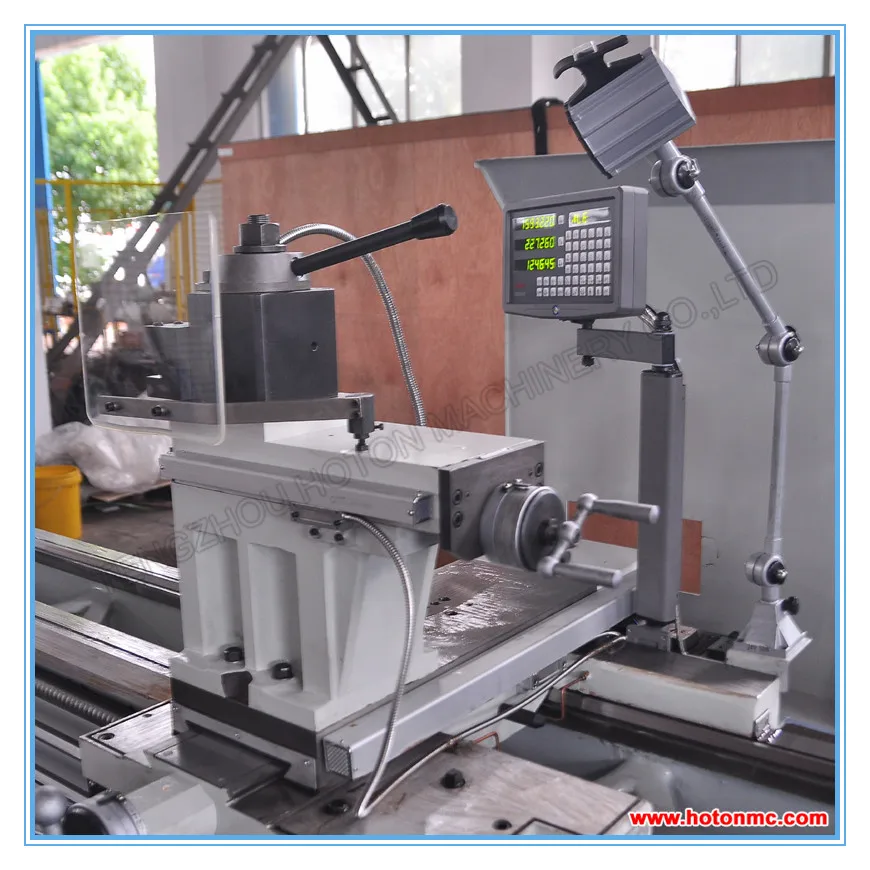

CARRIAGE
\t
Cross slide travel
\t
300mm
\t
Compound rest travel
\t
130mm
\t
Cross-section size of toolshank
\t
20*20mm
\t
25*20mm
\t
25*25mm
\t

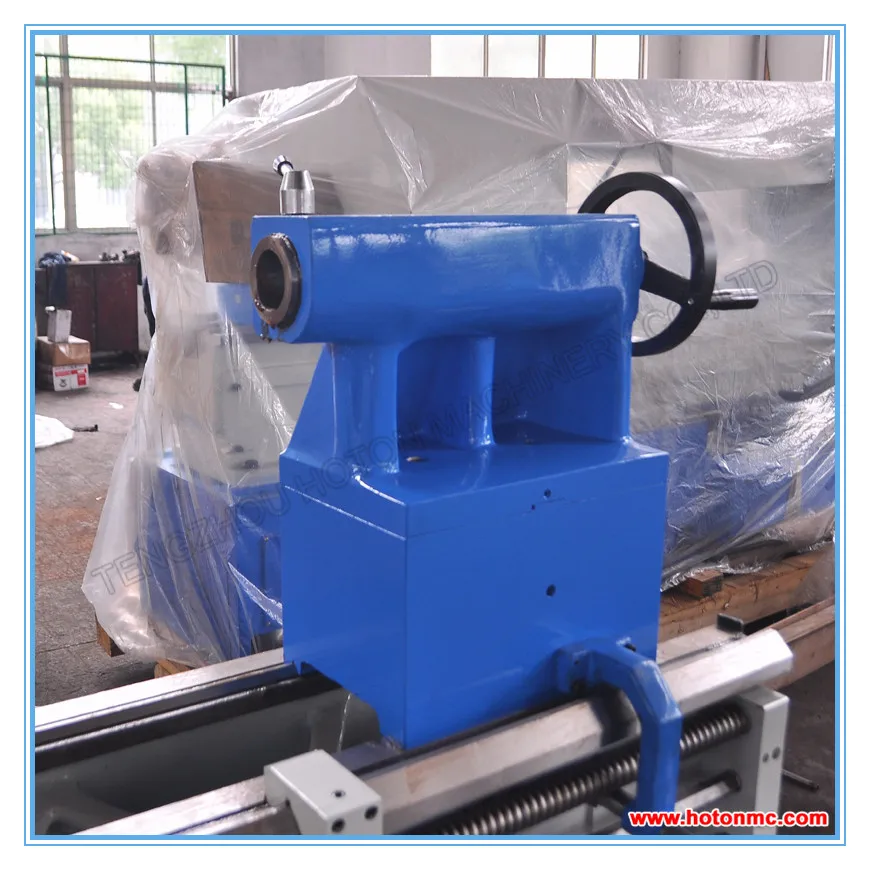

TAILSTOCK
\t
Taper of tailstock sleeve
\t
Morse No.5
\t
Diameter of tailstock sleeve
\t
65mm
\t
Travel of tailstock sleeve
\t
120mm
\t
MOTOR
\t
Main drive motor
\t
4.0kw or 5.5kw or 7.5kw
\t
7.5kw
\t
Coolant pump motor
\t
0.125kw
\t
Rapid traverse motor
\t
0.12kw
