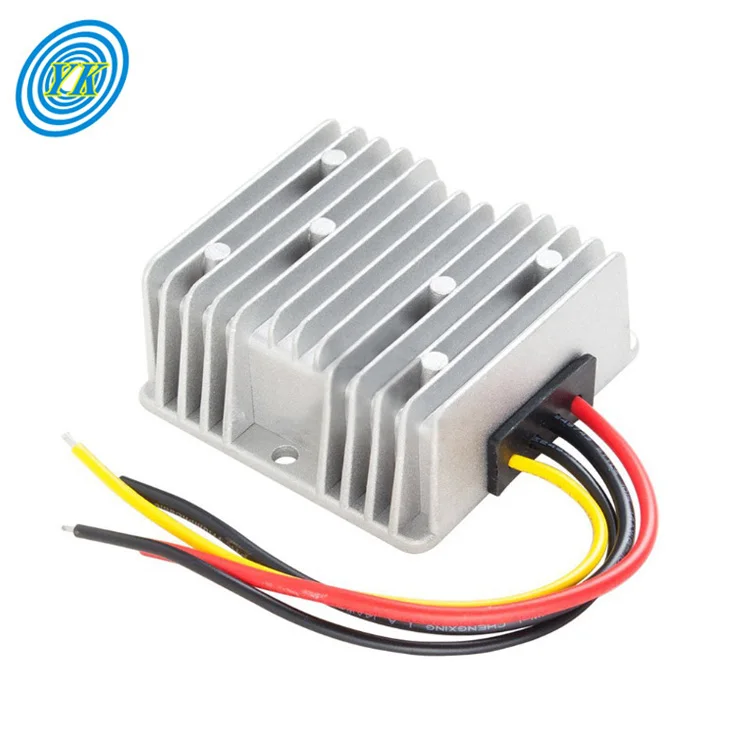

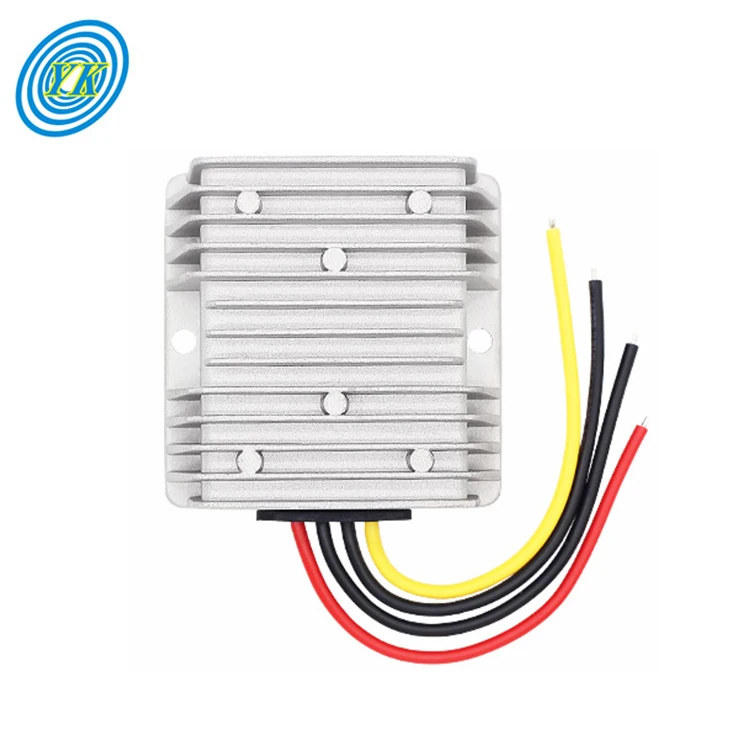

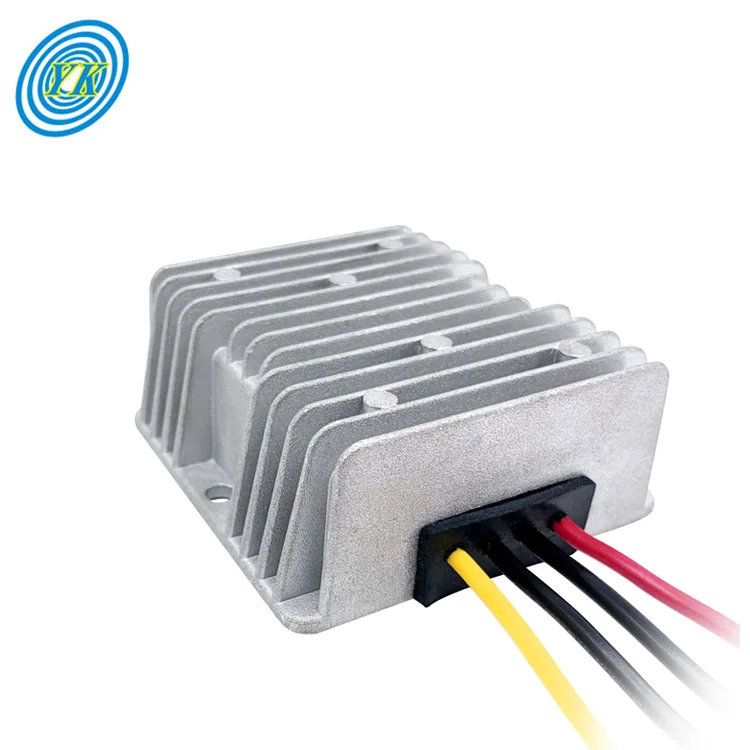

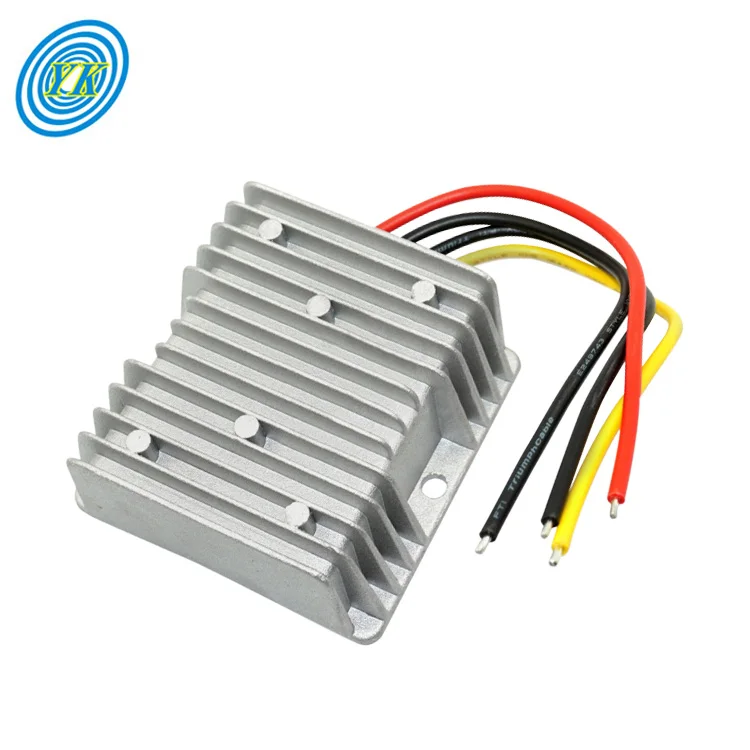

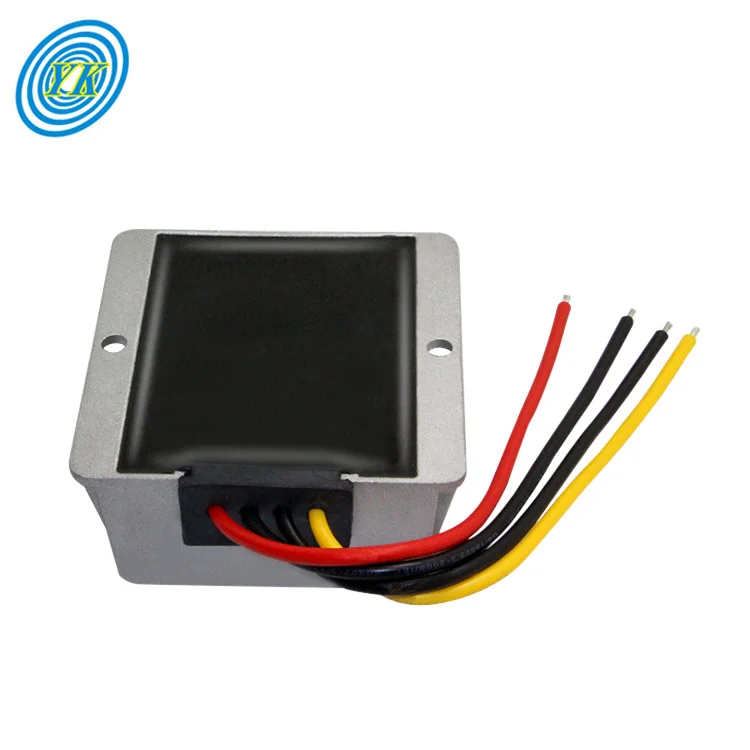

138W Non isolated dc dc step down power 24v to 13.8v 10a converter
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (62317222344):
Product Overview
Description
138W Non-isolated dc dc step down power 24v to 13.8v 10a converter
Product Description
YUCOO NETWORK EQUIPMENT CO., LTD
We Design , We Delelop, We Support! QUALITY IS OUR CULTURE
Product Specifications:
| Product Name | DC DC Converter |
| Model | YK-DD24S13.810 |
| Input voltage | 24Vdc(18-36Vdc) |
| Output voltage | 13.8Vdc |
| Output current | 10A |
| Output power | 138W |
| Transfer efficiency | 96% @24Vin |
| Working temperature | -35℃ - 80℃ |
| Waterproof rating | IP68 |
| Weight | 270g |
| Size | 74*74*32mm |
| Installation length | 15-17cm |
| Application | Motor, audio, navigation, monitoring, LED display, air conditioning, electric fans, solar energy, photovoltaic energy, DVD lights, motors, pumps and industrial equipment |
Product Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 18-36Vdc
4. 100% waterproof & anti-shock protection, Ultra compact size, light weight
5. Industry grade step-down converter, efficiency up to 96%
6. Waterproof level: IP68
7. According CE(EN61000) / RoHS design
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
9. Non-Isolated Module
10. 1 year warranty

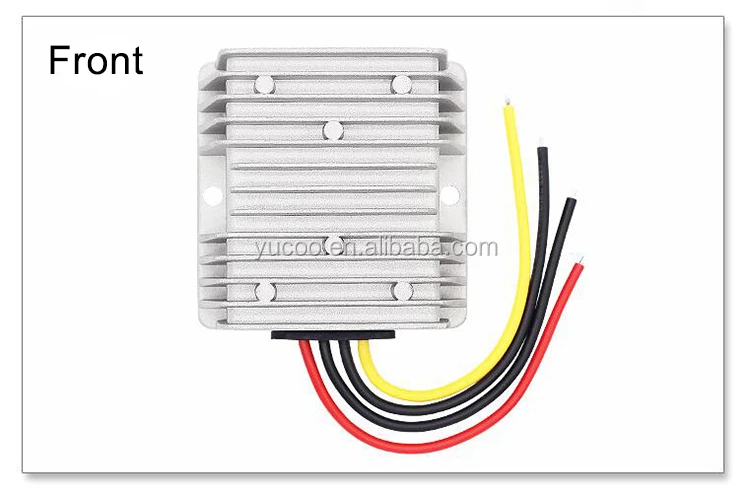

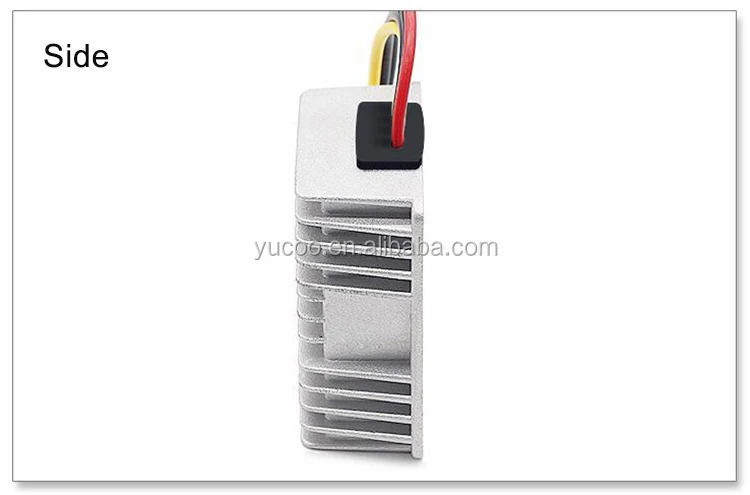

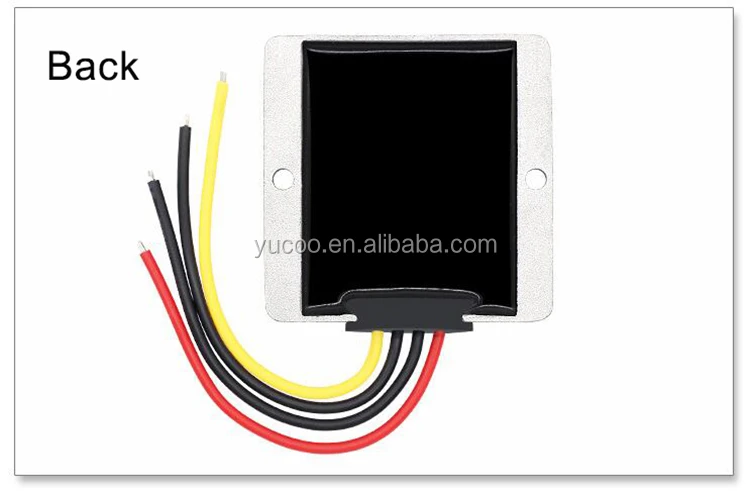

Product details
Related product
24v to 13.8v dc dc converter
customize range
| Model/ Series | DC-DC Conversion | Output Current (Be option) |
| Boost DC-DC Converter | ||
| YK-DD12S13.8** | 12v to 13.8v | 1/2/3/5/8/10/18A |
| YK-DD12S15** | 12v to 15v | 1/2/3/5/8/10/15A |
| YK-DD12S19** | 12v to 19v | 5/8/10/15/20A |
| YK-DD12S24** | 12v to 24v | 1/2/3/5/8/10/15/20/25/30/40/50A |
| YK-DD12S28** | 12v to 28v | 3/5/8/10/15/20/25/30/40A |
| YK-DD12S32/36** | 12v to 32v/36v | 1/2/3/5/6/10/12/15/20/30/40A |
| YK-DD12S48** | 12v to 48v | 1/2/3/4/5/8/10/15/20A |
| YK-DD24S48** | 24v to 48v | 3/5/10/20/32/42A |
| Buck DC-DC Converter | ||
| YK-DD1224S3.3-9** | 12v/24v to 3.3-9v | 1/2/3/5/10/15/20/30/50/60A |
| YK-DD24S12** | 24v to 12v | 1/2/3/5/8/10/15/20/30/40/50/60/85A |
| YK-DD3648S5** | 36v/48v to 5v | 5/10/15/20A |
| YK-DD3648S12** | 36v/48v to 12vdc | 5/10/15/20/25/30/50/60A |
| YK-DD3648S24** | 36v/48v to 24v | 8/10/15/18/21/30/40/50A |
| YK-DD48S36** | 48v to 36v | 5/10A |
| YK-DD60S5** | 60v to 5v | 5/10/15/20A |
| YK-DD60S12** | 60v to12v | 5/10/15A |
| YK-DD60S24** | 60v to24v | 60v to24v |
| YK-DD60S36 | 60v to 36v | 5/8A |
| Auto Buck and Boost DC-DC Converter | ||
| YK-DD12S12 | 12v to 12v | 1/2/3/4/6/8/10/12A |
| YK-DD12S13.8 | 12v to 13.8v | 3/5/10A |
| YK-DD24S24 | 24v to 24v | 1/2/3/5/8/10A |
| Isolated DC-DC Converter | ||
| YK-DD48S12 | 35-100v to 12v | 8A/10A |
| YK-DD48S5 | 36-75v to 5v | 15A/20A |
| YK-DD48S24 | 36-75v to 24v | 5A |
| AC-DC Conerter | ||
| YK-AD24S5 | 17-26V to 5V | 1A/2A/3A/4A/5A |
| YK-AD24S12 | 17-26V to 12V | 1A/2A/3A/4A/5A |
Note: A. Output current be option only but not constant adjustable B. Other Specification can customize base on user request. Please contact with YUCOO Sale team C. Non-Isolated design D. Constant voltage design E. Waterproof F. High efficiency | ||
