This equipment is widely used for research of all kinds of film coating,
like ceramic films, crystal films, battery material films, and special nano-films.
| BATTERY CELL LAB EQUIPMENT | |
| Item Name | Battery cell vacuum coater |
| Coating Speed | 0~100mm/s |
| Vacuum Plate | The machine is equipped with vacuum aluminum plate |
| Max Stroke | 300mm ( customized size is available ) |
| Film Width | 100mm |
| Dimension of vacuum plate | L410mm×W200mm×H30mm |

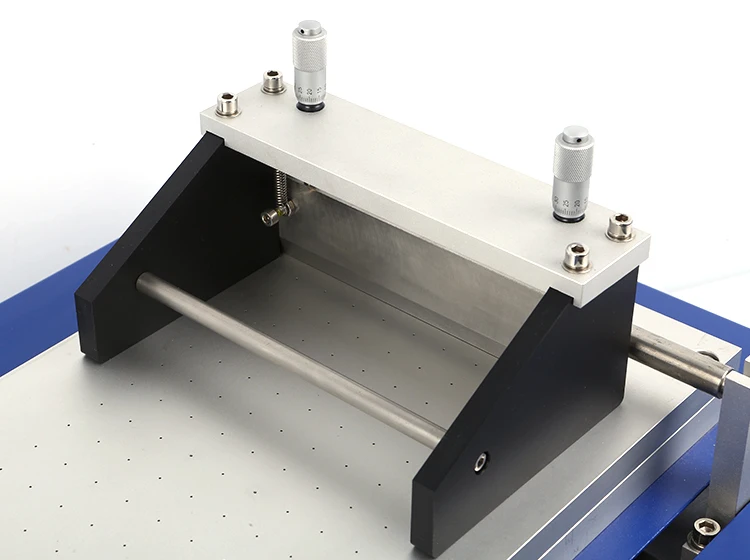

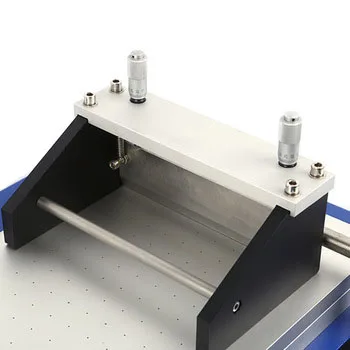

| Regulating range of applicator | 0.01~3.5mm |
| Power supply | 220V/50Hz |
| Weight | 50KG |
| Dimension | L550mm×W310mm×H3200mm |

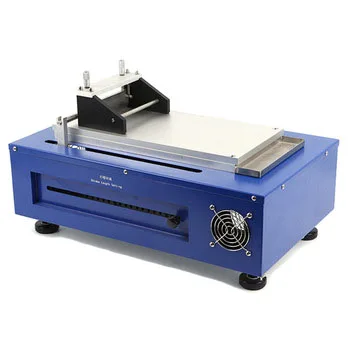

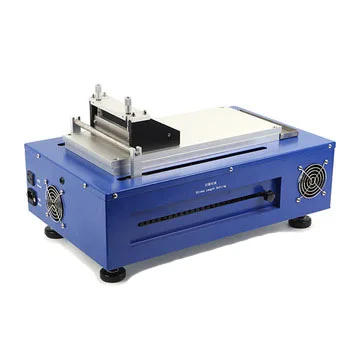

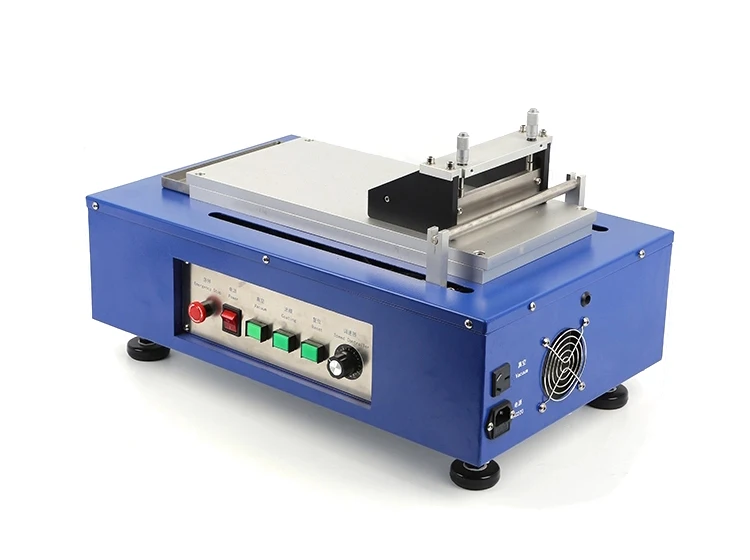

Product show




Features :
1. Coating speed is at the range of 0~100mm, adjustable.
2. Vacuum aluminum plate, used to place and take off the substrate in quick.

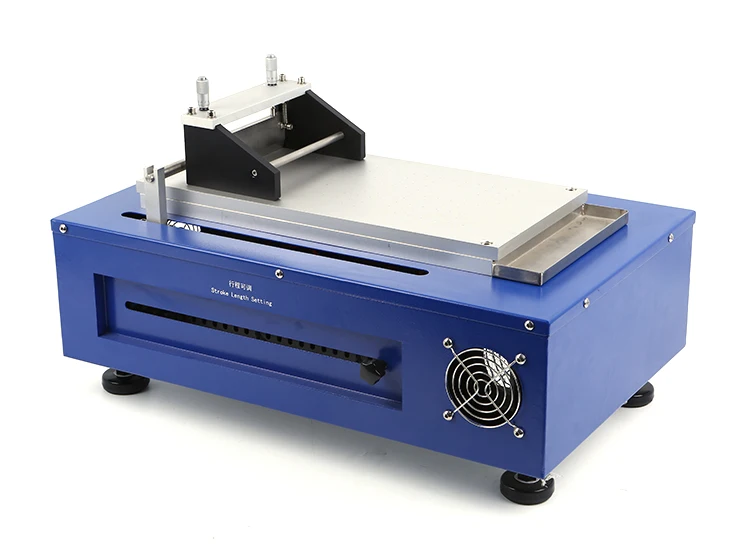

3. Stroke can be regulated by travel switch at the range of 0~300mm.
4. Accuracy of adjustable coater is 0.01mm.
5. Small dimension saves space.
Application :
Battery lab
Battery research
Lithium ion battery lab
Material research
Trial-production





1.Are you a manufacturer ?
A: Yes, our factory located in Shenzhen China,
We have more than 9 years experience for producing battery equipment.
We have our own designing and production department.
2.What certificate of your product have ?
A : Our products reaches CE certification.
3.Do you accept customized product ?
A : Yes.
4.Do you offer training service for users ?
A : Yes, we have video to show users how to use it.
5.Can you offer overseas installation service ?
A : Yes, we can.
