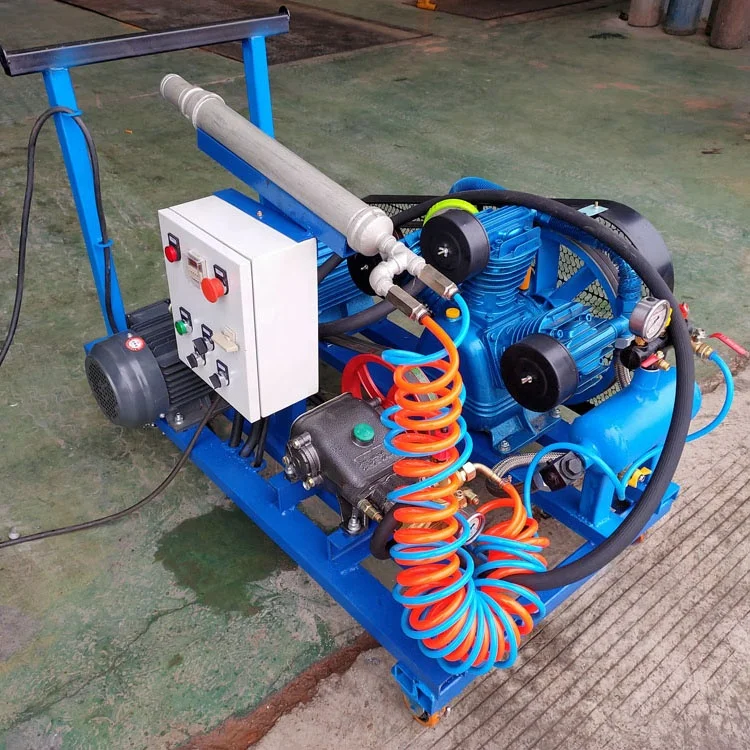

New style large capacity foam generator for lightweight foam concrete
- Category: >>>
- Supplier: Zhengzhou Anjit New Equipment Co. Ltd.
Share on (62317740612):
Product Overview
Description
Product Description

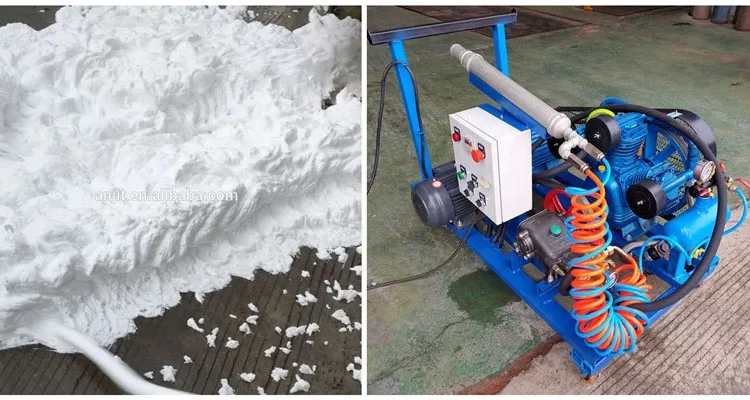

Foam Generator
Foam generator takes an important part in the CLC production plant.
Composition

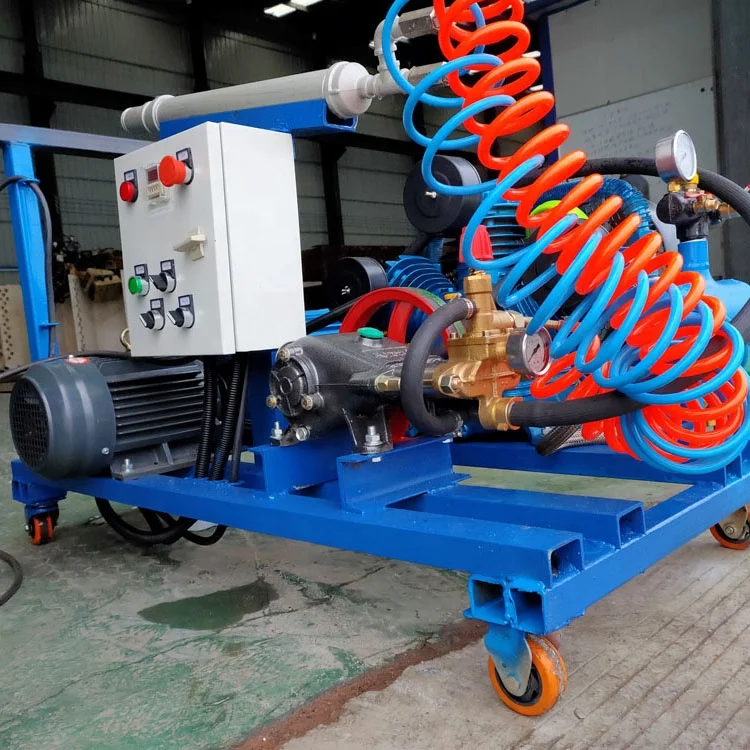

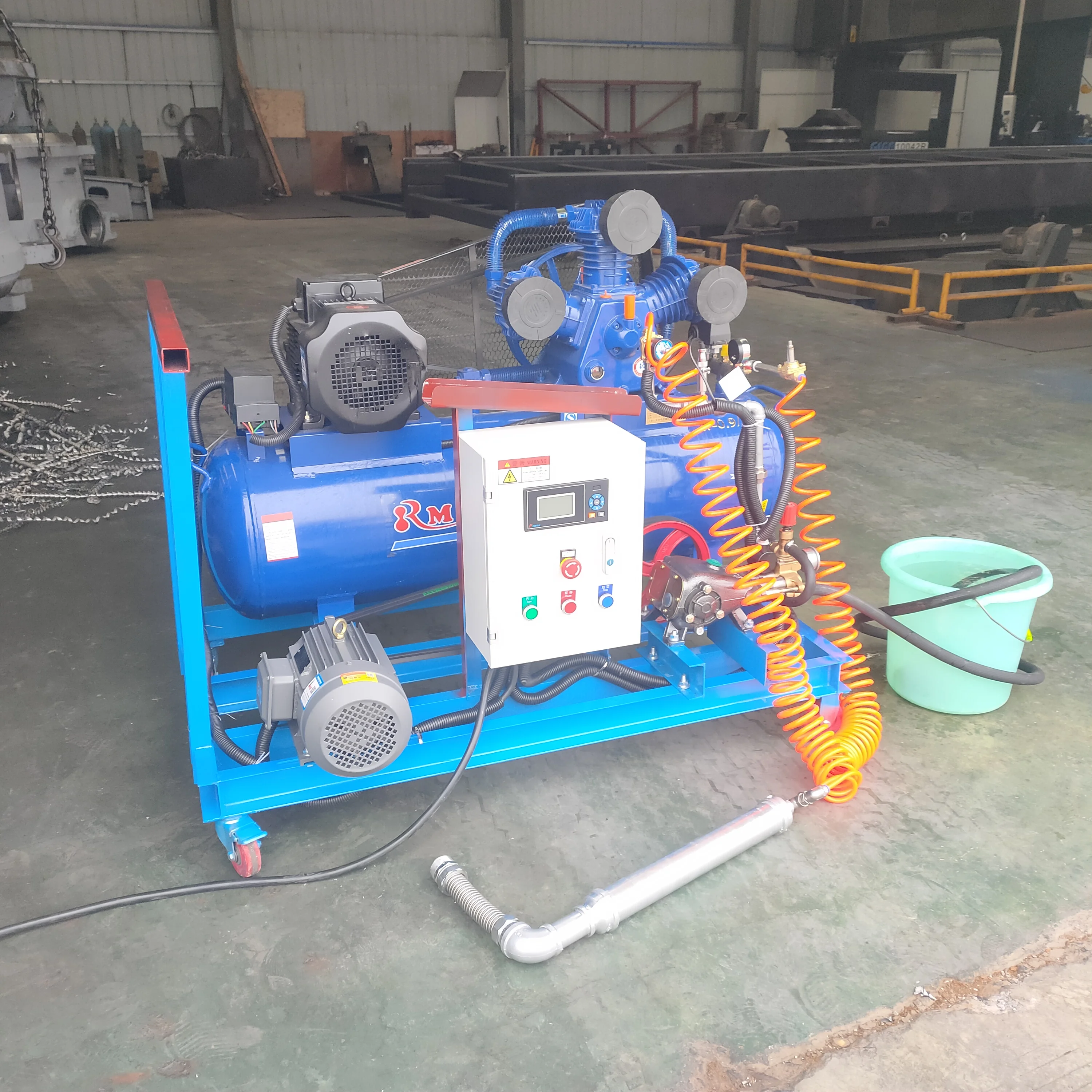

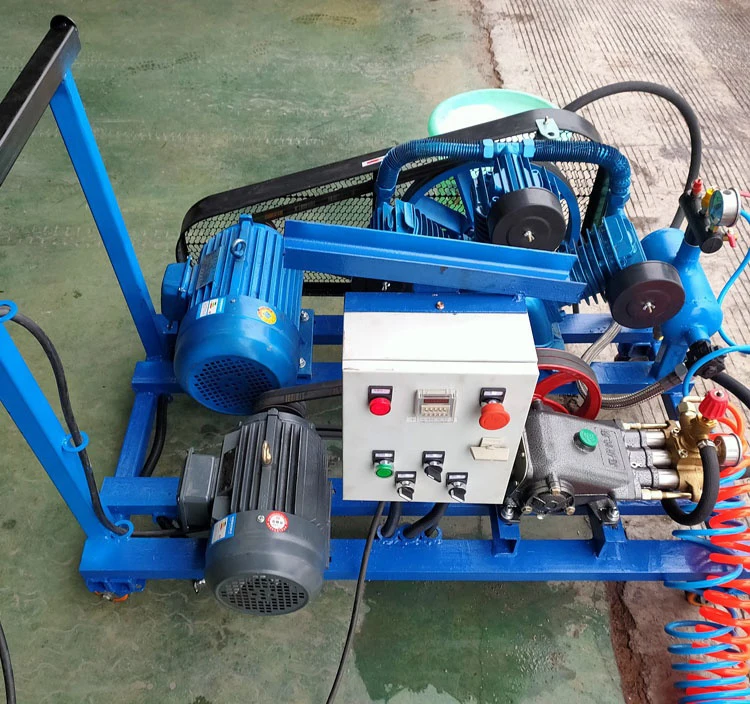

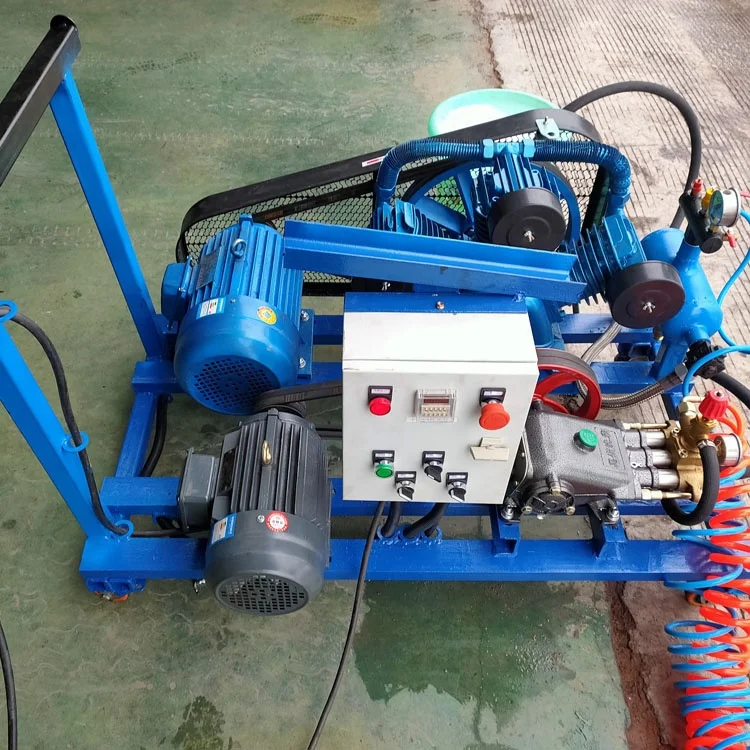

Model GYC1.2 Foam generator is mainly composed of 7 members:

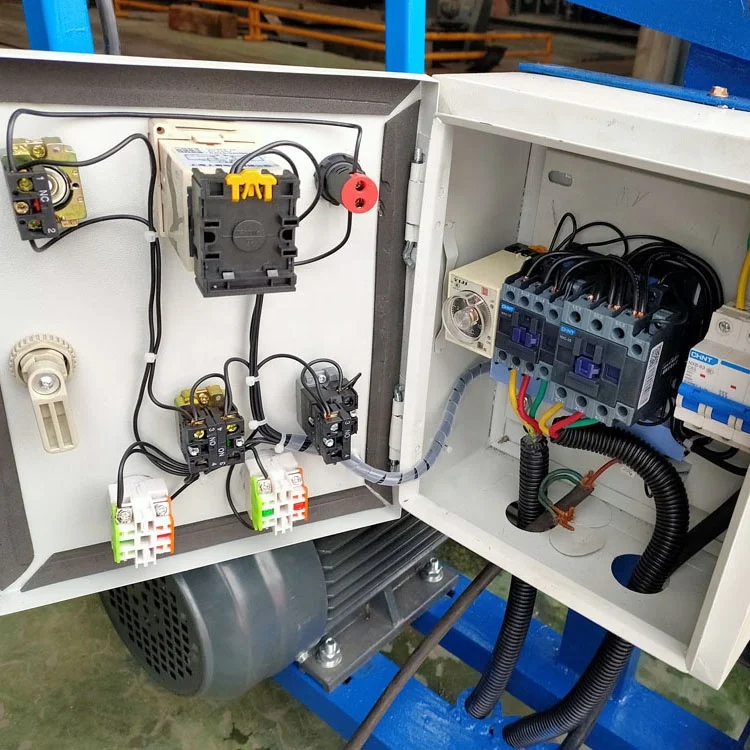

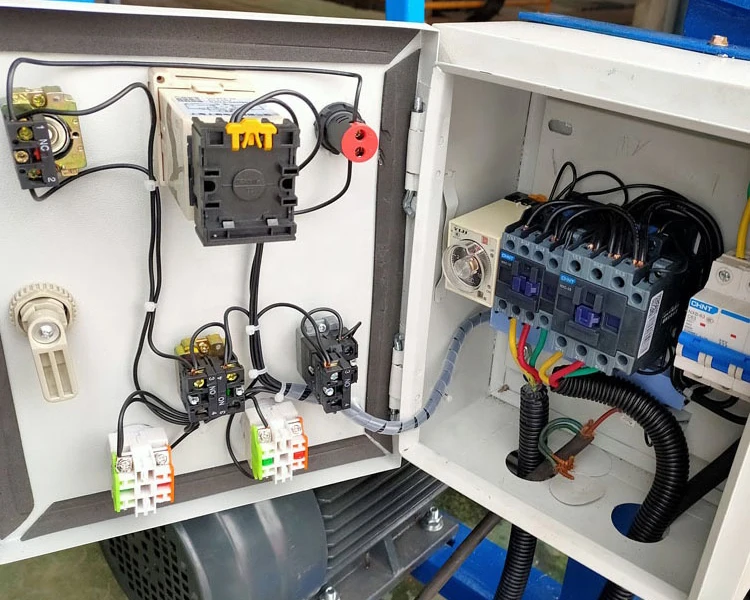

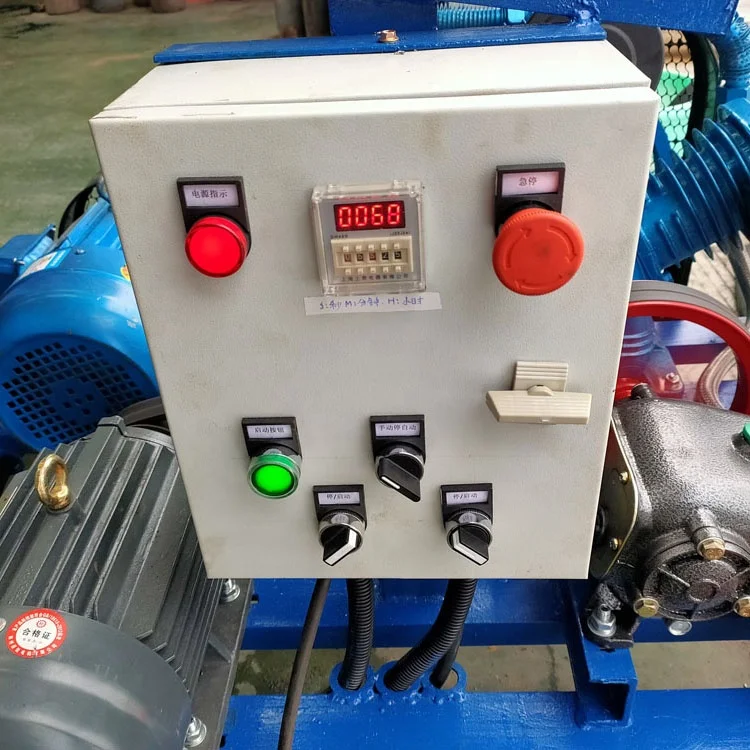

Steel Frame with wheels, Foam Pump, Air Compressor, Foam Generated Gun, water rubber pipe with filter, pressure pipes for air and foaming agent, and control panel.
How does it work?
GYC1.2 foam generator machine blows foaming agent dilusion to sufficient cell foams, mixed into cement mortar in the mixer, then getting foam concrete slurry/pulp, pouring the slurry or pulp into different moulds, finally getting different products in
accordance with your needs.
accordance with your needs.

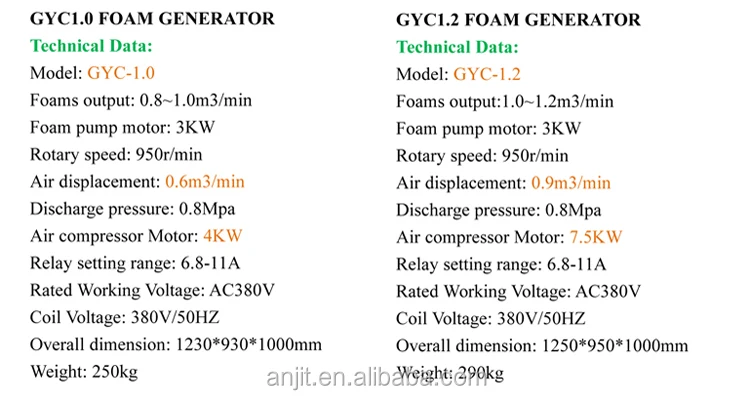

Specification
Name | Foam Generator |
Model | GYC1.2 |
Foams output | 1.0~1.2cbm/min |
Foam motor and Air compressor motor | 3kw+7.5kw |
Customs
1- Motor
2- Logo
3- Colour
4- Packing

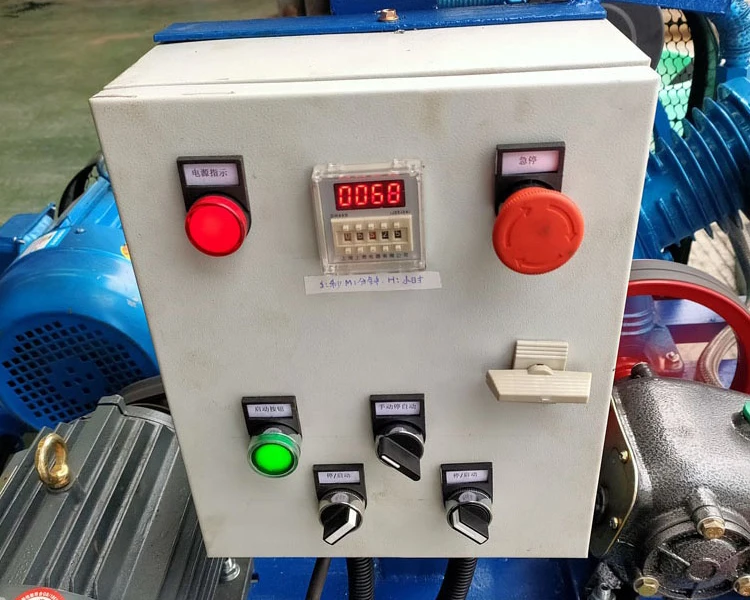

5- Digital timer

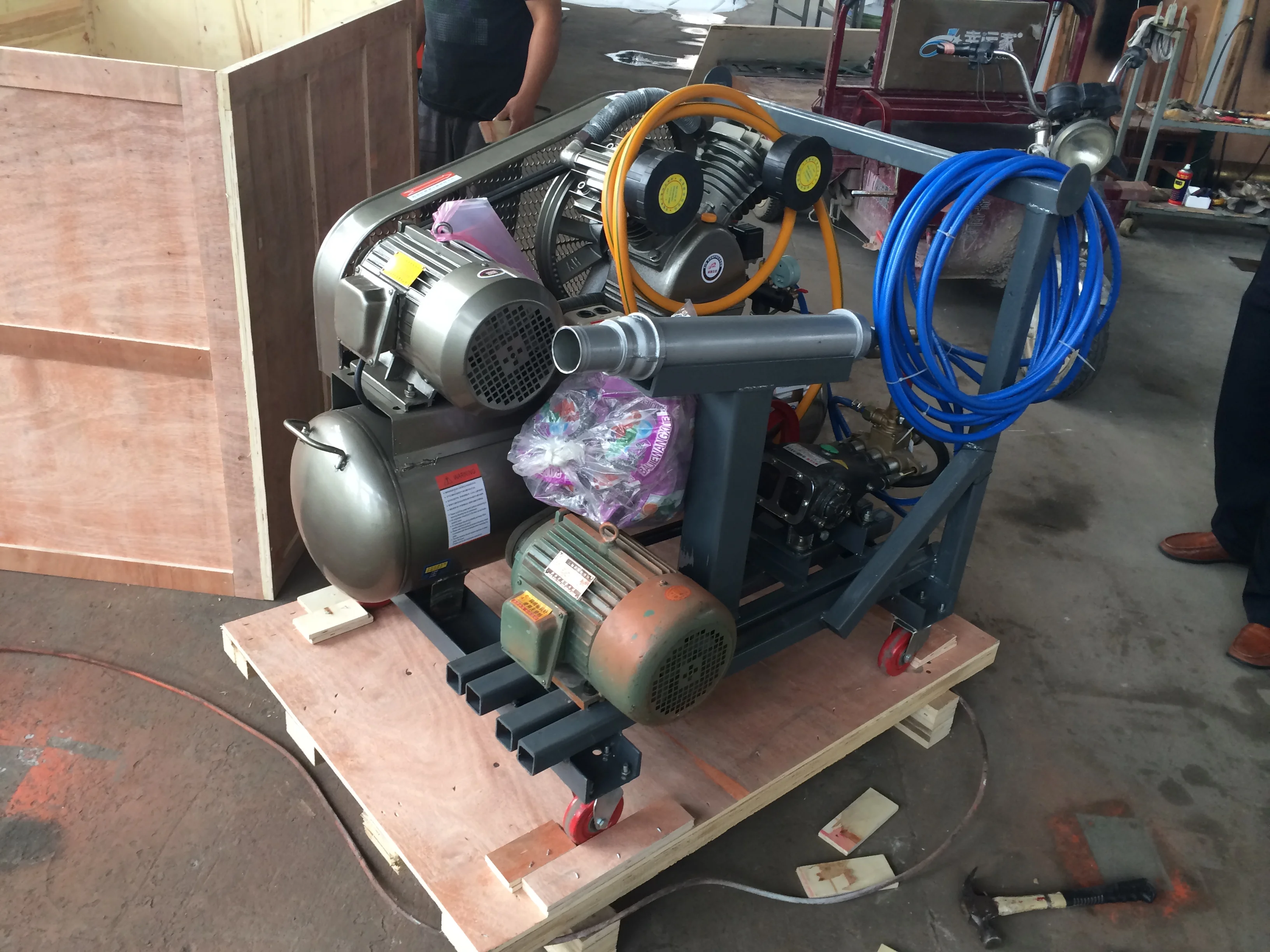

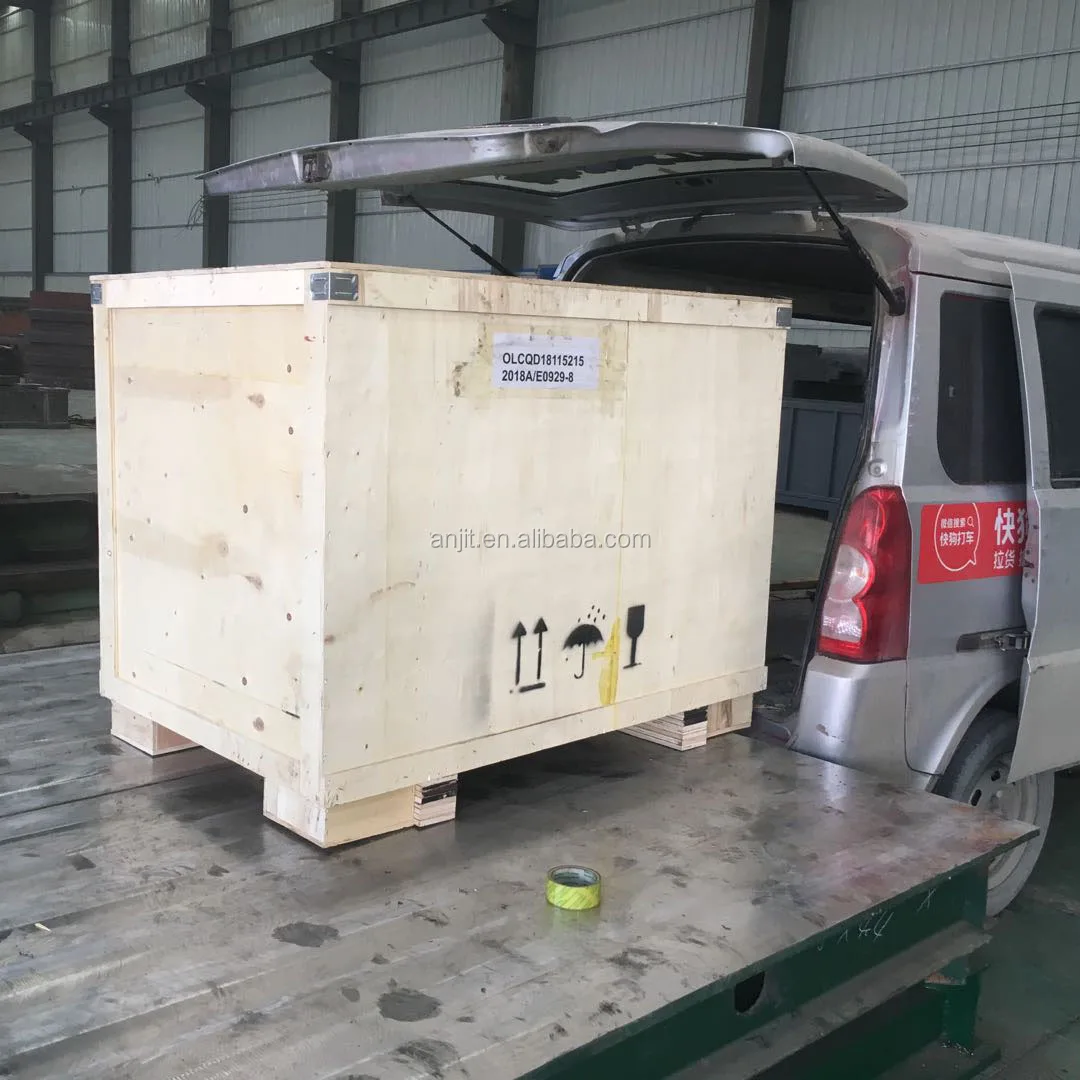

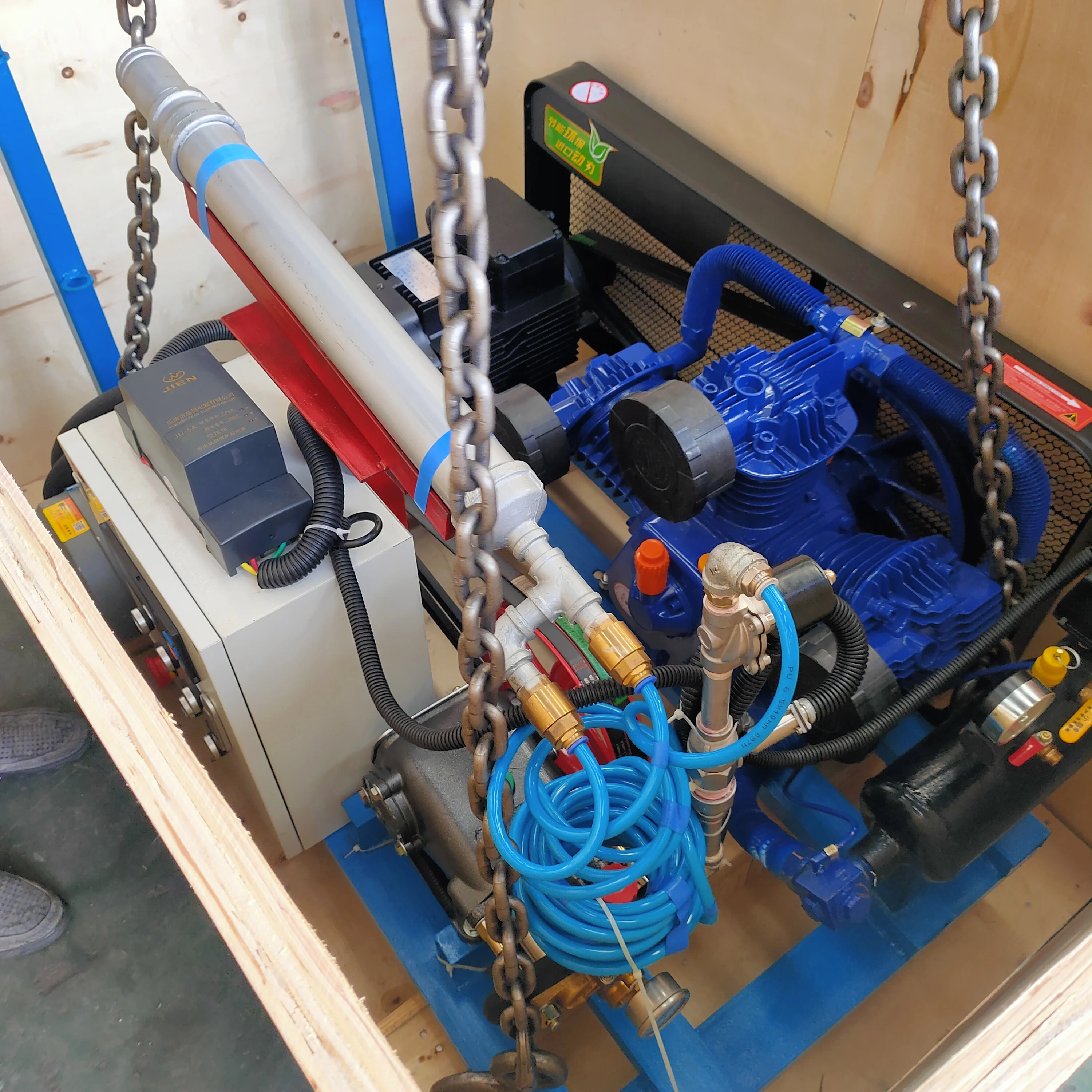

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
* Electric type and diesel type can be customed?
Yes
* Does foam generator itself directly produce foam concrete products?

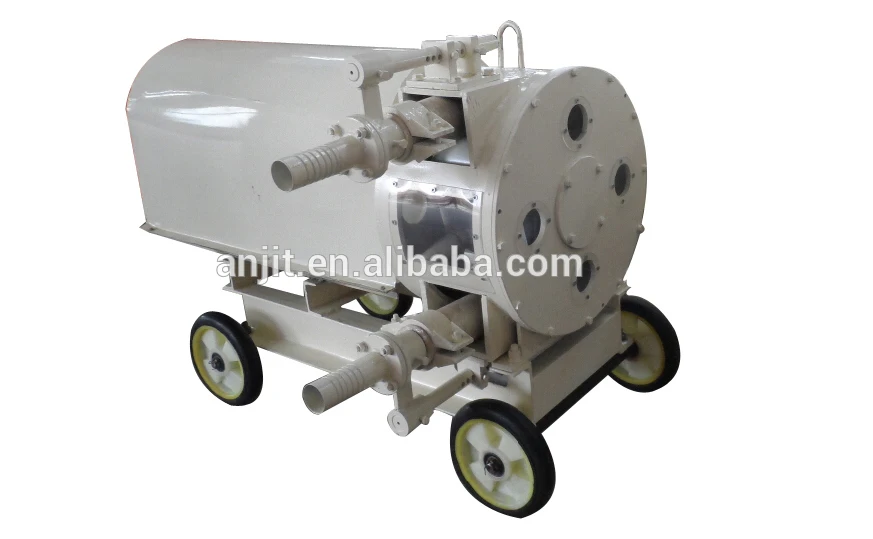

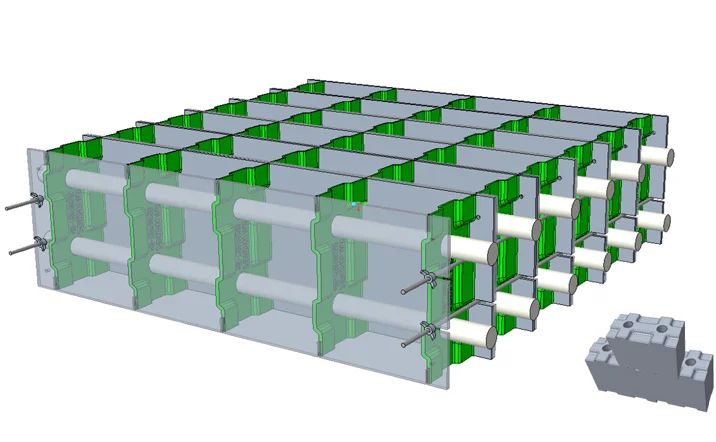

No, itself only used to generate foams, other accessary machines mixer, conveying pump, moulds etc.
* What's the ratio of the water and foaming agent?
Fresh water: foaming agent= 1:35
* How many liters of foaming agent to make 1cubic foam concrete products?
It will take about 0.5~1.2liter foaming agent to make 1cubic foam concrete products with different density 400kg/m3~1200kg/m3.
